Technical Specifications

FAQ

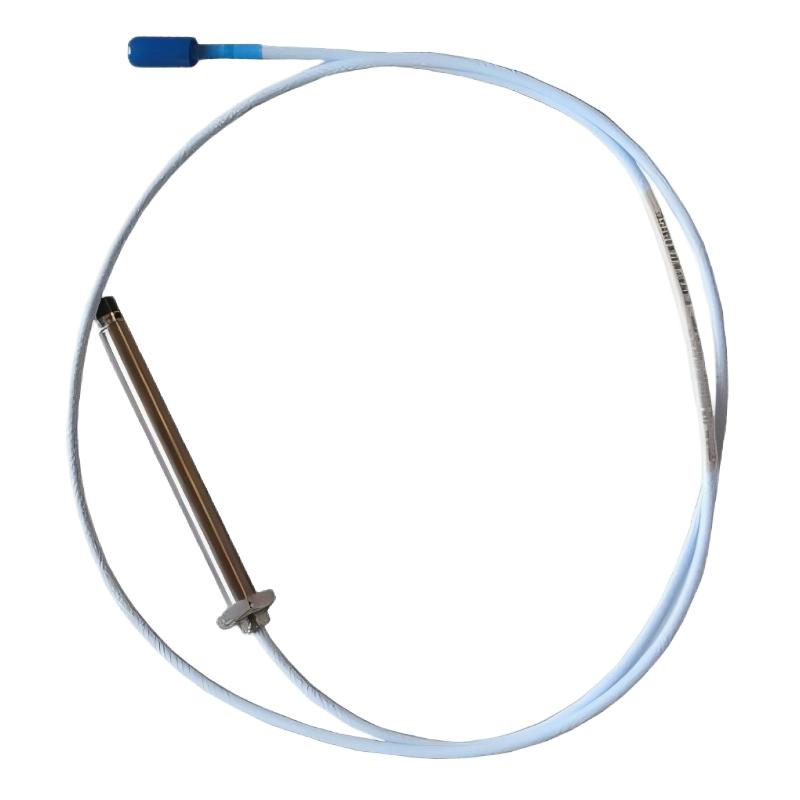

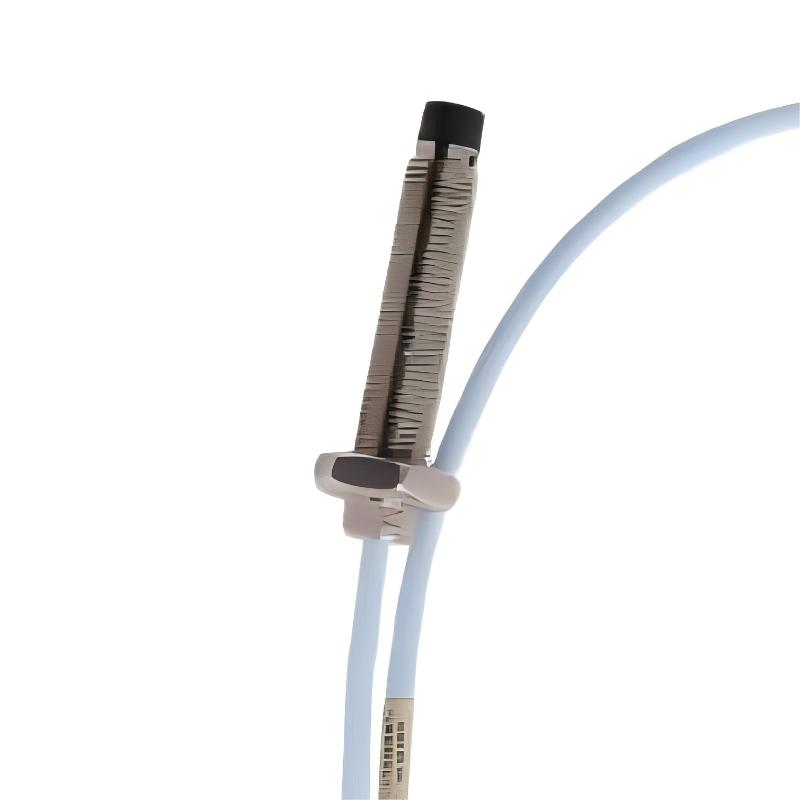

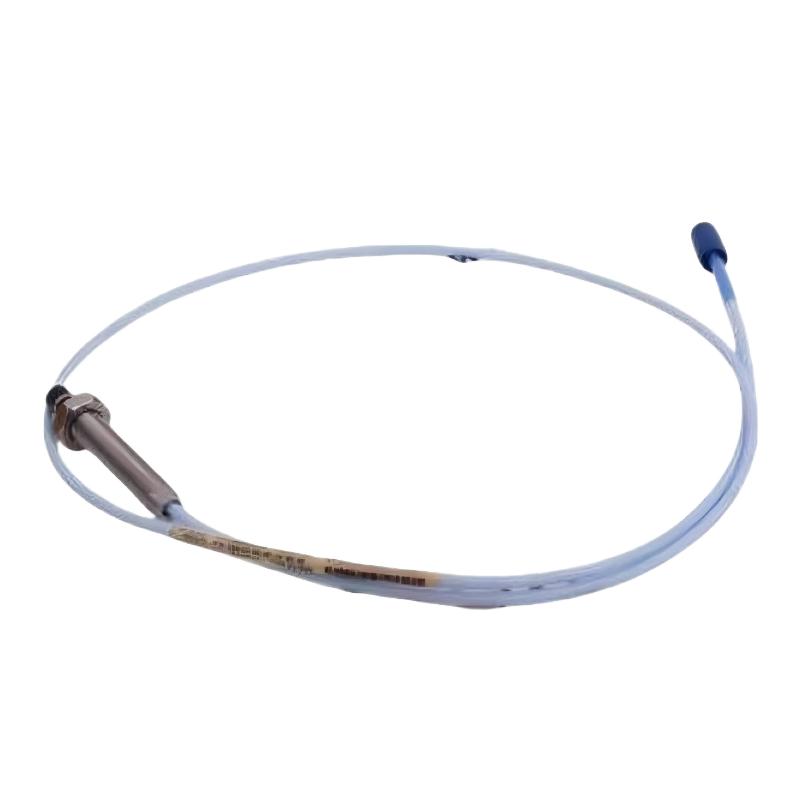

Q1: What is the main function of this 3300 XL 11 mm proximity probe?
A: This probe is designed to measure the small gap between its tip and a rotating conductive shaft using eddy current technology. In operation, it continuously converts microscopic changes in this gap into an electrical signal that represents shaft vibration and position. This data is essential in turbomachinery such as turbines, compressors, and pumps because it allows operators to detect abnormal mechanical behavior at an early stage. Instead of waiting for visible failure symptoms, the probe provides continuous real-time monitoring of rotor dynamics, which is critical for preventing equipment damage and unplanned shutdowns.

Q2: How does the eddy current measurement principle work in practice?
A: The probe generates a high-frequency electromagnetic field at its sensing face. When a conductive shaft enters this field, eddy currents are induced on the surface of the metal. These currents modify the impedance of the internal coil in the probe. The system translates this impedance change into a calibrated voltage output proportional to the distance between probe and shaft. Because there is no physical contact, the system avoids mechanical wear and can operate reliably in high-speed, high-temperature, and high-vibration environments where traditional sensors would fail.

Q3: What kinds of industrial equipment typically rely on this probe?
A: This probe is widely deployed in critical rotating equipment where continuous condition monitoring is required. Common applications include steam turbines in power generation plants, gas turbines in energy systems, centrifugal compressors in oil and gas processing, large industrial pump systems, and generator sets. These machines operate under heavy load and continuous duty cycles, meaning even small deviations in shaft movement can escalate into severe mechanical damage if not detected early.

Q4: Why is correct installation critical for reliable measurements?
A: Installation accuracy directly affects measurement quality and system stability. The probe must be positioned within a defined linear range relative to the shaft surface; otherwise, the output signal may become nonlinear or unstable. In addition, the probe must be mechanically rigid to prevent external vibration from influencing readings. Proper alignment ensures that the sensor only captures true shaft motion rather than structural noise. In long-term operation, poor installation is one of the most common causes of false alarms or degraded measurement accuracy.

Q5: What role does the proximitor module play in the system?
A: The proximitor module is an essential part of the measurement chain. The probe itself only generates a raw signal based on electromagnetic interaction. The proximitor provides excitation power, processes the raw signal, and converts it into standardized engineering units such as displacement or vibration amplitude. It also ensures signal linearization and stability across operating conditions. Without the proximitor, the probe cannot function as a usable measurement system, since it would only output an unprocessed analog response.

Q6: What types of mechanical faults can this probe detect?
A: This probe is capable of detecting a wide range of mechanical abnormalities in rotating machinery. These include rotor imbalance, shaft misalignment, bearing wear, shaft bowing, mechanical looseness, oil film instability, and rub conditions between rotating and stationary components. Because it continuously monitors shaft motion in real time, it can identify early warning patterns long before visible damage occurs. This makes it an important tool in predictive maintenance strategies, reducing both downtime and repair costs.

Q7: How do temperature and operating conditions influence performance?
A: Environmental and operating conditions can influence both electrical signal behavior and mechanical stability. High temperatures may affect cable resistance and signal consistency, while thermal expansion of machine components can slightly change the probe-to-shaft gap. Additionally, high-vibration environments require robust mounting to maintain measurement stability. Proper engineering design, including thermal considerations and secure installation practices, ensures that the probe maintains accurate performance across a wide range of industrial operating conditions.

Q8: What maintenance practices are recommended for long-term reliability?
A: Although the probe is designed for long-term industrial use with minimal maintenance, periodic inspection is still important. Technicians should verify that the probe remains securely mounted and correctly aligned with the shaft. Cable routing and insulation should be inspected for wear, oil exposure, or mechanical damage. During scheduled shutdowns, calibration verification may be performed to confirm measurement accuracy. Maintaining a stable installation environment and avoiding mechanical stress on the probe assembly are key factors in ensuring long-term reliability and consistent monitoring performance.
