1. What is the primary purpose of this proximity probe in rotating machinery monitoring?

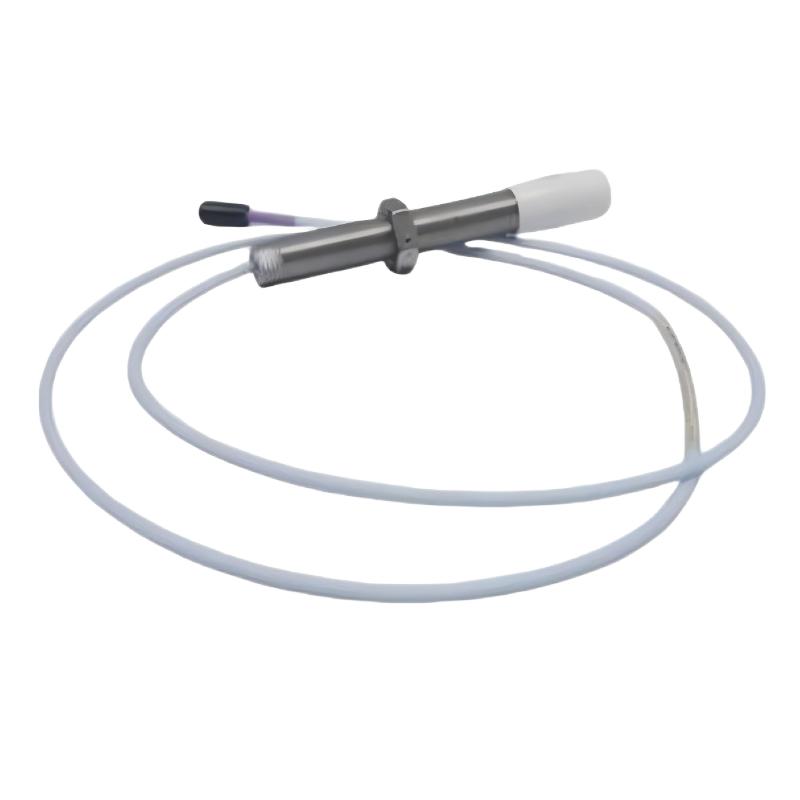

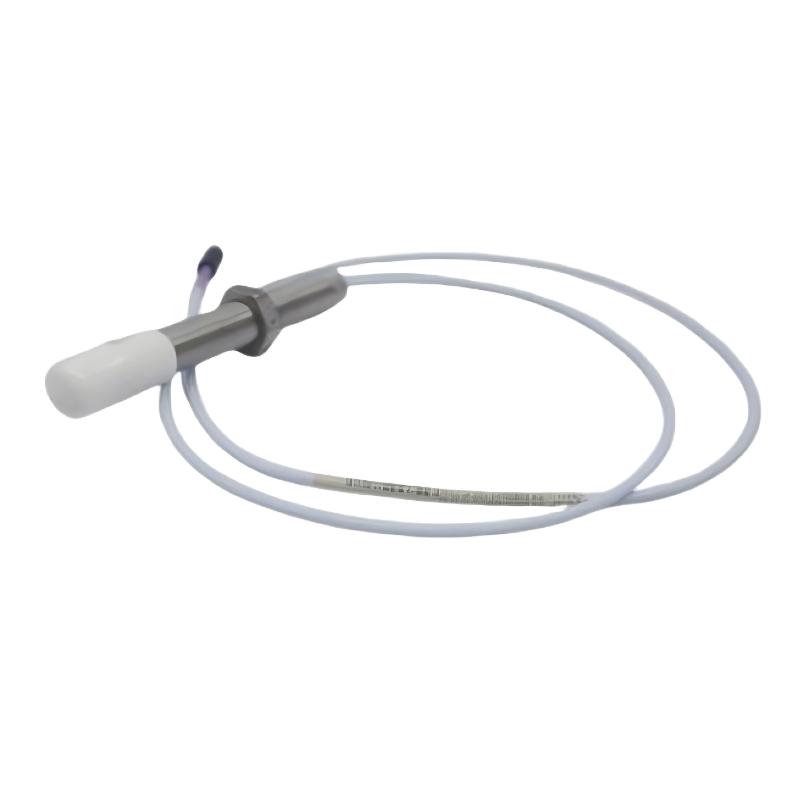

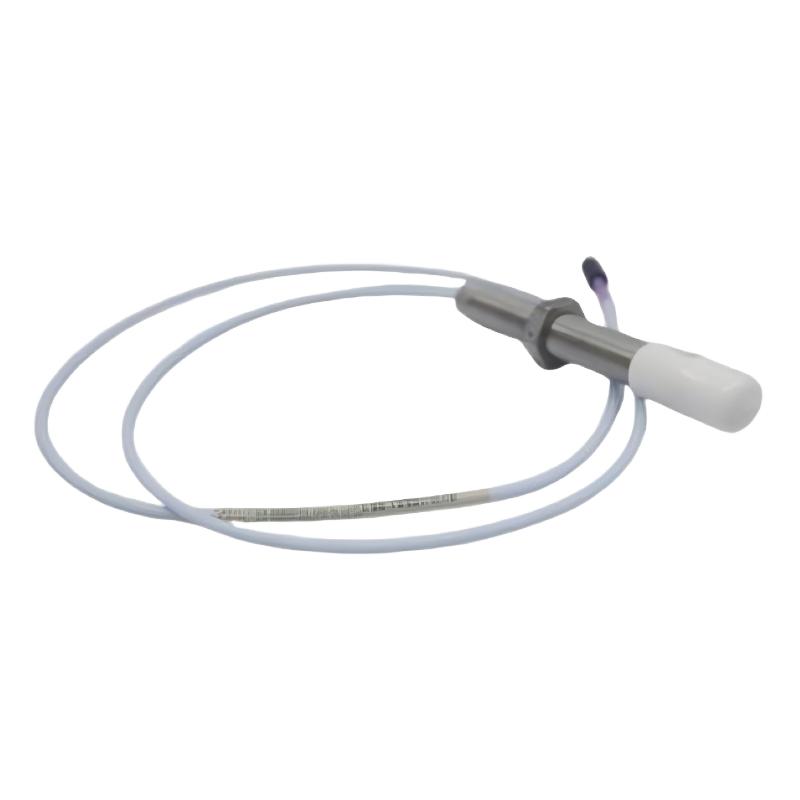

This proximity probe is used to measure the relative displacement between a rotating shaft and the probe tip using eddy current technology. The system continuously converts changes in the electromagnetic field into an electrical signal that represents shaft vibration, axial movement, and position variation. In industrial rotating equipment such as turbines, compressors, and generators, this measurement is essential for evaluating machine health. It allows operators to detect early signs of mechanical issues such as imbalance, misalignment, shaft instability, or bearing wear. By providing continuous real-time data, the probe supports condition monitoring and protection systems, enabling predictive maintenance strategies and reducing the risk of unexpected equipment failure.

2. Why is eddy current non-contact measurement preferred in industrial environments?

Eddy current non-contact measurement is widely adopted because it eliminates physical contact between the sensor and the rotating shaft, which is critical in high-speed machinery. Contact-based sensors would introduce friction, wear, and mechanical stress, which can reduce both measurement accuracy and equipment lifespan. In contrast, eddy current probes operate through electromagnetic induction, allowing stable and reliable performance even under extreme rotational speeds. This method also provides excellent dynamic response, enabling accurate detection of high-frequency vibration and transient mechanical events. These characteristics make it particularly suitable for harsh industrial environments where long-term reliability and continuous monitoring are required.

3. What installation factors most strongly influence measurement accuracy?

Measurement accuracy depends heavily on correct installation practices, especially probe alignment, gap stability, and surface conditions. The probe must operate within its calibrated linear range; otherwise, signal distortion or nonlinear output may occur. Proper alignment is essential, as the probe should be positioned perpendicular to the shaft surface to ensure consistent electromagnetic coupling. The material properties of the shaft, including conductivity, surface finish, and any protective coatings, can also influence measurement behavior. In addition, mechanical stability of the mounting structure is critical, because vibration or loosening over time can introduce drift or inconsistent readings. Careful installation and calibration are necessary to ensure reliable long-term performance.

4. What are the common causes of unstable or noisy signals?

Unstable or noisy signals typically result from a combination of electrical interference, mechanical variation, and connection issues. Poor shielding or improper grounding of the extension cable can allow electromagnetic noise to enter the signal path, causing fluctuations or distortion. Loose or corroded connectors may introduce intermittent resistance changes, resulting in unstable output behavior. On the mechanical side, shaft instability, lubrication film variations, or unexpected operating conditions can influence the eddy current field and generate signal noise. Temperature changes may also cause slight thermal expansion, which alters the probe gap and contributes to signal drift. A complete troubleshooting approach must consider both electrical and mechanical factors together.

5. How can long-term measurement stability be maintained?

Long-term stability depends on correct installation, stable electrical conditions, and routine monitoring. The probe must remain securely mounted to prevent movement caused by vibration or thermal expansion. Cable shielding must remain intact and properly grounded to minimize electromagnetic interference. It is also important to keep the probe tip clean and free from oil, dust, or debris, as contamination can affect signal consistency. Periodic monitoring of baseline signal trends helps detect gradual drift or degradation in system performance. Maintaining stable environmental conditions, especially temperature control around the installation area, further helps reduce long-term measurement variation.

6. Is recalibration required after replacing the probe?

Yes, recalibration is strongly recommended after replacing a proximity probe, even if it is the same model. Each probe has slight variations in electrical characteristics, and the measurement system depends on precise calibration of the entire signal chain, including the probe, extension cable, and proximitor. After replacement, the system must be verified for correct gap voltage, linear response behavior, and overall signal stability. Recalibration ensures that vibration and displacement readings remain consistent with historical data, which is essential for reliable trend analysis and condition monitoring in industrial machinery applications.

7. How do cable and connection issues affect system performance?

Cable and connection integrity is critical because the system relies on very small voltage variations for accurate measurement. Any damage to insulation, shielding, or grounding can introduce electromagnetic interference, resulting in noisy or unstable signals. Loose connectors may cause intermittent contact resistance changes, leading to signal dropouts or erratic readings. In severe cases, signal attenuation can reduce system sensitivity, making it difficult to detect small but important vibration changes. Because of this sensitivity, even minor electrical issues can significantly impact measurement reliability. Proper installation practices, secure connections, and continuous shielding are essential for stable system performance.

8. What are the key maintenance practices for proximity probe systems?

Key maintenance practices focus on ensuring mechanical stability, electrical integrity, and long-term signal quality. Regular inspection of probe mounting hardware is necessary to confirm that the probe has not shifted due to vibration or thermal stress. Cable routing should be checked for physical damage, excessive bending, or exposure to harsh industrial conditions such as heat, oil, or moisture. Grounding systems must be verified to maintain low-resistance and stable reference conditions. Monitoring system trend data is also important for detecting slow degradation or abnormal behavior. In demanding environments, additional protective measures may be required to maintain measurement accuracy and ensure long-term reliability.
