FAQ

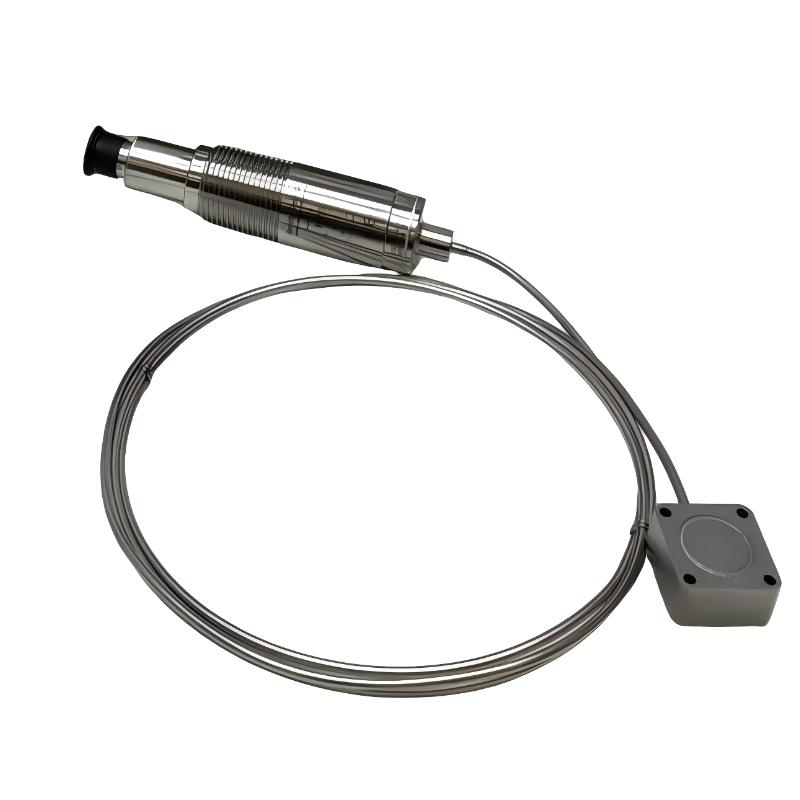

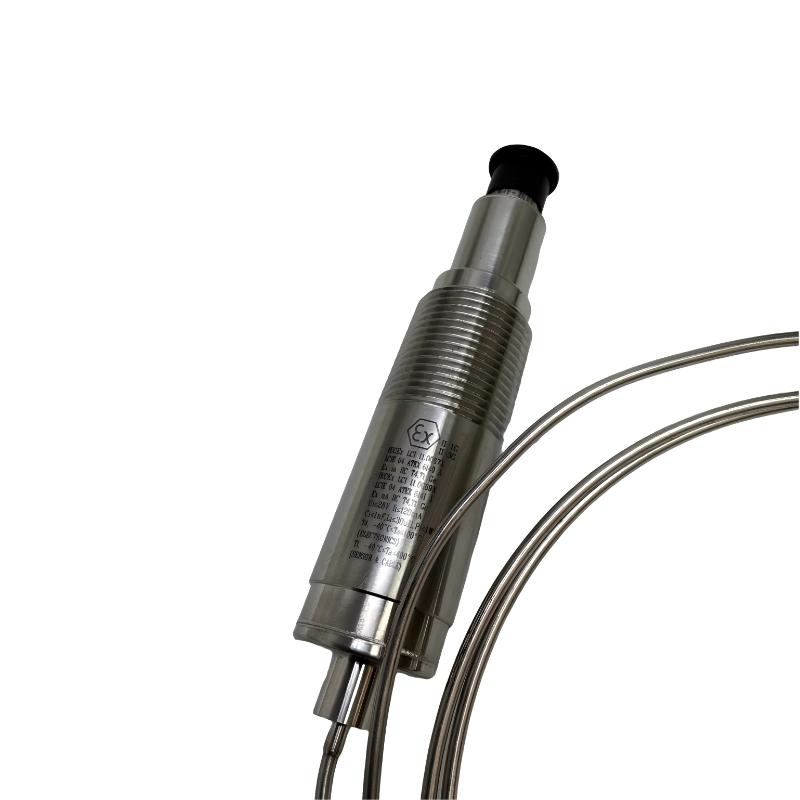

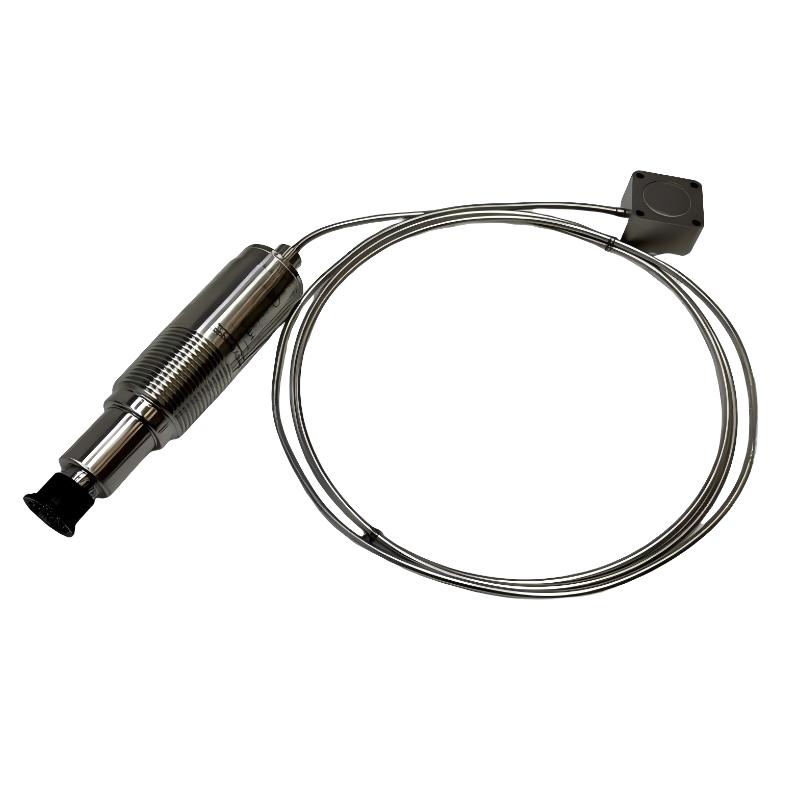

Q1: What is the primary function of the Bently Nevada 330750-40-05 High-Temperature Speed Sensor?

A: The primary function of this sensor is to provide accurate real-time rotational speed measurement for industrial machinery operating in high-temperature environments. It detects the passage of ferromagnetic targets such as gear teeth or keyphasor marks and converts these mechanical events into electrical pulse signals. These pulses are then interpreted by a monitoring system to calculate rotational speed continuously. This data is critical for controlling machine operation, ensuring stable performance, and preventing unsafe conditions such as overspeed. In industrial applications, this sensor acts as a key safety component in protecting high-value rotating equipment.

Q2: How does the sensing principle of this device work?

A: The sensor operates based on electromagnetic induction. When a ferromagnetic object, such as a gear tooth, passes through the sensor’s magnetic field, it disturbs the field pattern and causes a measurable electrical change. Each disturbance corresponds to a single pulse output. By counting the number of pulses over a specific time interval, the system calculates rotational speed with high accuracy. This non-contact method eliminates mechanical wear and allows reliable operation even in high-speed and high-temperature environments.

Q3: Why is high-temperature capability important for this sensor?

A: In many industrial environments such as turbines and engine systems, sensors are exposed to extreme heat due to proximity to combustion or high-friction components. Standard sensors may suffer from insulation breakdown, signal drift, or mechanical degradation under such conditions. This model is specifically engineered with high-temperature-resistant materials and structural reinforcement, allowing it to maintain stable electromagnetic performance and signal integrity even under prolonged thermal stress. This ensures reliable operation in critical applications where failure is not acceptable.

Q4: What types of equipment typically use this sensor?

A: This sensor is commonly used in high-speed rotating machinery such as gas turbines, steam turbines, centrifugal compressors, industrial generators, large pumps, and engine-driven systems. These machines require precise speed monitoring to maintain operational stability and prevent mechanical damage. Because they often operate under harsh thermal and mechanical conditions, a robust and reliable speed sensor is essential for safe and efficient operation.

Q5: How should the sensor be installed for optimal performance?

A: The sensor must be installed in a fixed position close to the rotating target, such as a gear wheel or shaft-mounted reference mark. Proper alignment is critical to ensure that the sensor accurately detects each passing target without signal loss or distortion. The air gap between the sensor and target must be maintained within specified limits to ensure consistent signal amplitude. The mounting structure must be rigid to prevent vibration-induced displacement, which could affect measurement accuracy or cause intermittent signal behavior.

Q6: What factors can affect measurement accuracy?

A: Measurement accuracy can be influenced by several factors, including incorrect installation gap, misalignment between the sensor and target, damaged or uneven gear teeth, excessive vibration, and electromagnetic interference from nearby electrical equipment. Environmental factors such as temperature fluctuations and mechanical instability of the mounting structure can also impact signal stability. Proper installation practices and routine inspection are essential to ensure long-term accuracy and reliability.

Q7: What role does this sensor play in machinery protection systems?

A: In protection systems, this sensor provides continuous real-time speed feedback that is used to detect abnormal operating conditions such as overspeed, rapid acceleration, or unstable rotational behavior. When abnormal conditions are detected, the system can trigger alarms or initiate automatic shutdown procedures to prevent mechanical failure. This makes the sensor an essential component in safeguarding high-speed rotating equipment and ensuring safe industrial operation.

Q8: In which industries is this sensor most commonly used?

A: The sensor is widely used in industries such as power generation, oil and gas processing, petrochemical refining, and heavy industrial manufacturing. It is particularly important in turbine systems, compressor stations, and other high-speed rotating equipment where precise speed control is critical. These industries rely on continuous monitoring to ensure operational safety, improve efficiency, and minimize the risk of costly unplanned downtime.
