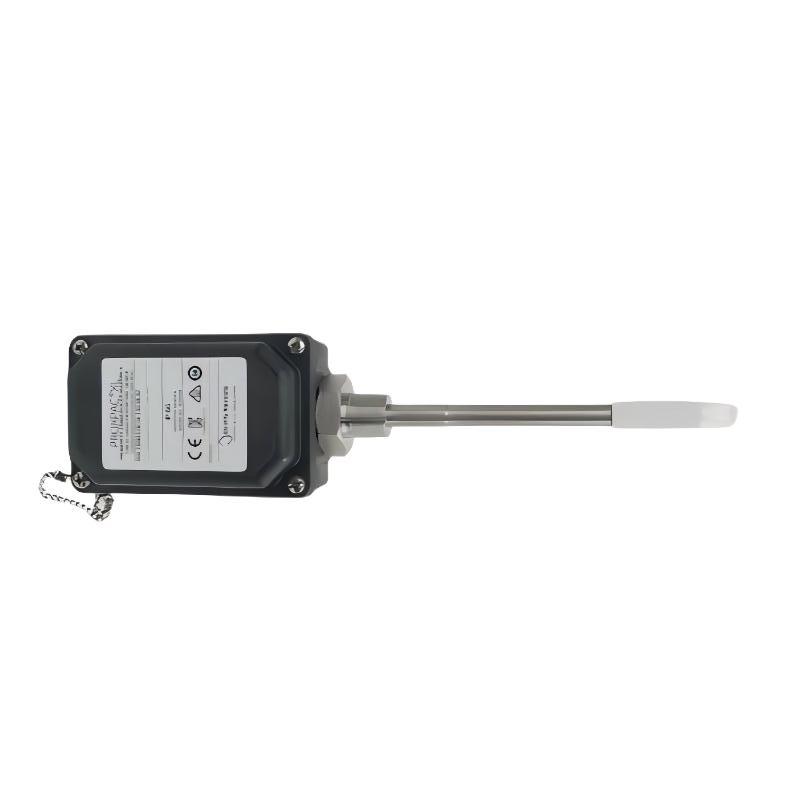

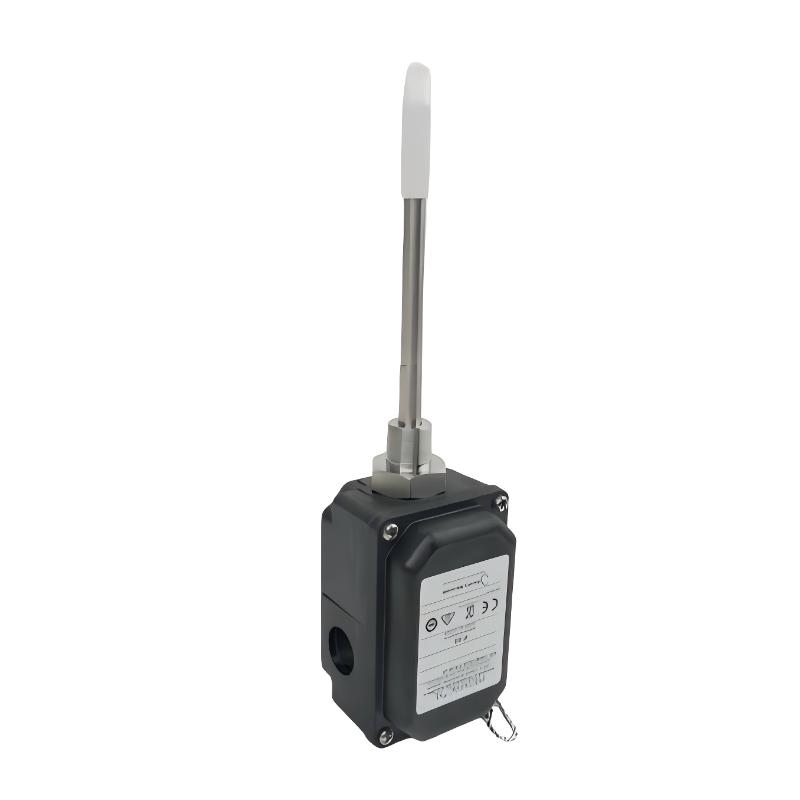

1. What are the main applications of the Bently Nevada 330801-28-04-165-03-02 PROXPAC XL Proximity Sensor?

The Bently Nevada 330801-28-04-165-03-02 PROXPAC XL Proximity Sensor is mainly designed for continuous condition monitoring of critical rotating machinery. It is commonly used in equipment such as steam turbines, gas turbines, compressors, pumps, generators, and large industrial motors where accurate shaft movement measurement is required. The sensor measures the distance between the probe tip and the rotating shaft surface, allowing monitoring systems to analyze shaft vibration, radial displacement, and axial position changes. In industrial applications, it helps detect early signs of mechanical problems including rotor imbalance, shaft misalignment, excessive vibration, and abnormal shaft movement. By providing continuous operating data, the sensor supports predictive maintenance programs, reduces unexpected equipment failures, and improves the reliability of important production assets.

2. How does the Bently Nevada 330801-28-04-165-03-02 proximity sensor measure shaft displacement?

The 330801-28-04-165-03-02 PROXPAC XL Proximity Sensor uses eddy current technology to perform non-contact displacement measurement. The sensor probe generates a high-frequency electromagnetic field near the rotating shaft surface. When the probe approaches a conductive metal target, eddy currents are created within the target material. The sensor detects changes in these currents and converts them into an electrical output signal that represents the distance between the probe and the shaft. As the shaft moves due to vibration, thermal expansion, or mechanical changes, the output signal changes accordingly. The connected monitoring system processes these signals to calculate vibration levels and shaft position. This measurement method avoids physical contact with moving parts, providing stable performance and long service life in demanding industrial environments.

3. What types of machinery faults can be detected by the 330801-28-04-165-03-02 sensor?

The Bently Nevada 330801-28-04-165-03-02 sensor is capable of detecting various mechanical abnormalities in rotating equipment. It is mainly used to monitor shaft vibration, displacement changes, and rotor position variations. The sensor can help identify problems such as rotor imbalance, shaft misalignment, mechanical looseness, bearing deterioration, excessive clearance, oil film instability, and abnormal shaft movement. For high-speed rotating equipment, small changes in shaft behavior can indicate developing mechanical issues. By continuously collecting accurate displacement signals, the sensor allows maintenance teams to analyze equipment operating trends and take corrective actions before serious failures occur. When connected to a Bently Nevada monitoring system, it provides valuable information for machine protection and predictive maintenance applications.

4. What installation considerations are important for the Bently Nevada 330801-28-04-165-03-02 sensor?

Correct installation of the 330801-28-04-165-03-02 proximity sensor is essential for accurate measurement and reliable operation. Before installation, technicians should ensure that the mounting area is clean and free from mechanical damage or contamination. The probe must be positioned with the correct gap between the sensor tip and the rotating shaft surface because improper spacing may result in inaccurate readings or unstable signals. The cable should be installed carefully to avoid excessive bending, mechanical stress, or interference from high-voltage electrical equipment. During commissioning, the output signal should be checked through the monitoring system to confirm stable operation. Proper installation procedures help maintain measurement accuracy and ensure reliable monitoring of rotating machinery under continuous operating conditions.

5. What are the common causes of unstable output signals from the 330801-28-04-165-03-02 sensor?

Unstable output signals from the 330801-28-04-165-03-02 proximity sensor may be caused by incorrect installation, wiring problems, electromagnetic interference, or changes in operating conditions. One of the most common causes is an incorrect probe gap, which can affect the accuracy of displacement measurement. Damaged cables, loose terminals, poor grounding, or incorrect system configuration may also lead to signal fluctuations. In industrial environments, nearby motors, power converters, and high-voltage equipment can create electrical interference that affects signal quality. Troubleshooting should include checking the sensor installation condition, cable connections, monitoring parameters, and actual machine operating status. A systematic inspection can help determine whether the issue is caused by the sensor system or by changes in the monitored machinery.

6. Can the Bently Nevada 330801-28-04-165-03-02 be used for predictive maintenance applications?

Yes, the 330801-28-04-165-03-02 PROXPAC XL Proximity Sensor is widely suitable for predictive maintenance applications. The sensor continuously provides shaft vibration and displacement data, which allows maintenance personnel to evaluate equipment health and identify abnormal trends. In predictive maintenance systems, historical vibration data can be analyzed to detect early signs of mechanical degradation, such as increasing shaft movement, rotor problems, or abnormal operating conditions. For critical machinery in industries such as power generation, oil and gas, and petrochemical production, early detection of mechanical issues can prevent unexpected shutdowns and expensive repairs. When combined with Bently Nevada monitoring systems, the sensor supports advanced machine diagnostics, alarm management, and condition-based maintenance strategies.

7. What should be checked when replacing an existing proximity sensor with the 330801-28-04-165-03-02 model?

When replacing an existing proximity sensor with the 330801-28-04-165-03-02 model, compatibility with the existing monitoring system should be confirmed before installation. Technicians should verify the sensor electrical characteristics, output signal requirements, measurement range, and system configuration. The physical installation position and probe alignment should remain consistent with the original setup to avoid measurement errors. During replacement, the condition of cables, connectors, and mounting components should also be inspected to prevent future failures. After installation, the monitoring system should be checked to confirm that the sensor output is stable and accurate. Proper replacement procedures ensure continuous machine protection and reliable condition monitoring performance.

8. How can the reliability and service life of the Bently Nevada 330801-28-04-165-03-02 sensor be improved?

To improve the reliability and service life of the 330801-28-04-165-03-02 PROXPAC XL Proximity Sensor, proper installation, regular inspection, and preventive maintenance are important. The sensor should be protected from unnecessary mechanical impact, excessive vibration, moisture, dust, and corrosive environments. Regular maintenance should include checking cable conditions, verifying signal stability, inspecting mounting conditions, and reviewing monitoring system data. It is also important to maintain correct sensor configuration and operating parameters to ensure accurate measurement performance. By analyzing vibration trends and responding to abnormal conditions early, potential equipment problems can be addressed before affecting sensor operation. With proper maintenance practices, the sensor can provide stable measurement performance and long-term protection for critical rotating machinery.
