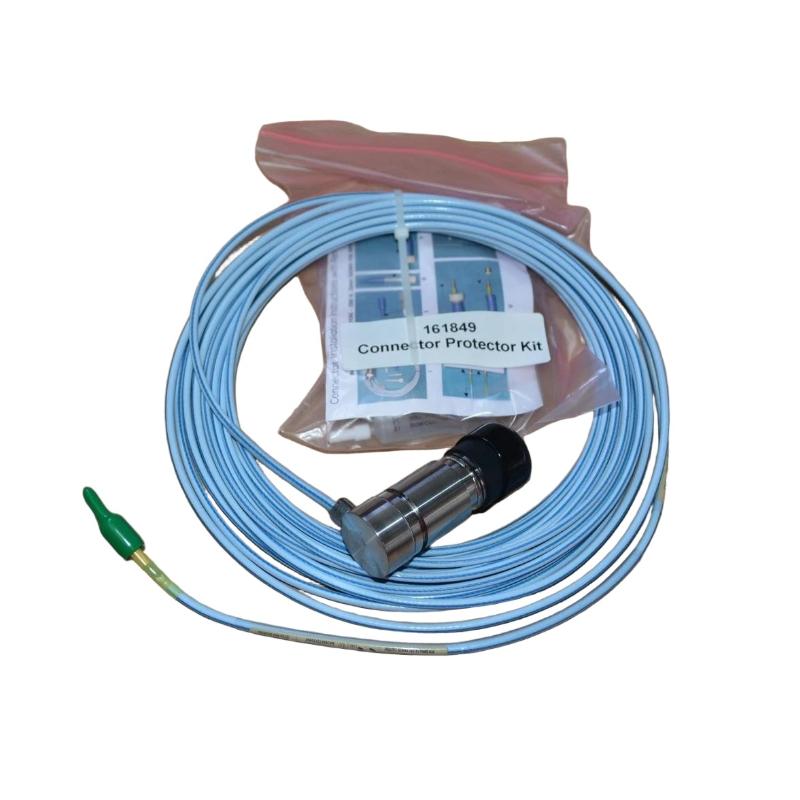

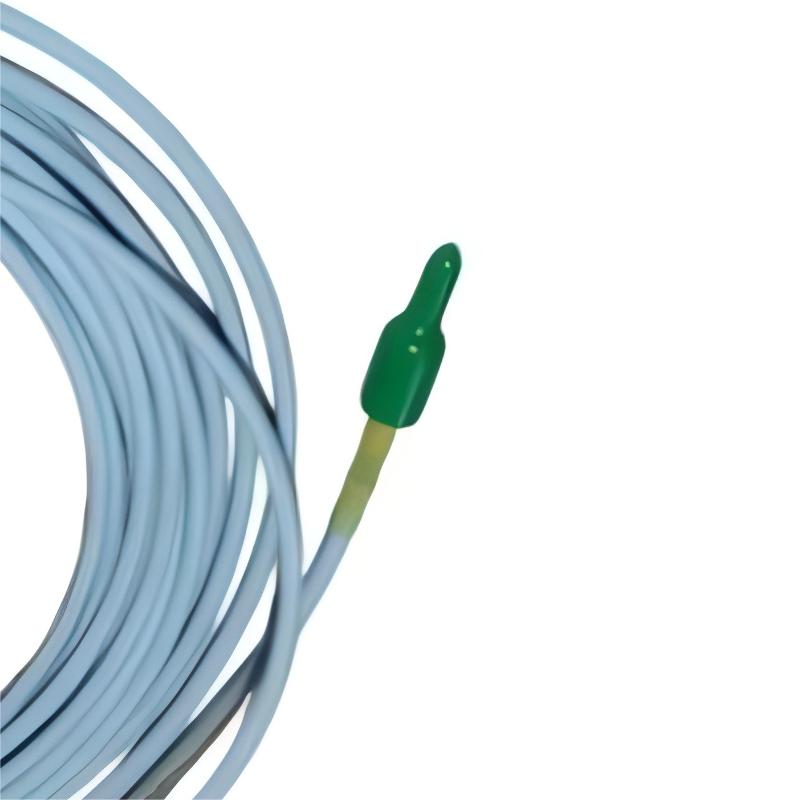

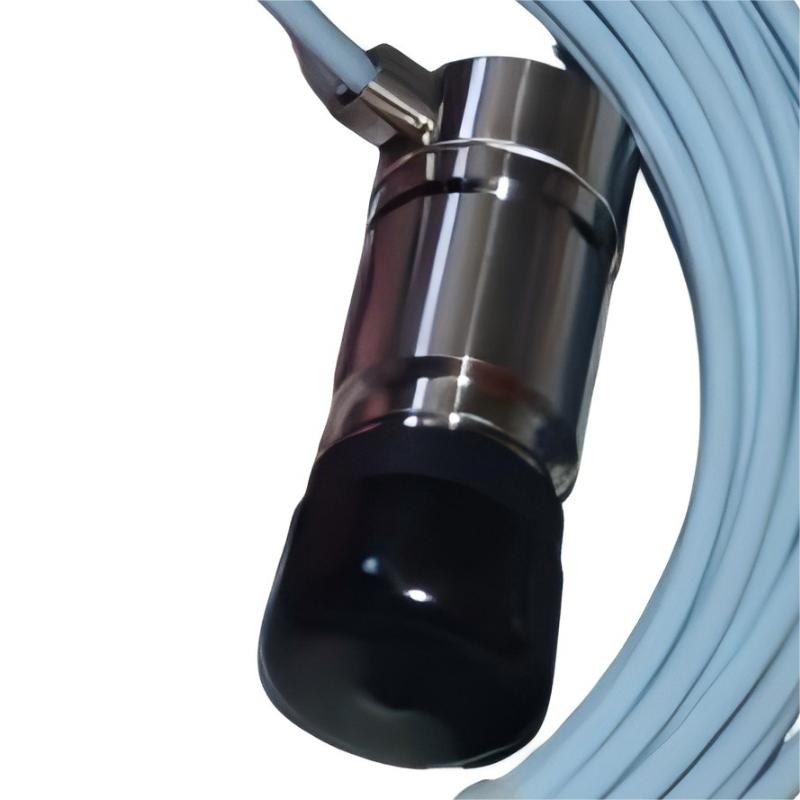

Q1: What is the primary function of the Bently Nevada 330851-01-000-020-90-01-05 proximity probe?

A: This 25 mm proximity probe is designed for continuous, non-contact measurement of shaft vibration and position in rotating machinery. It detects the distance between the probe tip and a conductive shaft surface and converts this mechanical movement into a proportional electrical signal. The system provides real-time monitoring of radial vibration, shaft displacement, and dynamic motion, enabling machinery protection systems to identify early signs of mechanical degradation such as imbalance, misalignment, or bearing wear before they escalate into serious failures.

Q2: How does the eddy current measurement principle work in this probe?

A: The probe operates using eddy current technology by generating a high-frequency electromagnetic field at the probe tip. When a conductive metallic target such as a rotating shaft enters this field, eddy currents are induced on the surface of the metal. These eddy currents create an opposing magnetic field that changes the impedance of the probe coil. The magnitude of this change is directly proportional to the distance between the probe and the target surface, allowing precise non-contact displacement measurement without physical wear or contact.

Q3: What types of machinery typically use this probe?

A: This probe is widely used in critical rotating machinery such as steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, and high-speed motors. These machines operate under continuous load conditions where small variations in vibration can indicate early-stage mechanical issues. The probe provides continuous monitoring data essential for condition monitoring systems and predictive maintenance programs, helping reduce unexpected downtime and improve equipment reliability.

Q4: What are the key installation requirements for this probe?

A: Proper installation requires precise control of the probe-to-shaft air gap, as this distance directly affects measurement accuracy and signal linearity. The mounting structure must be rigid to prevent external vibration from influencing probe readings. The shaft surface must be conductive and kept clean to ensure stable signal response. Cable routing must follow proper shielding and grounding practices to minimize electromagnetic interference from surrounding electrical systems. Incorrect installation can lead to unstable or inaccurate measurements.

Q5: What types of mechanical faults can this probe detect?

A: The probe can detect a wide range of mechanical conditions including rotor imbalance, shaft misalignment, bearing wear, mechanical looseness, shaft bow, thermal growth effects, and abnormal radial or axial displacement. By continuously monitoring vibration trends and displacement signals, the system can identify early warning signs of developing faults, enabling preventive action before serious damage occurs.

Q6: What factors can affect measurement accuracy?

A: Measurement accuracy can be influenced by improper probe gap setting, contamination on the shaft surface, mechanical instability of the mounting structure, electromagnetic interference, and temperature variations. Poor grounding or inadequate shielding may introduce electrical noise into the signal. Mechanical looseness or vibration in the installation structure can also cause inconsistent readings. Proper installation and stable operating conditions are essential for reliable performance.

Q7: How is this probe integrated into monitoring systems?

A: The probe integrates with Bently Nevada 3300 XL monitoring systems by providing a continuous analog voltage output proportional to shaft displacement. This signal is processed by monitoring modules to generate vibration trends, alarm signals, and diagnostic data. The system can be configured with alarm thresholds to trigger warnings when vibration exceeds predefined limits, enabling real-time machinery protection and long-term condition analysis.

Q8: Why are non-contact probes preferred in industrial applications?

A: Non-contact probes are preferred because they eliminate physical interaction with rotating components, preventing mechanical wear and ensuring long-term measurement stability. In high-speed machinery, any physical contact would quickly degrade sensor performance and introduce measurement errors. Non-contact eddy current technology allows continuous high-precision monitoring without interfering with machine operation. This makes it ideal for critical industrial environments where reliability, accuracy, and uninterrupted monitoring are essential.
