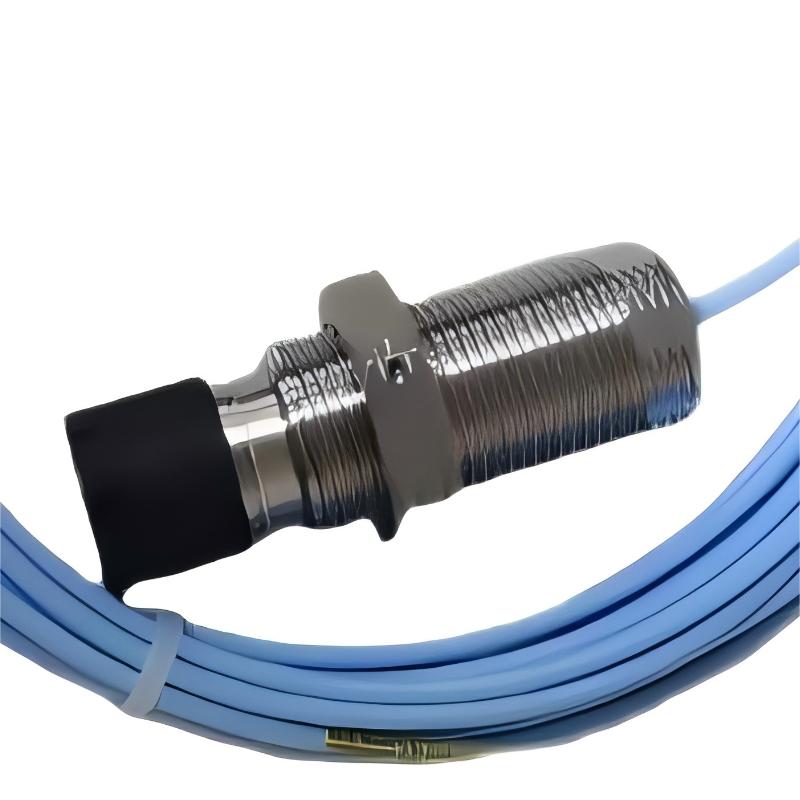

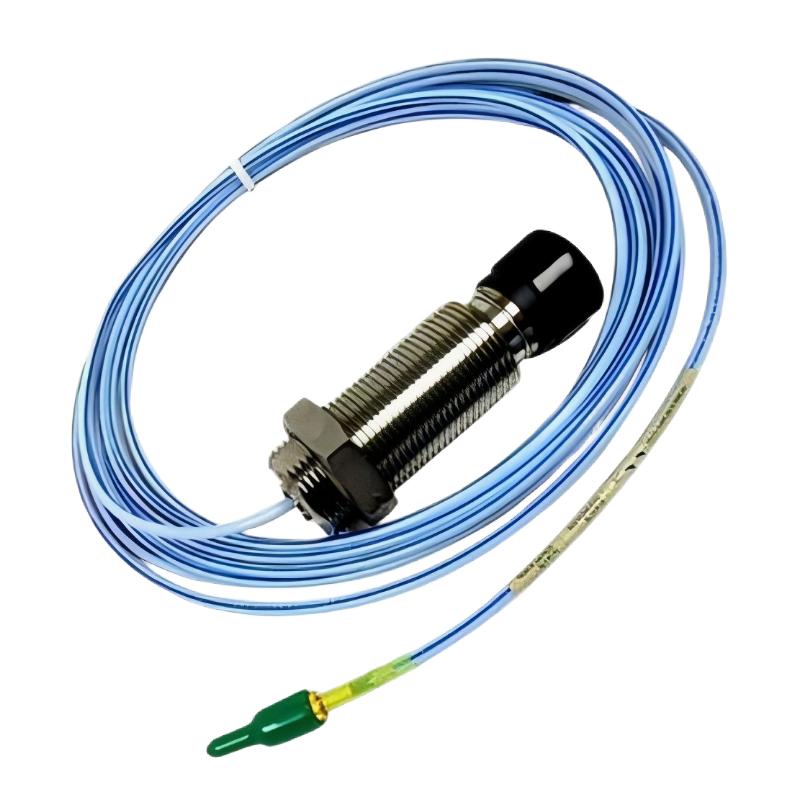

Q1. What is the main function of the Bently Nevada 330851-02-000-026-50-01-05 proximity probe?
The primary function of this probe is to measure the relative vibration and shaft displacement of rotating machinery without physical contact. It works as part of the Bently Nevada 3300 XL proximity measurement system, using eddy current technology to detect changes in distance between the probe tip and a conductive metal surface. When the shaft moves due to vibration, imbalance, or misalignment, the probe converts these mechanical movements into a proportional electrical signal. This signal is then processed by the system to provide accurate condition monitoring data. In industrial applications, this helps operators detect early signs of mechanical degradation, allowing preventive maintenance before serious failures occur.

Q2. How does eddy current measurement technology work in this probe?
The probe operates by generating a high-frequency electromagnetic field at its tip. When this field approaches a conductive target such as a rotating shaft, it induces small circulating currents known as eddy currents in the metal surface. These eddy currents create an opposing magnetic field, which affects the impedance of the probe coil. The system continuously monitors these changes and converts them into a voltage signal proportional to the distance between the probe and the shaft. This allows extremely precise measurement of small displacements, even in harsh industrial environments where mechanical sensors would not be suitable.

Q3. What types of machinery typically use this proximity probe?
This probe is widely used in critical rotating machinery where continuous condition monitoring is required. Common applications include steam turbines, gas turbines, centrifugal compressors, pumps, generators, and large industrial motors. These machines often operate under high speed, high load, and continuous duty conditions, making real-time vibration monitoring essential. The probe helps detect issues such as shaft imbalance, misalignment, bearing wear, and mechanical looseness. In power generation and process industries, it plays a key role in protecting high-value equipment and preventing unexpected shutdowns.

Q4. What is the installation principle for this proximity probe?
The probe is typically installed in a radial or axial position relative to the rotating shaft, depending on the measurement type required. It is mounted through a threaded housing and carefully adjusted to maintain a precise air gap between the probe tip and the shaft surface. Proper gap setting is critical because the output signal depends directly on this distance. During installation, care must be taken to ensure correct alignment, stable mechanical fixation, and avoidance of electrical noise sources. The probe is usually paired with an extension cable and a driver module to complete the measurement chain.

Q5. What environmental conditions can affect measurement accuracy?
Although designed for harsh industrial environments, certain conditions can still influence performance. Extreme temperature variations may affect signal stability, while heavy electromagnetic interference can introduce noise into the measurement signal. Shaft surface contamination such as oil film, dirt, or corrosion may also slightly affect eddy current response. Mechanical looseness in mounting structures can lead to inaccurate readings due to relative movement between probe and housing. Proper installation, shielding, and regular inspection help ensure consistent measurement accuracy over long-term operation.

Q6. How can probe signal issues be diagnosed?
Signal issues are usually diagnosed by checking the entire measurement chain, including the probe, extension cable, and driver module. Common symptoms include unstable readings, signal dropouts, or abnormal vibration trends. Technicians should first inspect physical connections for looseness, corrosion, or cable damage. Next, verify that the probe gap is correctly set, as incorrect positioning is one of the most common causes of inaccurate output. If the hardware appears intact, signal testing with a calibration target or diagnostic tool can help confirm whether the probe is functioning correctly. In some cases, replacing the probe or cable is necessary to isolate the fault.

Q7. Why is non-contact measurement important in rotating machinery monitoring?
Non-contact measurement is essential because it allows continuous monitoring without interfering with machine operation. Contact-based sensors would wear out quickly or alter the dynamic behavior of high-speed rotating shafts. Eddy current proximity probes avoid this issue by measuring displacement through electromagnetic fields rather than physical contact. This enables highly accurate detection of vibration and shaft position under extreme conditions such as high speed, high temperature, and oil mist environments. It also improves reliability and reduces maintenance requirements, making it ideal for critical machinery protection systems.

Q8. What is the role of this probe in predictive maintenance systems?
In predictive maintenance strategies, this probe provides real-time data that reflects the mechanical health of rotating equipment. By continuously measuring shaft vibration and displacement, it allows engineers to identify early warning signs such as imbalance, misalignment, bearing degradation, or structural looseness. These trends can be analyzed over time to predict potential failures before they occur. This enables maintenance teams to schedule repairs during planned downtime instead of reacting to unexpected breakdowns. As a result, it significantly improves equipment reliability, reduces downtime costs, and extends machinery service life.
