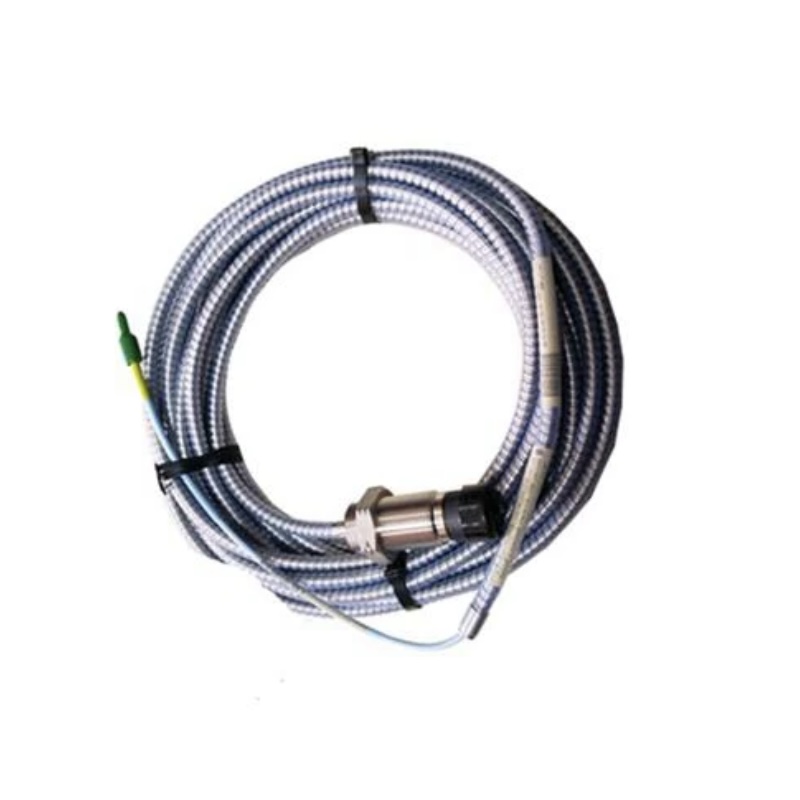

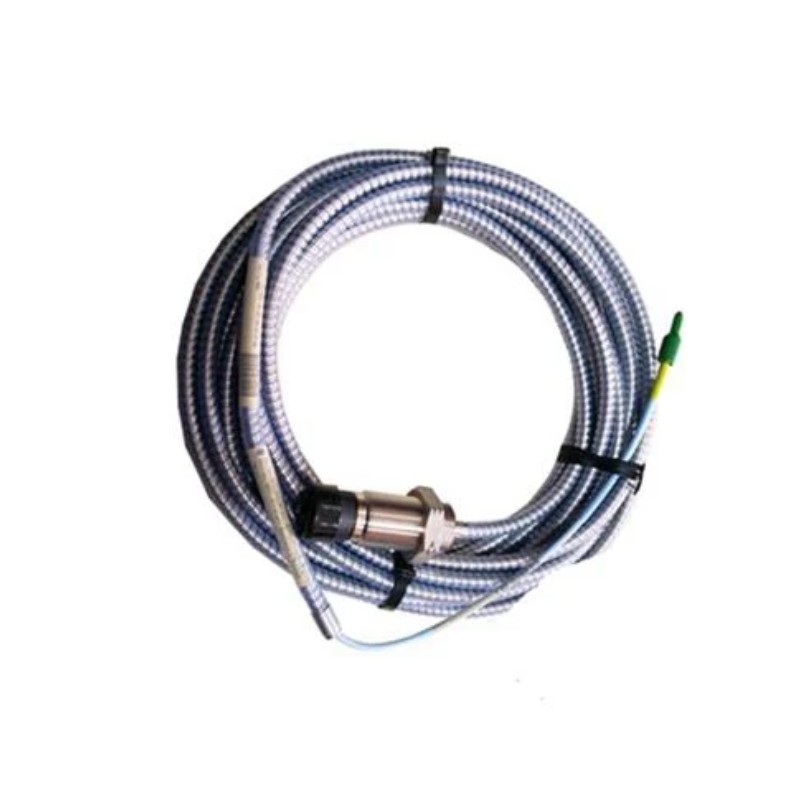

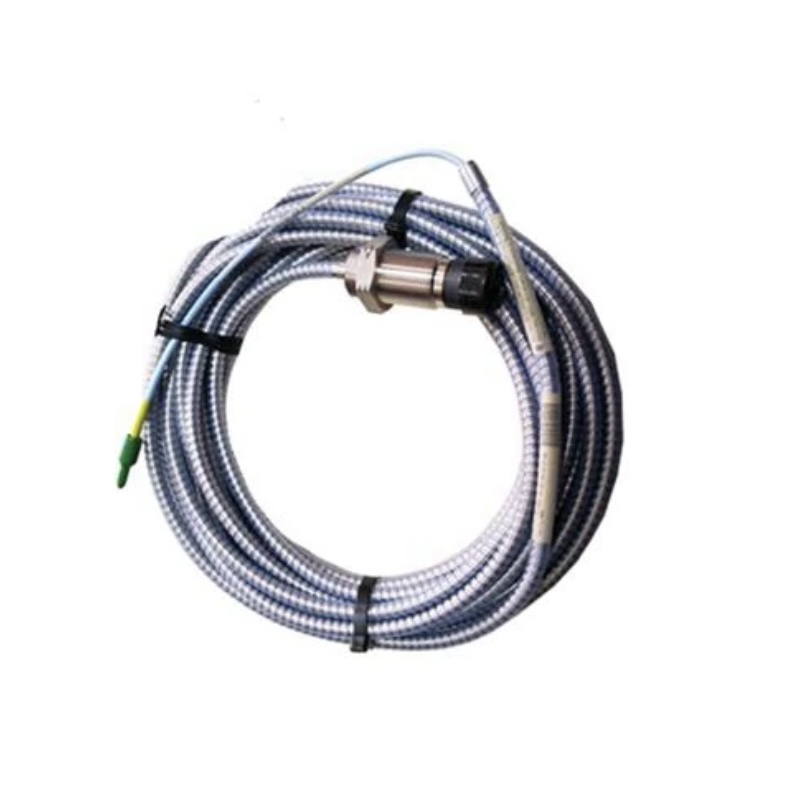

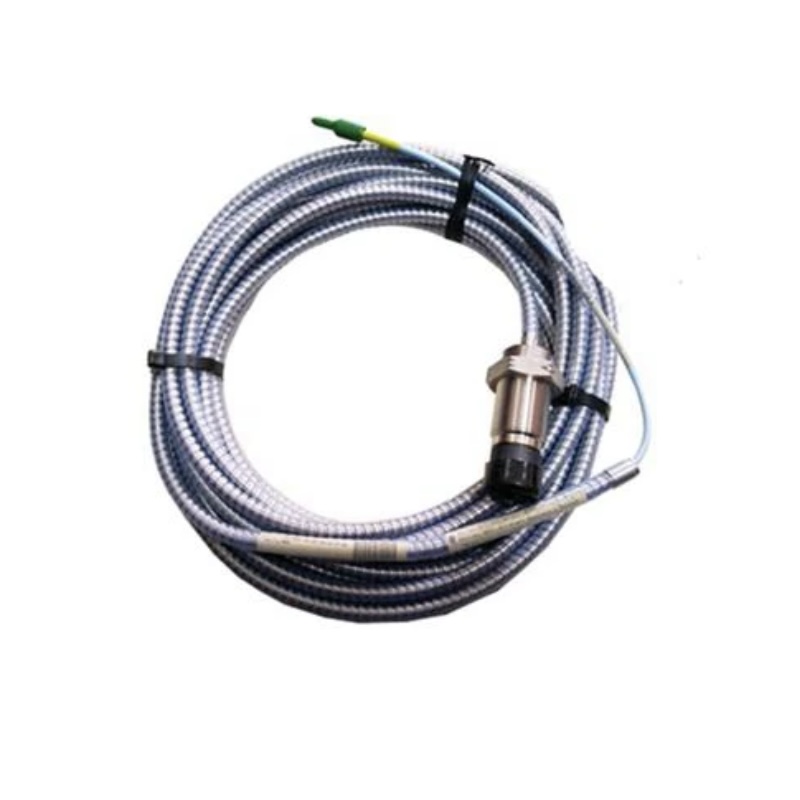

Bently Nevada 330851-02-000-040-50-00-05 Proximity Probe
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | 3300 XL 25 mm Proximity Probe |
| Product Model | 330851-02-000-040-50-00-05 |
| Manufacturer | Bently Nevada |
| Series | 3300 XL Proximity Transducer System |
| Probe Type | Eddy-Current, Non-Contacting Proximity Probe |
| Probe Diameter | 25 mm |
| Probe Case Type | M30 × 2 thread |
| Unthreaded Length | 0 mm |
| Overall Case Length | 40 mm |
| System Length | 5.0 m (16.4 ft) |
| Probe Cable | 75 Ω triaxial cable, PFA insulated |
| Armor | No probe/cable armor |
| Probe Tip Material | PEEK |
| Probe Case Material | AISI 304 stainless steel |
| Operating Temperature | −35°C to +200°C |
| Short-Term Temperature | Up to approximately +250°C |
| Frequency Response | Suitable for high-speed machinery vibration and position measurement |
| Measurement Principle | Eddy-current displacement measurement |
| Typical Applications | Steam turbines, compressors, generators, pumps and other rotating machinery |
| Agency Approval | Multiple approvals |
| Dimensions | Approx. 40 mm probe body length; overall assembly depends on cable routing |
| Weight | Approx. 0.323 kg |
FAQ
Q: What is the 330851-02-000-040-50-00-05?
A: It is a Bently Nevada 3300 XL 25 mm eddy-current proximity probe designed for non-contact measurement of shaft position and vibration.
Q: What does the “02” configuration specify?
A: The “02” code identifies the M30 × 2 threaded probe case configuration.
Q: What does “040” mean in the part number?
A: “040” specifies a 40 mm overall probe case length.
Q: What does the “50” option indicate?
A: It specifies a 5.0 m (16.4 ft) total electrical system length. Five-meter probes are intended for use with the corresponding 5 m Proximitor Sensor.
Q: Does this probe have armor?
A: No. The “00” armor option indicates that the probe is supplied without stainless-steel armor.
Q: What does the final “05” represent?
A: The “05” option specifies the multiple-agency-approval configuration.
Q: What materials are used in the probe?
A: The probe tip uses PEEK, while the probe case is made from AISI 304 stainless steel. The cable uses PFA insulation.
Q: Where is this probe commonly used?
A: It is commonly used for shaft vibration and position monitoring on high-speed rotating equipment, particularly steam turbines, compressors, generators and other critical machinery.
Bently Nevada 330851-02-000-040-50-00-05 Proximity Probe is in stock. Please contact us for a quick quote and competitive pricing.
