1. What is the primary function of the Bently Nevada 3300 XL 25 mm Proximity Probe?

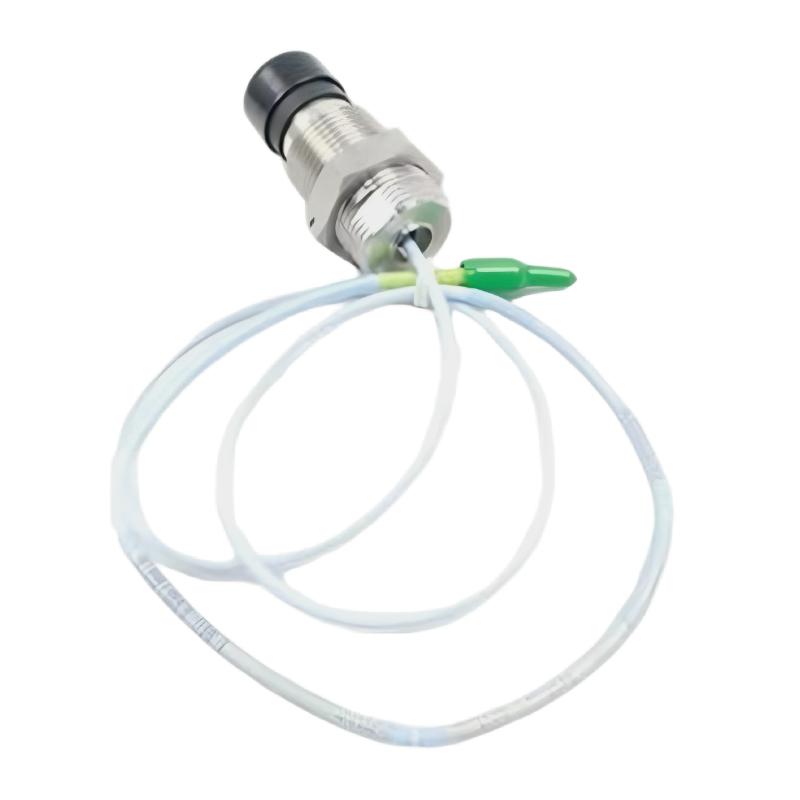

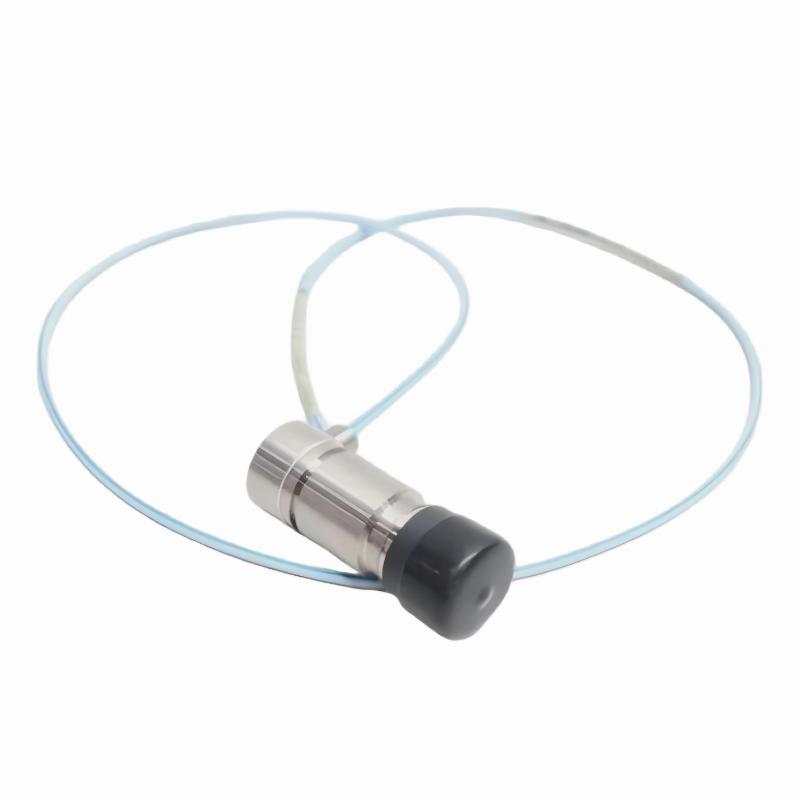

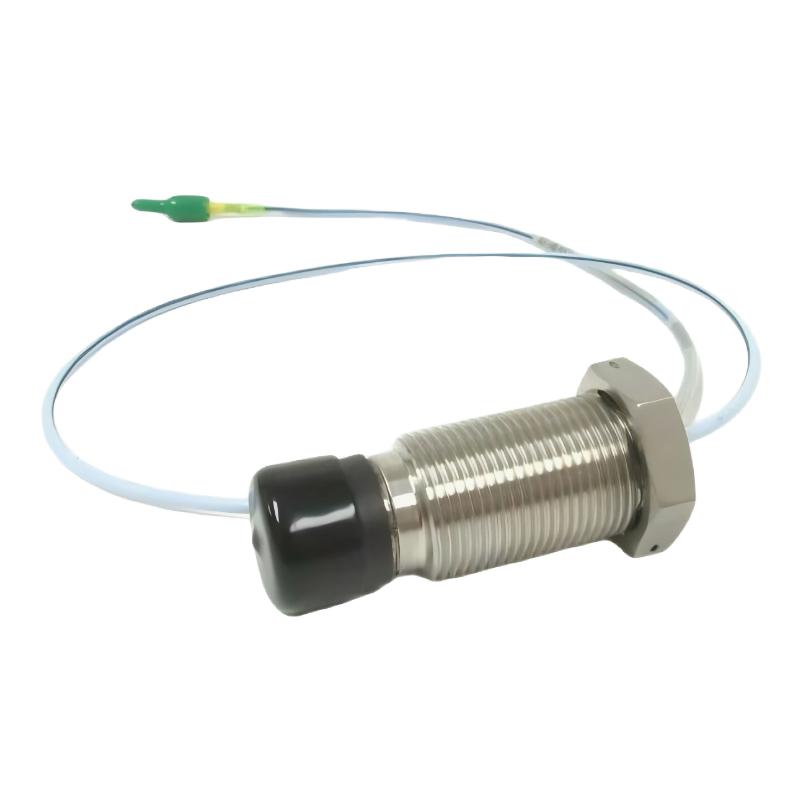

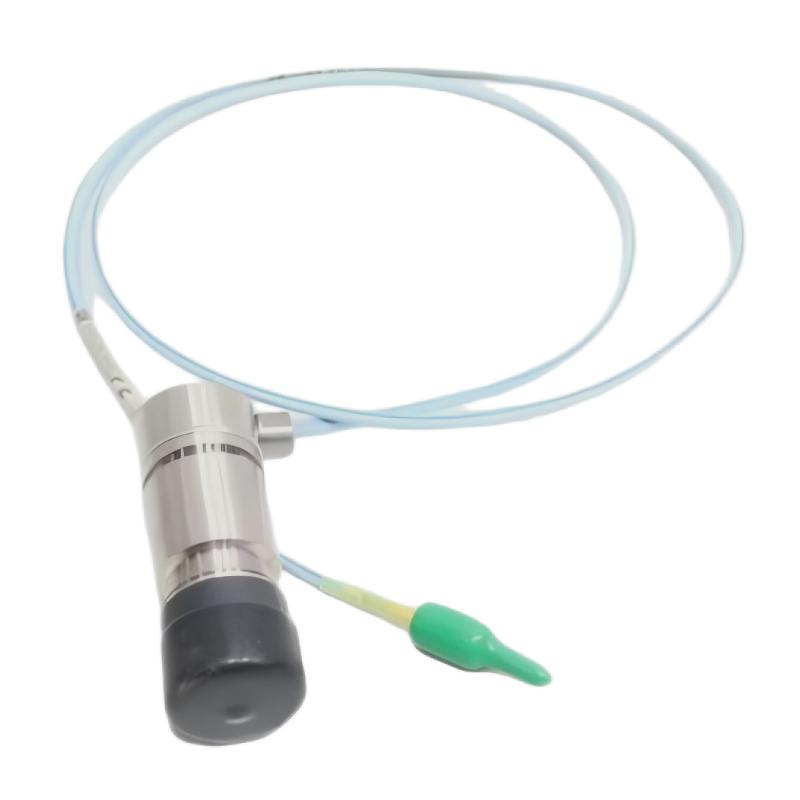

The Bently Nevada 3300 XL 25 mm Proximity Probe is a high-precision eddy current sensor designed for monitoring the operating condition of critical rotating machinery. Its main purpose is to measure shaft vibration, shaft displacement, and relative shaft position without physical contact with the rotating component.

In large industrial machines, the movement of the rotating shaft provides important information about equipment health. Abnormal shaft vibration, excessive axial movement, or unexpected position changes may indicate problems such as rotor imbalance, misalignment, bearing wear, mechanical looseness, or other developing faults.

The 3300 XL 25 mm Proximity Probe detects the distance change between the probe tip and the conductive shaft surface through eddy current technology. The detected mechanical movement is converted into an electrical signal and transmitted to the monitoring system for analysis.

This probe is typically used together with a Bently Nevada Proximitor sensor and machinery protection system. The complete measurement system provides continuous condition monitoring, allowing operators to identify abnormal machine behavior early and take preventive action before serious equipment damage occurs.

Due to its non-contact design, the probe does not experience mechanical wear caused by direct contact with rotating parts. This makes it suitable for long-term operation in high-speed machinery where measurement accuracy and reliability are essential.

2. What industrial applications are suitable for the 3300 XL 25 mm Proximity Probe?

The Bently Nevada 3300 XL 25 mm Proximity Probe is widely used in industrial applications where reliable monitoring of rotating machinery is required. It is mainly installed on critical equipment that operates continuously under high-speed and high-load conditions.

Common applications include steam turbines, gas turbines, centrifugal compressors, generators, pumps, large motors, and other rotating equipment used in power plants, oil and gas facilities, petrochemical plants, marine systems, steel production lines, and manufacturing industries.

For turbine systems, the probe is commonly used to monitor shaft vibration and axial position changes, helping detect rotor instability or mechanical problems. For compressor applications, it provides important information about shaft movement and bearing conditions.

The probe is especially valuable in industries where unexpected equipment failure can cause significant production losses. By providing continuous measurement data, the 3300 XL system supports predictive maintenance strategies and helps engineers schedule maintenance activities based on actual equipment condition rather than fixed intervals.

This improves equipment availability, reduces unplanned downtime, and increases the overall reliability of industrial operations.

3. How does the Bently Nevada 3300 XL 25 mm Proximity Probe measure shaft movement?

The 3300 XL 25 mm Proximity Probe uses eddy current measurement technology to detect changes in the distance between the probe tip and a conductive rotating shaft.

Inside the probe is a sensing coil that generates a high-frequency electromagnetic field. When the probe is placed near the shaft surface, eddy currents are generated in the conductive target material. The strength of these currents changes according to the distance between the probe and the shaft.

The probe detects these electromagnetic changes and converts them into electrical signals representing shaft movement. These signals are then processed by the Proximitor sensor and transmitted to the machinery monitoring system.

This measurement principle allows the system to accurately detect very small changes in shaft position and vibration. Because the probe does not physically contact the shaft, it can operate reliably on high-speed rotating equipment without creating friction or mechanical wear.

The technology provides excellent repeatability, fast response, and long-term stability, making it widely used in industrial machinery protection systems.

4. How can technicians troubleshoot a 3300 XL 25 mm Proximity Probe system?

Troubleshooting the 3300 XL 25 mm Proximity Probe requires checking the complete measurement chain, including the probe, extension cable, Proximitor sensor, and monitoring equipment.

The first step is to inspect the physical condition of the probe and cable. Technicians should check for damaged cables, loose connections, contamination, corrosion, or mechanical damage that may affect signal transmission.

The next step is to verify the electrical performance of the system. The output signal and gap voltage should be checked to confirm that the probe is operating within the expected range. Unstable signals, incorrect readings, or missing output may indicate problems with the probe installation or related components.

Technicians should also compare monitoring system readings with actual machine operating conditions. If vibration values suddenly change without corresponding mechanical changes, the probe position, cable condition, and system configuration should be reviewed.

A complete troubleshooting procedure helps determine whether the problem originates from the probe itself or from other parts of the monitoring system, preventing unnecessary replacement of components.

5. What should be considered when replacing the 3300 XL 25 mm Proximity Probe?

When replacing the Bently Nevada 3300 XL 25 mm Proximity Probe, technicians should follow proper maintenance procedures to ensure safety and measurement accuracy.

Before replacement, the rotating equipment must be completely shut down and isolated according to site safety requirements. Since the probe is usually installed near rotating machinery, confirming a safe working environment is essential.

The replacement probe must match the existing system configuration, including compatibility with the Proximitor sensor, extension cable, and monitoring hardware. Using an incorrect probe model may result in inaccurate measurement signals or improper system operation.

During installation, correct positioning is very important. The distance between the probe tip and the shaft surface directly affects measurement accuracy. Incorrect installation may cause unstable readings or incorrect vibration data.

After installation, technicians should perform signal verification, system testing, and operational checks. The monitoring system should confirm stable measurements before the equipment is returned to normal service.

Proper replacement procedures ensure reliable operation and maintain the accuracy of the machinery protection system.

6. Why is the 3300 XL 25 mm Proximity Probe important for predictive maintenance?

The 3300 XL 25 mm Proximity Probe plays an important role in predictive maintenance because it provides continuous information about the condition of rotating machinery.

Traditional maintenance methods often rely on scheduled inspections, which may not detect developing problems between maintenance intervals. By continuously monitoring shaft vibration and displacement, the probe allows maintenance teams to identify abnormal trends at an early stage.

For example, increasing vibration levels may indicate rotor imbalance, bearing problems, or alignment issues. Early detection allows engineers to plan repairs before the equipment experiences severe damage or unexpected shutdown.

The probe’s non-contact measurement technology provides stable performance over long operating periods, making it suitable for critical machines that cannot easily be stopped for inspection.

By providing accurate condition data, the 3300 XL system helps companies improve maintenance efficiency, reduce operational risks, and extend the service life of valuable industrial equipment.

7. What factors can affect the performance of the 3300 XL 25 mm Proximity Probe?

Several factors can influence the performance and measurement accuracy of the 3300 XL 25 mm Proximity Probe, including installation conditions, environmental conditions, and system configuration.

The installation gap between the probe and the rotating shaft is one of the most important factors. Incorrect adjustment can cause inaccurate measurements or unstable output signals.

The condition of the target shaft surface can also affect measurement quality. Surface damage, corrosion, contamination, or unsuitable material characteristics may influence the eddy current sensing process.

Electrical interference may create signal problems as well. Poor grounding, damaged cables, electromagnetic noise, or improper cable routing can affect signal stability.

Environmental factors such as high temperature, moisture, excessive vibration, and contamination may also influence long-term reliability.

To maintain optimal performance, regular inspection of the probe installation, cable condition, signal quality, and monitoring system settings is recommended. Preventive maintenance helps ensure accurate measurement and reliable machine protection.

8. What commissioning steps are required after installing a new 3300 XL 25 mm Proximity Probe?

After installing a new Bently Nevada 3300 XL 25 mm Proximity Probe, a complete commissioning procedure should be performed to verify that the measurement system operates correctly.

First, technicians should confirm that the probe is installed properly and that all connections between the probe, extension cable, Proximitor sensor, and monitoring system are secure.

The electrical parameters should then be checked to verify that the output signal and system readings are within the expected operating range. This confirms that the probe is correctly positioned and communicating properly with the monitoring system.

After the machine is started, vibration and displacement values should be monitored under different operating conditions. The collected data should be compared with normal operating values to confirm measurement accuracy.

Alarm functions and protection settings should also be tested to ensure that the system responds correctly when abnormal shaft movement occurs.

A complete commissioning process ensures that the 3300 XL 25 mm Proximity Probe provides accurate monitoring information and reliable protection for critical rotating machinery throughout its operational life.
