1. What is the primary function of the Bently Nevada 3300 XL 25 mm Proximity Probe?

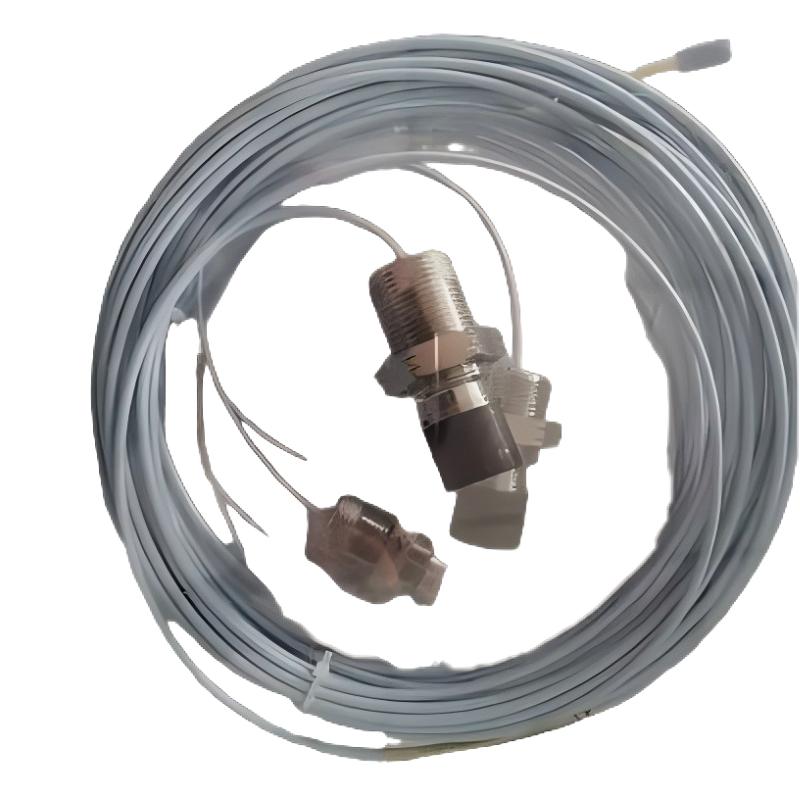

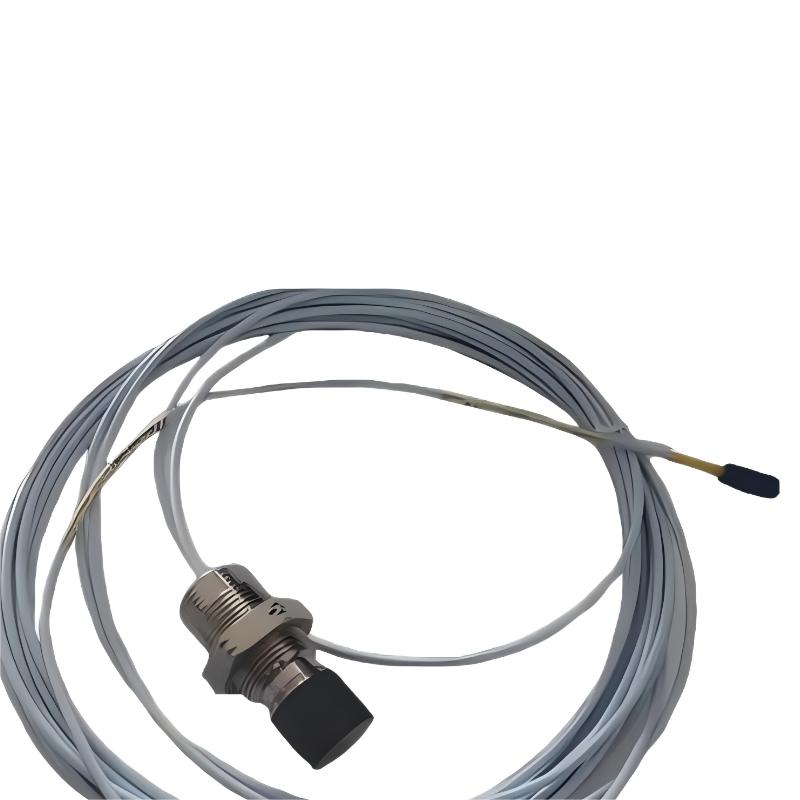

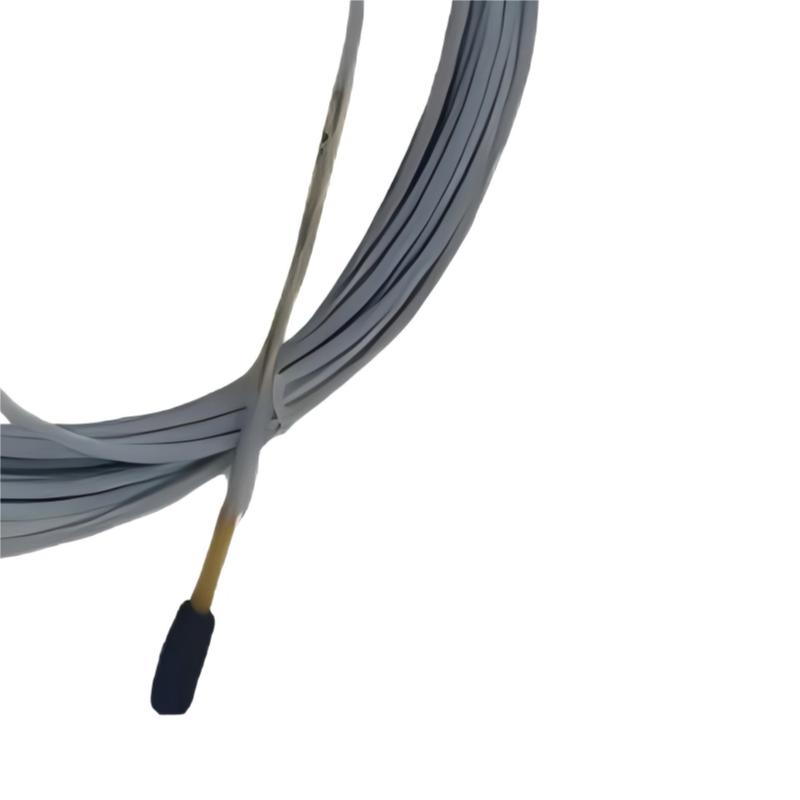

The Bently Nevada 3300 XL 25 mm Proximity Probe is a high-performance non-contact displacement sensor designed for monitoring the operating condition of critical rotating machinery. Its primary function is to measure shaft vibration, shaft displacement, and relative shaft position, providing accurate mechanical condition data for equipment protection and predictive maintenance systems.

In industrial applications, rotating equipment such as turbines, compressors, and generators often operate continuously under high mechanical loads. Even small changes in shaft movement can indicate developing problems, including rotor imbalance, misalignment, bearing degradation, mechanical looseness, or abnormal operating conditions.

The probe uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft surface. The measured displacement information is converted into electrical signals and transmitted to the Proximitor sensor and monitoring system for further analysis.

Because the measurement process does not require physical contact with the rotating shaft, the probe avoids mechanical wear and provides excellent long-term stability. This makes it suitable for applications where accurate and continuous machinery monitoring is required.

2. What types of equipment can use the Bently Nevada 3300 XL 25 mm Proximity Probe?

The Bently Nevada 3300 XL 25 mm Proximity Probe is widely used on large industrial rotating equipment that requires continuous vibration and displacement monitoring.

Typical applications include steam turbines, gas turbines, centrifugal compressors, generators, pumps, large motors, and other critical rotating machines used in power generation, oil and gas, petrochemical, marine, and manufacturing industries.

In turbine applications, the probe is commonly used to monitor shaft vibration, rotor position, and mechanical stability during operation. In compressor systems, it helps detect abnormal shaft movement caused by bearing wear, rotor problems, or mechanical alignment issues.

For industries where equipment downtime can result in significant financial losses, continuous monitoring provided by this probe allows maintenance teams to identify problems before they develop into major failures.

By integrating with Bently Nevada monitoring systems, the probe supports condition-based maintenance strategies and helps improve equipment reliability, operational safety, and maintenance efficiency.

3. How does the 3300 XL 25 mm Proximity Probe perform shaft vibration measurement?

The 3300 XL 25 mm Proximity Probe operates using advanced eddy current measurement technology. The sensing element inside the probe generates a high-frequency electromagnetic field at the probe tip.

When the probe is positioned near a conductive rotating shaft, eddy currents are generated on the shaft surface. The strength of these currents changes according to the distance between the probe and the shaft.

The probe detects these variations and converts them into an electrical signal that represents the actual shaft movement. This signal is then processed by the Proximitor sensor and transmitted to the machinery monitoring system.

This measurement method provides high accuracy, fast response, and excellent repeatability. Since the probe does not physically touch the rotating shaft, it can operate reliably in high-speed machinery environments without introducing mechanical wear or affecting the shaft surface.

The technology allows operators to continuously monitor machine behavior and quickly identify abnormal operating trends.

4. How can technicians troubleshoot a 3300 XL 25 mm Proximity Probe system?

Troubleshooting the Bently Nevada 3300 XL 25 mm Proximity Probe requires checking the complete monitoring system, including the probe, extension cable, Proximitor sensor, power supply, and monitoring equipment.

The first step is a visual inspection of the probe and cable assembly. Technicians should check for cable damage, loose connections, corrosion, contamination, or mechanical damage that could affect signal transmission.

The next step is to verify electrical performance. The output signal, gap voltage, and monitoring values should be checked to determine whether the probe is operating correctly. Abnormal conditions such as unstable output, incorrect readings, or signal loss may indicate installation problems or component failure.

Technicians should also compare measurement results with actual machine operating conditions. If abnormal vibration values appear without corresponding mechanical changes, the probe installation position, cable routing, grounding, and system configuration should be reviewed.

A complete troubleshooting process helps accurately identify the source of the problem and ensures that maintenance actions are performed correctly.

5. What should be considered when replacing the 3300 XL 25 mm Proximity Probe?

When replacing the Bently Nevada 3300 XL 25 mm Proximity Probe, proper procedures must be followed to ensure system compatibility and measurement accuracy.

Before replacement, the rotating equipment must be safely shut down according to maintenance procedures. Technicians should confirm that the machine is isolated and safe to access.

The replacement probe must be compatible with the existing 3300 XL monitoring system, including the Proximitor sensor, extension cable, and monitoring equipment. Using an incorrect component may result in inaccurate measurements or system malfunction.

During installation, correct positioning and adjustment are essential. The probe installation condition directly affects measurement accuracy, and improper installation may cause incorrect vibration or displacement readings.

After replacement, technicians should perform signal verification, system testing, and operational checks. The monitoring system should display stable and accurate values before the equipment is returned to service.

Following proper replacement procedures ensures reliable operation and maintains the performance of the machinery protection system.

6. Why is the 3300 XL 25 mm Proximity Probe important for predictive maintenance?

The Bently Nevada 3300 XL 25 mm Proximity Probe is an important component in predictive maintenance programs because it provides continuous information about rotating equipment condition.

Unlike traditional maintenance methods that rely only on scheduled inspections, continuous monitoring allows engineers to detect abnormal changes before equipment failure occurs.

For example, increasing shaft vibration levels may indicate rotor imbalance, bearing wear, coupling problems, or mechanical looseness. By identifying these changes at an early stage, maintenance teams can schedule repairs before serious damage develops.

The probe provides stable measurement performance because it uses non-contact sensing technology. This allows it to operate for long periods without mechanical wear caused by contact with rotating components.

Combined with a Bently Nevada monitoring system, the probe supports real-time condition analysis, alarm functions, and equipment protection, helping companies reduce downtime and improve operational reliability.

7. What factors can influence the measurement accuracy of the 3300 XL 25 mm Proximity Probe?

Several factors can affect the measurement accuracy and reliability of the Bently Nevada 3300 XL 25 mm Proximity Probe, including installation conditions, environmental influences, and system configuration.

The probe installation condition is one of the most important factors. Incorrect installation or improper adjustment may result in inaccurate vibration and displacement measurements.

The condition of the target shaft surface can also influence measurement performance. Corrosion, contamination, surface damage, or unsuitable target material characteristics may affect the eddy current sensing process.

Electrical interference may also create measurement problems. Poor grounding, damaged cables, electromagnetic interference, or incorrect cable installation can cause unstable signals.

Environmental conditions such as high temperature, moisture, strong vibration, and industrial contamination should also be considered.

Regular inspection of the probe system, signal quality, cable condition, and monitoring parameters helps maintain accurate measurement performance and ensures reliable machine protection.

8. What commissioning procedures are required after installing a new 3300 XL 25 mm Proximity Probe?

After installing a new Bently Nevada 3300 XL 25 mm Proximity Probe, a complete commissioning process should be completed to verify that the monitoring system operates correctly.

First, technicians should confirm that the probe, extension cable, Proximitor sensor, and monitoring equipment are properly connected and securely installed.

The electrical characteristics of the system should then be checked, including output signals, gap voltage, and monitoring values. These checks confirm that the probe is correctly detecting shaft movement.

After the machine starts operating, vibration and displacement data should be monitored under different operating conditions. The measured values should be compared with normal operating parameters to verify system accuracy.

Alarm settings and protection functions should also be tested to ensure the monitoring system responds correctly when abnormal conditions occur.

A complete commissioning process ensures that the 3300 XL 25 mm Proximity Probe provides reliable measurement data and effective protection for critical rotating machinery throughout its service life.
