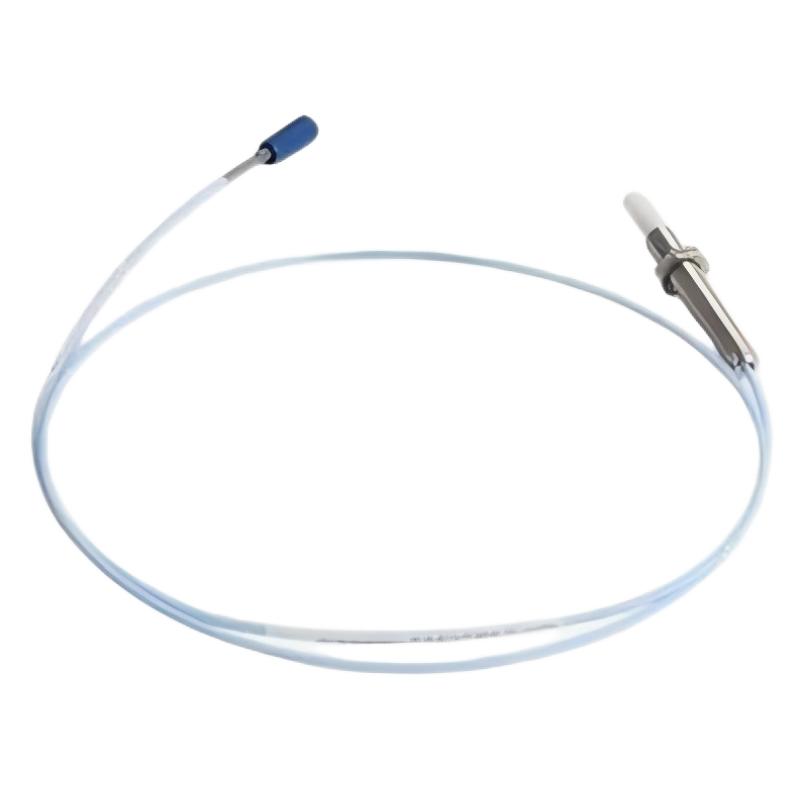

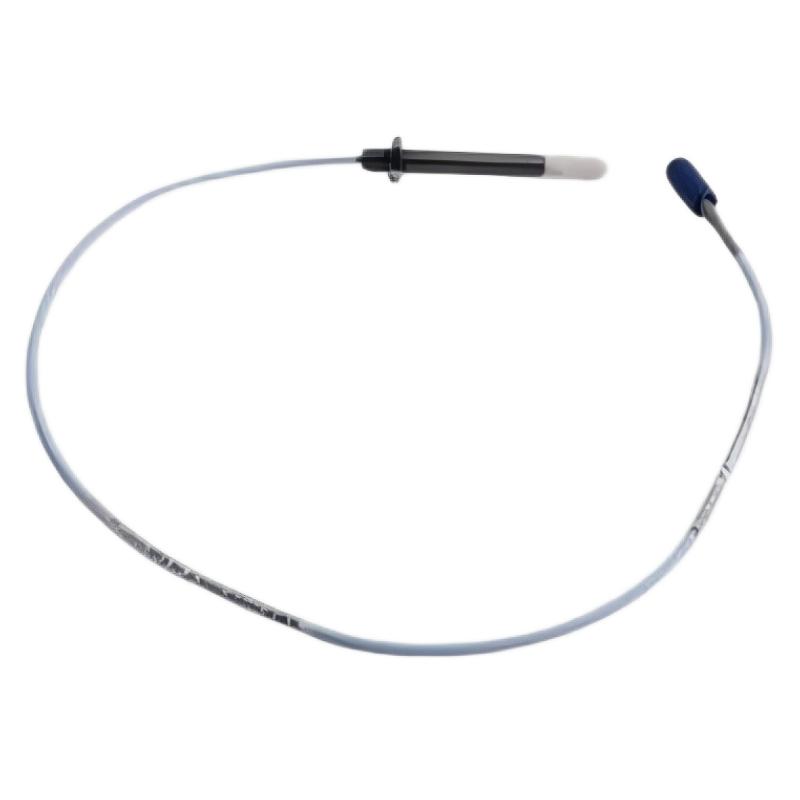

1. What is the primary function of the Bently Nevada 3300 XL 25 mm Proximity Probe?

The Bently Nevada 3300 XL 25 mm Proximity Probe is a precision non-contact sensor designed for continuous monitoring of critical rotating machinery. Its primary function is to measure shaft vibration, shaft displacement, and relative shaft position, providing accurate operating data for machinery protection systems and predictive maintenance programs.

In industrial environments, large rotating machines such as turbines, compressors, and generators operate under high-speed and high-load conditions. Small changes in shaft movement can indicate potential mechanical problems, including rotor imbalance, shaft misalignment, bearing degradation, excessive mechanical clearance, or other abnormal operating conditions.

The probe uses eddy current sensing technology to detect changes in the distance between the probe tip and the conductive rotating shaft. These mechanical movements are converted into electrical signals and transmitted to the Proximitor sensor and monitoring system.

Because the probe operates without physical contact with the rotating shaft, it eliminates mechanical wear caused by friction and provides reliable long-term performance. This makes it suitable for applications where continuous and accurate monitoring of equipment condition is required.

2. What types of industrial equipment can use the Bently Nevada 3300 XL 25 mm Proximity Probe?

The Bently Nevada 3300 XL 25 mm Proximity Probe is widely used in industrial applications that require reliable monitoring of rotating machinery performance.

Typical applications include steam turbines, gas turbines, centrifugal compressors, generators, large motors, pumps, and other critical rotating equipment used in power generation, oil and gas, petrochemical, marine, and manufacturing industries.

In turbine applications, the probe is commonly used to monitor shaft vibration and axial movement to identify abnormal rotor conditions. In compressor applications, it provides important information about shaft behavior and helps detect mechanical problems before they result in equipment failure.

For industries where unexpected downtime can cause significant production losses, continuous monitoring through this type of proximity probe allows maintenance teams to understand equipment health conditions in real time.

By integrating with Bently Nevada monitoring systems, the probe supports advanced machinery protection strategies and improves the reliability of important industrial assets.

3. How does the Bently Nevada 3300 XL 25 mm Proximity Probe measure shaft movement?

The Bently Nevada 3300 XL 25 mm Proximity Probe uses advanced eddy current measurement technology to detect shaft movement without physical contact.

During operation, the sensing coil inside the probe generates a high-frequency electromagnetic field near the probe tip. When the probe is positioned close to a conductive shaft surface, eddy currents are generated within the shaft material.

The intensity of these eddy currents changes according to the distance between the probe and the shaft. The probe detects these variations and converts them into electrical signals that represent shaft displacement or vibration movement.

The generated signal is processed by the Proximitor sensor and then transmitted to the machinery monitoring system for analysis, alarm processing, and equipment protection.

This measurement method provides excellent accuracy, fast response time, and stable performance. Since there is no mechanical contact between the sensor and rotating component, the probe can operate reliably in high-speed machinery environments for extended periods.

4. How can technicians troubleshoot the Bently Nevada 3300 XL 25 mm Proximity Probe system?

Troubleshooting the Bently Nevada 3300 XL 25 mm Proximity Probe requires checking the complete monitoring system, including the probe, extension cable, Proximitor sensor, signal connections, and monitoring equipment.

The first step is to perform a visual inspection of the probe and cable assembly. Technicians should check for cable damage, loose connections, corrosion, contamination, or any physical conditions that could affect signal transmission.

The next step is to verify electrical performance. The output signal, gap voltage, and monitoring values should be checked to determine whether the probe is operating within expected conditions. Unstable signals, incorrect measurements, or signal loss may indicate installation issues, cable problems, or sensor-related faults.

Technicians should also compare the monitoring data with the actual operating condition of the machine. If abnormal readings appear while the equipment operates normally, possible causes such as incorrect installation, grounding problems, electromagnetic interference, or system configuration errors should be investigated.

A complete troubleshooting process helps identify the actual cause of the problem and ensures that maintenance actions are accurate and effective.

5. What should be considered when installing or replacing the Bently Nevada 3300 XL 25 mm Proximity Probe?

When installing or replacing the Bently Nevada 3300 XL 25 mm Proximity Probe, proper procedures must be followed to ensure measurement accuracy and system reliability.

Before installation work begins, the rotating equipment must be safely shut down and isolated according to site safety requirements. This prevents potential risks during maintenance operations.

The replacement probe must be compatible with the existing 3300 XL monitoring system, including the Proximitor sensor, extension cable, and monitoring equipment. Using incompatible components may result in unstable signals or incorrect measurement results.

During installation, technicians must ensure that the probe is positioned correctly and all connections are properly secured. The installation condition directly affects measurement performance, so careful adjustment and verification are required.

After installation, the system should be tested by checking signal output, monitoring values, and alarm functions. The equipment should only be returned to normal operation after confirming that the monitoring system is functioning correctly.

Proper installation and commissioning procedures help maintain long-term stability and ensure reliable machinery protection.

6. Why is the Bently Nevada 3300 XL 25 mm Proximity Probe important for predictive maintenance?

The Bently Nevada 3300 XL 25 mm Proximity Probe plays an important role in predictive maintenance because it provides continuous information about the actual condition of rotating equipment.

Traditional maintenance methods often rely on scheduled inspections, which may not detect problems that develop between maintenance periods. Continuous monitoring allows engineers to identify abnormal trends at an early stage and take preventive action.

For example, increasing shaft vibration levels may indicate rotor imbalance, bearing wear, coupling problems, or mechanical looseness. Detecting these changes early allows maintenance teams to schedule repairs before a serious failure occurs.

The probe provides reliable long-term performance because it uses non-contact sensing technology, which avoids wear caused by direct contact with rotating components.

When combined with Bently Nevada monitoring systems, the probe enables real-time condition analysis, alarm monitoring, and machinery protection. This helps reduce unexpected downtime, improve maintenance efficiency, and extend equipment service life.

7. What factors can affect the measurement accuracy of the Bently Nevada 3300 XL 25 mm Proximity Probe?

Several factors can influence the measurement accuracy and stability of the Bently Nevada 3300 XL 25 mm Proximity Probe, including installation conditions, environmental factors, electrical conditions, and machine operating status.

The installation condition of the probe is one of the most important factors. Incorrect positioning, improper adjustment, or unstable installation may result in inaccurate vibration and displacement measurements.

The condition of the target shaft surface can also affect measurement performance. Contamination, corrosion, surface damage, or unsuitable material conditions may influence the eddy current sensing process.

Electrical issues such as poor grounding, damaged cables, electromagnetic interference, or incorrect signal routing may cause unstable output signals.

Environmental conditions, including high temperature, moisture, strong vibration, and industrial contamination, should also be considered during system operation.

Regular inspection of the probe system, cable condition, signal quality, and monitoring parameters helps maintain accurate measurement results and ensures reliable protection of critical machinery.

8. What commissioning procedures are required after installing a new Bently Nevada 3300 XL 25 mm Proximity Probe?

After installing a new Bently Nevada 3300 XL 25 mm Proximity Probe, a complete commissioning procedure should be performed to confirm that the monitoring system operates correctly.

First, technicians should verify that the probe, extension cable, Proximitor sensor, and monitoring equipment are correctly connected. All connections should be checked to ensure stable signal transmission.

The electrical performance of the system should then be tested, including signal stability, gap voltage verification, and confirmation that monitoring values are within acceptable operating ranges.

After the machine starts operating, vibration and displacement data should be observed under different operating conditions. The collected information should be compared with normal operating parameters to confirm that the measurement system is accurate.

Alarm functions and protection logic should also be tested to ensure that the monitoring system responds correctly when abnormal shaft movement occurs.

A complete commissioning process ensures that the Bently Nevada 3300 XL 25 mm Proximity Probe provides accurate monitoring data and reliable protection for critical rotating machinery throughout its operating life.
