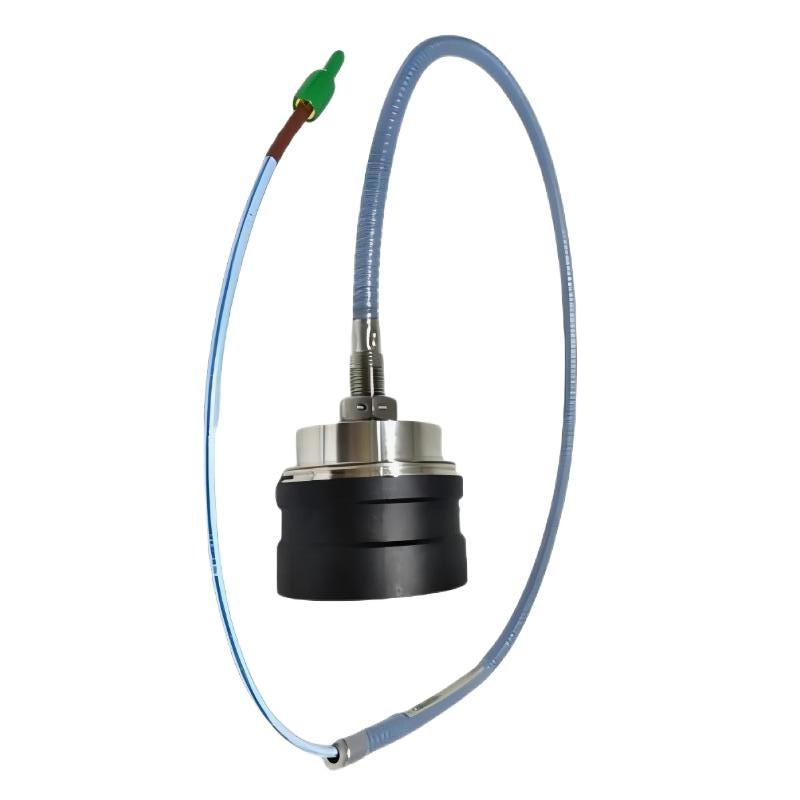

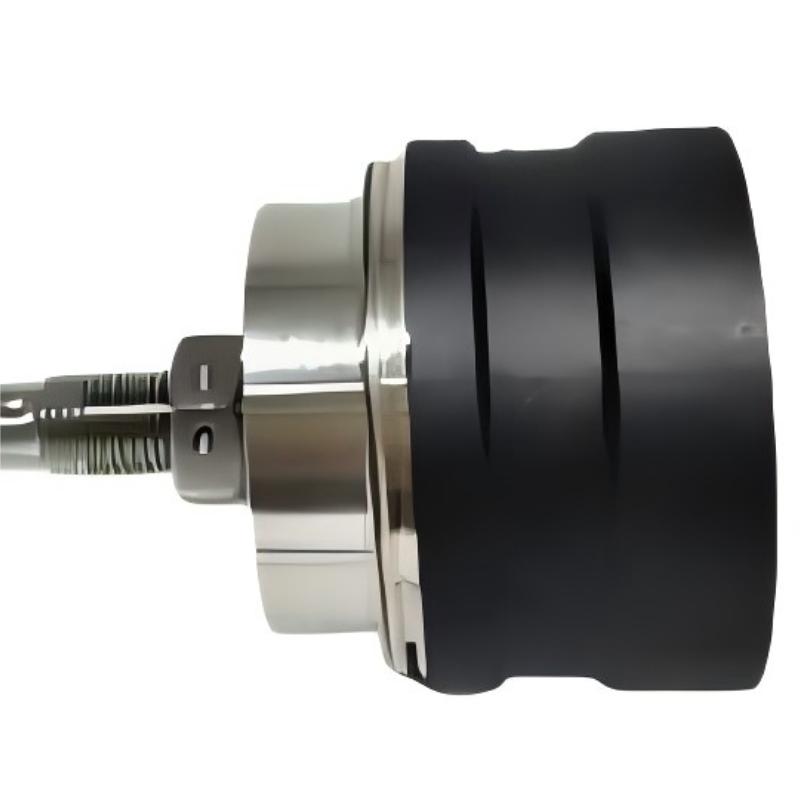

1. What is the primary function of the Bently Nevada 330876-01-90-00-05 3300 XL 50 mm Proximity Probe?

The Bently Nevada 330876-01-90-00-05 3300 XL 50 mm Proximity Probe is a precision non-contact sensor designed for monitoring the operating condition of large rotating machinery. Its main function is to measure shaft vibration, shaft displacement, and relative shaft position changes during machine operation.

The probe uses advanced eddy current sensing technology to detect variations in the distance between the probe tip and the rotating shaft surface. These changes are converted into electrical signals and transmitted to the machinery monitoring system for processing and analysis.

In critical industrial equipment, small changes in shaft movement can indicate developing mechanical issues such as rotor imbalance, shaft misalignment, bearing wear, or mechanical looseness. Continuous monitoring through this proximity probe allows maintenance personnel to identify abnormal trends early and take preventive action.

The probe is commonly used in turbines, compressors, generators, and other high-value rotating assets where accurate and reliable condition monitoring is essential for safe operation.

2. How does the Bently Nevada 3300 XL 50 mm Proximity Probe work?

The Bently Nevada 3300 XL 50 mm Proximity Probe operates using eddy current measurement technology. During operation, the sensing tip generates a high-frequency electromagnetic field. When the probe is positioned close to a conductive rotating shaft, the distance change between the probe and the shaft affects the characteristics of this electromagnetic field.

The associated signal conditioning electronics detect these changes and convert them into proportional electrical signals representing shaft movement. The monitoring system then processes these signals to display vibration levels, displacement trends, and equipment operating conditions.

Because the probe does not physically contact the rotating shaft, it avoids mechanical wear and provides reliable measurement performance during long-term operation.

This technology is widely applied in machinery protection systems because it provides accurate, continuous, and real-time information about rotating equipment behavior.

3. What types of equipment are suitable for the Bently Nevada 330876-01-90-00-05 proximity probe?

The Bently Nevada 330876-01-90-00-05 proximity probe is suitable for a wide range of industrial rotating machinery applications that require continuous shaft monitoring.

Typical equipment includes steam turbines, gas turbines, centrifugal compressors, generators, large motors, and industrial pumps. These machines often operate under demanding conditions where abnormal shaft movement can lead to serious equipment damage.

In industries such as power generation, oil and gas, petrochemical processing, and manufacturing, the probe provides essential measurement data for machinery protection and predictive maintenance systems.

By continuously monitoring shaft vibration and displacement changes, the probe helps operators detect potential problems before they develop into major failures, improving equipment reliability and reducing unplanned downtime.

4. What are the common causes of abnormal signals from the Bently Nevada 330876-01-90-00-05 Proximity Probe?

Abnormal signals from the Bently Nevada 330876-01-90-00-05 Proximity Probe may be caused by sensor installation issues, connection problems, monitoring system configuration errors, or actual mechanical problems within the equipment.

Typical symptoms include unstable vibration readings, incorrect displacement values, sudden signal fluctuations, or unexpected machinery alarms.

During troubleshooting, technicians should first inspect the probe connection, associated cables, signal conditioning equipment, and monitoring system parameters. Incorrect installation conditions or improper configuration can affect measurement accuracy.

Environmental factors such as electromagnetic interference, excessive vibration, contamination, or cable damage may also influence signal stability.

A complete troubleshooting process should include both electrical inspection and mechanical condition analysis to determine whether the abnormal signal originates from the sensor system or the monitored machine.

5. What installation requirements should be followed for the Bently Nevada 330876-01-90-00-05 proximity probe?

Proper installation is important to achieve accurate and stable measurement performance from the Bently Nevada 330876-01-90-00-05 proximity probe.

Before installation, technicians should verify compatibility between the probe, signal conditioning equipment, extension cable, and monitoring system. The probe must be positioned correctly relative to the rotating shaft to ensure reliable measurement.

All electrical connections should be securely installed to prevent signal interruption. Cable routing should avoid areas with strong electromagnetic interference, excessive heat, or mechanical stress.

After installation, the complete monitoring circuit should be tested to confirm that the probe output signal is stable and that the monitoring system receives accurate measurement data.

Following proper installation procedures improves system reliability and helps prevent false alarms or incorrect machinery diagnosis.

6. How can technicians troubleshoot the Bently Nevada 330876-01-90-00-05 proximity probe?

When troubleshooting the Bently Nevada 330876-01-90-00-05 proximity probe, technicians should examine the entire measurement chain, including the probe, cables, signal conditioning module, and monitoring equipment.

The first step is to check electrical connections and verify that the signal path is complete. Technicians should inspect cables for damage, confirm system configuration settings, and compare measured values with expected operating conditions.

If abnormal signals occur, possible causes may include loose connections, incorrect installation, electrical interference, or actual machine vibration problems.

It is also important to evaluate operating trends rather than relying only on a single measurement value. Historical vibration data can help determine whether the issue is related to gradual equipment degradation or a sudden sensor problem.

A structured troubleshooting method helps identify faults accurately and reduces unnecessary maintenance actions.

7. Can the Bently Nevada 330876-01-90-00-05 proximity probe be replaced with another model?

Replacement depends on the existing Bently Nevada monitoring system configuration and the specific application requirements.

Although many proximity probes use similar eddy current measurement principles, different models may have different electrical characteristics, output performance, and compatibility requirements.

The Bently Nevada 330876-01-90-00-05 belongs to the 3300 XL Series and is designed to operate with compatible signal conditioning and monitoring equipment. Before replacement, users should verify that the alternative model matches the existing system requirements.

Using an incompatible probe may result in incorrect measurement signals, unstable monitoring performance, or reduced machinery protection capability.

Selecting the correct replacement model ensures that the monitoring system continues to provide accurate and reliable condition information.

8. How can users maintain the long-term reliability of the Bently Nevada 3300 XL 50 mm Proximity Probe?

To maintain long-term reliability of the Bently Nevada 3300 XL 50 mm Proximity Probe, users should focus on correct installation, regular inspection, and preventive maintenance.

Routine maintenance should include checking signal stability, verifying cable and connection conditions, and reviewing vibration and displacement trends from the monitoring system.

Any abnormal changes in measurement data should be investigated promptly to determine whether they are caused by sensor issues or actual equipment conditions.

Protecting the probe system from excessive vibration, electrical interference, contamination, and improper handling can help extend service life and maintain measurement accuracy.

Through proper maintenance practices and continuous monitoring, users can improve machinery protection reliability, reduce unexpected failures, and ensure stable operation of critical rotating equipment.
