1. What equipment is the Bently Nevada 330901-11-43-05-02-05 Proximity Probe mainly used for monitoring?

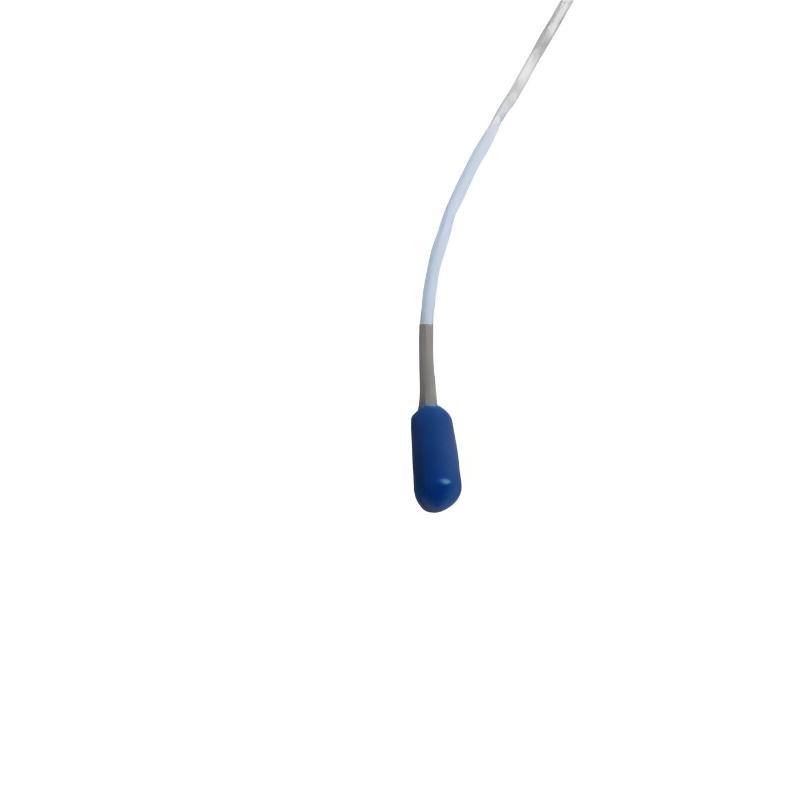

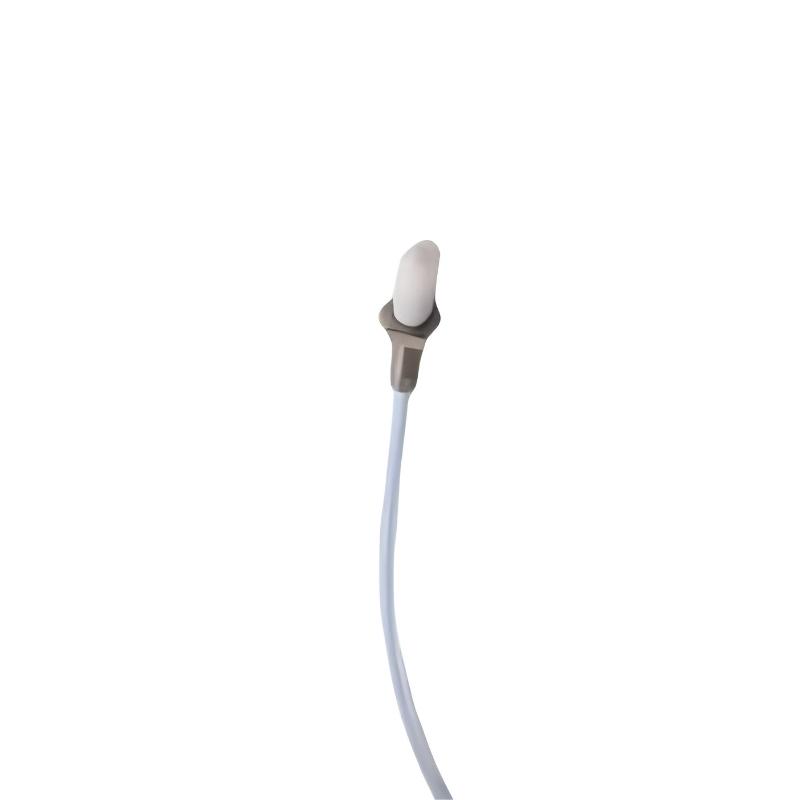

The Bently Nevada 330901-11-43-05-02-05 is an Eddy Current Proximity Probe from the 3300 NSv series, designed for condition monitoring applications on industrial rotating machinery. It is commonly installed on steam turbines, compressors, pumps, motors, and other critical rotating equipment to measure shaft vibration, shaft displacement, and changes in mechanical operating conditions. Through non-contact measurement technology, the probe detects the distance variation between the probe tip and the rotating shaft surface and converts mechanical movement into an electrical signal for monitoring and analysis. Unlike contact-type sensors, the 3300 NSv Proximity Probe does not create mechanical wear on high-speed rotating components, making it suitable for continuous operation in demanding industrial environments. In predictive maintenance systems, this sensor helps engineers identify potential issues such as rotor imbalance, bearing wear, shaft misalignment, and mechanical instability before serious equipment failures occur.

2. How does the Bently Nevada 330901-11-43-05-02-05 Proximity Probe work?

The 330901-11-43-05-02-05 operates based on Eddy Current displacement sensing technology. The probe generates a high-frequency electromagnetic field through its internal coil and detects changes in the electromagnetic characteristics when a conductive target moves closer or farther away. During machine operation, any shaft vibration or axial movement changes the gap between the probe tip and the shaft surface. The sensor converts these changes into proportional voltage output signals that can be processed by Bently Nevada monitoring systems. Because the measurement process is completely non-contact, the probe provides stable performance without mechanical friction or wear. This technology is widely used for high-speed rotating machinery because it offers fast response, accurate displacement measurement, and reliable data for machine protection and condition analysis.

3. How should the Bently Nevada 3300 NSv Proximity Probe be installed correctly?

When installing the 330901-11-43-05-02-05, the probe position must meet the mechanical installation requirements of the monitoring system, and the correct gap between the probe tip and the shaft surface must be maintained. Before installation, the probe body, cable connection, and mounting thread should be inspected to ensure there is no physical damage. During installation, excessive mechanical impact should be avoided, and the mounting structure should provide sufficient rigidity to prevent additional vibration. The connection between the probe, extension cable, and monitoring module must remain secure to prevent unstable signals caused by poor contact. After installation, the output signal should be checked through the monitoring system, and the probe gap should be adjusted according to application requirements. Proper installation improves measurement accuracy and reduces false alarms during equipment operation.

4. How can unstable signals from the 330901-11-43-05-02-05 be diagnosed?

When the 330901-11-43-05-02-05 produces unstable signals, abnormal output, or fluctuating measurements, the troubleshooting process should begin with checking the connection between the probe and the monitoring module. Inspect the cable connectors, terminals, and signal wiring for looseness, damage, or poor contact. The installation gap between the probe and the shaft should also be verified because incorrect gap settings can affect Eddy Current sensor output accuracy. If the rotating machine has abnormal vibration, the shaft condition, mechanical runout, and actual operating status should be examined to determine whether the signal change is caused by real mechanical movement or sensor issues. The power supply and monitoring module configuration should also be checked. In environments with strong electromagnetic interference, signal cable routing and shielding methods should be reviewed. A systematic inspection of mechanical, electrical, and installation factors can help quickly identify the cause of signal instability.

5. What is the difference between the Bently Nevada 330901-11-43-05-02-05 and traditional vibration sensors?

The main difference between the 330901-11-43-05-02-05 and traditional vibration sensors is the measurement method. Traditional vibration sensors usually monitor vibration from the machine housing or bearing structure, while the 3300 NSv Proximity Probe directly measures shaft movement and displacement. This allows the sensor to provide more accurate information about actual rotor behavior. Since the probe uses non-contact Eddy Current technology, it is not affected by mechanical wear and can operate reliably in high-speed rotating machinery applications. For critical equipment such as turbines and compressors, monitoring external casing vibration alone may not provide sufficient information about shaft conditions. The proximity probe can detect shaft vibration, axial movement, and position changes, providing important data for equipment protection, fault diagnosis, and predictive maintenance programs.

6. What maintenance procedures are required for the Bently Nevada 330901-11-43-05-02-05?

During maintenance of the 330901-11-43-05-02-05, special attention should be given to the probe tip, cable condition, and connection interfaces. Since the probe is commonly installed near industrial rotating equipment, it may be exposed to oil contamination, dust, temperature variations, and mechanical vibration over long operating periods. Regular inspections should confirm that the probe surface remains clean and free from damage. The cable should also be checked for wear, insulation aging, or physical damage that could affect signal transmission. During equipment maintenance periods, monitoring system data trends should be reviewed to confirm that the probe continues to provide stable measurement signals. If the probe is replaced, the installation gap and system calibration parameters should be verified again to ensure accurate operation. Proper maintenance improves monitoring system reliability and reduces unexpected equipment failures.

7. Why is the 330901-11-43-05-02-05 suitable for predictive maintenance systems?

The 330901-11-43-05-02-05 is highly suitable for predictive maintenance applications because it continuously provides shaft vibration and displacement data from rotating equipment. By analyzing long-term operating trends, maintenance engineers can identify early signs of mechanical problems before they develop into major failures. For example, increasing shaft vibration levels may indicate bearing degradation, rotor imbalance, coupling problems, or mechanical alignment issues. Compared with traditional scheduled maintenance methods, condition-based monitoring allows maintenance activities to be planned according to the actual equipment condition, reducing unnecessary downtime and preventing unexpected breakdowns. The 3300 NSv Proximity Probe provides stable output signals and fast response characteristics, making it a reliable data source for industrial equipment health monitoring systems and improving the safety and availability of critical machinery.

8. How should abnormal measurement data from the Bently Nevada 330901-11-43-05-02-05 be diagnosed?

When abnormal measurement data is detected from the 330901-11-43-05-02-05, troubleshooting should be performed systematically from basic checks to deeper analysis. First, review monitoring system alarms and real-time data trends to determine whether the abnormal condition is continuous or temporary. Then inspect the probe connection, cable condition, and installation gap to confirm that the sensor installation is correct. If the sensor and wiring are operating normally, further analysis should focus on the mechanical equipment itself, including rotor balance, bearing condition, coupling alignment, and operating load changes. The monitoring module configuration should also be verified to ensure that incorrect settings are not causing false alarms. For machines operating over long periods, historical trend data should be compared to identify performance changes. By combining sensor inspection, electrical verification, and mechanical analysis, engineers can accurately determine the cause of abnormal readings and apply effective corrective actions.
