1. What is the main function of the Bently Nevada 330904-06-14-05-02-00 3300 NSv Proximity Probe?

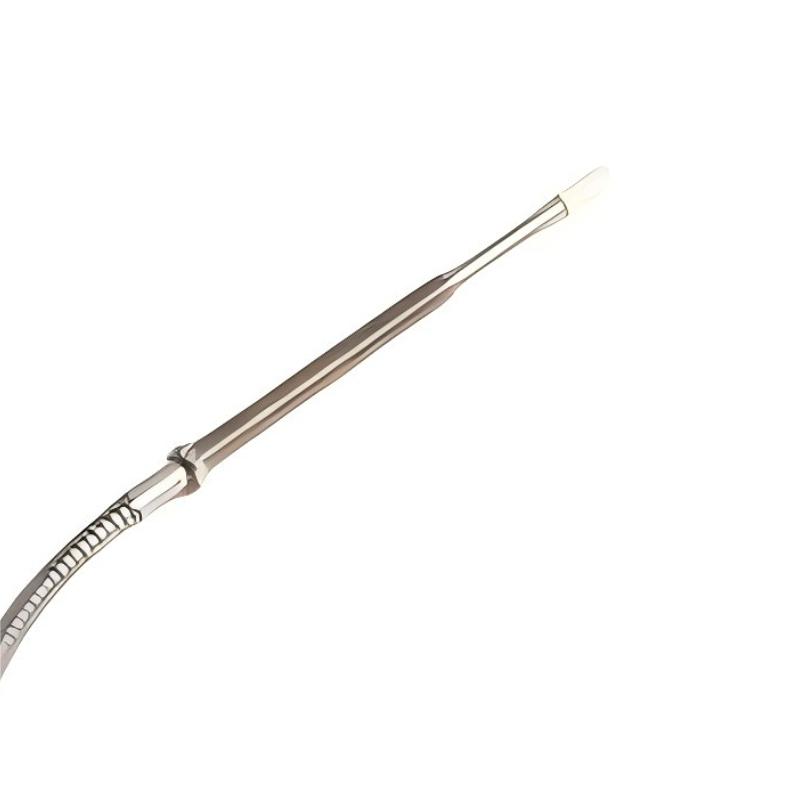

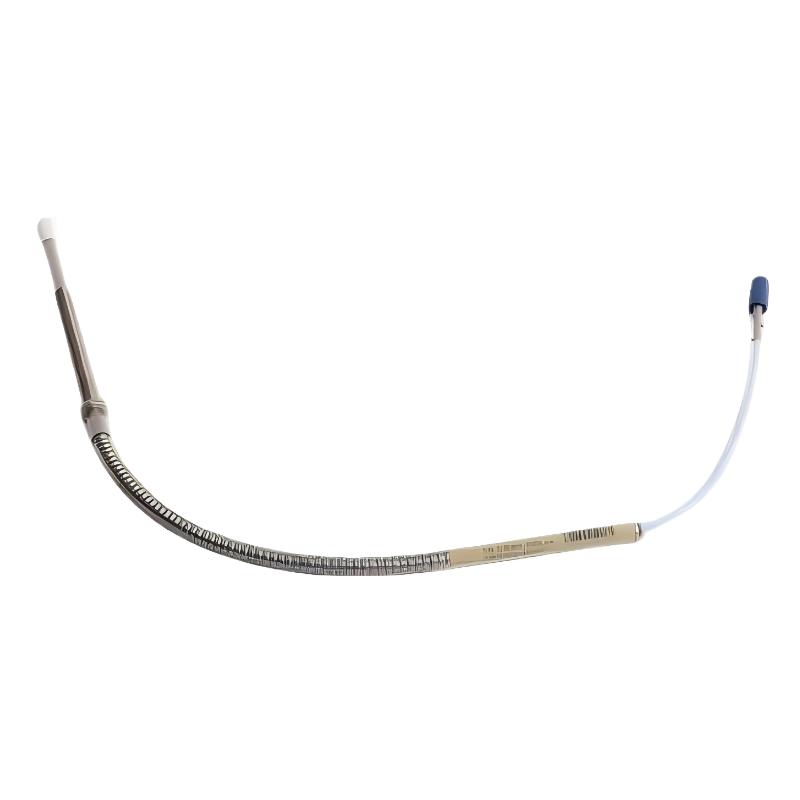

The Bently Nevada 330904-06-14-05-02-00 3300 NSv Proximity Probe is a precision non-contact sensor designed for monitoring the operating condition of rotating machinery. It is mainly used to measure shaft vibration, radial displacement, and shaft position by detecting changes in the distance between the probe tip and the rotating shaft.

The probe uses eddy current sensing technology to generate an electromagnetic field near the conductive target surface. When the shaft moves due to vibration or displacement, the electromagnetic field changes accordingly. The sensor converts these changes into electrical signals and sends them to a compatible Proximitor system for processing.

This proximity probe is widely used in critical industrial equipment such as turbines, compressors, pumps, motors, and generators. It provides continuous vibration monitoring data that helps detect early signs of mechanical problems, including rotor imbalance, shaft misalignment, bearing problems, and abnormal operating conditions.

By providing accurate real-time shaft condition information, the 330904-06-14-05-02-00 supports predictive maintenance strategies, improves equipment reliability, and reduces the risk of unexpected shutdowns.

2. What industrial equipment can use the Bently Nevada 330904-06-14-05-02-00 proximity probe?

The Bently Nevada 330904-06-14-05-02-00 is suitable for industrial rotating equipment that requires continuous shaft vibration and position monitoring.

Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, electric motors, and gearbox systems. In power generation applications, the probe is often installed on turbine systems to monitor rotor movement and detect abnormal vibration trends.

In oil and gas, petrochemical, and manufacturing industries, this proximity probe is commonly used for monitoring critical equipment that operates continuously under demanding conditions.

The 3300 NSv series is designed for reliable operation in industrial environments where accurate measurement performance is required. When combined with Bently Nevada monitoring systems, it provides important operating data for equipment protection, fault analysis, and predictive maintenance.

3. How does the Bently Nevada 330904-06-14-05-02-00 measure shaft vibration?

The Bently Nevada 330904-06-14-05-02-00 measures shaft vibration through eddy current measurement technology. During operation, the probe creates a high-frequency electromagnetic field around the sensing area.

When the rotating shaft moves closer to or farther away from the probe because of vibration or displacement, the electromagnetic field changes. The probe detects these changes and converts them into electrical output signals proportional to the shaft movement.

The signal is then transmitted to a compatible Proximitor system, where it is processed into vibration and position monitoring data.

Because the probe operates without physical contact with the rotating shaft, it avoids mechanical wear and can provide long-term stable measurement performance. This makes it ideal for high-speed rotating machinery where accurate and continuous monitoring is required.

4. What should be checked if the 330904-06-14-05-02-00 produces unstable vibration signals?

When the 330904-06-14-05-02-00 produces unstable or incorrect vibration signals, troubleshooting should focus on the probe installation, electrical connection, and monitoring system configuration.

First, check whether the probe installation position is correct and whether the sensing condition between the probe and shaft meets system requirements. Incorrect installation conditions may result in inaccurate vibration readings.

The shaft surface should also be inspected for contamination, corrosion, scratches, or other surface problems. Since the probe relies on electromagnetic measurement, the target surface condition can directly affect signal quality.

The probe cable and connector should be checked for damage, loose connections, or external electromagnetic interference. Poor cable conditions may cause unstable output signals.

Finally, verify the Proximitor system settings to ensure that the probe parameters, calibration values, and monitoring configuration match the installed sensor.

5. What installation precautions should be considered for the Bently Nevada 330904-06-14-05-02-00?

Correct installation is essential to achieve accurate and reliable measurement performance from the 330904-06-14-05-02-00 proximity probe.

Before installation, the mounting area should be cleaned and inspected to ensure that the probe can be securely installed. Any contamination or mechanical looseness may affect signal stability.

The probe should be positioned correctly relative to the rotating shaft. Proper installation conditions ensure that the sensor can accurately detect shaft movement and provide reliable measurement data.

The probe cable should be routed carefully to avoid excessive bending, mechanical stress, strong vibration areas, and electromagnetic interference sources.

After installation, the output signal should be tested through the connected monitoring system. Engineers should verify that vibration data, alarm functions, and monitoring performance are operating normally before equipment operation.

6. What are the common causes of measurement errors in the 3300 NSv Proximity Probe system?

Measurement errors in the 3300 NSv Proximity Probe system may be caused by incorrect installation, target material differences, system configuration problems, or environmental interference.

The probe measurement performance depends on the electrical characteristics of the target material. If the shaft material differs from the expected calibration condition, measurement accuracy may be affected.

Incorrect installation position or unsuitable operating conditions can also cause signal deviation. The probe must operate within the recommended measurement range to maintain accurate output.

Incorrect Proximitor configuration is another common cause of measurement problems. The monitoring system parameters, calibration settings, and probe information must match the installed sensor.

In addition, electrical noise, poor grounding, and damaged cables may affect signal quality. Regular inspection and proper configuration help maintain reliable monitoring performance.

7. Can the Bently Nevada 330904-06-14-05-02-00 be used in machinery protection systems?

Yes. The Bently Nevada 330904-06-14-05-02-00 is designed for machinery condition monitoring and protection applications involving critical rotating equipment.

When connected with compatible Bently Nevada monitoring systems, the probe provides continuous shaft vibration and displacement measurements. These signals can be used for equipment alarms, protection functions, and predictive maintenance analysis.

For important equipment such as turbines, compressors, and generators, early detection of abnormal shaft movement is essential to prevent serious mechanical failures.

The probe provides reliable real-time operating information, allowing maintenance teams to identify potential problems before they develop into major equipment damage.

Its non-contact measurement technology and stable signal performance make it suitable for long-term industrial machinery protection applications.

8. What maintenance practices are recommended for the Bently Nevada 330904-06-14-05-02-00?

Regular maintenance is important for maintaining the accuracy and reliability of the Bently Nevada 330904-06-14-05-02-00 proximity probe system.

Maintenance personnel should periodically inspect the probe installation condition, cable connections, connectors, and operating environment. Any loose connections, cable damage, or contamination should be corrected promptly.

The sensing area should be kept clean because oil, dust, or corrosion may affect measurement stability and signal accuracy.

During scheduled equipment inspections, vibration trends and historical monitoring data should be reviewed to identify abnormal changes. If vibration patterns change significantly, the probe condition and system configuration should be checked.

For critical rotating machinery, proper maintenance ensures accurate condition monitoring, improves equipment protection, reduces unexpected failures, and extends the service life of the complete monitoring system.
