1. What is the main function of the Bently Nevada 330905-00-08-05-02-CN 3300 NSv Proximity Probe?

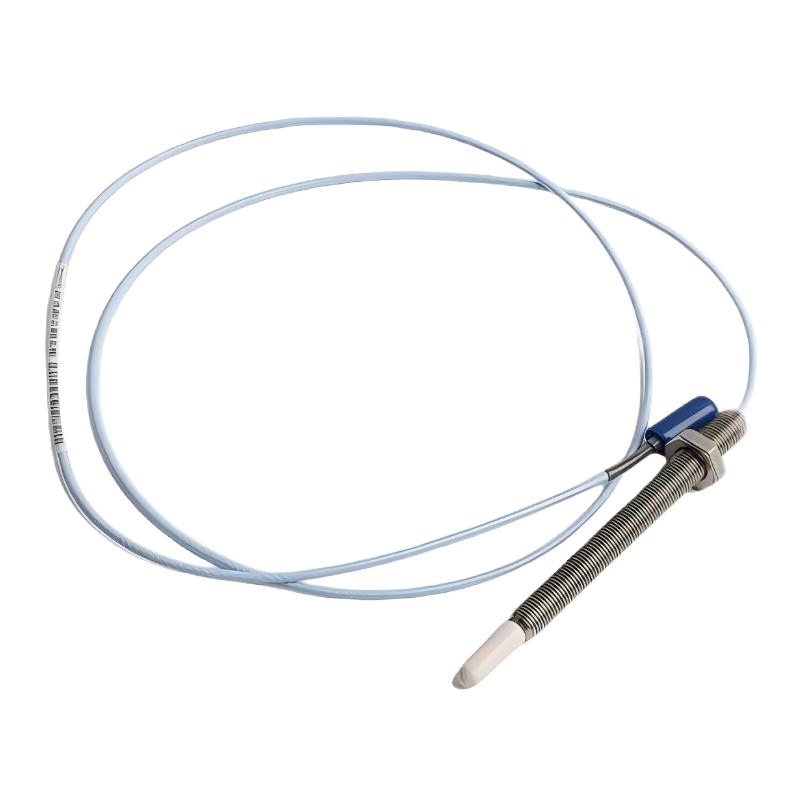

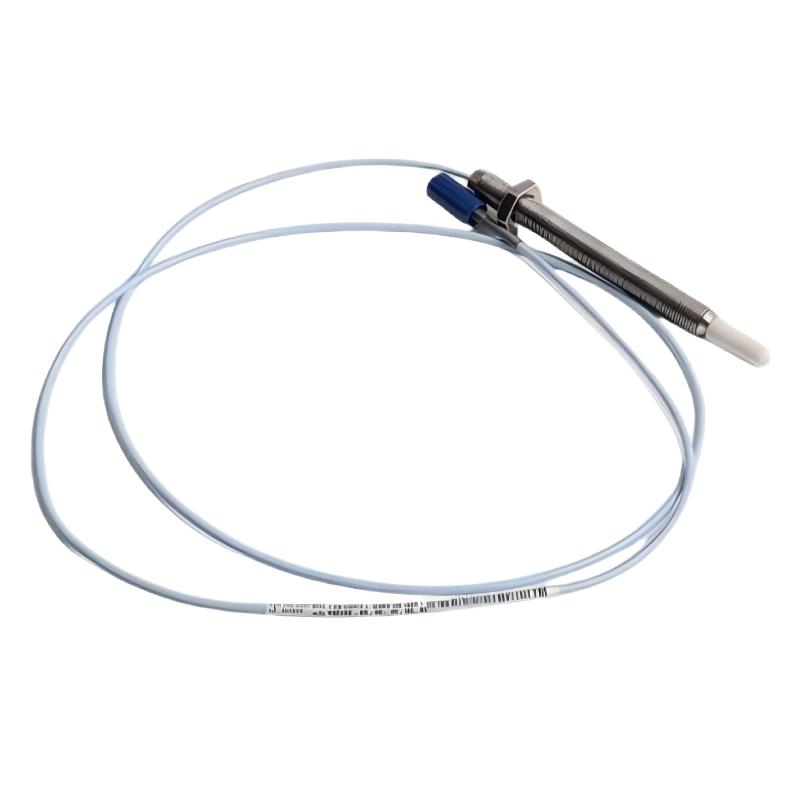

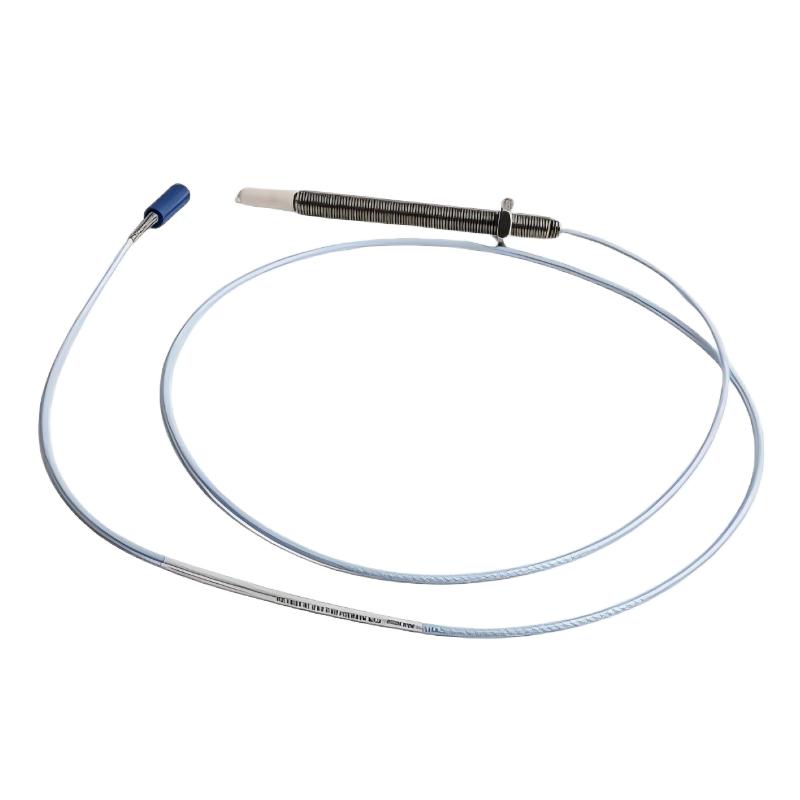

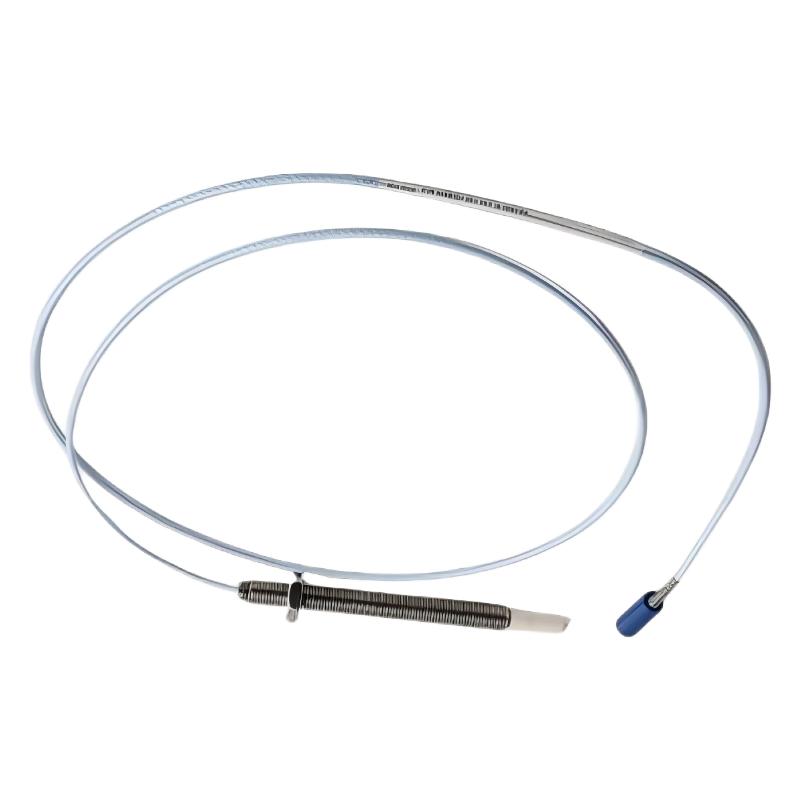

The Bently Nevada 330905-00-08-05-02-CN 3300 NSv Proximity Probe is a high-precision non-contact sensor designed for monitoring the operating condition of rotating machinery. Its primary function is to measure shaft vibration, shaft displacement, and rotor position by detecting changes in the distance between the probe tip and the rotating shaft.

The probe uses eddy current measurement technology to generate a high-frequency electromagnetic field near the shaft surface. When the shaft moves due to vibration, axial displacement, or mechanical movement, the electromagnetic field changes. The sensor detects these variations and converts them into electrical output signals proportional to shaft movement.

The output signal is transferred to a compatible Proximitor system for processing and analysis. This allows engineers to monitor equipment condition, evaluate vibration trends, and identify potential mechanical problems.

The 330905-00-08-05-02-CN is commonly used in critical rotating equipment such as turbines, compressors, pumps, motors, and generators. It provides continuous monitoring data that supports predictive maintenance, improves equipment protection, and reduces unexpected downtime.

2. What types of industrial equipment can use the Bently Nevada 330905-00-08-05-02-CN proximity probe?

The Bently Nevada 330905-00-08-05-02-CN is designed for industrial applications where accurate shaft vibration and position monitoring are required.

Typical applications include steam turbines, gas turbines, centrifugal compressors, industrial pumps, generators, electric motors, and gearbox systems. In power plants, the probe is often installed on critical rotating equipment to monitor rotor behavior and detect abnormal operating conditions.

In oil and gas, petrochemical, and manufacturing industries, the probe is used for continuous condition monitoring of important machinery where reliability and operational safety are essential.

The 3300 NSv series provides stable measurement performance and reliable operation in demanding industrial environments. When integrated with Bently Nevada monitoring systems, it delivers real-time vibration and displacement information for equipment protection, fault diagnosis, and maintenance planning.

By continuously monitoring shaft movement, operators can detect early warning signs of mechanical problems and take preventive actions before major failures occur.

3. How does the Bently Nevada 330905-00-08-05-02-CN measure shaft vibration?

The Bently Nevada 330905-00-08-05-02-CN measures shaft vibration using advanced eddy current sensing technology.

During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When the distance between the probe and the rotating shaft changes, the electromagnetic field strength changes accordingly.

The internal electronic circuit detects these changes and converts them into an electrical output signal that represents shaft displacement.

The signal is transmitted to the Proximitor system, where it is processed into vibration amplitude, shaft position, and machine condition information.

Because the probe operates without direct physical contact with the rotating shaft, it does not experience mechanical wear caused by friction. This enables long-term stable operation and makes it suitable for high-speed rotating machinery monitoring applications.

4. What should be checked if the 330905-00-08-05-02-CN provides abnormal signals?

When the 330905-00-08-05-02-CN produces unstable signals, incorrect readings, or abnormal vibration values, troubleshooting should focus on installation conditions, electrical connections, and system configuration.

First, verify that the probe installation position is correct and that the sensing condition between the probe and shaft meets application requirements. Incorrect installation may result in inaccurate measurements.

The surface condition of the monitored shaft should also be inspected. Oil contamination, corrosion, scratches, or surface damage can affect eddy current measurement performance.

The probe cable and connector should be checked for physical damage, loose connections, or electromagnetic interference from nearby equipment.

The Proximitor system configuration should also be reviewed to confirm that the probe parameters, calibration settings, and monitoring channel configuration are correct.

A complete inspection of mechanical and electrical factors can help identify the source of abnormal signals and restore reliable monitoring performance.

5. What installation requirements should be followed for the Bently Nevada 330905-00-08-05-02-CN?

Proper installation is essential for ensuring accurate measurement and stable operation of the Bently Nevada 330905-00-08-05-02-CN proximity probe.

Before installation, the mounting area should be cleaned to remove oil, dust, and other contaminants that may affect sensor performance.

The probe should be installed in the correct position relative to the rotating shaft to ensure accurate detection of shaft movement.

During cable installation, avoid excessive bending, mechanical stress, and strong vibration areas. The cable should also be kept away from high-power electrical equipment to reduce electromagnetic interference.

After installation, the probe output signal should be tested through the monitoring system. Engineers should confirm that signal transmission, vibration measurement, and alarm functions operate correctly before placing the equipment into service.

Correct installation improves measurement accuracy and ensures reliable long-term monitoring.

6. What factors can affect the measurement accuracy of the 3300 NSv Proximity Probe system?

The measurement accuracy of the 3300 NSv Proximity Probe system can be affected by several factors, including installation conditions, shaft material characteristics, electrical environment, and system configuration.

The electrical properties of the monitored shaft material influence the eddy current measurement process. If the actual target material differs from the calibration conditions, measurement deviations may occur.

Incorrect probe positioning, improper installation conditions, or changes in operating conditions can also result in unstable readings.

In addition, incorrect Proximitor system configuration is a common cause of measurement errors. The probe model, calibration parameters, and monitoring channel settings must match the installed sensor specifications.

Electrical interference, poor grounding, damaged cables, and unstable connections may reduce signal quality.

Regular inspection and proper configuration help maintain accurate and reliable measurement performance.

7. Can the Bently Nevada 330905-00-08-05-02-CN be used in machinery protection systems?

Yes. The Bently Nevada 330905-00-08-05-02-CN can be integrated into machinery condition monitoring and protection systems for critical rotating equipment.

When connected with compatible Bently Nevada monitoring systems, the probe continuously provides shaft vibration and displacement signals. These signals can be used for equipment alarms, protective functions, and predictive maintenance analysis.

For important equipment such as turbines, compressors, and generators, abnormal shaft movement is often an early indicator of mechanical problems.

By monitoring shaft behavior in real time, maintenance teams can identify abnormal operating trends and take corrective actions before serious equipment damage occurs.

The probe provides stable measurement performance and is suitable for industrial applications requiring continuous machinery protection and condition monitoring.

8. What maintenance practices are recommended for the Bently Nevada 330905-00-08-05-02-CN?

Regular maintenance helps ensure the long-term reliability and accuracy of the Bently Nevada 330905-00-08-05-02-CN proximity probe.

Maintenance personnel should periodically inspect the probe installation condition, cable connections, connectors, and operating environment. Any loose connection, cable damage, or contamination should be corrected immediately.

The sensing area should be kept clean because oil, dust, and corrosive substances may affect measurement stability.

During scheduled equipment maintenance, vibration trends and historical monitoring data should be reviewed. If abnormal changes are detected, the probe condition and monitoring system configuration should be checked.

For critical rotating machinery operating continuously, proper maintenance ensures accurate condition monitoring, improves equipment protection capability, reduces unexpected downtime, and extends the service life of the monitoring system.

Effective maintenance also improves the overall reliability of the machinery monitoring system and supports stable long-term equipment operation.
