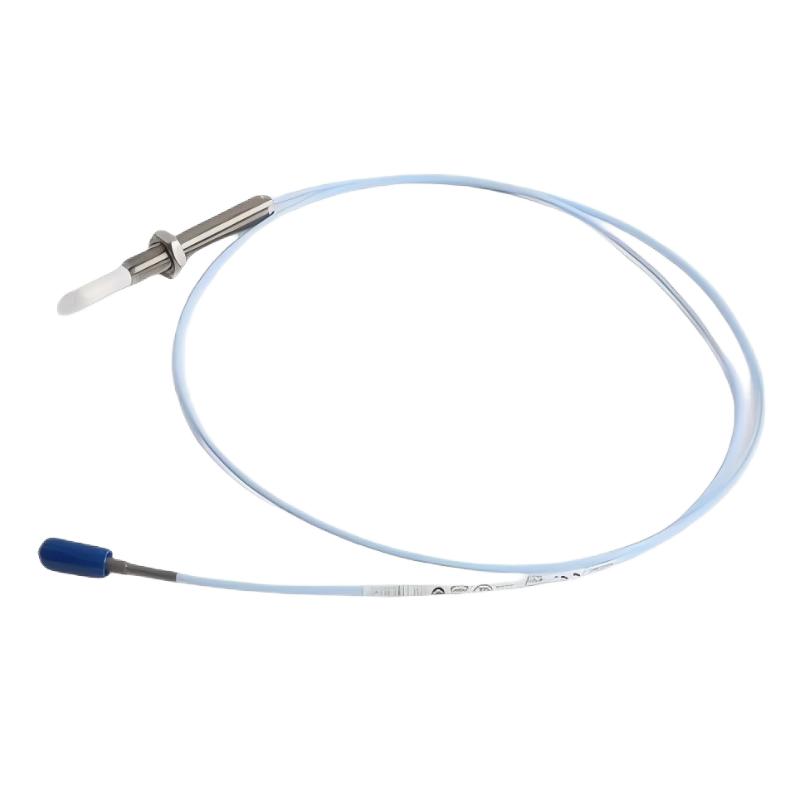

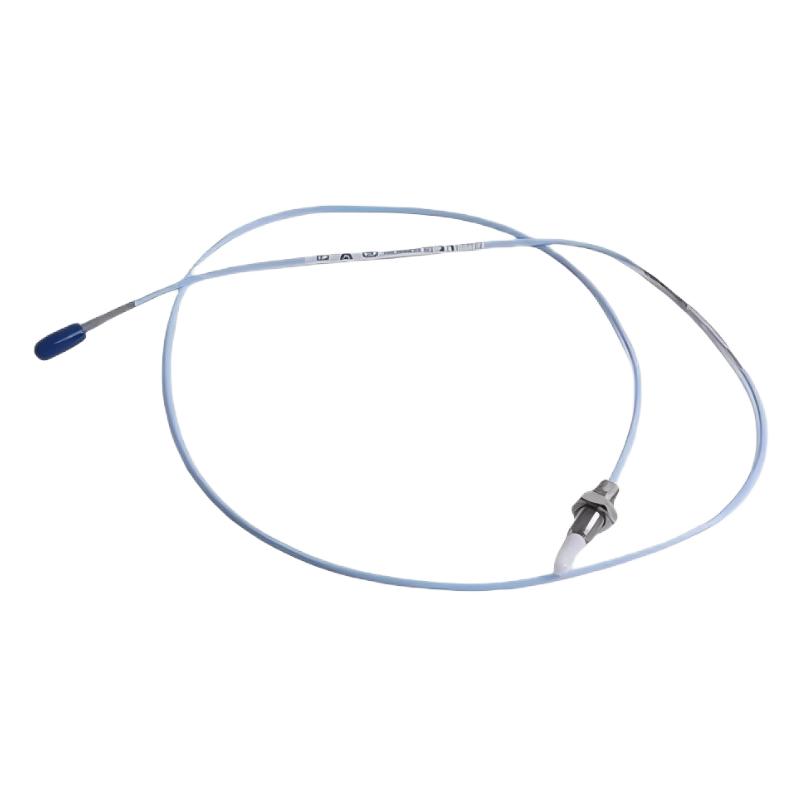

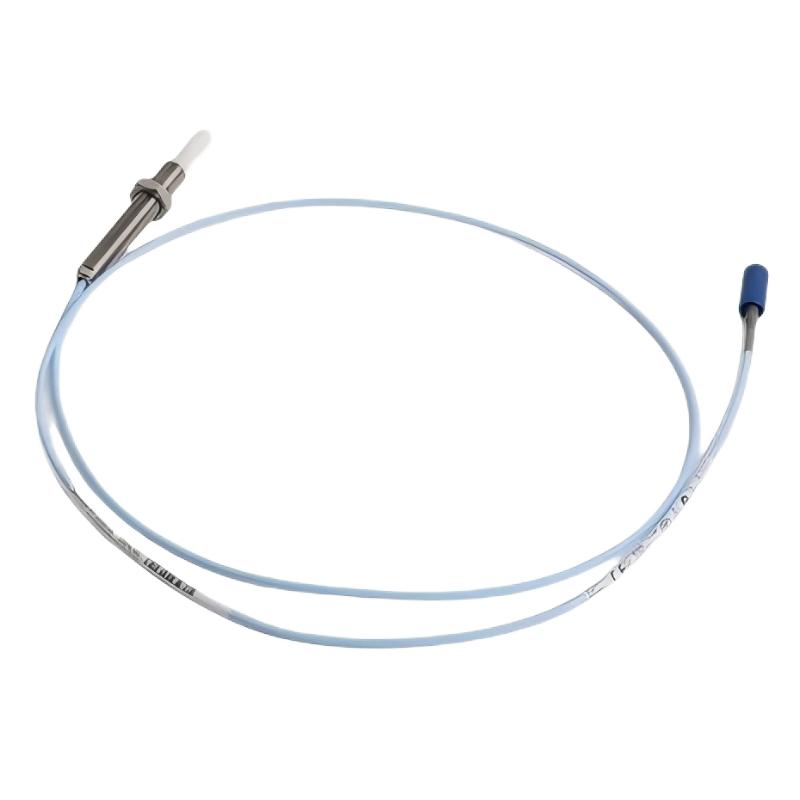

1. What are the main applications of the Bently Nevada 330905-00-09-05-02-RU 3300 NSv Proximity Probe?

The Bently Nevada 330905-00-09-05-02-RU 3300 NSv Proximity Probe is mainly used for online condition monitoring of industrial rotating machinery, especially in applications requiring accurate shaft vibration and displacement measurement.

This proximity probe is widely used in steam turbines, compressors, pumps, generators, motors, and other critical rotating equipment. In these machines, shaft movement and vibration conditions directly affect equipment safety, reliability, and operating efficiency.

The 3300 NSv Proximity Probe uses eddy current non-contact measurement technology to detect changes in the distance between the probe tip and the rotating shaft surface. The mechanical movement is converted into electrical signals and transmitted to the monitoring system for analysis.

Due to its compact structure, this probe is especially suitable for applications where installation space is limited while maintaining reliable vibration monitoring performance.

2. How does the Bently Nevada 330905-00-09-05-02-RU work?

The Bently Nevada 330905-00-09-05-02-RU operates using eddy current measurement technology. The probe generates a high-frequency electromagnetic field through its internal sensing coil and detects changes caused by the conductive rotating shaft.

When the shaft moves due to vibration or displacement, the distance between the probe and the shaft surface changes. This variation affects the electromagnetic field, allowing the probe to generate an electrical output signal proportional to the shaft movement.

Since the measurement process does not require direct contact with the rotating component, the probe avoids mechanical wear and provides stable performance during long-term operation.

This operating principle makes the 3300 NSv Proximity Probe suitable for continuous monitoring of rotating machinery where accurate vibration and displacement information is required.

3. What should be considered when installing the Bently Nevada 330905-00-09-05-02-RU?

Proper installation is important to ensure accurate and stable operation of the Bently Nevada 330905-00-09-05-02-RU Proximity Probe.

Before installation, the probe surface should be checked to ensure it is clean and free from oil, dust, or metallic contamination that may affect signal accuracy. The probe position should be adjusted according to the equipment requirements to maintain correct measurement conditions.

Because this model uses a metric installation design, suitable mounting hardware and installation methods should be selected to ensure secure positioning.

The signal cable should be connected firmly and routed away from strong electromagnetic interference sources, excessive vibration areas, and possible mechanical damage.

Correct installation improves measurement stability, reduces signal errors, and ensures reliable operation of the complete monitoring system.

4. What are the common causes of abnormal signals from the Bently Nevada 330905-00-09-05-02-RU?

Abnormal signals from the Bently Nevada 330905-00-09-05-02-RU may be caused by probe installation problems, cable faults, incorrect measurement conditions, or mechanical equipment issues.

The first troubleshooting step is to check whether the probe installation position has changed and confirm that the probe remains securely mounted.

The signal cable should also be inspected for damage, loose connections, short circuits, or poor contact conditions. Cable problems can directly affect signal transmission stability.

Mechanical problems such as rotor imbalance, shaft deformation, bearing wear, coupling issues, or increased vibration levels may also cause abnormal readings.

A complete troubleshooting process should include inspection of the sensor, wiring system, monitoring module, and actual machine operating condition to identify the root cause accurately.

5. How does the Bently Nevada 330905-00-09-05-02-RU work with the monitoring system?

The Bently Nevada 330905-00-09-05-02-RU 3300 NSv Proximity Probe is normally used together with the Bently Nevada 3300 NSv Proximitor system to provide continuous rotating machinery monitoring.

The probe detects shaft vibration and displacement changes and sends the collected signals to the Proximitor module for signal processing.

After signal conversion, the monitoring system can display equipment operating conditions, including vibration trends, shaft position changes, and abnormal alarm conditions.

By continuously collecting operating data, engineers can analyze machine health trends and identify potential mechanical problems before serious failures occur.

This combination provides a reliable monitoring solution for industrial equipment requiring accurate vibration protection in compact installation environments.

6. How can you verify whether the Bently Nevada 330905-00-09-05-02-RU is operating correctly?

To verify whether the Bently Nevada 330905-00-09-05-02-RU is operating correctly, users should check the probe output signal, connection condition, and monitoring system response.

Under normal operating conditions, the probe should provide stable signals that accurately reflect shaft movement. If the machine is running normally but the monitoring signal shows sudden fluctuations, signal loss, or abnormal deviation, further inspection is required.

Maintenance personnel can review real-time measurement values and historical trend data to determine whether the signal behavior matches normal equipment operation.

If abnormalities are detected, the probe installation, cable connection, Proximitor module, and system configuration should be checked carefully.

Regular inspection and trend analysis help maintain reliable sensor performance and improve the effectiveness of machinery protection systems.

7. What advantages does the Bently Nevada 330905-00-09-05-02-RU provide for predictive maintenance?

The Bently Nevada 330905-00-09-05-02-RU 3300 NSv Proximity Probe provides important advantages for predictive maintenance applications, including reliable measurement, stable operation, and suitability for limited installation spaces.

The probe uses non-contact eddy current technology, allowing continuous monitoring of rotating equipment without mechanical contact or wear.

By collecting long-term shaft vibration and displacement data, maintenance teams can analyze equipment condition trends and identify early signs of problems such as shaft instability, rotor imbalance, and bearing performance degradation.

Compared with traditional scheduled maintenance methods, condition-based maintenance using real-time monitoring data allows more accurate maintenance decisions, reduces unexpected downtime, and improves equipment availability.

Its compact design also allows installation in machinery areas where conventional larger sensors may not be suitable.

8. How can measurement reliability be improved when using the Bently Nevada 330905-00-09-05-02-RU?

To improve the measurement reliability of the Bently Nevada 330905-00-09-05-02-RU Proximity Probe, users should ensure proper installation, stable connections, and suitable operating conditions.

During installation, the probe position should be adjusted according to system requirements, and the signal cable should be protected from mechanical stress, vibration, and electromagnetic interference.

Routine maintenance should include checking the probe condition, cable integrity, and monitoring system operation. Any abnormal signal changes should be investigated promptly to prevent incorrect equipment condition evaluation.

In addition, machine condition analysis should be based on long-term monitoring trends rather than individual measurements.

Through correct installation, regular inspection, and continuous monitoring, the Bently Nevada 330905-00-09-05-02-RU can provide accurate and dependable data for industrial rotating machinery protection and predictive maintenance systems.
