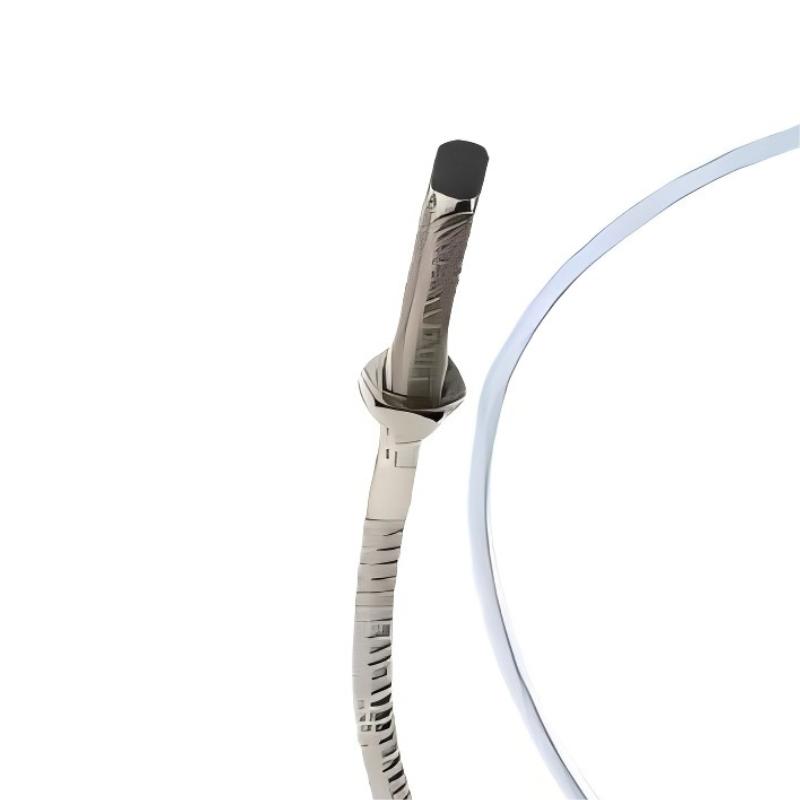

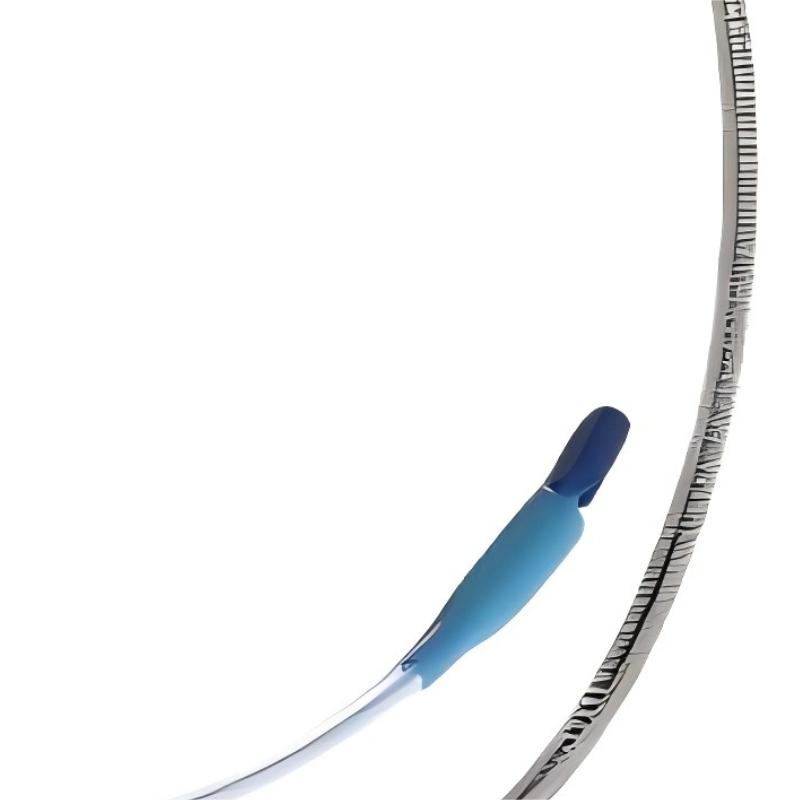

1. What are the main applications of the Bently Nevada 330905-00-09-05-05-02-05 3300 NSv Proximity Probe?

The Bently Nevada 330905-00-09-05-05-02-05 3300 NSv Proximity Probe is mainly used for non-contact measurement of shaft vibration, displacement, and position in rotating equipment monitoring systems. It adopts eddy current sensing technology to accurately detect the distance change between the probe tip and the rotating shaft surface.

This proximity probe is widely applied in critical industrial equipment such as steam turbines, gas turbines, compressors, pumps, motors, and generators. It helps monitor important mechanical parameters including shaft vibration, radial movement, and rotor position.

In industrial condition monitoring applications, the probe works together with Bently Nevada monitoring systems to provide continuous operating data. By analyzing vibration trends and displacement changes, maintenance engineers can identify potential mechanical issues such as rotor imbalance, shaft misalignment, bearing wear, or abnormal operating conditions before equipment failure occurs.

The use of this proximity probe improves equipment reliability, reduces unexpected downtime, and supports predictive maintenance strategies for critical rotating machinery.

2. How does the Bently Nevada 3300 NSv proximity probe measure shaft vibration and displacement?

The Bently Nevada 330905-00-09-05-05-02-05 proximity probe uses eddy current measurement technology to detect shaft movement without physical contact.

During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When the probe is positioned close to a conductive metal shaft, changes in the distance between the probe and the shaft affect the electromagnetic field.

The probe converts these changes into electrical signals, which are then processed by the monitoring system to calculate shaft displacement, vibration amplitude, and position information.

Because the measurement process does not require direct contact with the rotating component, the probe avoids mechanical wear and can provide stable performance in high-speed rotating machinery applications.

3. What are the common reasons for unstable signals from the 330905-00-09-05-05-02-05 proximity probe?

Unstable signals from the Bently Nevada 330905-00-09-05-05-02-05 may be caused by incorrect installation, improper probe gap adjustment, cable damage, connection problems, electrical interference, or unsuitable measurement conditions.

The first step in troubleshooting is to check the probe installation position and confirm that the sensing tip is correctly aligned with the shaft surface. Incorrect installation or gap adjustment may cause signal fluctuations or inaccurate measurement values.

The connection cable and connector should also be inspected carefully. Problems such as loose connections, insulation damage, moisture, or corrosion can affect signal transmission quality.

If the mechanical installation and wiring are confirmed to be normal, the monitoring system configuration, calibration settings, and signal processing parameters should be checked to ensure compatibility with the probe.

4. What should be considered when installing the Bently Nevada 330905-00-09-05-05-02-05 probe?

Correct installation is essential to achieve accurate and reliable measurement performance.

During installation, the probe should be firmly mounted and positioned toward the shaft measurement area. The sensing surface must maintain a stable relationship with the rotating target to ensure accurate vibration and displacement detection.

The probe gap adjustment is a critical installation step. Incorrect adjustment may result in inaccurate output signals, unstable readings, or false alarms from the monitoring system.

The connection cable should be routed properly to avoid mechanical stress, excessive vibration, high-temperature environments, and electromagnetic interference sources.

After installation, the complete monitoring system should be tested and calibrated to verify that the probe output signal is stable and within the expected operating range.

5. What are the typical failure symptoms of the Bently Nevada 330905-00-09-05-05-02-05 proximity probe?

Typical failure symptoms include abnormal vibration readings, incorrect shaft position signals, intermittent output signals, signal loss, and unexpected monitoring alarms.

If the probe itself is damaged or the cable connection has problems, the monitoring system may receive unstable or incorrect measurement data. In some cases, improper installation conditions can also create symptoms that appear similar to mechanical equipment failures.

When a problem occurs, technicians should first check the probe mounting condition, cable connection, monitoring parameters, and power supply status.

If external conditions are normal, further testing should be performed using appropriate diagnostic equipment to determine whether the probe requires replacement.

6. How does the 330905-00-09-05-05-02-05 improve rotating equipment reliability?

The Bently Nevada 330905-00-09-05-05-02-05 improves rotating equipment reliability by providing continuous and accurate monitoring of shaft vibration and displacement.

For critical equipment such as turbines, compressors, and generators, abnormal shaft movement is often an early warning sign of mechanical problems. Continuous monitoring allows maintenance teams to identify developing issues before serious damage occurs.

The probe provides important condition data for vibration analysis systems, helping engineers evaluate equipment performance and make maintenance decisions based on actual operating conditions.

By supporting predictive maintenance programs, the sensor helps reduce unplanned shutdowns, improve equipment availability, and extend the service life of industrial rotating machinery.

7. Can the Bently Nevada 330905-00-09-05-05-02-05 be used for high-speed rotating machinery?

Yes. The Bently Nevada 3300 NSv Proximity Probe is designed for applications requiring accurate shaft vibration and displacement monitoring in high-speed rotating equipment.

The non-contact eddy current measurement method allows the probe to operate continuously without physical contact with the rotating shaft, making it suitable for demanding industrial environments.

It is commonly used in turbines, compressors, pumps, generators, and other rotating machines where real-time monitoring of shaft condition is required.

To ensure reliable performance, proper installation, correct probe adjustment, and accurate monitoring system configuration are necessary.

8. How should the Bently Nevada 330905-00-09-05-05-02-05 proximity probe be maintained?

Routine maintenance of the 330905-00-09-05-05-02-05 mainly includes checking the probe installation condition, cable integrity, signal quality, and monitoring system operation.

During scheduled inspections, technicians should verify that the probe remains securely installed and that there is no contamination, mechanical damage, or abnormal environmental influence around the sensing area.

The cable and connector should be inspected for wear, corrosion, insulation damage, and loose connections. Monitoring records should also be reviewed regularly to identify changes in vibration trends or abnormal signal behavior.

Proper preventive maintenance and regular system checks help maintain measurement accuracy, improve equipment protection performance, and ensure reliable operation of critical rotating machinery.
