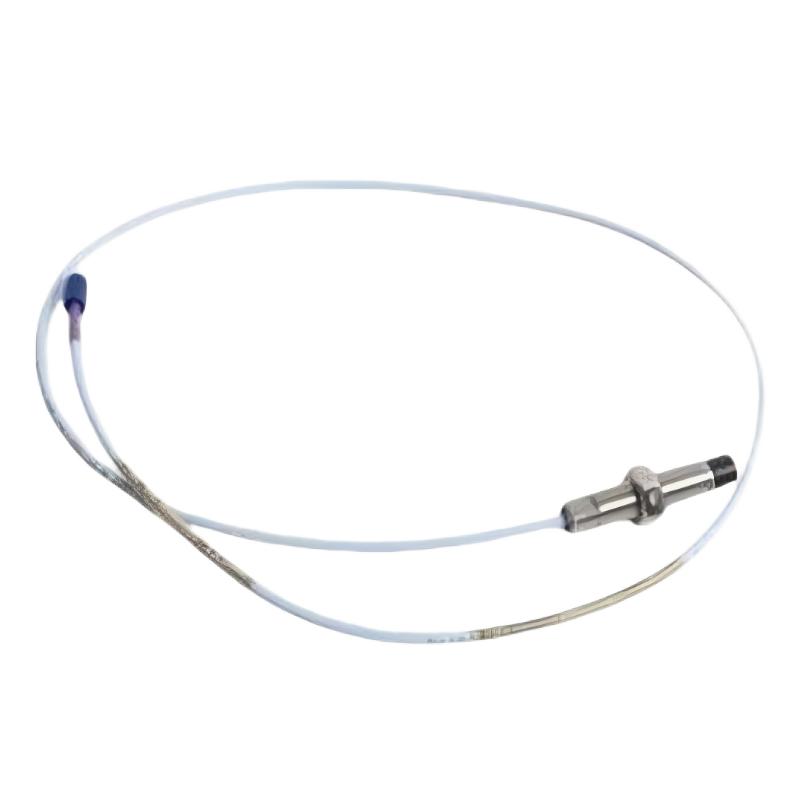

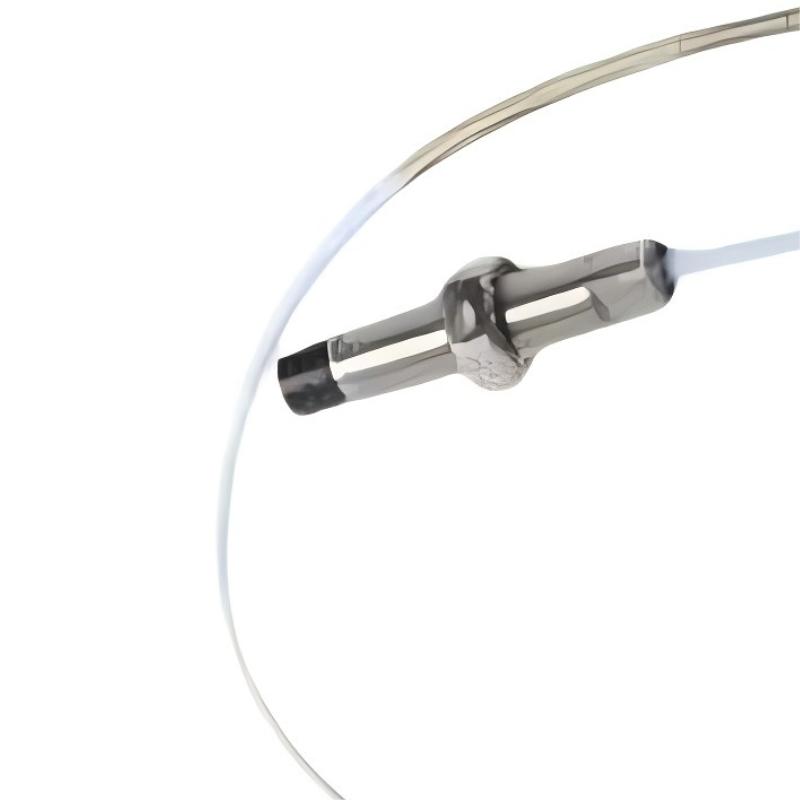

1. What are the main applications of the Bently Nevada 330905-00-10-10-02-CN 3300 NSv Proximity Probe?

The Bently Nevada 330905-00-10-10-02-CN 3300 NSv Proximity Probe is designed for non-contact measurement of shaft vibration, displacement, and position in rotating machinery condition monitoring systems. It uses eddy current sensing technology to accurately detect changes in the distance between the probe tip and the rotating shaft.

This proximity probe is commonly installed on critical industrial equipment such as steam turbines, gas turbines, compressors, pumps, motors, and generators. It provides important operating information related to rotor movement, shaft vibration, and mechanical stability.

When connected with Bently Nevada monitoring systems, the probe can continuously collect vibration and displacement data, allowing maintenance teams to identify early signs of mechanical issues such as rotor imbalance, shaft misalignment, bearing degradation, and abnormal operating conditions.

By supporting predictive maintenance programs, the 330905-00-10-10-02-CN helps reduce unexpected equipment failures, improve operational safety, and extend the service life of rotating machinery.

2. How does the Bently Nevada 330905-00-10-10-02-CN proximity probe work?

The Bently Nevada 330905-00-10-10-02-CN proximity probe operates based on eddy current measurement technology. The probe tip generates a high-frequency electromagnetic field that interacts with the conductive surface of the rotating shaft.

When the shaft moves closer to or farther away from the probe due to vibration or displacement, the electromagnetic field changes. These changes are converted into electrical signals that represent the actual shaft movement.

The monitoring system receives and processes these signals to calculate vibration amplitude, shaft position, and other mechanical operating parameters.

Because the measurement is performed without physical contact, the probe avoids mechanical wear and provides stable performance in high-speed rotating machinery applications.

3. What are the common causes of inaccurate signals from the 330905-00-10-10-02-CN probe?

Inaccurate signals from the Bently Nevada 330905-00-10-10-02-CN may be caused by incorrect installation, improper probe gap adjustment, damaged cables, poor connections, electrical interference, or incorrect monitoring system configuration.

The first troubleshooting step is to inspect the probe installation condition and confirm that the sensing tip is correctly positioned toward the shaft measurement area. Incorrect probe alignment or gap adjustment may result in unstable output signals.

The extension cable and connector should also be checked for physical damage, corrosion, moisture, or loose connections. Signal transmission problems can directly affect measurement accuracy.

If the mechanical installation and wiring are normal, technicians should verify system calibration parameters and monitoring settings to ensure the probe operates correctly with the connected equipment.

4. What should be considered when installing the Bently Nevada 330905-00-10-10-02-CN proximity probe?

Correct installation is essential to achieve reliable measurement performance from the 330905-00-10-10-02-CN proximity probe.

During installation, the probe should be securely fixed and accurately aligned with the rotating shaft. The sensing surface should maintain a stable relationship with the target area to ensure accurate displacement measurement.

The probe gap adjustment is a critical step because incorrect spacing may cause unstable signals, inaccurate readings, or false alarms from the monitoring system.

The cable routing should also be carefully planned to avoid mechanical stress, excessive vibration, high-temperature areas, and strong electromagnetic interference.

After installation, system calibration and signal verification should be performed to confirm that the probe output is stable and meets operational requirements.

5. What are the typical failure symptoms of the Bently Nevada 330905-00-10-10-02-CN proximity probe?

Typical failure symptoms include abnormal vibration readings, incorrect shaft position signals, unstable output values, signal interruption, and repeated monitoring alarms.

A damaged probe or faulty cable connection may cause intermittent signals or complete loss of measurement data. In some situations, incorrect installation conditions may create signals that appear similar to actual mechanical failures.

When a fault occurs, technicians should first inspect the probe mounting condition, cable connections, monitoring system settings, and operating environment.

If all external factors are confirmed to be normal, further diagnostic testing should be performed to determine whether the probe requires repair or replacement.

6. How does the 330905-00-10-10-02-CN improve rotating equipment reliability?

The Bently Nevada 330905-00-10-10-02-CN improves rotating equipment reliability by providing continuous monitoring of shaft vibration and displacement conditions.

For critical equipment such as turbines, compressors, and generators, early detection of abnormal shaft movement is important for preventing serious mechanical failures.

The proximity probe provides accurate real-time measurement data, allowing engineers to analyze equipment operating trends and identify potential problems before they cause unexpected shutdowns.

By supporting condition-based maintenance strategies, the sensor helps reduce maintenance costs, improve equipment availability, and increase the overall reliability of industrial rotating machinery.

7. Can the Bently Nevada 330905-00-10-10-02-CN be used in high-speed rotating equipment?

Yes. The Bently Nevada 3300 NSv Proximity Probe is suitable for high-speed rotating machinery applications that require continuous shaft vibration and displacement monitoring.

The non-contact eddy current measurement principle allows the probe to operate reliably without physical contact with the rotating shaft, reducing wear and improving long-term stability.

It is commonly used in turbines, compressors, generators, and other industrial machines where accurate condition monitoring is required.

To achieve reliable operation, the probe must be correctly installed, properly adjusted, and configured with a compatible monitoring system.

8. How should the Bently Nevada 330905-00-10-10-02-CN proximity probe be maintained?

Routine maintenance of the 330905-00-10-10-02-CN mainly focuses on checking installation conditions, cable status, signal quality, and monitoring system performance.

During scheduled maintenance, technicians should inspect whether the probe remains securely installed and whether there are signs of contamination, mechanical damage, or abnormal environmental conditions.

The probe cable and connector should be checked for insulation damage, corrosion, loose connections, and physical wear.

Monitoring system records should be reviewed regularly to identify changes in vibration trends or unusual signal patterns.

Proper preventive maintenance and regular system inspections help maintain measurement accuracy, improve equipment protection performance, and ensure reliable operation of critical rotating machinery.
