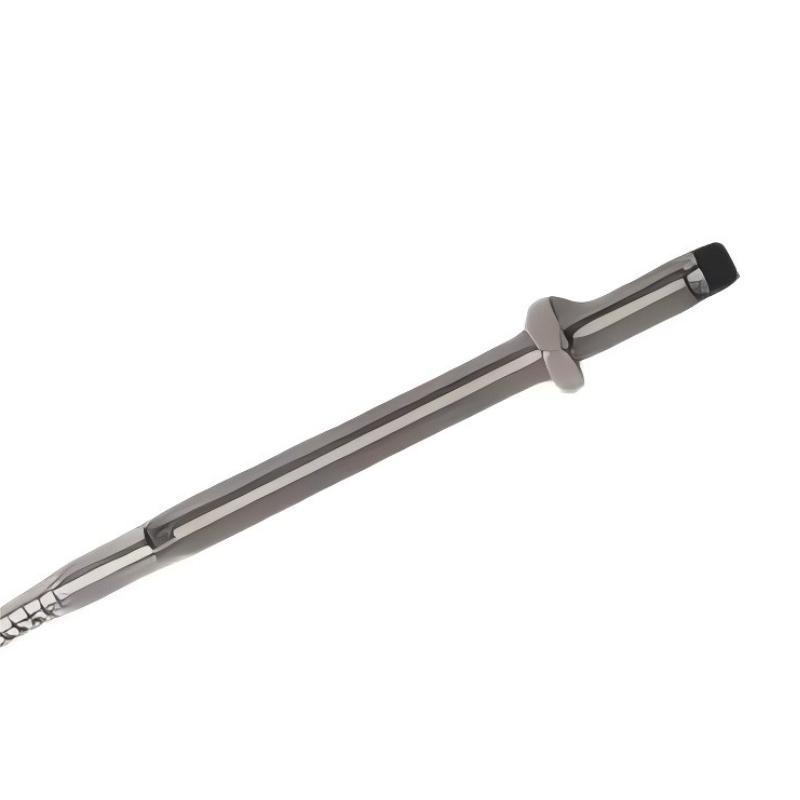

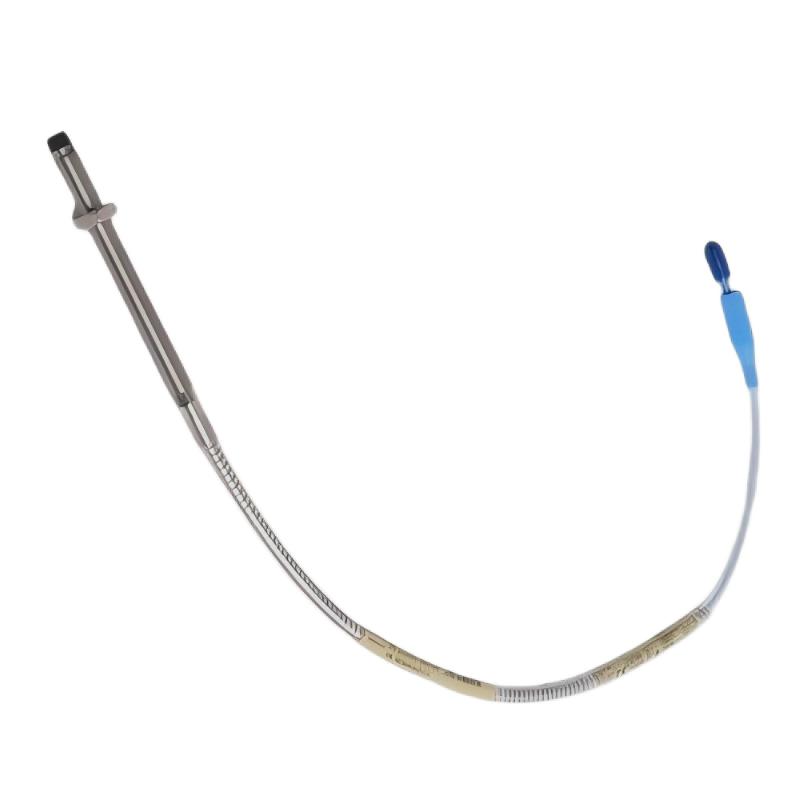

1. What are the main applications of the Bently Nevada 330905-00-21-05-02-CN 3300 NSv Proximity Probe?

The Bently Nevada 330905-00-21-05-02-CN 3300 NSv Proximity Probe is designed for non-contact measurement of shaft vibration, displacement, and position in industrial rotating equipment. It uses eddy current sensing technology to detect changes in the distance between the probe tip and the rotating shaft surface.

This proximity probe is commonly used in critical machinery such as steam turbines, gas turbines, compressors, pumps, motors, and generators. These machines require continuous monitoring because changes in shaft movement can indicate developing mechanical problems.

When connected with a compatible Bently Nevada monitoring system, the probe provides accurate vibration and displacement signals for equipment condition analysis. It helps maintenance engineers identify issues such as rotor imbalance, shaft misalignment, bearing wear, and abnormal vibration conditions.

By supporting predictive maintenance and online condition monitoring, the 330905-00-21-05-02-CN helps improve equipment reliability, reduce unexpected downtime, and increase operational safety.

2. How does the Bently Nevada 330905-00-21-05-02-CN proximity probe operate?

The Bently Nevada 330905-00-21-05-02-CN proximity probe operates using eddy current measurement technology. The probe generates a high-frequency electromagnetic field through the sensing tip, which interacts with the conductive surface of the rotating shaft.

When the shaft moves closer to or farther away from the probe due to vibration or displacement, the electromagnetic field changes. The probe converts these changes into electrical signals that represent the actual shaft movement.

The monitoring system receives these signals and processes them to determine shaft vibration amplitude, displacement position, and operating condition.

Because the probe uses a non-contact measurement method, it avoids mechanical friction and wear, allowing stable operation in high-speed rotating machinery applications.

3. What are the common causes of unstable signals from the 330905-00-21-05-02-CN proximity probe?

Unstable signals from the Bently Nevada 330905-00-21-05-02-CN may be caused by incorrect installation, improper probe adjustment, cable damage, connector problems, electromagnetic interference, or incorrect monitoring system settings.

The first step in troubleshooting is to inspect the probe installation and confirm that the sensing tip is correctly positioned toward the shaft measurement area. Incorrect positioning or adjustment can result in inaccurate output signals.

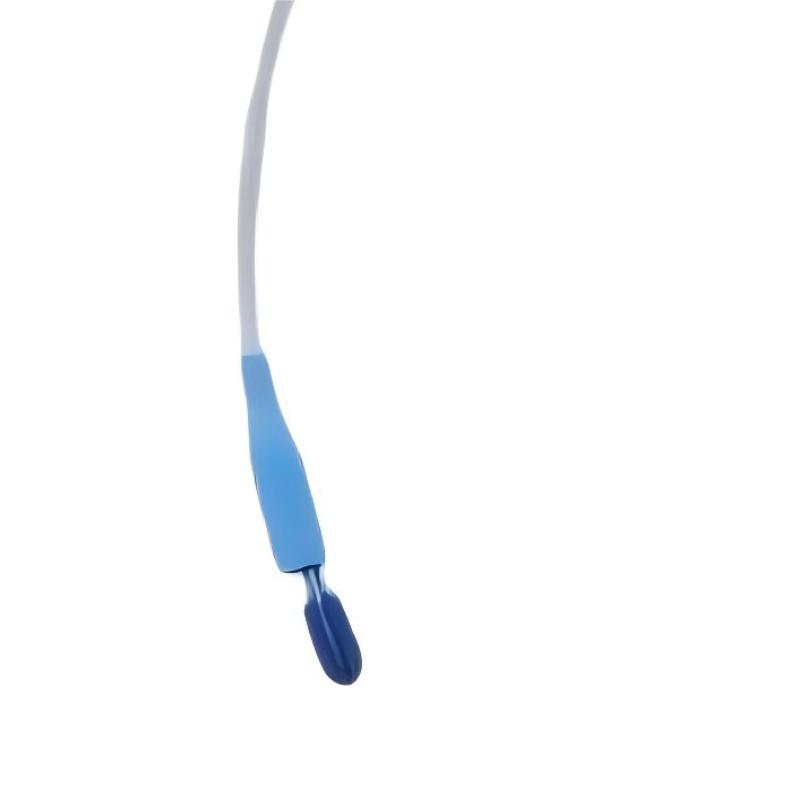

The cable and connector should also be checked for physical damage, corrosion, moisture, or loose connections because these issues can affect signal transmission.

If the hardware condition is normal, technicians should verify the monitoring system configuration, calibration parameters, and signal processing settings to ensure proper operation.

4. What should be considered when installing the Bently Nevada 330905-00-21-05-02-CN probe?

Proper installation is essential for achieving accurate measurement results from the Bently Nevada 330905-00-21-05-02-CN proximity probe.

The probe should be firmly installed and correctly aligned with the rotating shaft measurement position. The sensing tip must maintain a stable relationship with the shaft surface to ensure reliable vibration and displacement detection.

Correct probe adjustment is important because improper settings may cause unstable readings, inaccurate data, or false alarms from the monitoring system.

The signal cable should be routed away from strong electromagnetic interference sources, high-temperature environments, and areas with excessive vibration.

After installation, the monitoring system should be tested and calibrated to confirm that the probe provides stable and accurate output signals.

5. What are the typical failure symptoms of the Bently Nevada 330905-00-21-05-02-CN proximity probe?

Typical failure symptoms include abnormal vibration readings, incorrect shaft position signals, unstable output values, intermittent signals, and unexpected monitoring alarms.

A damaged probe or faulty cable connection may result in inaccurate measurement data or complete loss of signal. In some cases, incorrect installation conditions can create abnormal readings that appear similar to actual mechanical faults.

During troubleshooting, technicians should check the probe mounting condition, cable connections, monitoring system parameters, and surrounding operating environment.

If external conditions are confirmed to be normal, professional diagnostic tools should be used to determine whether the probe needs replacement.

6. How does the 330905-00-21-05-02-CN improve rotating equipment reliability?

The Bently Nevada 330905-00-21-05-02-CN improves rotating equipment reliability by providing continuous monitoring of shaft vibration and displacement conditions.

For critical equipment such as turbines, compressors, and generators, abnormal shaft movement is often an early indication of mechanical problems. Continuous monitoring allows maintenance teams to detect developing issues before serious failures occur.

The probe provides accurate measurement data for vibration analysis systems, helping engineers evaluate equipment health and make maintenance decisions based on actual operating conditions.

By supporting condition-based maintenance programs, the sensor helps reduce unplanned shutdowns, improve equipment availability, and extend the service life of industrial rotating machinery.

7. Can the Bently Nevada 330905-00-21-05-02-CN be used in high-speed rotating equipment?

Yes. The Bently Nevada 3300 NSv Proximity Probe is suitable for high-speed rotating equipment requiring accurate shaft vibration and displacement monitoring.

The non-contact eddy current measurement principle allows the probe to continuously monitor shaft movement without physical contact, reducing mechanical wear and maintaining long-term stability.

It is widely used in turbines, compressors, generators, and other industrial rotating machinery where reliable condition monitoring is required.

For high-speed applications, correct installation, proper adjustment, and compatible monitoring system configuration are necessary to ensure accurate measurement performance.

8. How should the Bently Nevada 330905-00-21-05-02-CN proximity probe be maintained?

Routine maintenance of the Bently Nevada 330905-00-21-05-02-CN mainly includes checking probe installation condition, cable integrity, signal quality, and monitoring system performance.

During scheduled inspections, technicians should verify that the probe remains securely installed and that there are no signs of contamination, mechanical damage, or environmental influence affecting the sensing area.

The cable and connector should be inspected for insulation damage, corrosion, loose connections, and physical wear to maintain reliable signal transmission.

Monitoring system records should also be reviewed regularly to identify abnormal vibration trends or changes in equipment operating conditions.

Proper preventive maintenance helps maintain measurement accuracy, improve equipment protection performance, and ensure reliable operation of critical rotating machinery.
