1. What is the Bently Nevada 330905-08-13-10-12-05 mainly used for?

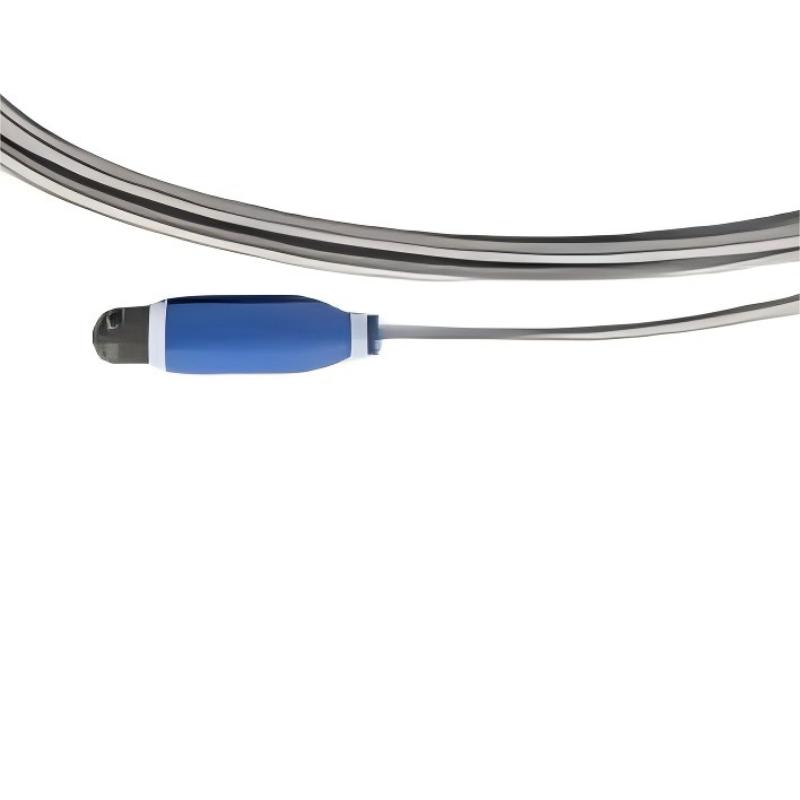

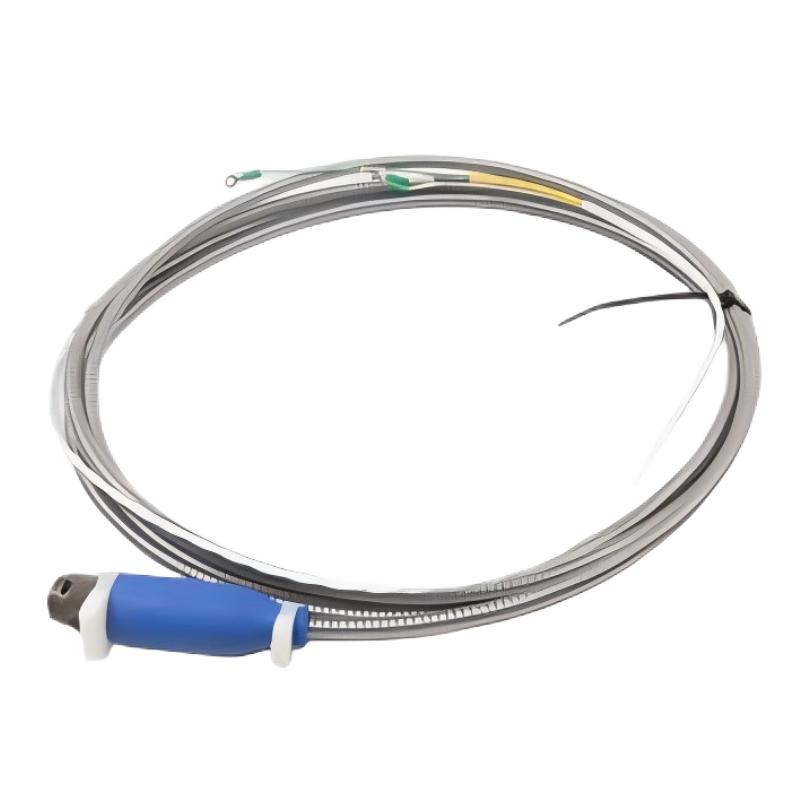

The Bently Nevada 330905-08-13-10-12-05 is a 3300 NSv metric proximity probe designed for non-contact monitoring of rotating machinery. It is used to detect changes in the position and movement of conductive metallic machine targets, particularly rotating shafts. Depending on the installation arrangement, the probe can provide measurement information for shaft vibration, radial position and displacement-related monitoring. Typical applications include turbines, compressors, pumps and other critical rotating equipment. The non-contact measurement method allows the probe to monitor shaft movement continuously without physically contacting the rotating component, making it suitable for high-speed machinery condition monitoring and protection systems.

2. How does the 3300 NSv proximity probe measure shaft displacement?

The probe uses an eddy-current measurement principle. When energized, the sensing tip generates an electromagnetic field. When a conductive metallic target enters this field, eddy currents are generated in the target material, changing the electrical characteristics of the probe system. Compatible interface electronics detect and process this change to determine the distance between the probe tip and the target surface. As the shaft moves, the measurement gap changes, allowing the system to detect shaft displacement and vibration. Because the sensing process is non-contact, there is no direct mechanical interaction between the probe and rotating shaft during normal operation, which is particularly useful for continuous monitoring of high-speed rotating equipment.

3. What components are required to use the 330905-08-13-10-12-05 as a complete measurement system?

The 330905-08-13-10-12-05 is normally used as part of a complete 3300 NSv proximity measurement system. The measurement chain generally includes the proximity probe, a compatible extension cable and the appropriate interface electronics. These components should be correctly matched because the electrical characteristics of the probe, cable configuration and interface electronics directly affect system measurement performance. During installation, the probe should be securely fixed and the cable should be routed away from excessive mechanical stress, sharp bending and strong electromagnetic interference. Before commissioning, verify the compatibility and connection of each component and confirm that the complete signal chain provides a stable measurement output.

4. What types of machinery can use the 330905-08-13-10-12-05?

The probe can be used on rotating machinery where non-contact measurement of shaft movement or position is required. Typical applications include steam and gas turbines, compressors, pumps and other critical industrial rotating equipment. Depending on the probe location and measurement direction, it can be used for radial shaft vibration, shaft position and displacement-related monitoring. The technology is especially useful for high-speed equipment because the sensing element does not physically contact the rotating shaft. Before installation, the application should be evaluated according to the shaft material, target surface, mounting arrangement, measurement direction and overall proximity monitoring system configuration.

5. What should be considered when installing the 330905-08-13-10-12-05?

The probe should be installed according to the mechanical configuration of the monitored equipment and the requirements of the 3300 NSv system. The sensing tip should face the appropriate conductive metallic target and maintain the required operating gap. The probe mounting structure must be rigid and stable because movement of the probe itself can be interpreted as shaft movement by the monitoring system. Cable routing should also be carefully planned to prevent excessive bending, pulling, vibration or mechanical damage. Where possible, the cable should be kept away from strong electromagnetic interference sources. After installation, verify the probe mounting, cable connections and measurement output before starting the machine at normal operating speed.

6. What can cause an unstable signal from the 330905-08-13-10-12-05?

An unstable proximity signal may be caused by incorrect probe installation, unsuitable measurement conditions, cable problems, electrical interference or actual mechanical movement. Check the probe mounting and measurement gap first, followed by the probe cable, extension cable and connectors. Loose connections, damaged cables, grounding problems and electromagnetic interference can all affect signal quality. Mechanical factors such as shaft runout, misalignment, excessive vibration or movement of the probe mounting structure should also be investigated. In addition, the target material and surface condition can influence eddy-current measurements. Comparing the proximity signal with machine speed, load and other vibration channels can help determine whether the problem is associated with the machine or the measurement system.

7. How should an abnormal vibration signal from the probe be diagnosed?

When an abnormal vibration signal is detected, first check whether the probe is firmly mounted and has remained in the correct position relative to the machine housing. Verify the probe gap and orientation, then inspect the probe cable, extension cable and connectors for damage or loose connections. Next, compare the signal with machine rotational speed, operating load and other available vibration measurements. If the signal changes consistently with speed or load and other monitoring channels show similar behavior, an actual mechanical condition such as imbalance, misalignment or abnormal shaft movement may be present. If only this measurement channel is abnormal while other signals remain normal, investigate the probe, cable, interface electronics, grounding and installation conditions in greater detail.

8. What are the main advantages of using the 330905-08-13-10-12-05 for machinery condition monitoring?

The main advantage is its non-contact eddy-current measurement method. The probe can continuously monitor shaft movement without physically contacting the rotating component, avoiding mechanical wear at the sensing point. This makes it suitable for high-speed rotating machinery where continuous monitoring of shaft vibration and displacement is important. Changes in the measurement gap can provide useful information about shaft movement, position and vibration behavior. When combined with compatible 3300 NSv interface electronics and other machinery monitoring channels, the probe can support equipment protection, condition monitoring and predictive maintenance strategies. Continuous measurement also allows maintenance personnel to identify abnormal trends earlier and investigate potential mechanical problems before they develop into more serious failures.
