1. What is the Bently Nevada 330906-02-12-10-02-CN mainly used for?

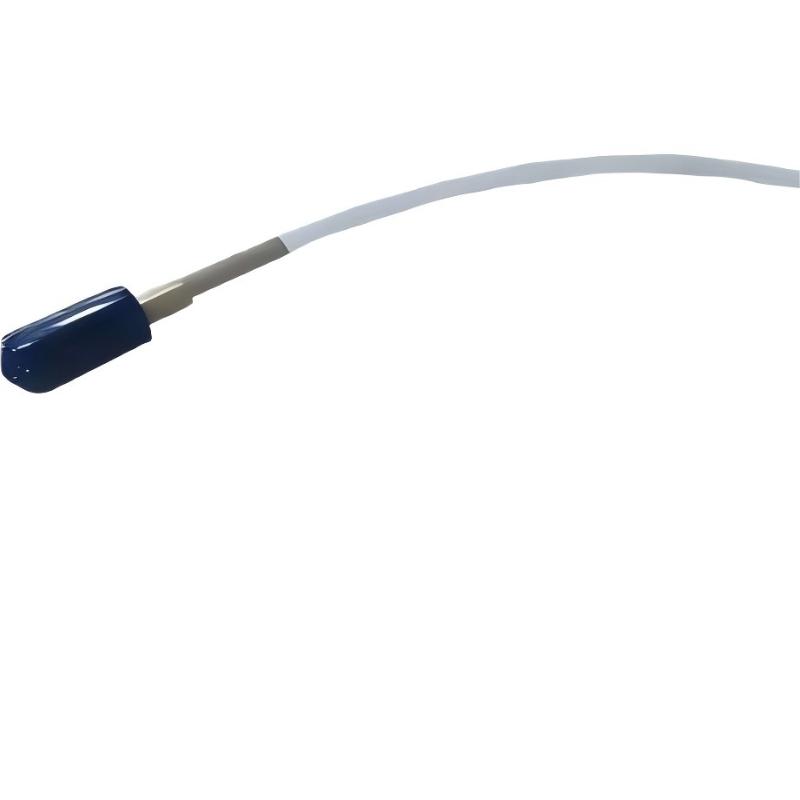

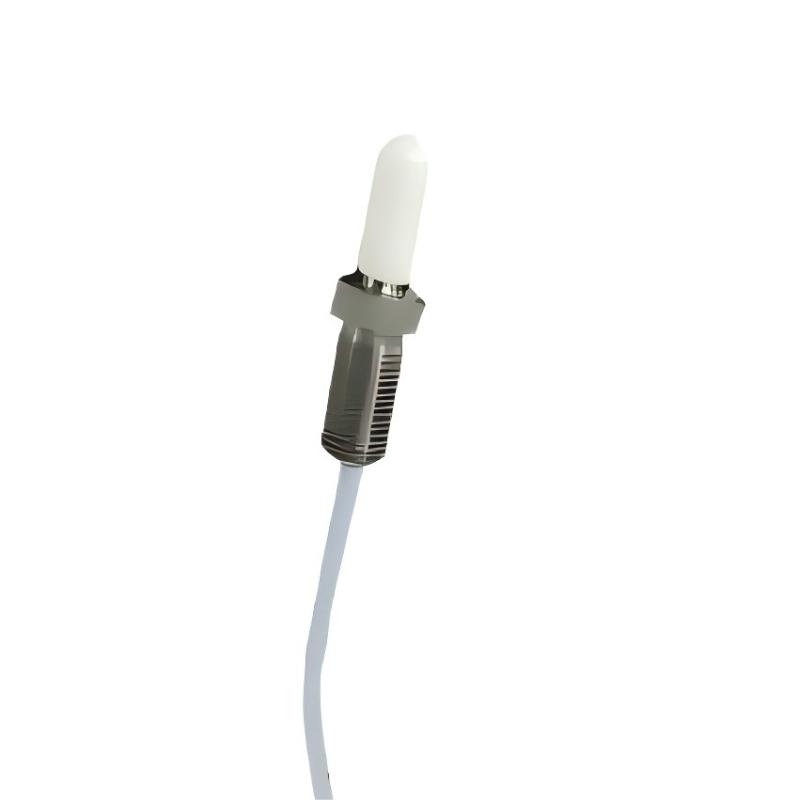

The Bently Nevada 330906-02-12-10-02-CN is a 3300 NSv Reverse-Mount Proximity Probe designed for non-contact monitoring of rotating machinery. It detects changes in the distance between the probe and a conductive metallic target to provide information about rotating shaft movement and position. Depending on the installation position and measurement direction, it can be used for shaft vibration, shaft displacement, and shaft position monitoring. Typical applications include turbines, compressors, pumps, and other critical industrial rotating equipment. The reverse-mount configuration is particularly useful when conventional probe installation is restricted by machine construction or available mounting space.

2. What measurement principle does the 3300 NSv Reverse-Mount Probe use?

The probe uses an eddy-current measurement principle. When energized, the sensing tip generates an electromagnetic field. When a conductive metallic target enters this field, eddy currents are generated within the target material, changing the electrical characteristics of the probe system. Compatible interface electronics detect and process these changes to determine the distance between the probe and target surface. When the rotating shaft moves, the measurement gap changes accordingly, allowing the system to monitor shaft vibration and displacement. Because the probe operates without direct physical contact with the rotating shaft, it can provide continuous measurements without mechanical contact wear at the sensing point.

3. What is the purpose of the reverse-mount design of the 330906-02-12-10-02-CN?

The reverse-mount design is intended to accommodate special mechanical structures and restricted installation spaces. Some rotating equipment has limited internal access, while housings, bearing structures, or other components may make conventional probe installation difficult. Reverse mounting provides greater flexibility for positioning the probe while maintaining the required sensing relationship with the conductive metallic target. The probe must be securely supported, and the mounting structure should have sufficient rigidity to prevent unwanted movement during machine operation. If the probe itself moves, the monitoring system may interpret this movement as shaft displacement, which can affect the reliability of the measurement.

4. What components are required to build a complete monitoring system with the 330906-02-12-10-02-CN?

The 330906-02-12-10-02-CN is normally used as part of a 3300 NSv proximity monitoring system. A typical measurement chain includes the reverse-mount proximity probe, a compatible extension cable, and appropriate interface electronics. These components should be correctly matched according to system requirements so that the probe signal can be transmitted and processed properly. During installation, the probe should be securely mounted and the cable should be routed away from excessive bending, pulling, continuous vibration, and mechanical damage. Strong electromagnetic interference should also be avoided where practical. Before commissioning, technicians should check the probe, cable, interface electronics, and grounding connections and confirm that the complete signal chain produces a stable measurement signal.

5. What should be considered when installing the 330906-02-12-10-02-CN?

The probe position should be selected according to the mechanical structure, available installation space, and measurement direction of the monitored equipment. The sensing tip should face the appropriate conductive metallic target and maintain the required operating gap. The reverse-mount structure must be securely fixed, and the mounting support should have sufficient rigidity to prevent loosening, vibration, or relative movement during operation. The connecting cable should be protected from excessive bending, mechanical tension, continuous vibration, and external compression. It should also be routed away from strong electromagnetic interference sources where possible. After installation, the probe mounting, measurement gap, cable connections, grounding, and output signal should be checked before the equipment is placed into normal operation.

6. What can cause an unstable signal from the 330906-02-12-10-02-CN?

An unstable signal can be caused by probe installation problems, an incorrect measurement gap, cable issues, electromagnetic interference, or actual mechanical conditions. First, verify that the reverse-mount probe is firmly secured and that its position and operating gap have not changed. Then inspect the probe cable, extension cable, and connectors for looseness, damage, poor contact, or mechanical stress. System grounding and nearby sources of electromagnetic interference should also be checked. Mechanical factors such as shaft runout, shaft misalignment, abnormal vibration, and movement of the probe mounting structure should be investigated. The target material and surface condition may also influence eddy-current measurements. Comparing the probe signal with machine speed, load, and other vibration channels can help determine whether the abnormality originates from the machine or the measurement system.

7. How should an abnormal vibration signal from the 330906-02-12-10-02-CN be diagnosed?

When an abnormal vibration signal appears, first verify that the probe is firmly installed and that the reverse-mount structure has not loosened or shifted. Check the probe orientation and operating gap, then inspect the probe cable, extension cable, and connectors for damage or poor contact. The probe vibration signal should then be compared with machine speed, operating load, and other monitoring channels. If the abnormal signal follows changes in machine speed and similar abnormalities appear on other vibration channels, further investigation should focus on shaft imbalance, mechanical misalignment, shaft bending, or other abnormal mechanical movement. If only this probe channel shows abnormal behavior while other monitoring data remains normal, the probe, cables, interface electronics, grounding, and mounting structure should be checked first before diagnosing a machine fault.

8. What are the advantages of using the 330906-02-12-10-02-CN for rotating machinery monitoring?

The probe uses non-contact eddy-current measurement technology to continuously monitor shaft vibration, displacement, and position without direct contact with the rotating shaft. This eliminates mechanical friction and contact wear between the sensing element and rotating component, making the measurement method suitable for high-speed rotating machinery. The reverse-mount design also provides a flexible installation option for equipment where conventional probe mounting is difficult because of structural or space limitations. When used with compatible 3300 NSv interface electronics and other vibration monitoring channels, the probe can provide valuable information for machinery protection, condition monitoring, fault diagnosis, and predictive maintenance. Continuous monitoring of shaft behavior helps maintenance personnel identify abnormal trends earlier and investigate potential mechanical problems before they develop into serious equipment failures.
