1. What is the primary purpose of the Bently Nevada 330910-00-05-05-02-CN proximity probe?

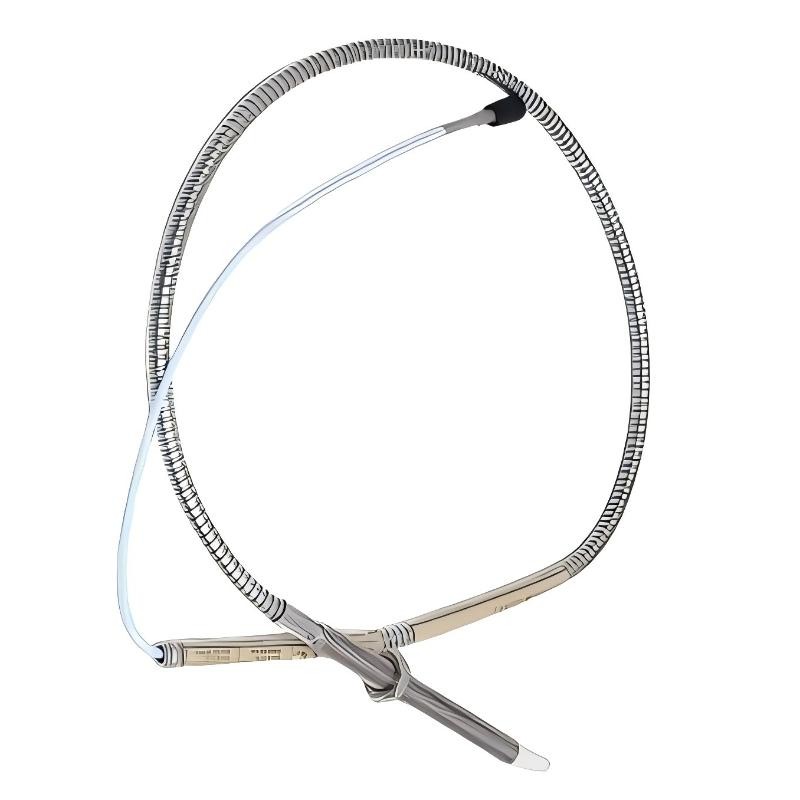

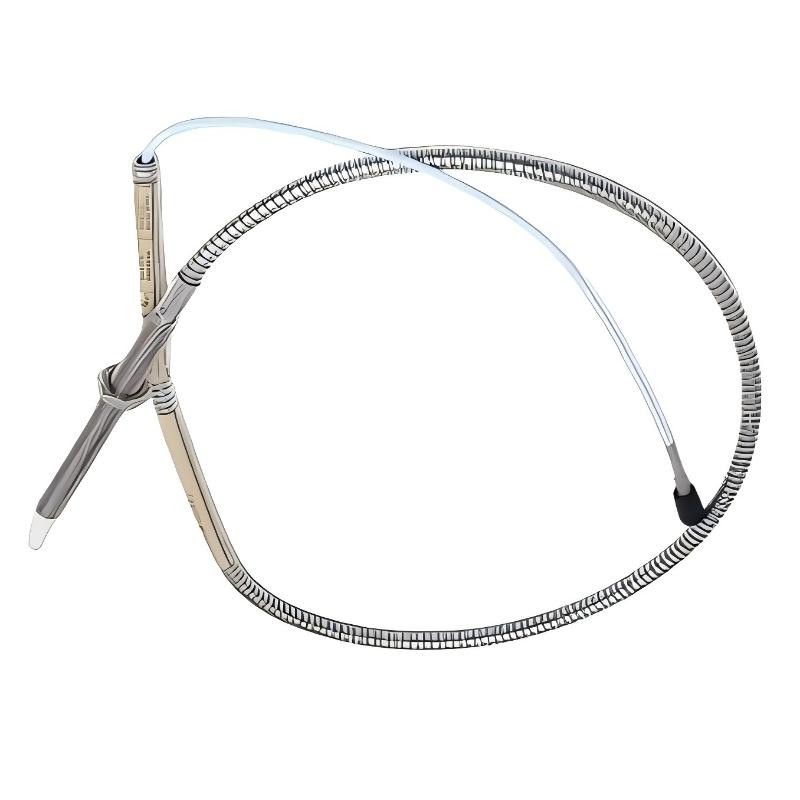

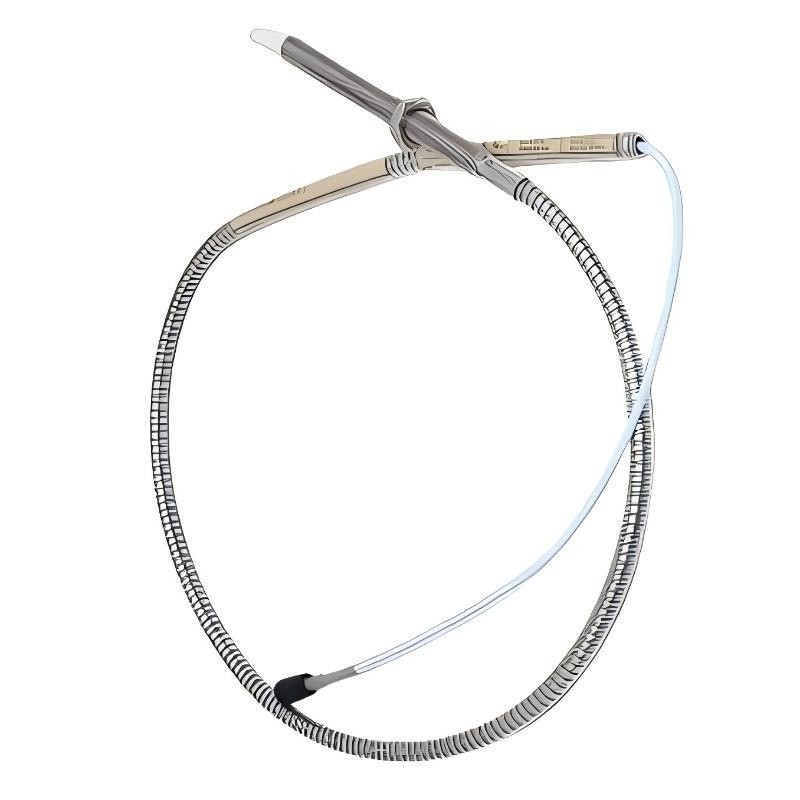

The Bently Nevada 330910-00-05-05-02-CN is a metric non-contact eddy current proximity probe specifically designed for continuous monitoring of rotating machinery. It measures the relative position of a rotating shaft without physical contact, making it ideal for monitoring shaft vibration, axial displacement, shaft runout, eccentricity, and other dynamic shaft movements. Because there is no mechanical contact between the probe and the shaft, wear is minimized and measurement stability remains consistent over long operating periods. The probe is commonly installed on steam turbines, gas turbines, compressors, centrifugal pumps, generators, and electric motors where continuous machinery protection and condition monitoring are essential for safe and reliable operation.

2. Which systems is the 330910-00-05-05-02-CN compatible with?

The 330910-00-05-05-02-CN is part of the Bently Nevada 3300 NSv Proximity Transducer System and is intended to operate together with a compatible 3300 NSv Proximitor Sensor and matching extension cable. These components are factory calibrated as a complete transducer system to provide highly accurate displacement measurements. The assembled system can be connected to Bently Nevada machinery protection systems, vibration monitoring systems, condition monitoring platforms, and asset management solutions. Using compatible components throughout the transducer system ensures measurement accuracy, stable output signals, and long-term reliability.

3. How should the probe be installed to achieve the best measurement performance?

Proper installation is critical for obtaining accurate and repeatable measurements. The probe should be securely mounted using the specified threaded installation method and positioned at the recommended gap from the rotating shaft according to the transducer system calibration specifications. The target shaft surface should be clean, smooth, and free from excessive wear or mechanical damage. Cable routing should avoid high-voltage power cables and strong electromagnetic interference sources whenever possible. After installation, the output voltage should be verified to ensure that the probe operates within its linear measurement range before the monitored equipment is returned to normal operation. Careful installation significantly improves long-term measurement stability and reduces the possibility of false vibration alarms.

4. What factors may affect the measurement accuracy of the proximity probe?

Several installation and operating conditions can influence measurement accuracy. The probe is calibrated for conductive metallic targets, so differences in shaft material or surface finish may affect measurement linearity. Other factors include improper probe gap adjustment, loose mounting hardware, damaged extension cables, contaminated connectors, inadequate grounding, excessive electromagnetic interference, and incorrect component matching within the transducer system. High temperatures beyond the recommended operating range may also influence measurement stability. Following the recommended installation procedures and using genuine compatible components helps maintain the probe’s designed measurement performance.

5. What are the common reasons for unstable output signals?

Unstable output signals may result from either mechanical or electrical issues. Common causes include loose probe mounting, incorrect probe gap, damaged extension cables, poor connector contact, insufficient grounding, electrical noise from nearby equipment, or mechanical problems within the monitored machine itself. Excessive shaft runout, worn bearings, rotor imbalance, or shaft surface damage may also produce unstable readings that appear to be sensor problems. Troubleshooting should begin by checking the mechanical installation, cable condition, electrical connections, and system grounding before evaluating the condition of the rotating machinery.

6. Can the 330910-00-05-05-02-CN operate continuously in industrial environments?

Yes. The 330910-00-05-05-02-CN is specifically designed for continuous online monitoring in demanding industrial environments. Its non-contact measuring principle eliminates physical wear between the sensor and the rotating shaft, making it suitable for 24-hour continuous operation in machinery protection systems. The industrial-grade cable jacket provides excellent resistance to oil, vibration, and common industrial contaminants. When installed correctly and used within its specified operating conditions, the probe delivers stable, repeatable measurements over extended service periods while requiring very little routine maintenance.

7. What maintenance is recommended for this proximity probe?

Routine maintenance primarily involves inspection rather than servicing of the sensing element. Maintenance personnel should periodically verify that the probe remains securely mounted, connectors are clean and properly tightened, cables are free from cuts, crushing, or excessive bending, and the probe gap has not changed because of machine movement or maintenance activities. During scheduled equipment shutdowns, the shaft surface should also be inspected for wear or damage that could affect measurement quality. Reviewing vibration trends and historical monitoring data regularly can help identify developing equipment issues before they become serious failures, improving both equipment reliability and maintenance efficiency.

8. What advantages does the Bently Nevada 330910-00-05-05-02-CN offer over conventional contact-type sensors?

The Bently Nevada 330910-00-05-05-02-CN provides several advantages compared with traditional contact-type displacement sensors. Its non-contact eddy current measurement technology eliminates mechanical friction and sensor wear while delivering excellent repeatability and long-term measurement stability. The probe offers fast dynamic response, making it capable of accurately detecting extremely small shaft movements during normal operation and transient events. As part of the Bently Nevada 3300 NSv monitoring system, it supports precise machinery protection, predictive maintenance, and continuous equipment health monitoring. These capabilities help reduce unplanned downtime, extend rotating equipment service life, improve maintenance planning, and enhance the overall reliability and availability of critical industrial machinery.
