1. What is the primary function of the Bently Nevada 330910-00-13-05-02-00 proximity probe?

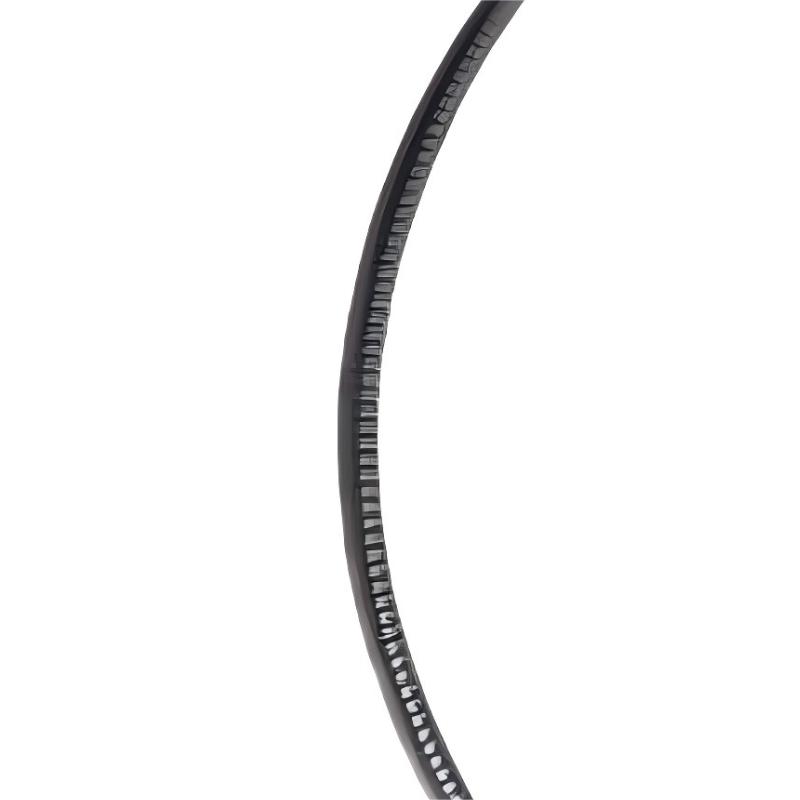

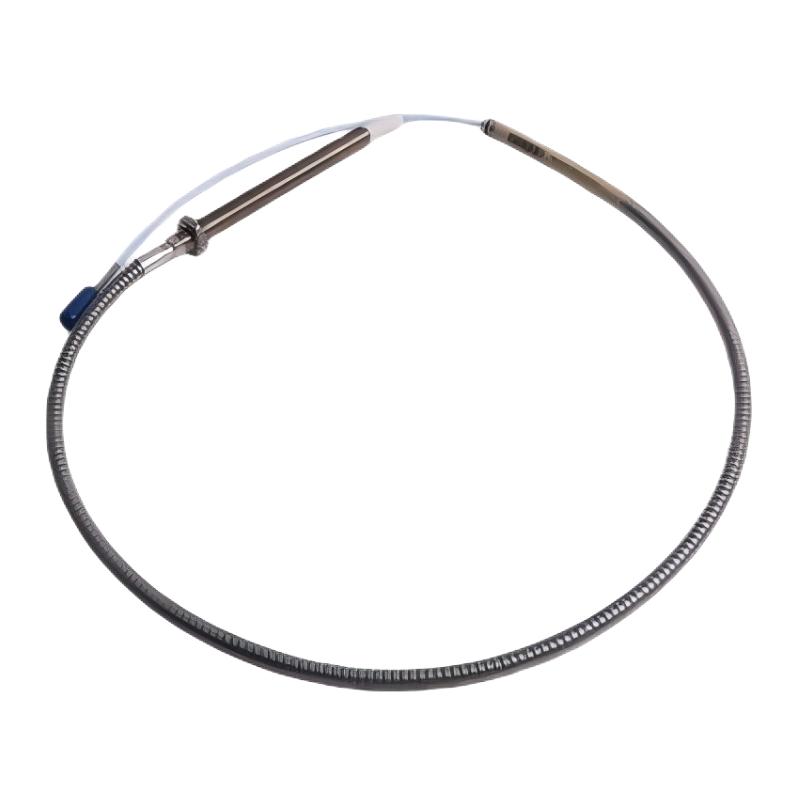

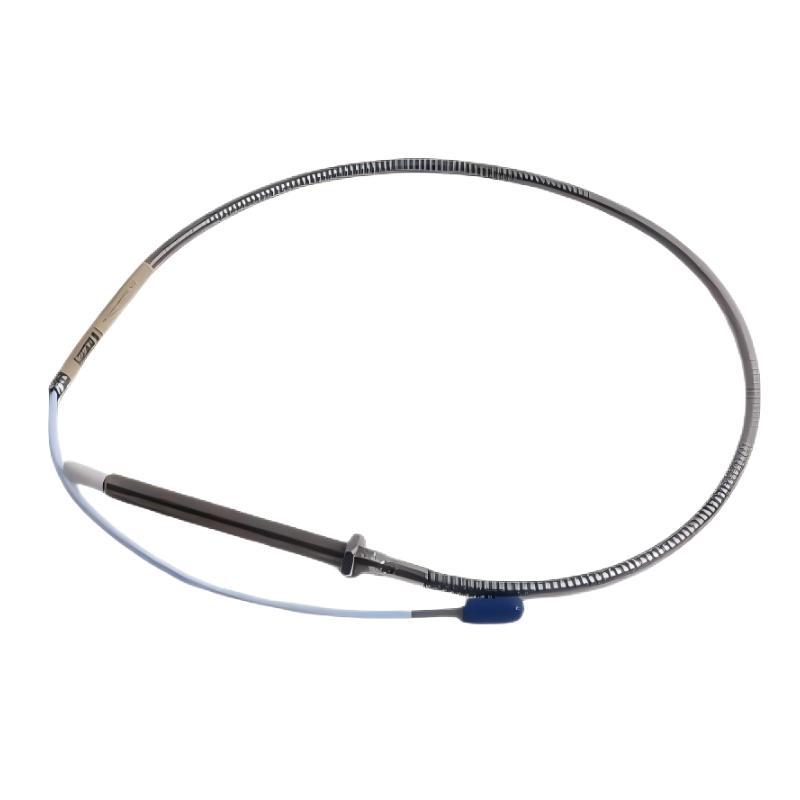

The Bently Nevada 330910-00-13-05-02-00 is a metric non-contact eddy current proximity probe designed for continuous monitoring of critical rotating machinery. It detects shaft movement without physical contact and provides accurate measurement of radial vibration, axial displacement, shaft runout, eccentricity, and rotor position changes. The non-contact operating principle eliminates mechanical wear between the probe and the rotating shaft, allowing the sensor to maintain stable performance during long-term operation. This probe is commonly used in industrial equipment such as steam turbines, gas turbines, compressors, pumps, motors, and generators where accurate shaft condition monitoring is required for machinery protection and predictive maintenance.

2. What systems can the 330910-00-13-05-02-00 be used with?

The 330910-00-13-05-02-00 is designed as part of the Bently Nevada 3300 NSv Proximity Transducer System. It should be installed together with a compatible 3300 NSv Proximitor Sensor and matching extension cable to create a complete calibrated displacement measurement system. When properly configured, the system provides reliable shaft position and vibration measurement signals that can be integrated into machinery protection systems, vibration monitoring platforms, and industrial asset management systems. Correct component selection is essential because the probe, cable, and Proximitor Sensor are calibrated as a complete assembly to ensure accurate measurement performance and system stability.

3. What installation requirements should be considered for this proximity probe?

Proper installation is essential to achieve accurate and stable measurement results. The probe should be securely mounted using the correct threaded installation method, and the probe gap should be adjusted according to the calibration requirements of the complete 3300 NSv transducer system. The target shaft surface should be clean, smooth, and free from excessive damage or contamination. The cable should be installed away from high-voltage power lines and strong electromagnetic interference sources. The monitoring system should also have proper grounding to reduce electrical noise. After installation, the output signal should be checked to confirm that the probe is operating within the correct measurement range before the machine starts normal operation.

4. What factors can influence the measurement performance of the 330910-00-13-05-02-00?

The measurement performance of this proximity probe can be affected by several mechanical and electrical factors. Incorrect probe gap adjustment, improper mounting, incompatible system components, damaged cables, poor connector contact, grounding problems, and electromagnetic interference may reduce signal stability. Since the probe operates based on eddy current technology, the material condition and surface quality of the target shaft can also influence measurement accuracy. Mechanical conditions such as excessive shaft runout, rotor imbalance, bearing wear, or shaft surface damage may create abnormal readings. Regular inspection and correct installation practices are important for maintaining reliable measurement performance.

5. What are the common causes of unstable signals from the proximity probe?

Unstable output signals may occur due to sensor installation problems, electrical connection issues, or actual machine operating conditions. Common causes include loose probe mounting, incorrect probe gap, damaged extension cables, contaminated connectors, unstable grounding, and electromagnetic interference from nearby equipment. In addition, mechanical faults such as rotor imbalance, misalignment, bearing deterioration, shaft looseness, or abnormal shaft movement may produce unstable vibration signals. Troubleshooting should include checking the complete transducer system as well as the monitored equipment. Analyzing vibration trends and alarm records can help determine whether the problem is caused by the sensor system or the machinery itself.

6. Can the Bently Nevada 330910-00-13-05-02-00 operate continuously in industrial environments?

Yes. The 330910-00-13-05-02-00 is designed for continuous online monitoring applications in demanding industrial environments. Its non-contact eddy current measurement technology prevents mechanical wear because the probe does not physically touch the rotating shaft. The industrial-grade cable construction provides resistance to oil, vibration, and common industrial operating conditions. When installed correctly and combined with compatible 3300 NSv system components, the probe can provide stable and accurate measurements over extended periods. It is widely suitable for critical rotating machinery in industries such as power generation, petrochemical processing, manufacturing, and heavy industry.

7. How should the 330910-00-13-05-02-00 proximity probe be maintained?

Maintenance mainly focuses on checking installation conditions and ensuring the complete monitoring system remains in good working order. Maintenance personnel should regularly inspect whether the probe mounting remains secure, whether the cable has signs of damage or excessive bending, and whether connectors remain clean and properly connected. During scheduled equipment shutdowns, the target shaft surface should be inspected for abnormal wear, corrosion, or damage that could affect measurement accuracy. Reviewing historical vibration data and alarm trends is also recommended because gradual signal changes may indicate developing mechanical problems. Proper preventive maintenance helps ensure long-term monitoring reliability and reduces unexpected equipment failures.

8. What advantages does the Bently Nevada 330910-00-13-05-02-00 provide compared with traditional contact sensors?

The Bently Nevada 330910-00-13-05-02-00 offers significant advantages compared with traditional contact-type sensors because it uses non-contact eddy current measurement technology. The absence of physical contact eliminates friction and mechanical wear, allowing stable operation in high-speed rotating equipment applications. The probe provides fast response, high sensitivity, excellent repeatability, and reliable detection of small shaft movement changes. As part of the Bently Nevada 3300 NSv Proximity Transducer System, it supports continuous machinery protection, vibration monitoring, early fault detection, and predictive maintenance strategies. These capabilities help reduce unexpected downtime, improve maintenance efficiency, extend equipment service life, and enhance the reliability of critical industrial machinery.
