1. What is the primary function of the Bently Nevada 330910-01-10-10-02-05 Proximity Probe?

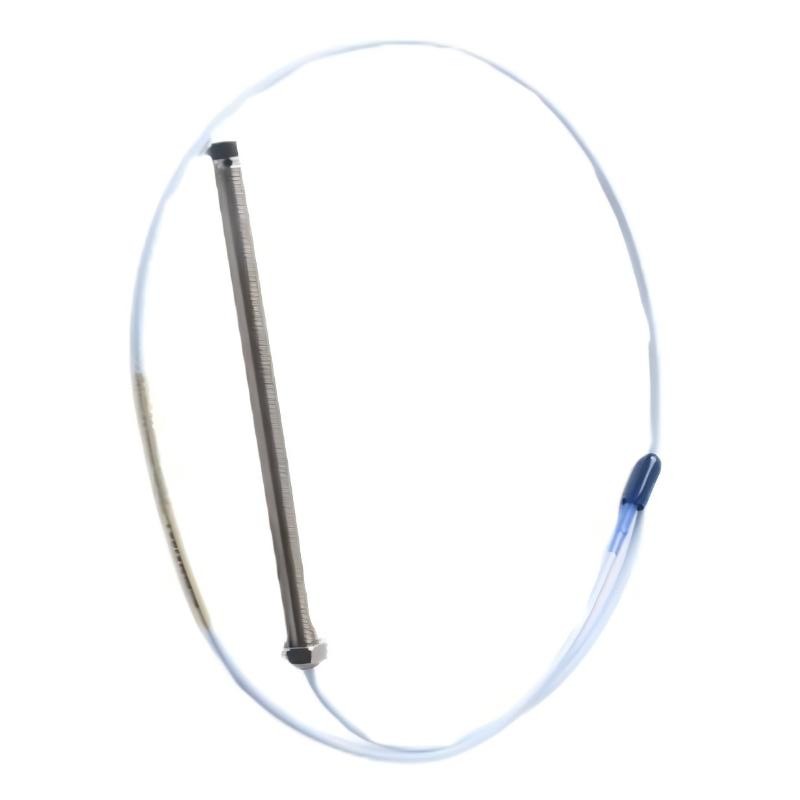

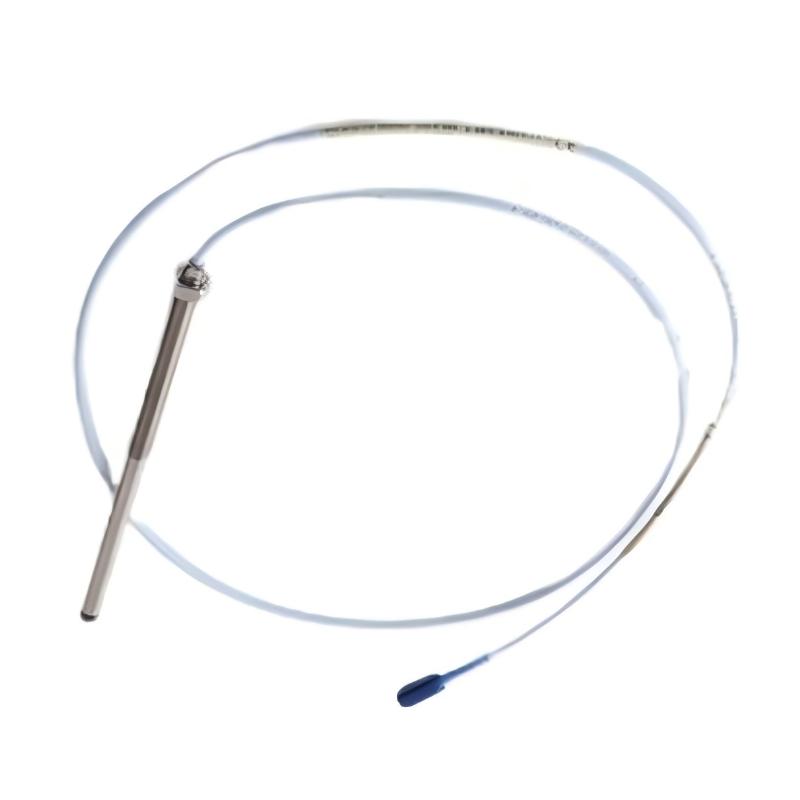

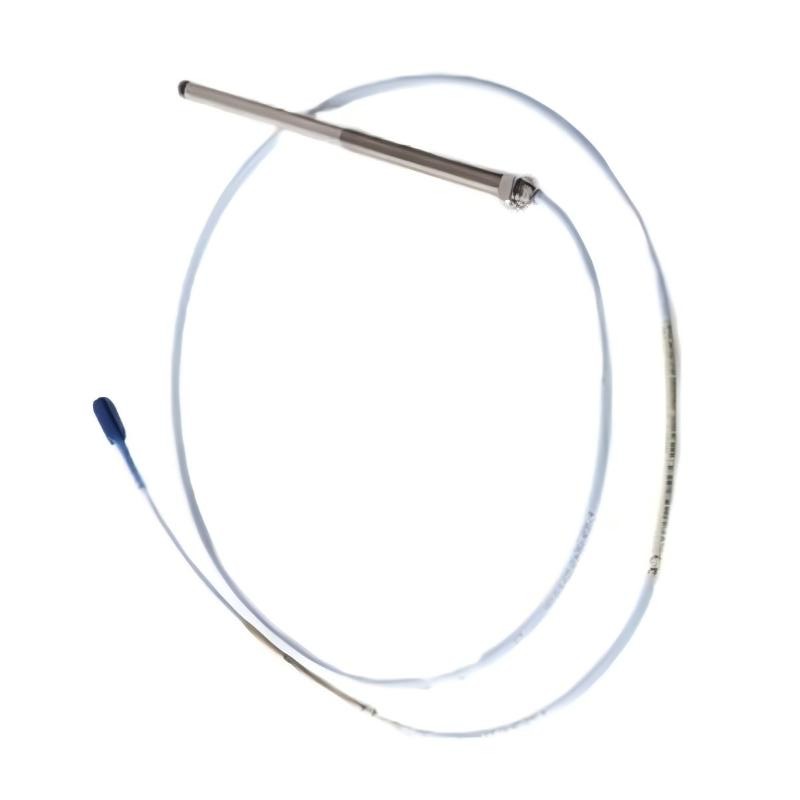

The Bently Nevada 330910-01-10-10-02-05 is a metric non-contact eddy current proximity probe developed for continuous monitoring of rotating machinery. It accurately measures shaft radial vibration, axial displacement, shaft runout, rotor eccentricity, and dynamic shaft position without making physical contact with the rotating surface. This non-contact measurement principle eliminates mechanical wear and provides consistent long-term performance, making the probe suitable for critical machinery protection systems. It is widely used to support predictive maintenance strategies by detecting early-stage mechanical abnormalities before they develop into major equipment failures.

2. Which systems can this proximity probe be used with?

This probe is designed as part of the Bently Nevada 3300 NSv Proximity Transducer System. It should be installed together with a compatible 3300 NSv Proximitor Sensor and the appropriate extension cable to create a complete calibrated measurement system. When properly assembled, the transducer system provides highly stable displacement signals that can be connected to machinery protection systems, vibration monitoring systems, DCS platforms, and plant condition monitoring software. Using matching system components ensures the measurement accuracy, repeatability, and long-term stability required for industrial applications.

3. What installation guidelines should be followed?

The probe should be securely installed using the specified threaded mounting method and adjusted to the correct probe gap according to the calibration requirements of the complete transducer system. The monitored shaft surface should remain smooth, clean, and free of excessive corrosion or mechanical damage. During cable installation, the extension cable should be routed separately from high-voltage power wiring to minimize electromagnetic interference. Proper grounding of the monitoring system is also essential for maintaining signal quality. Once installation is completed, the output signal should be verified to confirm that the probe operates within its calibrated linear measurement range before normal machine operation begins.

4. What factors can influence measurement performance?

Measurement performance depends on both the transducer installation and the operating condition of the monitored equipment. Incorrect probe gap adjustment, improper mounting, incompatible Proximitor Sensors or extension cables, damaged wiring, loose electrical connections, insufficient grounding, and electromagnetic interference may reduce signal stability. Because eddy current sensors detect conductive targets, the shaft material, surface finish, and surface condition also influence measurement accuracy. Mechanical problems including shaft misalignment, rotor imbalance, excessive runout, bearing wear, and shaft surface defects may produce abnormal readings. Regular inspection helps ensure accurate and reliable monitoring.

5. Why might the output signal become unstable?

An unstable output signal may indicate either a sensor system issue or a developing mechanical problem within the machine. Common sensor-related causes include loose probe mounting, incorrect probe gap, damaged extension cables, contaminated connectors, poor grounding, or nearby electromagnetic interference. If the sensor system is functioning normally, the monitored equipment should be inspected for rotor imbalance, shaft misalignment, bearing deterioration, mechanical looseness, coupling problems, or abnormal shaft movement. Reviewing vibration trend data together with a detailed equipment inspection provides the most effective method for identifying the source of unstable measurements.

6. Is the 330910-01-10-10-02-05 suitable for continuous industrial operation?

Yes. The probe is specifically designed for continuous online monitoring in demanding industrial environments. Its non-contact eddy current sensing technology eliminates friction between the sensor and the rotating shaft, ensuring excellent long-term reliability and reducing maintenance requirements. The industrial-grade cable construction provides resistance to oil, vibration, and harsh environmental conditions commonly found in industrial facilities. When installed as part of a complete 3300 NSv monitoring system, the probe delivers stable measurement performance over extended operating periods in power generation, petrochemical processing, manufacturing, mining, and other critical industries.

7. How should this proximity probe be maintained?

Routine maintenance mainly consists of visual inspection and periodic verification of the complete transducer system. Maintenance personnel should inspect the probe mounting, cable condition, and electrical connectors to ensure there is no physical damage, excessive bending, contamination, or loose connections. During scheduled shutdowns, the monitored shaft surface should also be examined for wear, corrosion, or mechanical damage that could affect sensor performance. In addition, historical vibration data and alarm trends should be reviewed regularly to identify gradual equipment deterioration before serious failures occur. Preventive maintenance significantly improves system reliability and machine availability.

8. What advantages does this probe offer compared with traditional contact displacement sensors?

The Bently Nevada 330910-01-10-10-02-05 offers several important advantages over conventional contact-type displacement sensors. Its non-contact eddy current measurement technology completely eliminates mechanical contact with the rotating shaft, preventing friction, wear, and performance degradation over time. The probe provides rapid response, excellent repeatability, high sensitivity, and stable long-term measurement accuracy, making it especially suitable for high-speed rotating machinery. As part of the 3300 NSv Proximity Transducer System, it supports continuous machine protection, real-time vibration monitoring, early fault diagnosis, and predictive maintenance strategies. These capabilities help reduce unplanned downtime, extend equipment service life, optimize maintenance planning, and improve the overall reliability and operational efficiency of industrial rotating equipment.
