1. What are the main functions of the Bently Nevada 330910-03-09-05-02-05 proximity probe?

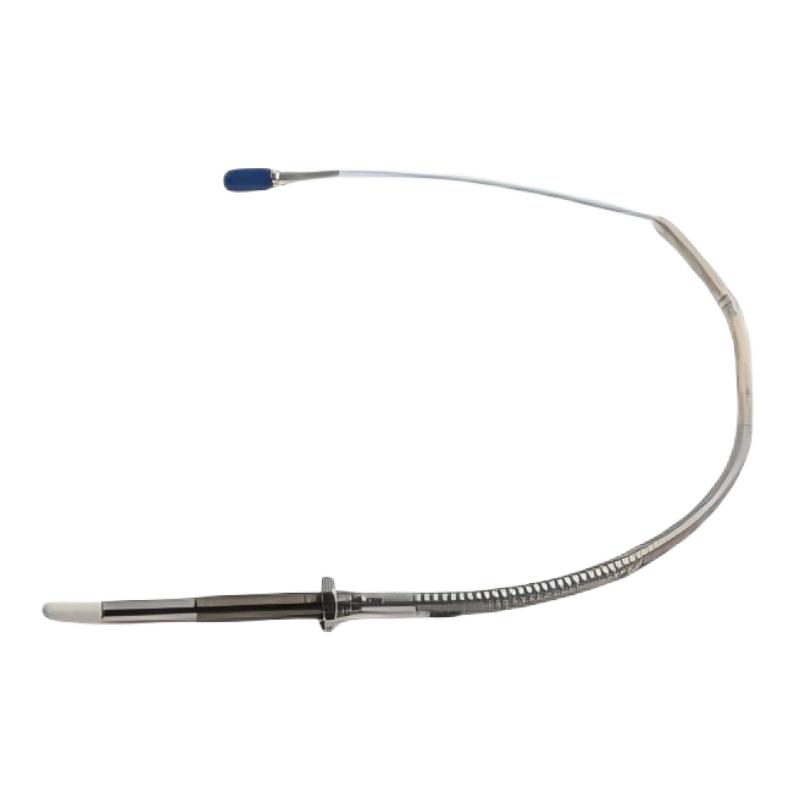

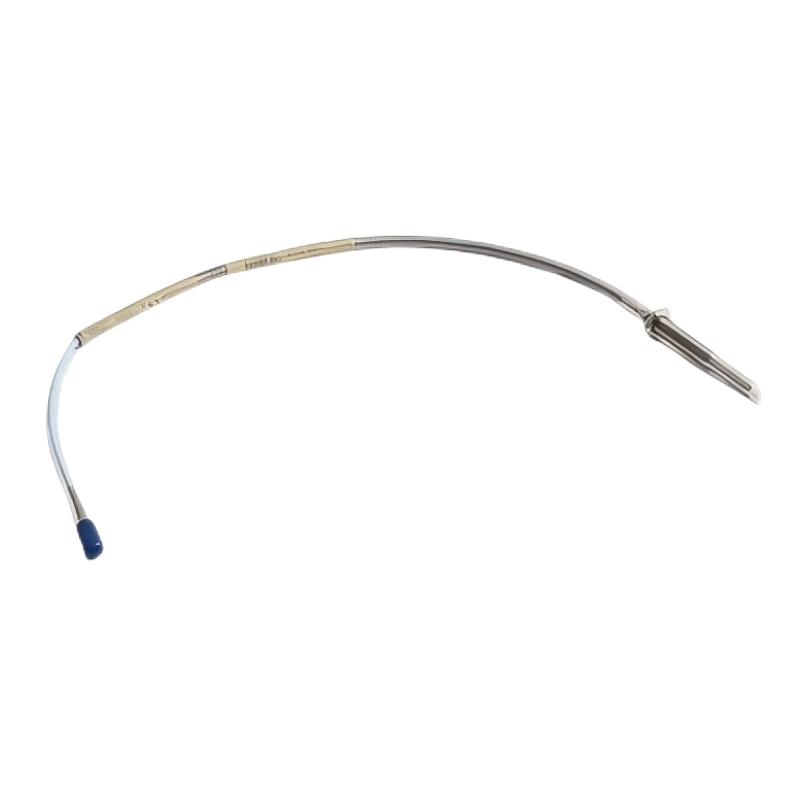

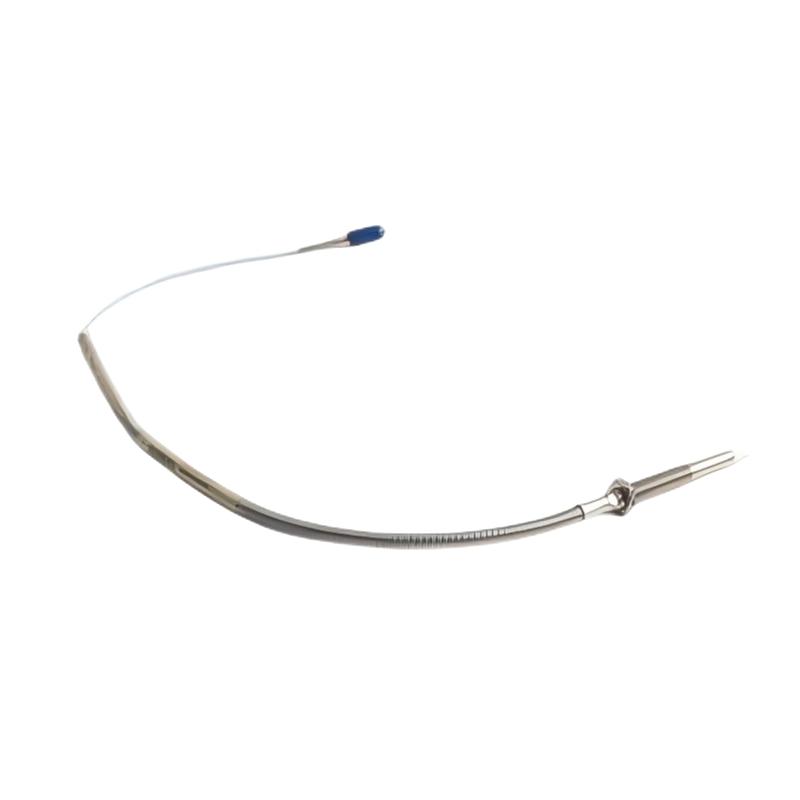

The Bently Nevada 330910-03-09-05-02-05 is an eddy current proximity probe designed for non-contact displacement and vibration measurement in industrial machinery protection systems. It is mainly used to monitor shaft vibration, axial position, radial displacement, and mechanical movement in rotating equipment.

The probe uses eddy current sensing technology to detect the distance between the probe tip and the rotating shaft surface without physical contact. This measurement method eliminates mechanical wear and allows the sensor to operate reliably in high-speed rotating machinery environments.

The probe is commonly integrated with the Bently Nevada 3300 NSv Proximity Transducer System and is widely used in equipment such as turbines, compressors, pumps, motors, and other critical rotating machines where accurate condition monitoring is required.

2. What types of industrial equipment can use the Bently Nevada 330910-03-09-05-02-05?

The Bently Nevada 330910-03-09-05-02-05 is suitable for a wide range of rotating machinery monitoring applications. It is commonly used in industries including power generation, oil and gas, petrochemical, marine, mining, and industrial manufacturing.

Typical equipment applications include steam turbines, gas turbines, centrifugal compressors, pumps, motors, and gear systems. These machines require continuous monitoring of shaft movement and vibration levels to maintain safe and reliable operation.

By continuously measuring shaft displacement and vibration characteristics, the proximity probe helps maintenance engineers detect early signs of mechanical problems such as imbalance, misalignment, bearing deterioration, shaft movement, and abnormal operating conditions.

3. How does the Bently Nevada 330910-03-09-05-02-05 measure vibration and displacement?

The 330910-03-09-05-02-05 operates using eddy current measurement technology. The probe generates a high-frequency electromagnetic field around the sensor tip. When the probe is positioned near a conductive rotating shaft, eddy currents are generated on the shaft surface.

Changes in the distance between the probe and the shaft affect the electromagnetic field strength. The system converts these changes into electrical signals that represent shaft displacement and vibration movement.

These signals are processed by the monitoring system to provide real-time information about machine operating conditions. This allows operators to identify abnormal vibration patterns and take preventive action before serious equipment damage occurs.

4. What should be checked if the 330910-03-09-05-02-05 output signal is unstable?

When the proximity probe produces unstable or incorrect signals, the troubleshooting process should include checking the probe installation, wiring, cable connections, and monitoring system.

First, verify that the probe installation position is correct and that the sensor is securely mounted. Incorrect installation conditions or improper probe positioning may affect measurement accuracy.

Next, inspect the extension cable and connector for damage, loose connections, or poor contact. Electrical interference from nearby high-power equipment can also introduce signal noise and unstable readings.

The monitoring module and power supply should also be checked to confirm that the complete transducer system is operating normally. If necessary, compare the output signal with normal operating data to determine whether the problem is related to the probe, cable, or machine condition.

5. What are the advantages of using an eddy current proximity probe for machinery monitoring?

Eddy current proximity probes provide several advantages compared with traditional contact measurement sensors. The most important advantage is non-contact measurement, which prevents mechanical wear between the sensor and the monitored component.

Because there is no physical contact, the probe can operate continuously on high-speed rotating machinery while maintaining stable measurement performance. This makes it ideal for critical equipment where reliability and accuracy are essential.

The Bently Nevada 3300 NSv proximity probe also provides fast response and high sensitivity, allowing it to detect small changes in shaft movement and vibration. This helps maintenance teams identify potential mechanical problems early and reduce unexpected equipment downtime.

6. How should the Bently Nevada 330910-03-09-05-02-05 be installed and commissioned?

Proper installation and commissioning are important for achieving accurate measurement results. The probe should be installed according to the machinery monitoring requirements and connected with compatible cables and monitoring modules.

During commissioning, the probe position and operating gap must be adjusted correctly to ensure accurate signal output. Incorrect installation settings may lead to inaccurate readings or unstable measurements.

After installation, technicians should verify signal quality, check system calibration, and confirm that the monitoring system receives stable data. Regular inspection of the probe connection and cable condition is recommended to maintain long-term reliability.

7. What causes inaccurate measurements from the 330910-03-09-05-02-05 proximity probe?

Incorrect measurement results may be caused by installation problems, incorrect probe positioning, cable issues, electrical interference, or mechanical conditions of the monitored equipment.

A wrong probe gap setting can affect the output signal and reduce measurement accuracy. Damaged cables, poor connections, or electromagnetic interference may also cause signal fluctuations.

Mechanical factors should also be considered, including excessive shaft runout, surface damage, contamination, or abnormal machine vibration. A complete inspection of the probe, cable, monitoring module, and mechanical system is recommended when inaccurate readings occur.

8. Why is the Bently Nevada 3300 NSv proximity probe widely used in industrial condition monitoring systems?

The Bently Nevada 3300 NSv proximity probe is widely used because it provides reliable and accurate monitoring of critical rotating machinery. Its non-contact eddy current technology allows continuous measurement of shaft vibration and displacement without mechanical wear.

The 330910-03-09-05-02-05 model offers stable performance, fast response, and compatibility with Bently Nevada monitoring systems, making it suitable for predictive maintenance and machinery protection applications.

By providing early detection of abnormal machine conditions, the probe helps reduce unexpected failures, improve maintenance planning, and increase the operational reliability of industrial equipment. It is an important component for industries that require continuous monitoring of high-value rotating assets.
