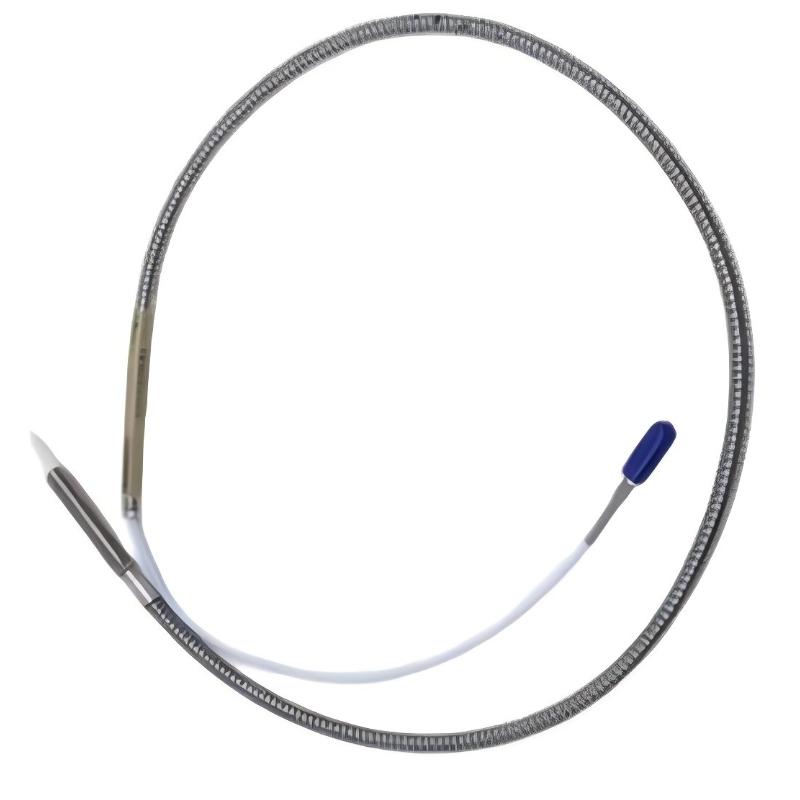

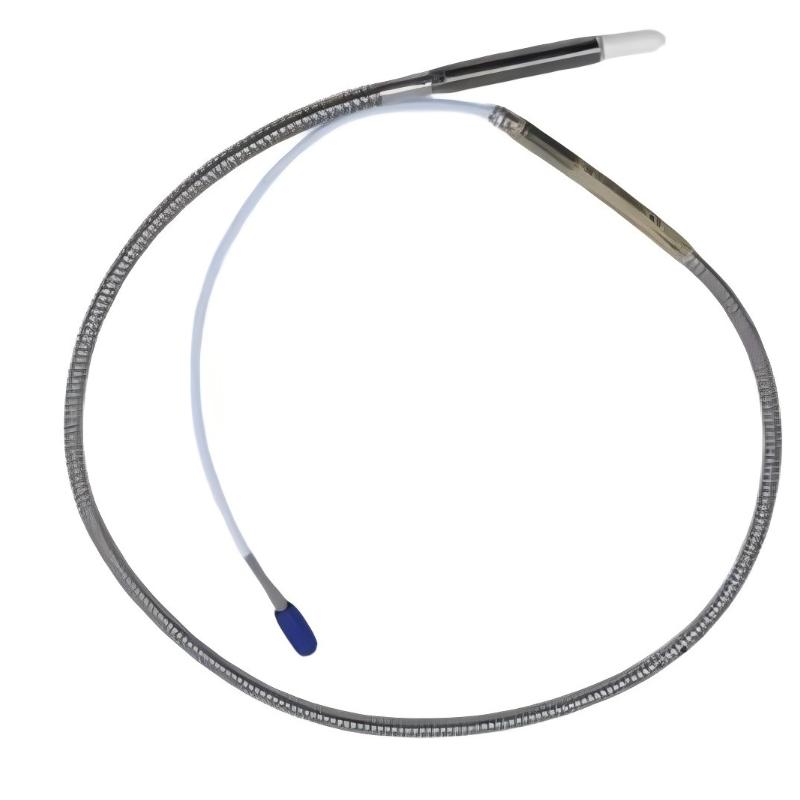

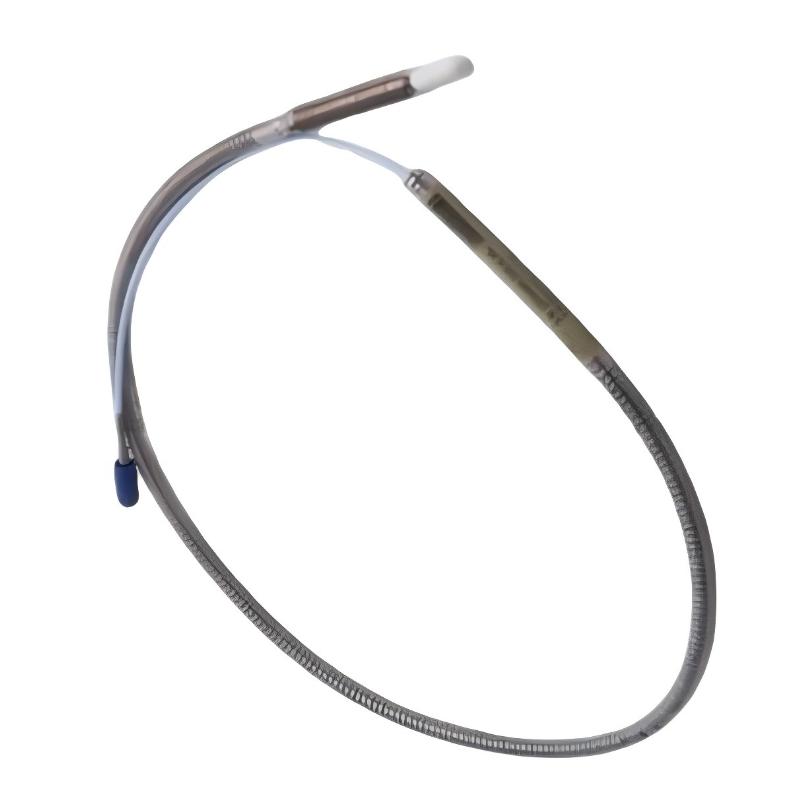

1. What are the main functions of the Bently Nevada 330910-05-10-05-02-CN proximity probe?

The Bently Nevada 330910-05-10-05-02-CN is an eddy current proximity probe designed for accurate non-contact measurement of shaft vibration, displacement, and position in industrial rotating machinery. It is mainly used as a sensing component in machinery condition monitoring and protection systems.

The probe uses eddy current technology to detect changes in the distance between the probe tip and a conductive rotating target. Since the measurement process does not require physical contact, the sensor avoids mechanical wear and provides reliable performance during continuous operation.

The probe is commonly integrated with the Bently Nevada 3300 NSv Proximity Transducer System and is suitable for monitoring critical rotating equipment such as turbines, compressors, pumps, and motors. It provides important operating data that helps engineers evaluate machine health and prevent unexpected failures.

2. What applications are suitable for the Bently Nevada 330910-05-10-05-02-CN proximity probe?

The Bently Nevada 330910-05-10-05-02-CN is widely used in industrial applications where accurate monitoring of rotating equipment is required.

Typical applications include power generation equipment, oil and gas machinery, petrochemical systems, industrial compressors, pumps, motors, and other high-value rotating assets. These machines often require continuous monitoring to detect abnormal operating conditions before serious damage occurs.

By measuring shaft vibration and displacement changes, the proximity probe helps identify potential issues such as rotor imbalance, shaft misalignment, bearing wear, mechanical looseness, and excessive vibration.

The probe is especially suitable for predictive maintenance systems where early fault detection and equipment reliability improvement are important.

3. How does the Bently Nevada 330910-05-10-05-02-CN measure shaft vibration and displacement?

The Bently Nevada 330910-05-10-05-02-CN uses eddy current sensing technology to perform non-contact displacement measurement.

During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When the probe is positioned near a conductive shaft surface, eddy currents are generated inside the target material.

Changes in the distance between the probe and the shaft affect the electromagnetic field characteristics. These changes are converted into electrical signals that represent shaft movement and vibration levels.

The monitoring system processes these signals to provide real-time information about equipment operating conditions. This allows maintenance personnel to monitor vibration trends and detect possible mechanical problems at an early stage.

4. What should be checked when the 330910-05-10-05-02-CN output signal is unstable?

When the proximity probe produces unstable or incorrect signals, the troubleshooting process should include inspection of the probe installation, cable connection, monitoring system, and machine condition.

First, check whether the probe is installed correctly and securely. Improper installation position or incorrect adjustment may affect measurement accuracy.

Next, inspect the connection cable and connector for damage, looseness, or poor contact. External electromagnetic interference from nearby electrical equipment may also affect signal quality.

The monitoring module and power supply should be checked to confirm normal operation. Comparing current measurement results with previous operating data can help determine whether the issue comes from the sensor system or the rotating machinery.

5. What advantages does the Bently Nevada 3300 NSv proximity probe system provide?

The Bently Nevada 3300 NSv proximity probe system provides reliable and continuous monitoring for critical rotating machinery.

One of its main advantages is non-contact measurement using eddy current technology. Because the probe does not physically touch the rotating shaft, there is no mechanical wear, allowing long-term stable operation.

The system provides high sensitivity, fast response, and accurate detection of small shaft movements. This makes it suitable for identifying early signs of mechanical problems and improving equipment protection.

Compared with traditional contact-type sensors, proximity probes require less maintenance and offer better reliability in high-speed industrial applications.

6. How should the Bently Nevada 330910-05-10-05-02-CN be installed and commissioned?

Proper installation and commissioning are essential for achieving reliable measurement performance.

The probe should be installed according to the equipment monitoring requirements and connected with compatible cables and monitoring modules. During commissioning, technicians should verify the installation condition, signal output, and monitoring system response.

The complete measurement circuit should be tested under normal operating conditions to ensure that vibration and displacement signals are collected correctly.

Regular inspection of probe connections, cable conditions, and system operation is recommended to maintain long-term measurement reliability and prevent unexpected monitoring failures.

7. What factors can affect the accuracy of the 330910-05-10-05-02-CN measurement results?

Several factors can influence measurement accuracy, including installation conditions, cable quality, electrical interference, and mechanical conditions of the monitored equipment.

Incorrect probe installation or improper positioning may cause inaccurate output signals. Damaged cables, loose connections, or interference from nearby electrical equipment can also result in unstable readings.

Mechanical issues such as excessive shaft runout, surface damage, contamination, rotor imbalance, or abnormal vibration may affect the measurement results.

When abnormal readings occur, a complete inspection of the probe, cable, monitoring electronics, and machine operating condition should be performed to identify the actual cause.

8. Why is the Bently Nevada 330910-05-10-05-02-CN widely used in machinery protection systems?

The Bently Nevada 330910-05-10-05-02-CN is widely used in machinery protection systems because it provides accurate, stable, and continuous monitoring of rotating equipment.

The probe uses proven eddy current technology to measure shaft vibration and displacement without physical contact, making it suitable for demanding industrial environments.

When connected with the Bently Nevada 3300 NSv monitoring system, the probe helps operators detect abnormal machine conditions, improve maintenance efficiency, and reduce the risk of unexpected equipment shutdowns.

Its reliable measurement capability, industrial durability, and compatibility with professional monitoring systems make the 330910-05-10-05-02-CN an effective solution for predictive maintenance and rotating machinery protection applications.
