Technical Specifications

FAQ

1. What are the main functions of the Bently Nevada 330910-06-13-10-01-CN proximity probe?

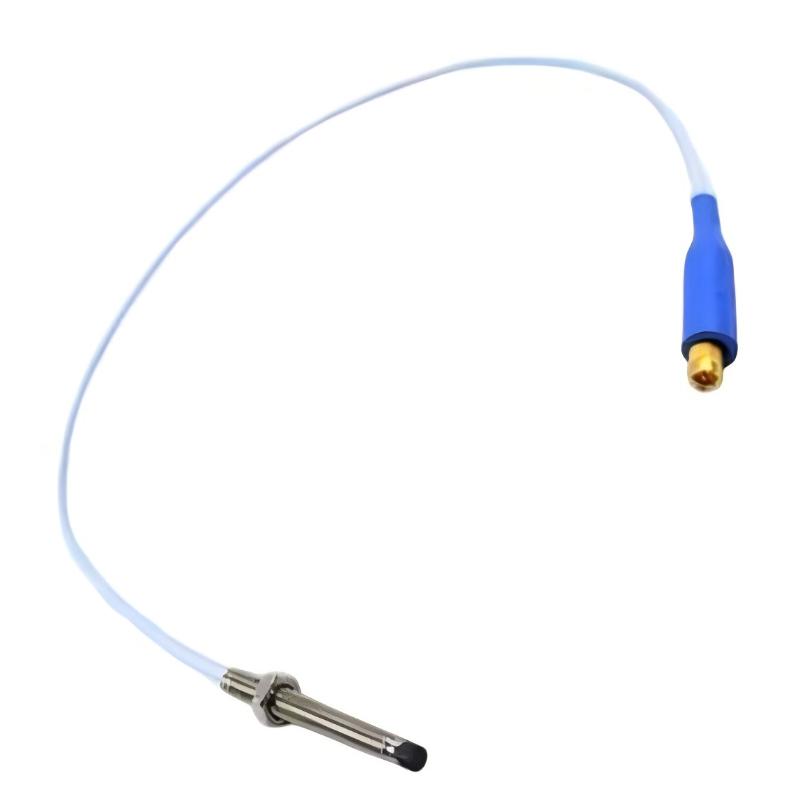

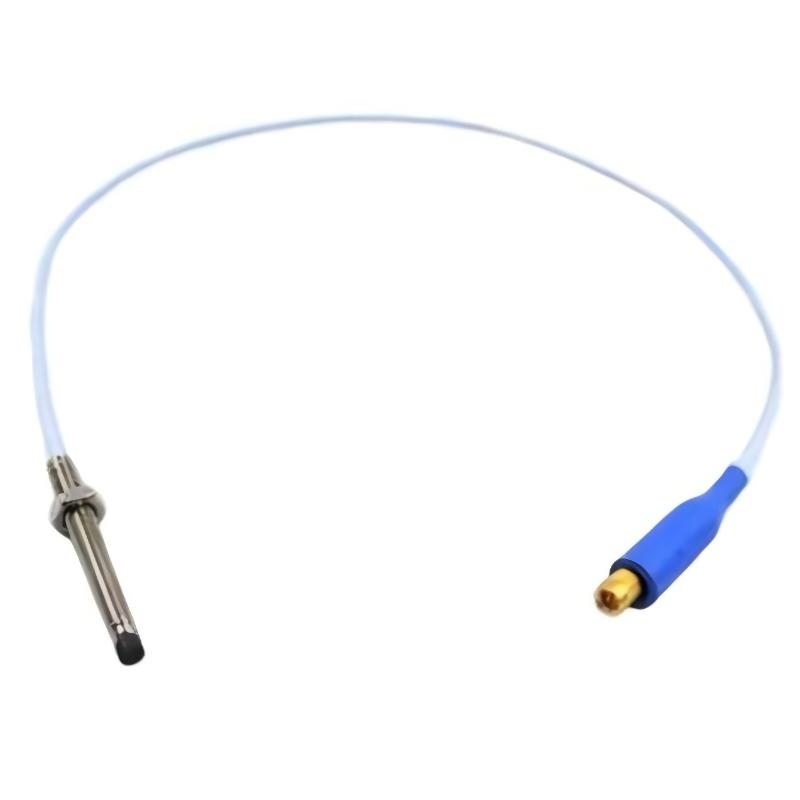

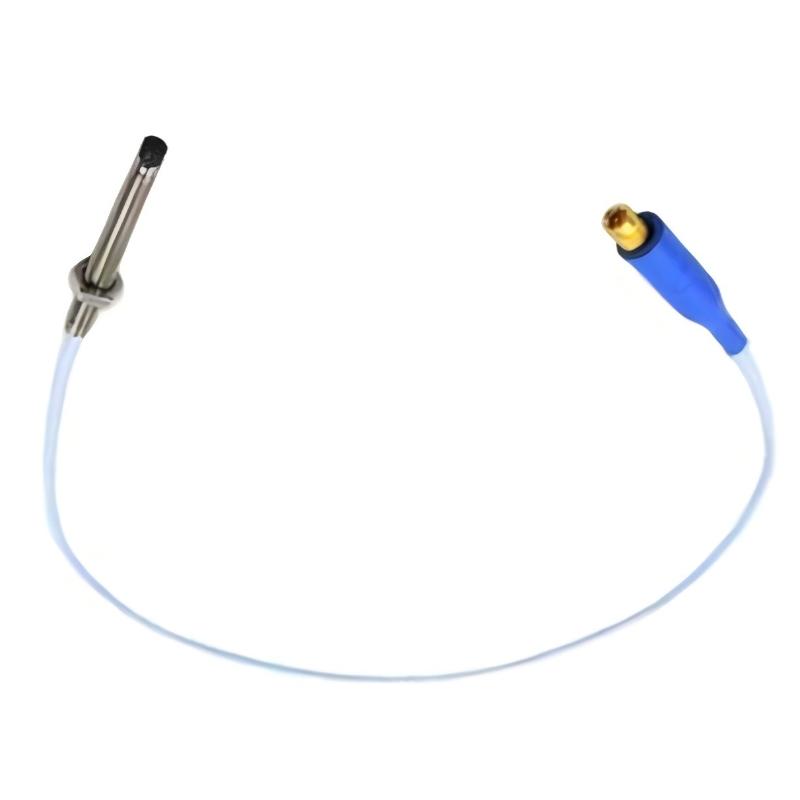

The Bently Nevada 330910-06-13-10-01-CN is an eddy current proximity probe designed for non-contact measurement of shaft vibration, displacement, and position in industrial rotating machinery. It is an important sensing component used in machinery condition monitoring and protection systems.

The probe operates based on eddy current technology, which detects changes in the distance between the probe tip and a conductive target surface. Since there is no physical contact with the rotating shaft, the probe avoids mechanical wear and provides stable measurement performance during long-term operation.

The 330910-06-13-10-01-CN is commonly used with Bently Nevada 3300 NSv monitoring systems and provides reliable vibration and displacement signals for equipment such as turbines, compressors, pumps, and motors. It helps maintenance personnel identify abnormal operating conditions and improve equipment reliability.

2. What industrial equipment can use the Bently Nevada 330910-06-13-10-01-CN proximity probe?

The Bently Nevada 330910-06-13-10-01-CN is suitable for a wide range of rotating machinery applications where continuous condition monitoring is required.

Typical applications include steam turbines, gas turbines, centrifugal compressors, generators, industrial pumps, motors, and other critical mechanical equipment used in power plants, petrochemical facilities, oil and gas systems, and manufacturing industries.

By monitoring shaft vibration and displacement changes, the probe helps detect early signs of mechanical problems, including rotor imbalance, shaft misalignment, bearing degradation, mechanical looseness, and abnormal vibration conditions.

Its reliable sensing performance makes it suitable for predictive maintenance systems and machinery protection applications where equipment availability and safety are important.

3. How does the Bently Nevada 330910-06-13-10-01-CN measure shaft vibration and displacement?

The Bently Nevada 330910-06-13-10-01-CN uses eddy current sensing technology to perform accurate non-contact measurement.

During operation, the probe generates a high-frequency electromagnetic field at the sensing tip. When this electromagnetic field interacts with a conductive shaft surface, eddy currents are created inside the target material.

Changes in the distance between the probe and the target surface affect the electromagnetic field characteristics. These variations are converted into electrical signals that represent shaft movement and vibration.

The monitoring system processes these signals to provide real-time information about machine operating conditions. This allows operators to monitor vibration trends, analyze equipment performance, and detect possible mechanical issues before serious damage occurs.

4. What should be checked when the 330910-06-13-10-01-CN signal output is unstable?

When the proximity probe produces unstable signals or abnormal measurement values, the complete monitoring system should be inspected.

First, check the probe installation condition and confirm that the sensor is properly positioned and securely installed. Incorrect installation may result in inaccurate measurement data.

Next, inspect the cable and connector for possible damage, loose connections, or poor contact. Industrial environments with strong electromagnetic interference may also affect signal quality.

The monitoring module, power supply, and system configuration should also be checked to ensure proper operation. Comparing current data with historical operating records can help determine whether the issue is related to the sensor system or the monitored equipment.

5. What advantages does the Bently Nevada 3300 NSv proximity probe system provide?

The Bently Nevada 3300 NSv proximity probe system provides accurate, stable, and continuous monitoring for critical rotating machinery.

Its main advantage is the use of non-contact eddy current measurement technology, which eliminates physical wear between the sensor and rotating components. This allows reliable operation in high-speed and continuous industrial environments.

The system offers high sensitivity, fast response, and excellent signal stability, enabling it to detect small changes in shaft movement and vibration.

Compared with traditional contact measurement devices, proximity probes require less maintenance and provide improved reliability for machinery protection and predictive maintenance applications.

6. How should the Bently Nevada 330910-06-13-10-01-CN be installed and commissioned?

Proper installation and commissioning are necessary to achieve accurate monitoring results.

The probe should be installed according to the equipment monitoring requirements and connected with compatible cables and monitoring modules. During commissioning, technicians should verify the probe installation condition, signal quality, and system response.

The complete measurement circuit should be tested under normal operating conditions to ensure that vibration and displacement signals are correctly collected.

After installation, regular inspection of probe connections, cable condition, and monitoring system operation is recommended to maintain long-term reliability and prevent unexpected monitoring failures.

7. What factors can affect the accuracy of the 330910-06-13-10-01-CN measurement results?

Several factors may affect the measurement accuracy of the proximity probe, including installation conditions, cable status, electrical interference, and mechanical equipment conditions.

Incorrect probe positioning may cause inaccurate output signals that do not represent the actual shaft movement. Damaged cables, loose connections, or electrical interference from nearby equipment may also result in unstable readings.

Mechanical conditions such as excessive shaft runout, shaft surface damage, contamination, rotor imbalance, and abnormal vibration can influence measurement performance.

When abnormal readings occur, technicians should inspect the complete measurement system, including the probe, cable, monitoring electronics, and the rotating machinery condition.

8. Why is the Bently Nevada 330910-06-13-10-01-CN widely used in machinery protection systems?

The Bently Nevada 330910-06-13-10-01-CN is widely used in machinery protection systems because it provides reliable and accurate monitoring of critical rotating equipment.

The probe uses proven eddy current non-contact measurement technology, allowing precise detection of shaft vibration and displacement without physical contact. This design provides stable performance in demanding industrial environments.

When integrated with the Bently Nevada 3300 NSv monitoring system, the probe helps operators identify abnormal machine conditions, improve maintenance efficiency, and reduce unexpected equipment downtime.

With dependable measurement performance, strong industrial adaptability, and continuous monitoring capability, the 330910-06-13-10-01-CN is an effective solution for predictive maintenance and rotating machinery protection applications.
