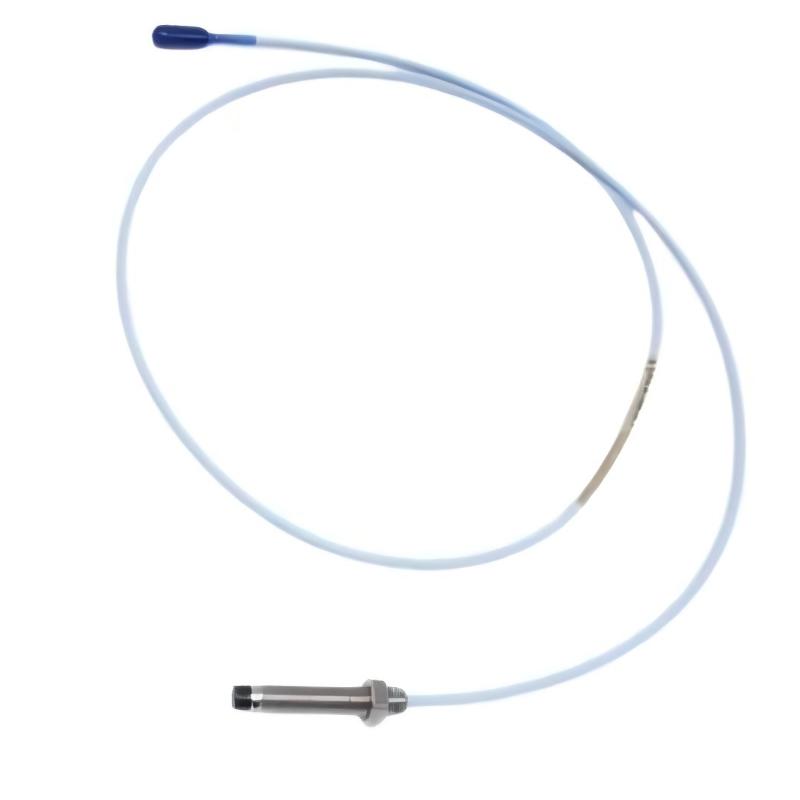

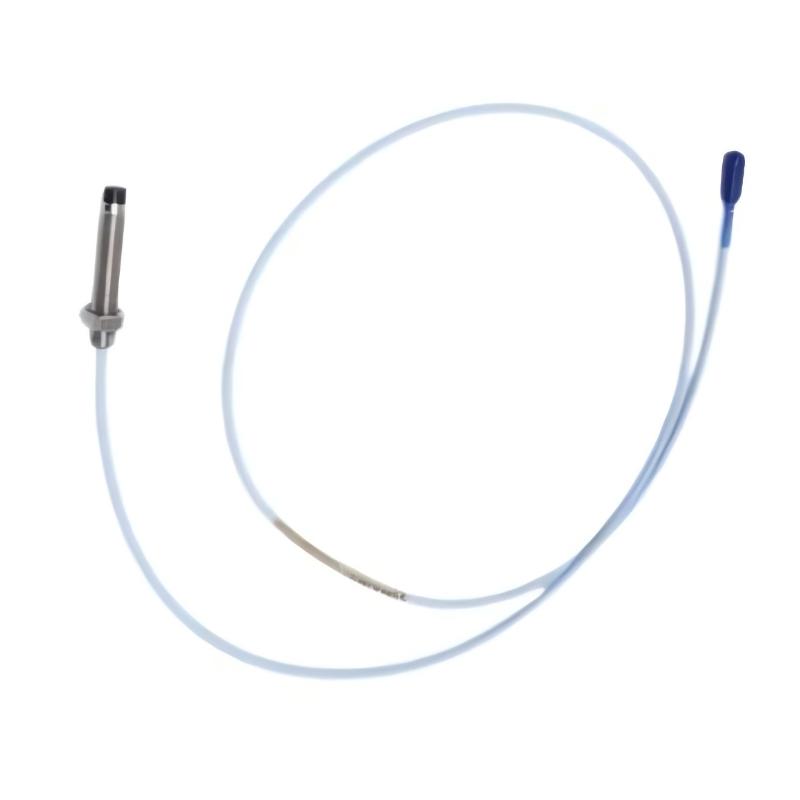

1. What are the main applications of the Bently Nevada 330910-09-17-10-02-CN 3300 NSv Proximity Probe?

The Bently Nevada 330910-09-17-10-02-CN 3300 NSv Proximity Probe is designed for non-contact vibration and displacement monitoring of critical rotating machinery. It is commonly used in steam turbines, gas turbines, compressors, pumps, generators, motors, and other high-speed rotating equipment where accurate shaft movement measurement is required. The probe works with a compatible proximity monitoring system to continuously measure the distance between the probe tip and the rotating shaft surface. By providing reliable displacement signals, it allows operators to monitor shaft vibration, radial movement, axial position, and machine operating conditions in real time. This helps maintenance teams detect early signs of mechanical problems such as rotor imbalance, shaft misalignment, bearing wear, and abnormal vibration before serious equipment damage occurs. The probe is widely applied in industries such as power generation, petrochemical, manufacturing, and process automation where equipment reliability is critical.

2. How does the 3300 NSv Proximity Probe measure shaft displacement?

The 3300 NSv Proximity Probe uses advanced eddy current sensing technology to measure the distance between the probe tip and a conductive rotating target. During operation, the probe generates a high-frequency electromagnetic field that creates eddy currents on the target surface. Changes in the distance between the probe and the shaft affect the electromagnetic field, allowing the system to convert these variations into an electrical output signal. Since the measurement is performed without physical contact, the probe avoids mechanical wear and can operate reliably in high-speed rotating machinery environments. The technology provides accurate and continuous displacement monitoring, making it suitable for detecting small shaft movements, vibration changes, and position variations. This measurement method is widely used in machinery protection systems because it provides fast response, high reliability, and long-term operational stability.

3. What should be checked if the 330910-09-17-10-02-CN probe signal is unstable?

If the probe signal becomes unstable, users should first check the mechanical installation condition and electrical connections. The probe installation position should be inspected to confirm that it is correctly aligned with the target surface and operating within the recommended measurement gap. Contamination, oil deposits, corrosion, or surface damage on the shaft can affect signal quality and measurement accuracy. The connection between the probe, extension cable, and monitoring module should also be checked for loose terminals, cable damage, or incorrect wiring. In addition, possible electromagnetic interference from nearby equipment should be considered, especially in industrial environments with high-power electrical devices. Calibration parameters and system configuration should also be verified to ensure they match the installed probe. A complete inspection of mechanical, electrical, and configuration factors can help restore stable and accurate monitoring performance.

4. What are the advantages of using an eddy current proximity probe for machinery monitoring?

Eddy current proximity probes provide several advantages for monitoring rotating machinery. The biggest advantage is non-contact measurement, which eliminates physical wear between the sensor and the rotating shaft. This allows the probe to operate continuously in demanding industrial environments with high speed, vibration, and temperature conditions. The technology provides high-resolution displacement measurement, allowing users to detect small changes in shaft movement that may indicate developing mechanical problems. Compared with contact-based measurement methods, eddy current probes offer faster response and better suitability for critical rotating equipment. In applications such as turbines, compressors, and generators, these probes help operators monitor equipment health, identify abnormal operating conditions, reduce unexpected failures, and improve maintenance efficiency. Their reliability and accuracy make them an essential component in modern predictive maintenance and machinery protection systems.

5. How should the 330910-09-17-10-02-CN proximity probe be installed correctly?

Proper installation is essential to achieve accurate measurement performance from the 3300 NSv Proximity Probe. Before installation, the mounting position should be checked to ensure that the probe can be securely installed and properly aligned with the rotating shaft target area. The probe should maintain the correct installation gap and should not physically contact the shaft during operation. The cable should be routed carefully to avoid excessive bending, mechanical stress, and strong electromagnetic interference sources. All connections between the probe, extension cable, and monitoring equipment should be securely installed and checked before operation. After installation, system calibration and verification should be performed to confirm that the output signal accurately represents shaft movement. Correct installation procedures help improve measurement reliability, reduce false alarms, and ensure long-term stable operation of the monitoring system.

6. How does the 3300 NSv proximity probe support predictive maintenance strategies?

The 3300 NSv proximity probe plays an important role in predictive maintenance by providing continuous information about rotating equipment conditions. Instead of depending only on periodic manual inspections, the probe allows operators to monitor shaft vibration and displacement trends in real time. By analyzing collected operating data, maintenance teams can identify early warning signs such as rotor imbalance, misalignment, bearing problems, excessive vibration, or abnormal shaft movement. This enables maintenance activities to be scheduled based on actual equipment conditions rather than fixed time intervals. Predictive maintenance using proximity probes helps reduce unexpected downtime, improve equipment availability, and extend machinery service life. In industries where continuous operation is essential, such as power plants, oil and gas facilities, and manufacturing plants, reliable condition monitoring significantly improves operational safety and efficiency.

7. What factors can affect the measurement accuracy of the 330910-09-17-10-02-CN probe?

Several factors can influence the measurement accuracy of the 330910-09-17-10-02-CN proximity probe. The condition and material characteristics of the target surface are important because eddy current measurement depends on the electrical properties of the conductive material. Shaft surface damage, contamination, uneven surfaces, or improper installation can affect signal stability. Incorrect probe positioning, cable problems, electrical interference, and improper calibration settings may also lead to inaccurate readings. Environmental conditions such as temperature changes, excessive vibration, and industrial contamination should also be considered during installation planning. To maintain reliable measurement performance, users should ensure proper installation, correct calibration, suitable target conditions, and regular inspection of cables and connections. Following recommended maintenance procedures helps ensure accurate and consistent monitoring results.

8. How can users troubleshoot a failure or no-signal condition from the 330910-09-17-10-02-CN probe?

When the 330910-09-17-10-02-CN probe produces no signal or abnormal output, troubleshooting should begin by checking the complete monitoring system. First, verify that the power supply and signal processing module are operating correctly. Next, inspect the connection between the probe, extension cable, and monitoring equipment to ensure there are no loose connections, damaged cables, or incorrect wiring. The mechanical installation condition should also be checked to confirm that the probe is correctly positioned and the measurement gap is appropriate. If possible, testing the probe with a known working system can help determine whether the issue comes from the probe itself or another part of the monitoring chain. Configuration settings, calibration values, and system parameters should also be reviewed. A systematic inspection of electrical connections, mechanical installation, and monitoring system settings can help quickly identify the cause of the failure and restore normal operation.
