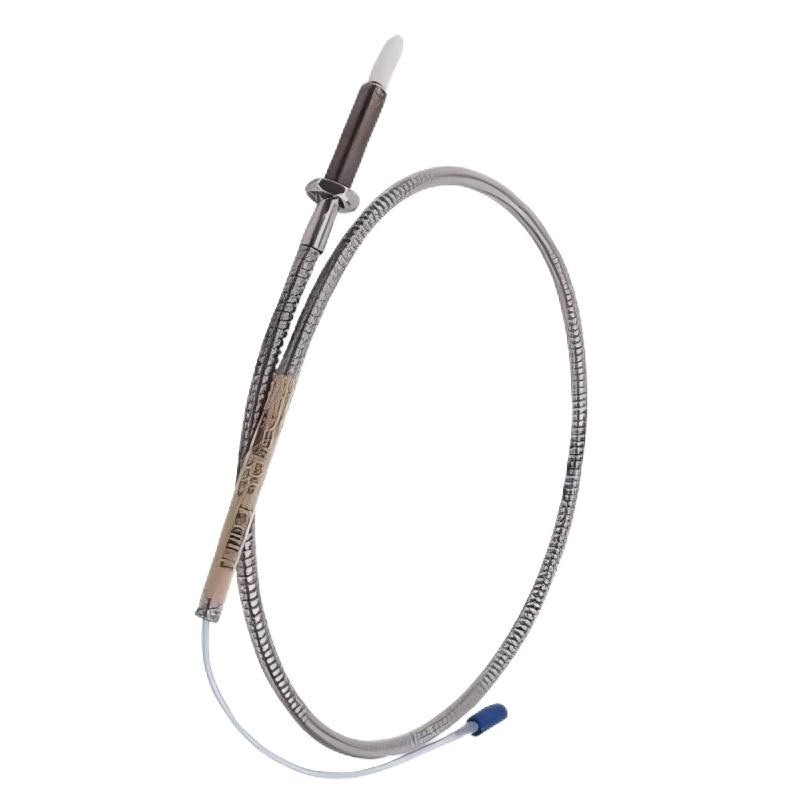

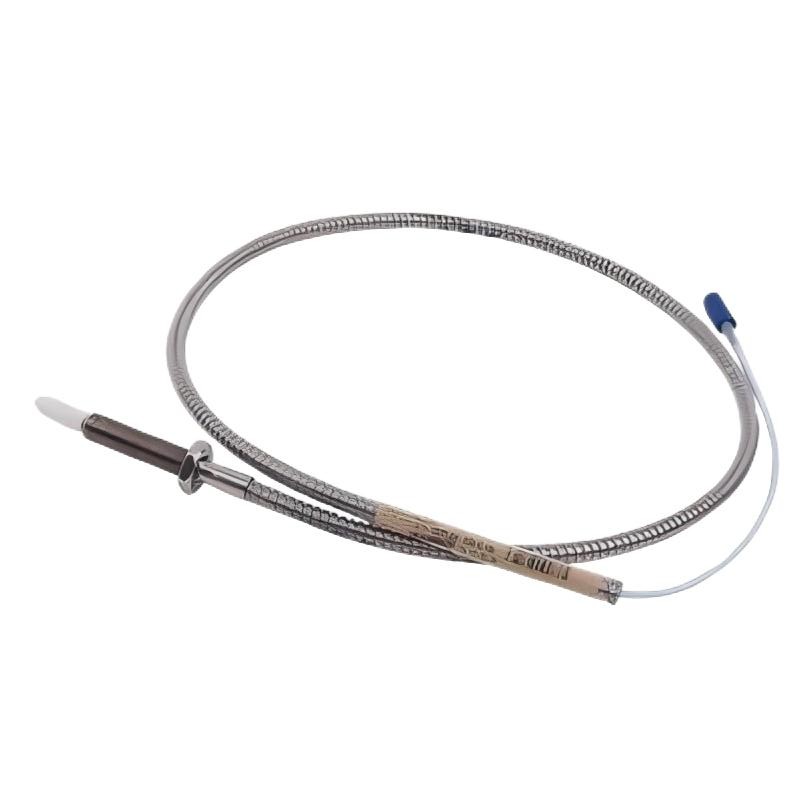

1. What are the main applications of the Bently Nevada 330910-14-19-10-02-00 3300 NSv Proximity Probe?

The Bently Nevada 330910-14-19-10-02-00 3300 NSv Proximity Probe is designed for continuous non-contact monitoring of critical rotating machinery. It is widely used in steam turbines, gas turbines, compressors, pumps, generators, motors, and other industrial rotating equipment where accurate shaft vibration and displacement measurement are required.

The probe works together with a compatible monitoring system to detect changes in the distance between the probe tip and the rotating shaft surface. These measurements provide important information about shaft vibration, radial movement, axial position, and machine operating conditions.

In industrial environments, abnormal shaft movement is often an early indication of mechanical problems such as rotor imbalance, shaft misalignment, bearing degradation, or excessive vibration. By continuously monitoring these conditions, the probe helps maintenance teams identify potential failures before they lead to major equipment damage.

The 3300 NSv Proximity Probe is commonly used in power plants, petrochemical facilities, oil and gas installations, and manufacturing industries where high equipment availability and reliable operation are essential.

2. How does the 330910-14-19-10-02-00 proximity probe work?

The 330910-14-19-10-02-00 proximity probe uses eddy current technology to measure shaft displacement without physical contact. During operation, the probe generates a high-frequency electromagnetic field around its sensing tip.

When the electromagnetic field interacts with a conductive target surface, such as a rotating shaft, eddy currents are generated inside the target material. The strength of these currents changes according to the distance between the probe and the shaft surface.

The monitoring system detects these changes and converts them into a proportional electrical signal that represents the actual displacement of the shaft. Because the measurement process does not require physical contact, the probe avoids mechanical wear and provides reliable performance in high-speed rotating machinery.

This technology allows the probe to deliver fast response, accurate measurement, and long-term stability, making it suitable for machinery protection and predictive maintenance applications.

3. What should be checked when the 330910-14-19-10-02-00 probe output signal is unstable?

When the probe output signal becomes unstable, troubleshooting should begin with checking the installation condition, electrical connections, and monitoring system configuration.

First, verify that the probe is installed correctly and aligned properly with the monitored shaft. Incorrect installation conditions, improper probe positioning, contamination on the sensing area, or surface defects on the shaft may affect measurement stability.

Next, inspect the connection between the probe, extension cable, and monitoring module. Loose connections, damaged cables, incorrect wiring, or poor grounding can result in unstable signals or inaccurate measurements.

The industrial environment should also be considered. Strong electromagnetic interference from nearby motors, power equipment, or frequency converters may introduce signal noise.

Finally, confirm that the monitoring system parameters, calibration settings, and channel configuration match the actual probe installation.

A complete inspection of mechanical installation, electrical wiring, and system settings can help restore stable and reliable measurement performance.

4. What advantages does the Bently Nevada 3300 NSv Proximity Probe provide for machinery monitoring?

The 3300 NSv Proximity Probe provides several advantages for rotating machinery monitoring due to its advanced non-contact measurement technology.

Unlike contact sensors that may experience wear during continuous operation, the eddy current proximity probe measures shaft movement without touching the rotating component. This greatly improves reliability and allows the sensor to operate effectively in high-speed and harsh industrial environments.

The probe can detect very small changes in shaft displacement and vibration, which is important for identifying early-stage equipment problems. In critical machinery such as turbines, compressors, and generators, small vibration changes can indicate developing mechanical faults.

By providing continuous and accurate monitoring data, the probe helps operators improve equipment reliability, reduce unexpected downtime, and implement effective predictive maintenance strategies.

Its stable performance, fast response, and accurate measurement capability make it an important component of industrial machinery protection systems.

5. What installation requirements should be followed for the 330910-14-19-10-02-00 probe?

Correct installation is essential to ensure accurate measurement and reliable operation of the 330910-14-19-10-02-00 proximity probe.

Before installation, users should confirm that the mounting position is suitable and that the probe can be securely installed and correctly aligned with the monitored shaft area. The sensing tip must maintain the required operating gap and should not physically contact the rotating shaft.

The extension cable should be routed carefully to avoid excessive bending, mechanical stress, and exposure to strong electromagnetic interference sources. Connections between the probe, cable, and monitoring equipment should be properly secured.

After installation, calibration and signal verification should be performed to confirm that the measurement output accurately reflects shaft movement.

Following proper installation procedures improves monitoring accuracy, reduces false alarms, and ensures long-term stable operation of the machinery protection system.

6. How does the 330910-14-19-10-02-00 support predictive maintenance?

The 330910-14-19-10-02-00 proximity probe supports predictive maintenance by continuously providing real-time information about rotating equipment conditions.

Instead of relying only on fixed maintenance schedules, engineers can analyze actual operating data collected from the probe to evaluate equipment health. Changes in shaft vibration patterns or displacement trends can indicate developing problems such as rotor imbalance, misalignment, bearing wear, or mechanical instability.

By detecting these conditions early, maintenance teams can schedule repairs before serious failures occur. This reduces unexpected shutdowns, improves equipment availability, and lowers overall maintenance costs.

In industries where continuous production is critical, such as power generation, petrochemical processing, and manufacturing, the 3300 NSv monitoring system provides valuable condition data that helps improve operational safety and reliability.

7. What factors can affect the measurement accuracy of the 330910-14-19-10-02-00 probe?

Several factors can influence the measurement accuracy of the 330910-14-19-10-02-00 proximity probe, including target surface condition, installation quality, environmental conditions, and system configuration.

Because the probe uses eddy current measurement technology, the electrical characteristics and surface condition of the target material are important. Surface corrosion, contamination, scratches, or uneven machining may affect signal stability.

Incorrect installation position, improper measurement gap, damaged cables, loose electrical connections, and electromagnetic interference can also reduce measurement accuracy.

Environmental conditions such as temperature changes, excessive vibration, and industrial contamination should be considered during installation planning.

To maintain reliable performance, users should follow recommended installation procedures, perform regular inspections, verify calibration settings, and ensure that the monitoring system configuration matches the actual application requirements.

8. How can users troubleshoot a no-signal condition from the 330910-14-19-10-02-00 probe?

When the 330910-14-19-10-02-00 probe produces no signal or abnormal output, troubleshooting should be performed step by step.

First, check whether the monitoring system power supply and signal processing module are operating normally. Then inspect the connections between the probe, extension cable, and monitoring equipment to ensure there are no loose terminals, incorrect wiring, or damaged cables.

The mechanical installation should also be reviewed to confirm that the probe position and operating conditions are correct. If possible, testing the probe with a known working monitoring channel can help determine whether the problem is related to the sensor or another part of the system.

Users should also check system configuration parameters, calibration values, and monitoring channel settings. Some signal problems may be caused by incorrect configuration rather than hardware failure.

By systematically checking electrical connections, mechanical installation, and system settings, users can quickly identify the fault source and restore normal monitoring operation.
