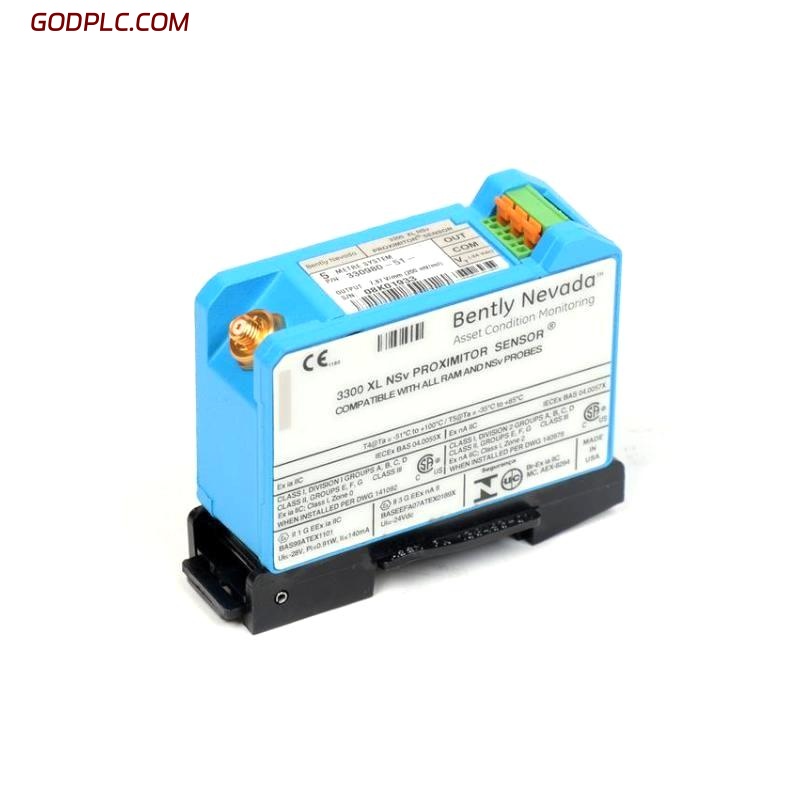

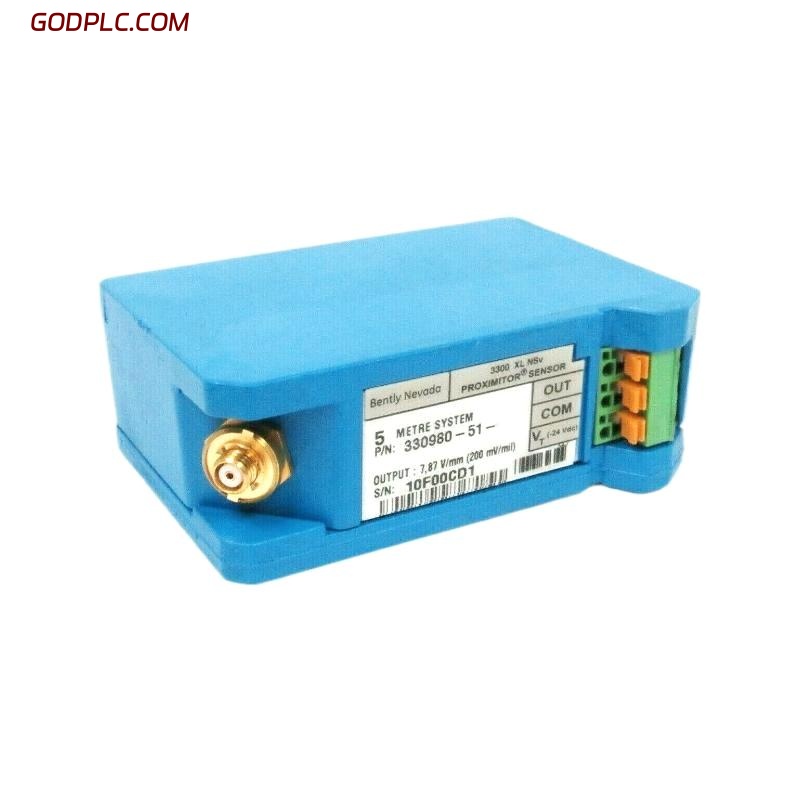

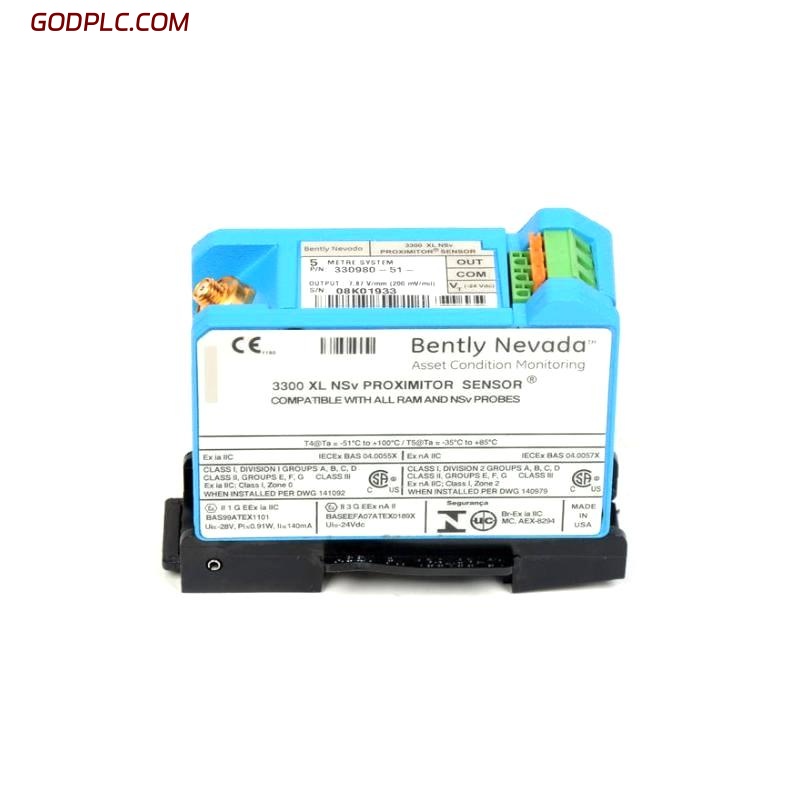

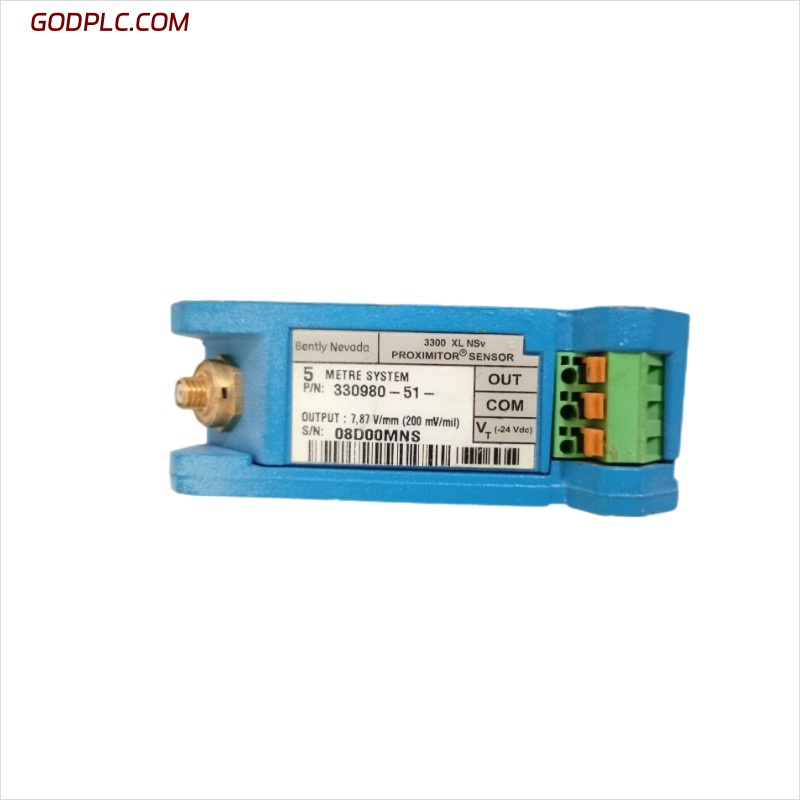

Bently Nevada 330980-51-CN Proximitor Sensor
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 330980-51-CN is part of the 3300 XL NSv (Narrow Side View) Proximitor Sensor family. This model is engineered for installations with constrained mounting space—such as high-density DIN-rail racks or compact panel-mount systems—and for applications requiring small-shaft or flat-target displacement sensing.
It forms part of a three-component system (probe + extension cable + Proximitor sensor) that provides eddy-current displacement measurement for radial vibration, radial/axial position, tachometer/zero-speed detection and phase reference in rotating machinery.
The suffix “51” designates a system length of 5.0 m; the suffix “CN” indicates country-specific (“CN”) agency approvals option.
Key Features
-
Narrow-Side-View (NSv) housing allowing mounting in tight side-view or shallow-clearance zones.
-
Enhanced RFI/EMI immunity for industrial rotating-machinery environments.
-
Compatibility with prior 3300 and 7200 series transducer systems (when probe/cable electrical lengths are matched).
-
Typical output sensitivity ~7.87 V/mm (≈200 mV/mil) for displacement measurement.
-
Designed for DIN-rail or panel mounting configuration per the “51” option.
-
Country-specific approval option (“CN”) for certain regulatory environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 330980-51-CN |
| Product Family | 3300 XL NSv Proximitor Sensor |
| System Length | 5.0 m (16.4 ft) — probe + extension cable + sensor assembly |
| Mounting Option | DIN-rail / high-density panel mounting (“51” code) |
| Approval Option | CN — country-specific approvals (“CN” code) |
| Scale Factor | ~7.87 V/mm (approx. 200 mV/mil) |
| Linear Range | ~1.5 mm (≈60 mils) typical for NSv system |
| Frequency Response | Approx. DC to 10 kHz (-3 dB typical) |
| Output Signal | Voltage proportional to displacement (non-contact measurement) |
| Typical Gap Setting | 1.0 mm (40 mils) nominal |
| Target Material / Size | Conductive ferromagnetic surface (e.g., 4140 steel); flat target ≥15 mm (0.6 in) or shaft ~51 mm (2 in) diameter guideline |
| Dimensions (L × W × H) | 81.3 mm × 61.2 mm × 63.5 mm |
| Weight | ≈ 0.5 kg |
| Shipping Weight | ~2 kg (with packaging) |
| Operating Environment | Industrial rotating-machinery conditions: wide temperature range, high EMI/RFI, non-condensing humidity |
| Applications | Radial vibration, axial (thrust) position sensing, Keyphasor/phase reference detection in machines with restricted space |
Bently Nevada 330980-51-CN Proximitor Sensor is in stock. Please contact us for a quick quote and competitive pricing.
