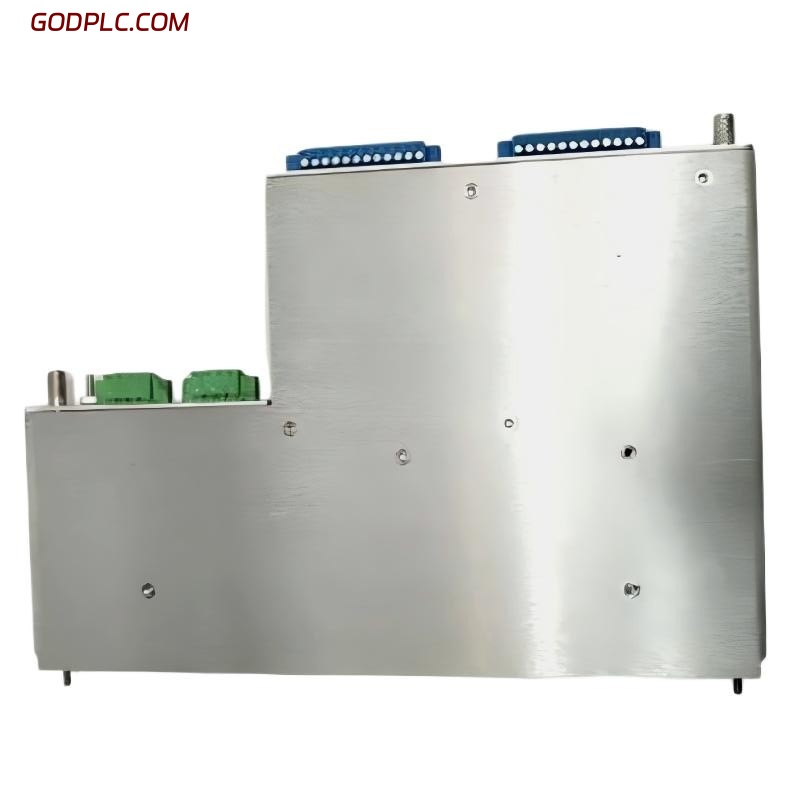

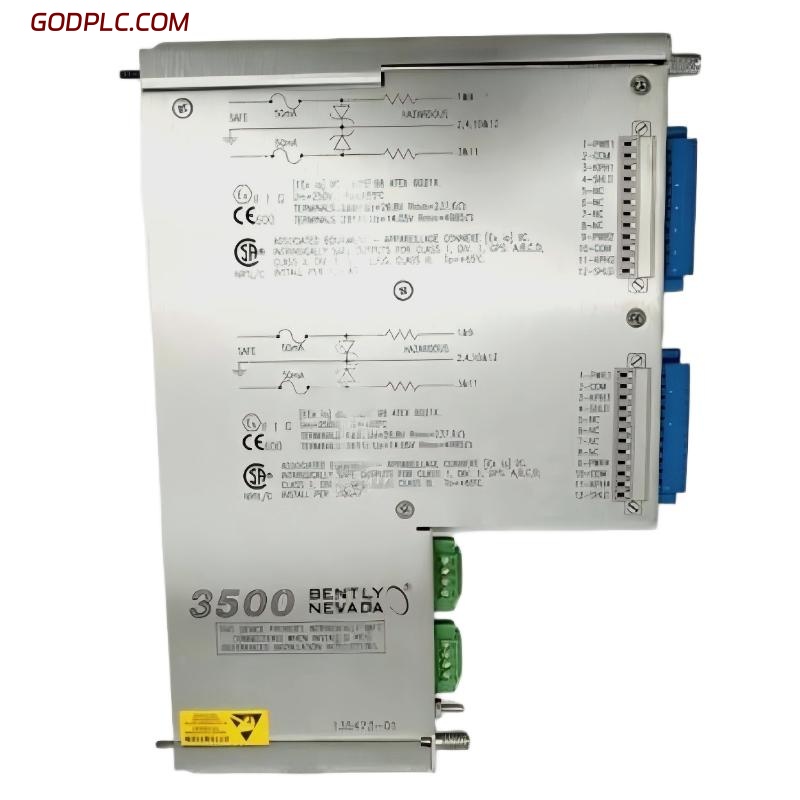

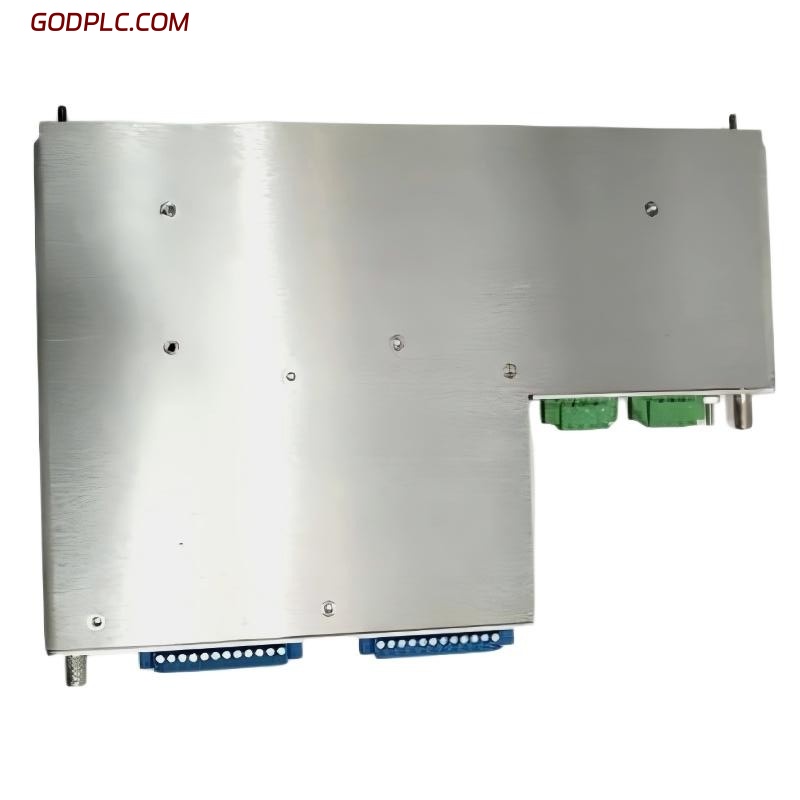

Bently Nevada 3500/04 138257-01 Grounding Module Front Panel
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/04 |
| Part Number | 138257-01 |
| Product Type | Grounding Module Front Panel |
| Manufacturer | Bently Nevada |
| System Platform | 3500 Machinery Protection and Monitoring System |
| Function | Provides grounding interface and front panel access for the internal barrier module |
| Application | Used with 3500/04 internal barrier assemblies |
| Interface Type | Front panel grounding connection and system identification interface |
| Installation | Mounted on the front of the 3500 system rack module |
| System Compatibility | Compatible with Bently Nevada 3500 series monitoring systems |
| Electrical Function | Supports grounding and shielding continuity for signal protection |
| Material | Industrial-grade metal front panel construction |
| Operating Temperature | 0°C to 65°C |
| Dimensions | 241 × 24.4 × 103.1 mm |
| Weight | 0.201 kg |
FAQ
1. What is the role of the Grounding Module Front Panel in the 3500 system?
The grounding module front panel provides the grounding interface for the internal barrier assembly and allows proper electrical grounding of the monitoring system to maintain signal integrity.
2. How does this module improve system reliability?
By ensuring proper grounding and shielding, the module reduces electrical noise and interference that could affect sensor signal accuracy within the monitoring system.
3. Where is the grounding module front panel installed?
It is installed on the front side of the 3500 system rack as part of the internal barrier module assembly.
4. Is the grounding module required for intrinsic safety configurations?
Yes, proper grounding is essential in intrinsic safety systems to ensure that electrical energy is safely managed and that the barrier protection functions correctly.
5. Does this panel provide any signal processing capability?
No, the panel itself does not process signals; it provides grounding access and supports the mechanical and electrical interface for the barrier module.
6. Can the module be replaced without shutting down the entire monitoring system?
Replacement procedures depend on system configuration, but in most cases maintenance should be performed during scheduled shutdowns to ensure system safety.
7. What types of systems typically use this grounding module?
It is used in rotating machinery protection systems in industries such as oil and gas, power generation, petrochemical processing, and heavy manufacturing.
8. How does grounding affect vibration monitoring accuracy?
Proper grounding minimizes electromagnetic interference and helps maintain stable signal transmission from sensors to the monitoring modules.
Bently Nevada 3500/04 138257-01 Grounding Module Front Panel is in stock. Please contact us for a quick quote and competitive pricing.
