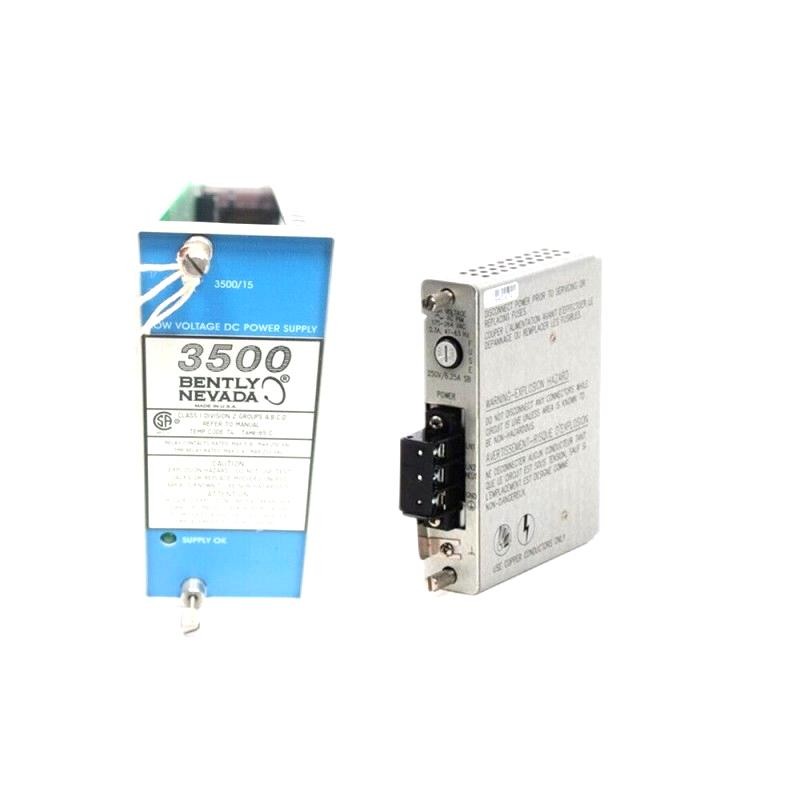

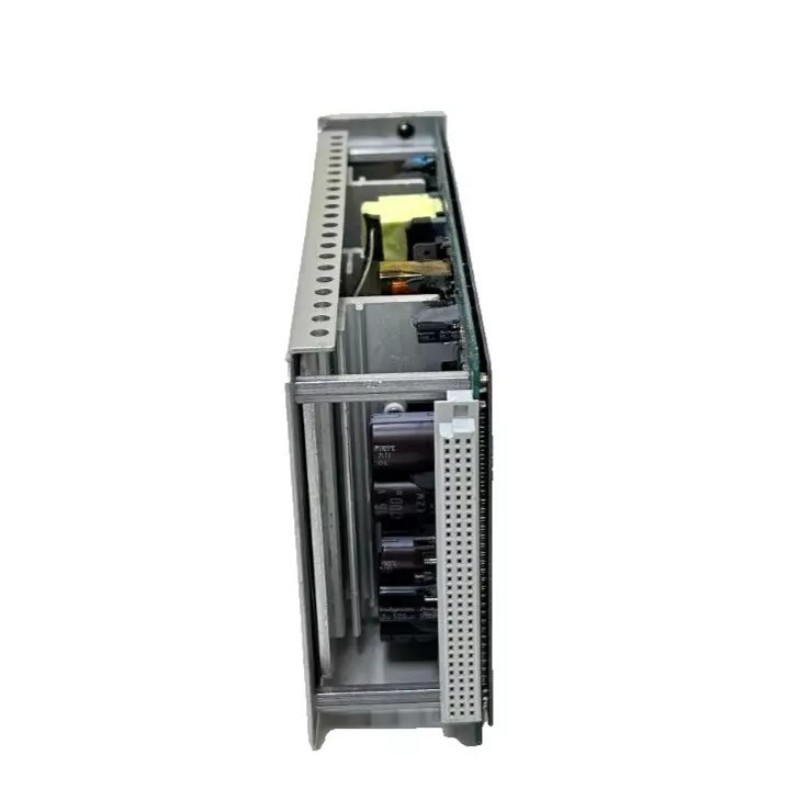

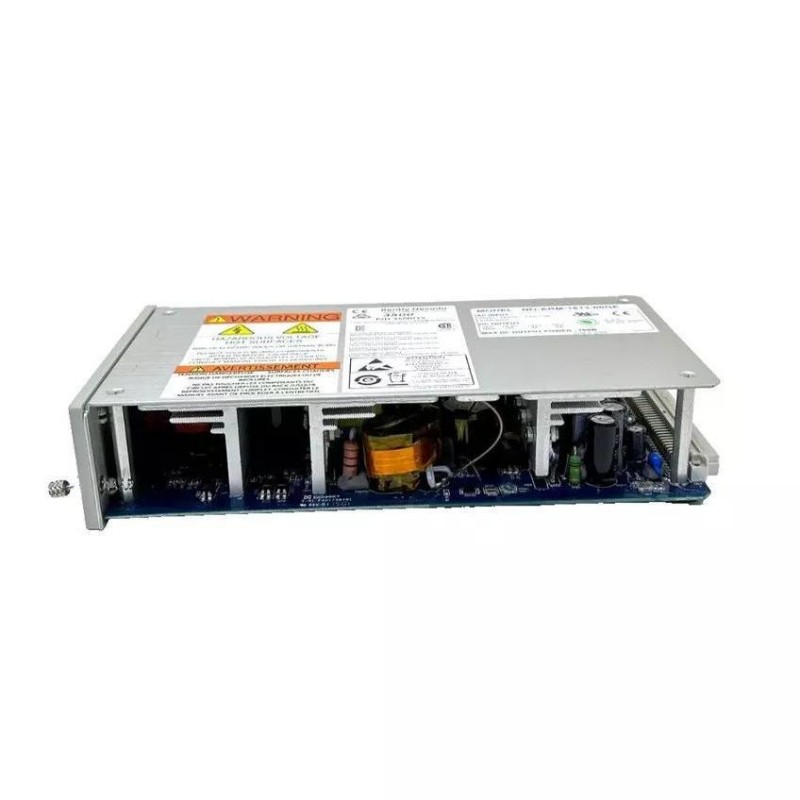

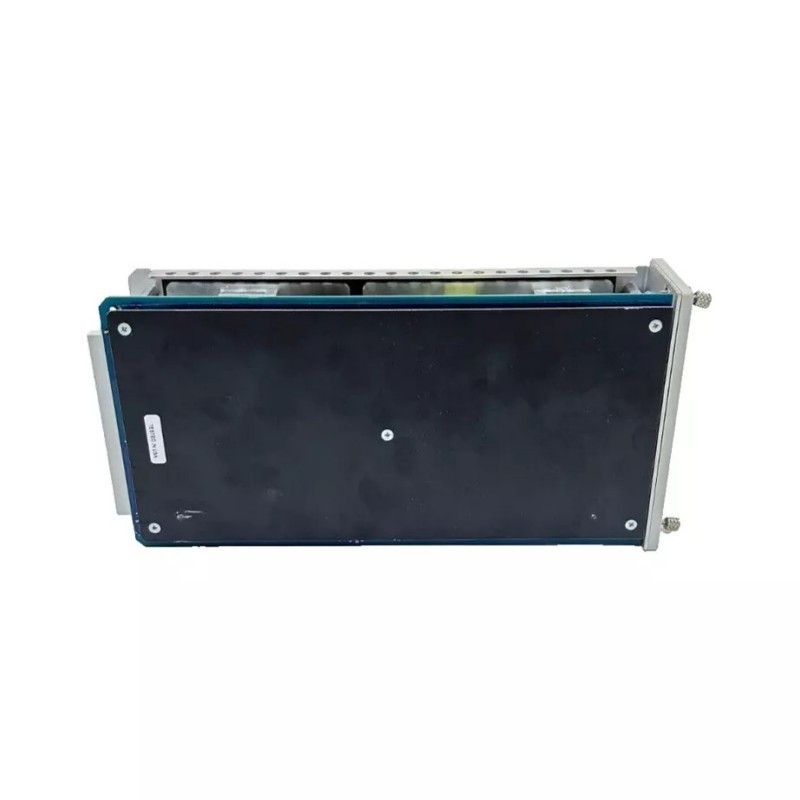

Q1. What is the primary function of the Bently Nevada 3500/15-05-00-00 Power Supply Module?

The Bently Nevada 3500/15-05-00-00 Power Supply Module is an essential power component designed to provide stable and reliable electrical power for the Bently Nevada 3500 Machinery Protection System. Its main purpose is to convert incoming power into regulated power outputs required by monitoring modules installed in the 3500 rack. The module ensures that vibration monitors, position monitoring modules, communication modules, and other system components receive consistent power during continuous operation.

In machinery protection applications, power stability directly affects monitoring accuracy and system availability. An unstable power supply may cause incorrect readings, communication interruptions, or unexpected system shutdowns. The 3500/15-05-00-00 helps maintain continuous operation by providing controlled power conversion, system power management, and diagnostic support, making it a critical component for protecting high-value rotating equipment such as turbines, compressors, and generators.

Q2. What role does the Power Supply Module play in the Bently Nevada 3500 system?

The Power Supply Module serves as the foundation of the Bently Nevada 3500 monitoring platform by supplying the necessary electrical power required by all installed rack modules. A typical 3500 system may contain multiple monitoring modules responsible for measuring vibration, shaft position, speed, and other machine operating parameters. These modules require a stable power source to process signals accurately and communicate with external control systems.

The 3500/15-05-00-00 provides reliable power distribution within the rack, helping maintain consistent operation of the entire protection system. It also supports system diagnostics by monitoring power-related conditions and reporting abnormal situations. If the power supply module fails, multiple monitoring functions may become unavailable, which could reduce the ability of the system to detect and respond to mechanical equipment problems.

Q3. What are the common symptoms of a faulty 3500/15-05-00-00 Power Supply Module?

A faulty Bently Nevada 3500/15-05-00-00 Power Supply Module may cause several abnormal conditions in the machinery protection system. Common symptoms include failure of the 3500 rack to start properly, loss of communication with monitoring modules, power-related alarms, unstable module operation, or unexpected system resets.

In some cases, the problem may appear intermittently, where the system operates normally for a period of time and then experiences sudden alarms or module failures. This type of behavior may be caused by aging electronic components, unstable input power, poor rack connections, or internal circuit problems. During troubleshooting, technicians should review system diagnostic messages, check power status indicators, verify incoming power conditions, and determine whether the issue originates from the power module or another part of the monitoring system.

Q4. How can technicians determine whether the 3500/15-05-00-00 Power Supply Module needs replacement?

Determining whether the power supply module requires replacement involves checking both external conditions and internal system diagnostics. First, technicians should verify that the incoming power source is stable and within the required operating range. The rack connection, module installation condition, and related wiring should also be inspected to eliminate connection problems.

If the external power supply and rack connections are confirmed to be normal, system diagnostic information should be reviewed to identify power module-related alarms or abnormal operating conditions. Additional testing may include checking output stability and observing whether the system continues to experience power interruptions after other possible causes have been eliminated. If the module cannot provide stable power or repeatedly generates fault indications, replacement with a verified compatible unit is usually recommended to restore reliable operation.

Q5. What factors can affect the reliability and service life of the 3500/15-05-00-00 Power Supply Module?

Several environmental and electrical factors can influence the reliability and service life of the 3500/15-05-00-00 Power Supply Module. Input power quality is one of the most important factors, as voltage fluctuations, electrical surges, and unstable power sources can place additional stress on internal components. Continuous operation in high-temperature environments may also accelerate aging of electronic parts.

Other factors include excessive dust accumulation, poor cabinet ventilation, humidity, vibration, and electromagnetic interference from nearby industrial equipment. In harsh industrial environments, these conditions may gradually reduce module performance and increase the possibility of unexpected failures. Regular maintenance, stable power conditions, proper cooling, and a clean installation environment are important for ensuring long-term reliable operation of the power module.

Q6. What checks should be performed after replacing the 3500/15-05-00-00 Power Supply Module?

After replacing the Bently Nevada 3500/15-05-00-00 Power Supply Module, technicians should perform a series of verification steps to ensure the system returns to normal operation. First, confirm that the replacement module is correctly installed in the 3500 rack and that all connections are secure. The system should then be powered on while monitoring startup behavior and status indicators.

After startup, engineers should check whether all installed monitoring modules are recognized correctly and whether any new alarms appear in the system diagnostics. Communication between the 3500 rack and external monitoring or control systems should also be verified. A functional test under normal operating conditions is recommended to confirm stable power delivery and reliable operation before returning the machinery protection system to full service.

Q7. How can power-related faults in a Bently Nevada 3500 system be diagnosed?

Diagnosing power-related faults in a Bently Nevada 3500 system requires a structured troubleshooting process. The first step is to verify the external power source, including supply stability, wiring condition, and protective devices. If the input power is normal, technicians should inspect the connection between the power module and the rack to ensure proper installation.

The next step is to review system diagnostic information and identify whether the fault is related to the power module, another rack component, or an external condition. Monitoring status indicators and system logs can provide valuable information about abnormal power behavior. If necessary, electrical measurements can be performed to confirm output conditions. By following a systematic diagnostic approach, engineers can accurately identify the fault source, reduce unnecessary component replacement, and minimize equipment downtime.

Q8. How can the service life of the Bently Nevada 3500/15-05-00-00 Power Supply Module be extended?

To maximize the service life of the Bently Nevada 3500/15-05-00-00 Power Supply Module, proper preventive maintenance and operating environment control are essential. The installation area should be kept clean and dry to prevent dust accumulation, moisture exposure, and contamination that may affect electronic performance. Adequate ventilation should also be maintained to avoid excessive heat buildup during continuous operation.

Regular inspections should include checking power quality, reviewing system alarm history, and verifying rack connections. Any abnormal power behavior should be investigated promptly to prevent further damage to the monitoring system. Maintaining stable electrical conditions, following recommended maintenance procedures, and replacing aging components when necessary can significantly improve the reliability of the power module and ensure continuous protection of critical rotating machinery.
