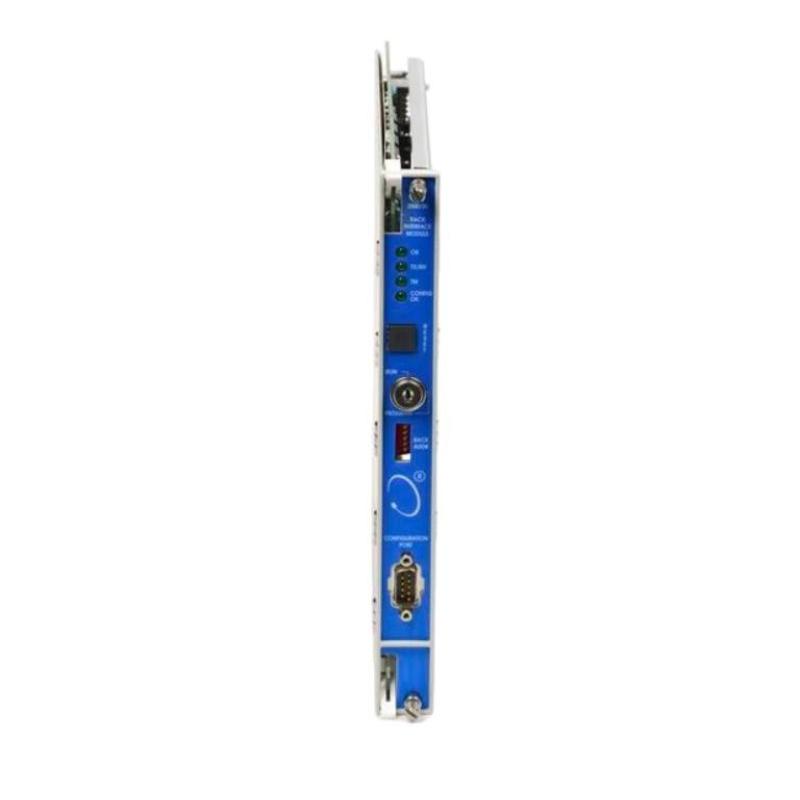

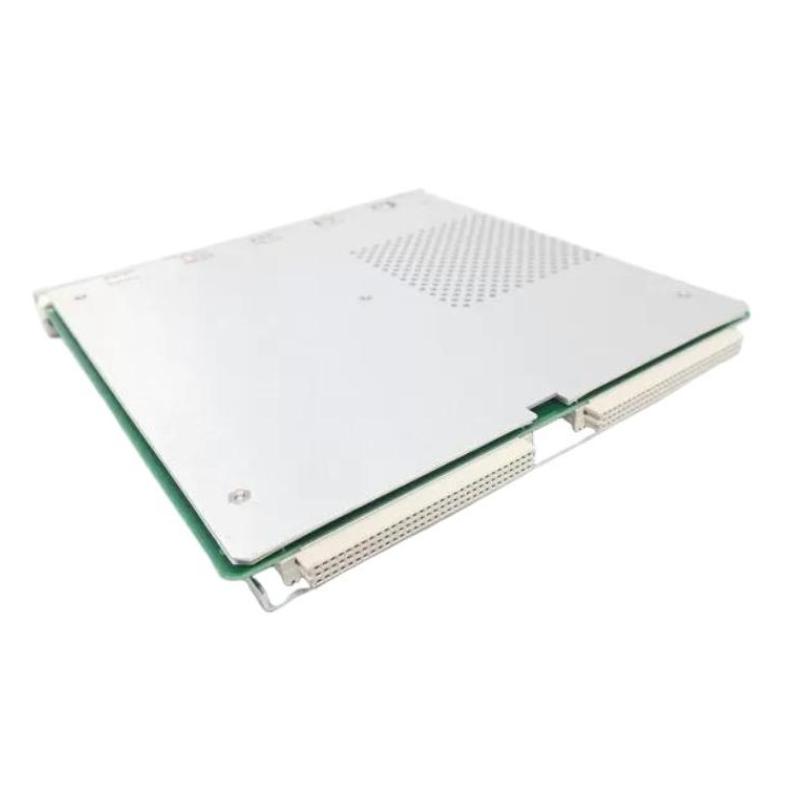

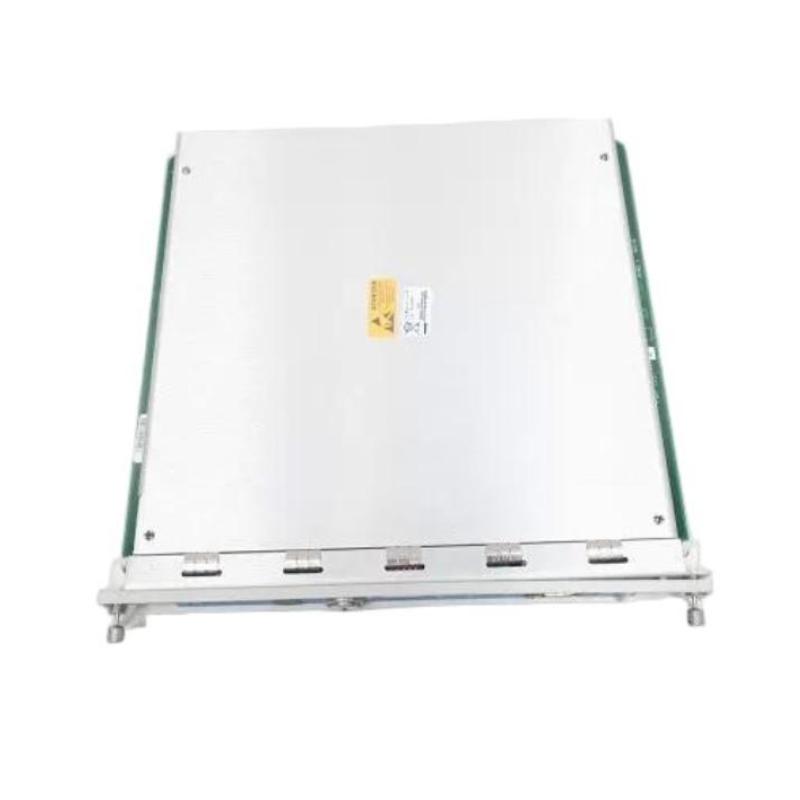

1. What is the main function of the Bently Nevada 3500/20-01-02-00 Rack Interface Module?

The Bently Nevada 3500/20-01-02-00 Rack Interface Module is an interface component used within the 3500 Machinery Protection System. Its primary role is to provide communication and system-level interface functions between the 3500 monitoring rack and external monitoring, control, or plant systems.

The module allows information from the 3500 rack to be made available to connected systems for machinery condition monitoring and operational management. This makes it an important component when the machinery protection system needs to exchange status or monitoring information with a higher-level control or supervisory system.

In practical applications, the module helps integrate the 3500 rack into a larger plant monitoring architecture while maintaining a structured connection between machinery protection functions and external equipment.

2. What systems can the 3500/20-01-02-00 be used with?

The 3500/20-01-02-00 is designed for use within the Bently Nevada 3500 Series machinery protection architecture. It is installed as part of a 3500 monitoring rack and works with other modules that perform machinery measurement, monitoring, alarming, and protection functions.

The module is particularly useful when information from the 3500 rack needs to be exchanged with external plant systems. Depending on the overall system configuration, this can include supervisory monitoring equipment, control systems, data acquisition systems, or other industrial automation equipment.

Correct system compatibility should always be evaluated as a complete configuration rather than selecting the interface module independently.

3. What role does the Rack Interface Module play in machinery protection?

The Rack Interface Module provides an important communication and integration path for the 3500 machinery protection system. While dedicated monitoring modules perform measurement and protection functions, the Rack Interface Module helps make system information available to external equipment.

This arrangement allows machinery operating information to move between the protection rack and plant-level systems. Engineers can therefore incorporate equipment condition information into broader monitoring and control strategies.

For critical rotating equipment, this type of system integration is useful because machinery protection data can be combined with other operating parameters, making it easier to evaluate equipment condition and respond to abnormal operating conditions.

4. What are the common causes of communication problems with 3500/20-01-02-00?

Communication problems can result from incorrect wiring, loose connections, incompatible system configuration, faulty communication equipment, or problems elsewhere in the connected monitoring network.

When communication is lost, technicians should first check the physical connections and verify that the module is properly installed in the 3500 rack. The external communication wiring should also be inspected for damage, loose terminals, or incorrect connections.

If the hardware connections are normal, system configuration and communication parameters should be reviewed. Diagnostic information from the 3500 system can also help determine whether the problem originates from the interface module, another rack component, or the external control and monitoring system.

5. How should the 3500/20-01-02-00 be installed?

The 3500/20-01-02-00 should be installed in the appropriate position within a compatible Bently Nevada 3500 rack. Installation should be performed with the system in a safe state and according to the requirements of the overall machinery protection system.

Before installation, technicians should verify the module identification, rack configuration, wiring requirements, and compatibility with the existing system. The module should be inserted securely into the rack, and all required connections should be checked carefully.

After installation, the system should be powered and commissioned according to the applicable procedures. Communication status and system diagnostics should be checked to confirm that the module is correctly recognized and operating as expected.

6. How can a technician troubleshoot a 3500/20-01-02-00 communication fault?

Troubleshooting should begin by determining whether the problem is limited to the Rack Interface Module or affects the entire 3500 system. First, check module installation, rack connections, external communication wiring, and system status indicators.

Next, verify that the connected equipment is correctly configured and that the communication path is operational. If the external system cannot receive information from the 3500 rack, compare the expected configuration with the actual system settings.

It is also useful to review diagnostic information and compare the behavior of the interface with other system components. A systematic approach helps distinguish between a module fault, wiring problem, configuration error, and an issue with the external monitoring or control system.

7. Can the 3500/20-01-02-00 be replaced without replacing the complete 3500 rack?

The Rack Interface Module is a modular component of the 3500 system, so maintenance can generally be performed at the module level rather than replacing the complete rack. However, replacement procedures should follow the requirements of the installed 3500 system and the applicable maintenance practices.

Before replacing the module, technicians should record the existing system configuration and verify that the replacement module is the correct version for the application. The system should be placed in an appropriate safe condition before removing or installing the module.

After replacement, communication and system diagnostics should be checked carefully. The external monitoring system should also be verified to ensure that data exchange has returned to normal operation.

8. How can the reliability of the 3500/20-01-02-00 be improved?

Long-term reliability depends on correct installation, stable electrical connections, suitable environmental conditions, and regular system maintenance.

Technicians should periodically inspect the module and rack connections, check external communication wiring, and review system diagnostic information for abnormal conditions. Any loose connection, damaged cable, or unusual system indication should be investigated before it develops into a larger communication failure.

For critical machinery protection systems, preventive maintenance is especially important. Monitoring communication status and system health on a regular basis can help identify potential problems early and reduce the possibility of losing access to important machinery protection information.
