1. What is the main function of the Bently Nevada 3500/22-01-01-02?

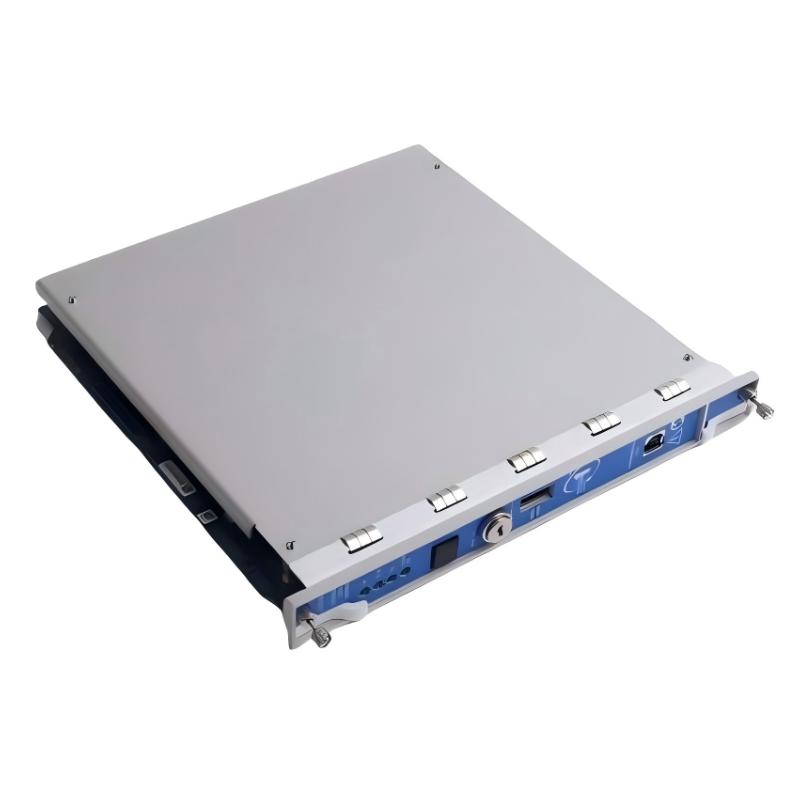

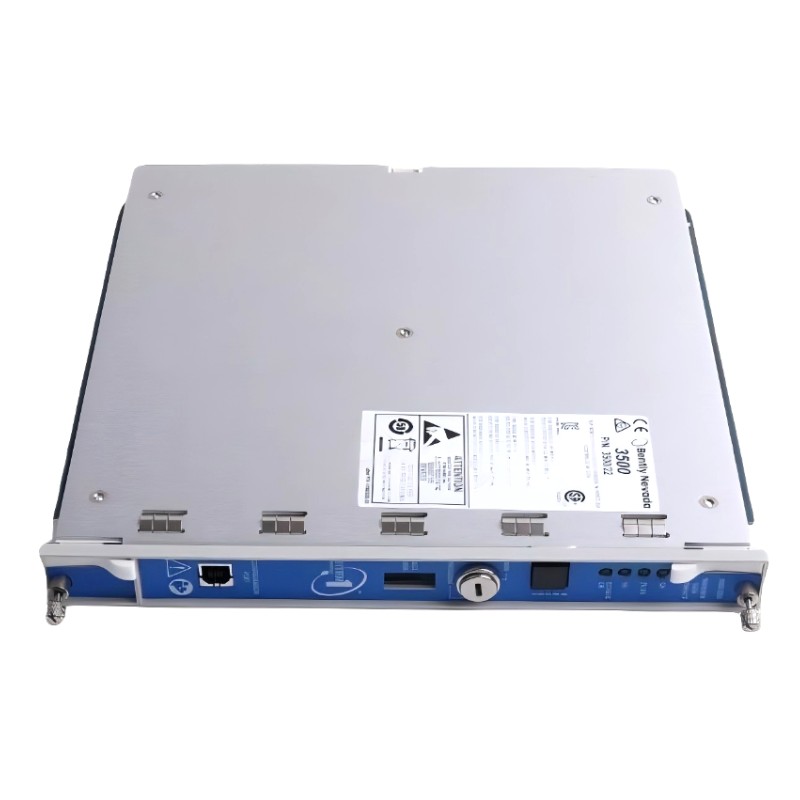

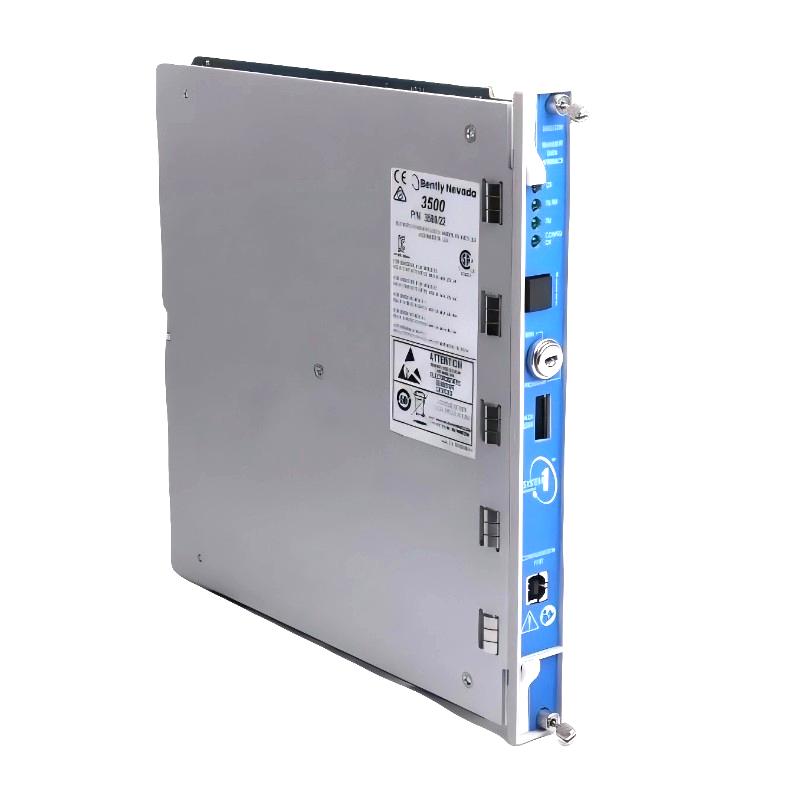

The 3500/22-01-01-02 is a Transient Data Interface Module designed for the Bently Nevada 3500 machinery monitoring system. Its primary function is to provide the data and communication interface between the 3500 monitoring rack and compatible monitoring, configuration, and diagnostic software. It can continuously collect steady-state operating information from compatible monitoring modules and, depending on the system configuration, collect dynamic and transient waveform data. The collected information can then be transmitted to host software through the Ethernet communication interface for machinery condition monitoring and diagnostic analysis. The module also provides rack interface functions that allow external software to communicate with and configure the 3500 system. It is particularly useful in applications involving critical rotating machinery where detailed operating and transient data are required.

2. What do the different suffixes in 3500/22-01-01-02 indicate?

The complete part number identifies the specific configuration of the Transient Data Interface Module. The 3500/22 designation identifies the Transient Data Interface function within the 3500 system. The first “-01” identifies the standard transient data interface configuration, while the second “-01” corresponds to the 10Base-T/100Base-TX Ethernet I/O configuration. The final “-02” identifies the CSA/ATEX approval option. These configuration details are important when selecting a replacement because different 3500/22 versions may have different I/O or certification configurations. For replacement applications, the complete part number should therefore be checked rather than selecting a module based only on the 3500/22 designation. This is especially important for installations that have specific hazardous-area certification requirements.

3. Where should the 3500/22-01-01-02 be installed in a 3500 rack?

The 3500/22-01-01-02 is installed in the designated TDI position adjacent to the power supply in the 3500 rack. This position allows the module to communicate with the monitoring modules installed in the rack and provides the external interface required for data transmission and system configuration. During installation, the module should be fully seated in the rack connector and securely fixed. The corresponding I/O module at the rear of the rack should also be correctly installed and firmly connected. An incomplete connection can result in communication failures, missing data, or an inability of the host software to recognize the rack. When replacing an existing TDI, it is recommended to document the current configuration and communication parameters before removing the original module so that the replacement can be commissioned efficiently.

4. What communication interface does the 3500/22-01-01-02 use?

The 3500/22-01-01-02 uses a 10Base-T/100Base-TX Ethernet I/O module for communication with external host systems. The Ethernet interface uses an RJ-45 connector and serves as the primary communication path for transferring monitoring information and configuration data. A USB configuration interface is also available on the front of the module for supported configuration and maintenance operations. During commissioning, the Ethernet cable, RJ-45 connection, network equipment, IP configuration, and host software settings should all be checked. If communication cannot be established, the physical network connection should be inspected before assuming that the TDI has failed. Incorrect network parameters, damaged cables, poor connector contact, or problems with the rear I/O module can all cause symptoms similar to a hardware failure.

5. Can the 3500/22-01-01-02 collect transient waveform data?

Yes. The 3500/22-01-01-02 can collect steady-state, dynamic, and transient waveform data when used with compatible 3500 monitoring modules and the appropriate system configuration. Standard data collection provides information about normal machinery operating conditions, while transient data is useful for analyzing changes that occur during startup, shutdown, load changes, trips, or other abnormal operating events. Once the required channels and monitoring functions are properly configured, the TDI can transfer the collected dynamic information through the Ethernet interface to compatible host software for further analysis. The TDI does not directly measure vibration or other physical parameters. Instead, the measurement signals are generated by the appropriate monitoring modules installed in the 3500 rack, while the TDI handles the collection and communication of those data.

6. How should a communication failure on the 3500/22-01-01-02 be troubleshot?

Troubleshooting should begin by checking the front-panel LED status and confirming that the TDI is correctly installed and operating. Next, inspect the rear Ethernet I/O module, RJ-45 connector, Ethernet cable, and network switch. The IP address and other applicable network parameters should then be compared with the settings configured in the host monitoring software. If the problem is intermittent, inspect the communication cable for physical damage, loose connections, electromagnetic interference, and grounding issues. Network equipment should also be checked for unstable operation. If the external communication path and software configuration are confirmed to be correct, the TDI and its Ethernet I/O module can then be investigated for possible hardware problems. Following this sequence helps prevent unnecessary replacement of the interface module when the actual problem is caused by cabling, networking, or configuration.

7. Is the 3500/22-01-01-02 directly responsible for machinery shutdown protection?

The 3500/22-01-01-02 primarily provides data collection, communication, rack interface, and configuration functions. It is not the primary module responsible for executing critical automatic machinery protection logic. Protection functions are handled by the appropriate 3500 monitoring and protection modules according to the system configuration and programmed alarm or trip settings. The TDI allows external systems to access machinery monitoring information and provides the communication path needed for monitoring and diagnostic applications. Therefore, a TDI communication failure should not automatically be interpreted as a failure of the machinery protection function. During troubleshooting, the communication interface, monitoring modules, sensor inputs, and protection logic should be evaluated separately so that the actual source of the problem can be identified accurately.

8. How should the 3500/22-01-01-02 be maintained for long-term operation?

Long-term maintenance should include regular inspection of the TDI status LEDs, rack connection, rear Ethernet I/O module, RJ-45 interface, and communication cables. The 3500 system should operate within its specified environmental conditions, while excessive heat, moisture, dust, vibration, and contamination should be minimized. Communication connections should be checked periodically for loose connections, mechanical damage, or abnormal contact conditions. If communication interruptions, missing data, or transient data collection problems occur, the network connection, I/O module, and system configuration should be checked before replacing the TDI. For critical machinery monitoring applications, maintaining a backup of the complete 3500 configuration and communication parameters is recommended. Because the 3500/22-01-01-02 includes a CSA/ATEX approval configuration, any replacement module should also be checked to ensure that its certification and interface configuration meet the requirements of the existing installation.
