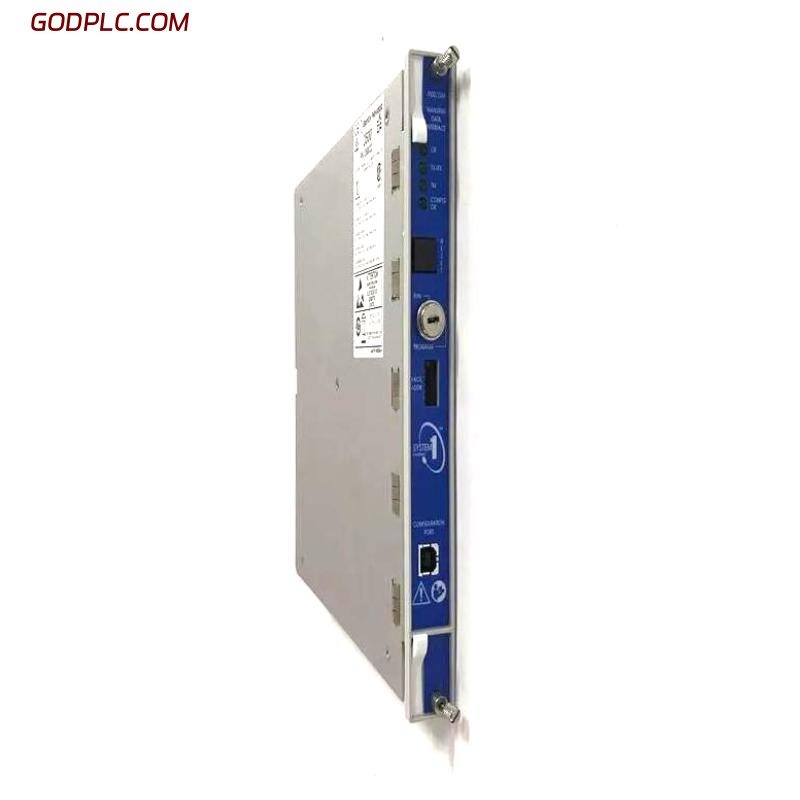

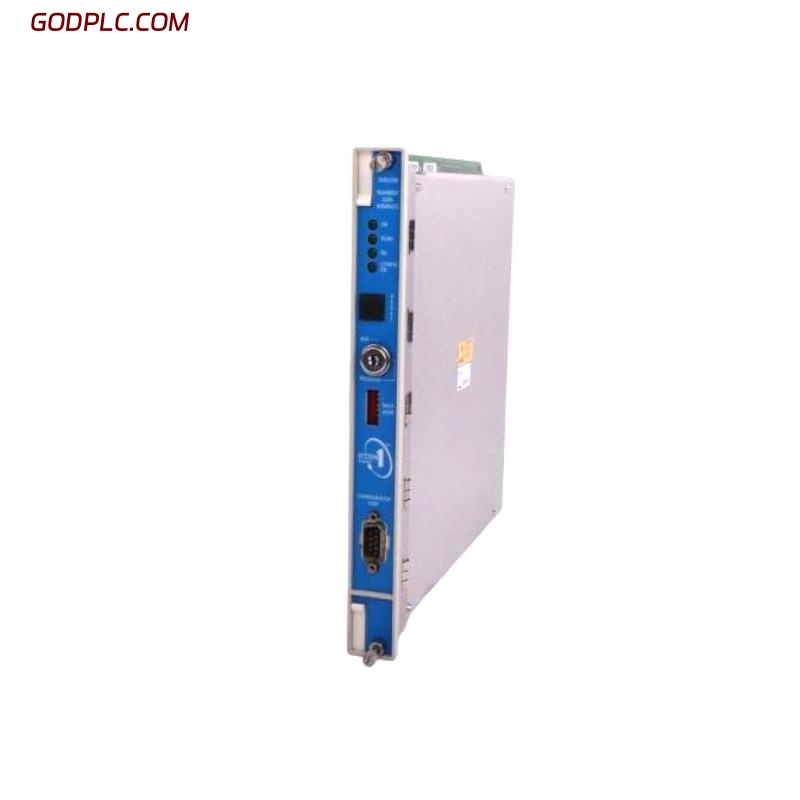

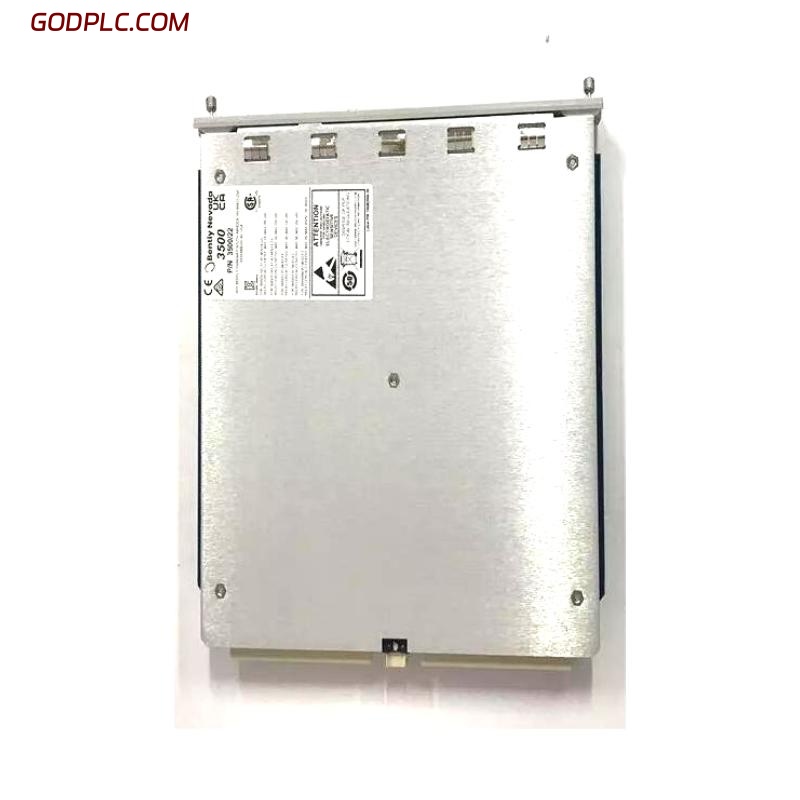

Bently Nevada 3500/22 288055-01 + 146031-02 Transient Data and Communication Interface Module
Product Overview
The Bently Nevada 3500/22 288055-01 + 146031-02 is a combined Transient Data Interface (TDI) and Communication Interface module designed for the 3500 Machinery Protection System. This module provides high-speed transient data acquisition from all channels within the rack, enabling accurate machinery monitoring and protection. With dual communication ports, it supports seamless integration with System 1 software and industrial control networks. The module is engineered for critical rotating equipment, ensuring reliable operation and real-time diagnostics in harsh industrial environments.
_
Main Features
Integrated transient and communication interface for efficient data handling
High-speed transient data capture for vibration and condition monitoring
Dual Ethernet ports for redundant or primary/secondary network configurations
Hot-swappable design for rack-level maintenance without system shutdown
Support for Modbus TCP and Modbus Serial protocols
Self-diagnostic functions for early detection of system faults
Industrial-grade reliability for harsh environments and continuous operation
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| _ |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Model Numbers | 3500/22 288055-01 + 146031-02 |
| Product Type | Transient Data & Communication Interface Module |
| Mounting | 3500 rack slot |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| _ |
Electrical Characteristics
| Item | Specification |
|---|---|
| Communication Ports | Dual Ethernet 10/100Base-T |
| Supported Protocols | TCP/IP, Modbus TCP, Modbus Serial |
| Power Supply | Provided through 3500 rack backplane |
| Data Handling | Static, dynamic, and event data collection |
| Module Revision | 288055-01 + 146031-02 |
| _ |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration | 5–2000 Hz, 0.7 g |
| Shock Resistance | 30 g, 11 ms half-sine |
| Protection Class | IP20 (mounted in rack) |
| _ |
Industry Applications
The Bently Nevada 3500/22 288055-01 + 146031-02 is widely used in:
Oil & Gas: Monitoring turbines, compressors, pumps, and critical rotating equipment in refineries and offshore platforms
Power Generation: Supervising steam turbines, gas turbines, and generators for early fault detection
Petrochemical and Refining: Protection and monitoring of critical rotating machinery
Metals and Mining: Condition monitoring of high-speed and heavy-duty industrial equipment
Pulp & Paper: Monitoring refiners, drives, and auxiliary rotating equipment for vibration and process reliability
Bently Nevada 3500/22 288055-01+146031-02 Transient Data and Communication Interface Module is in stock. Please contact us for a quick quote and competitive pricing.
