1. What is the main function of the Bently Nevada 3500/22M-01-01-01?

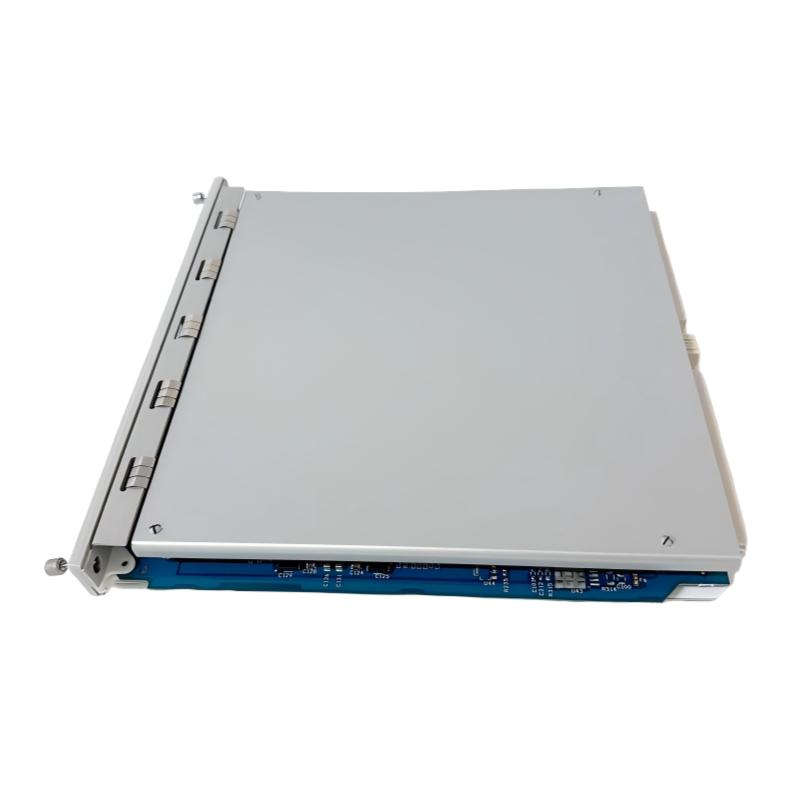

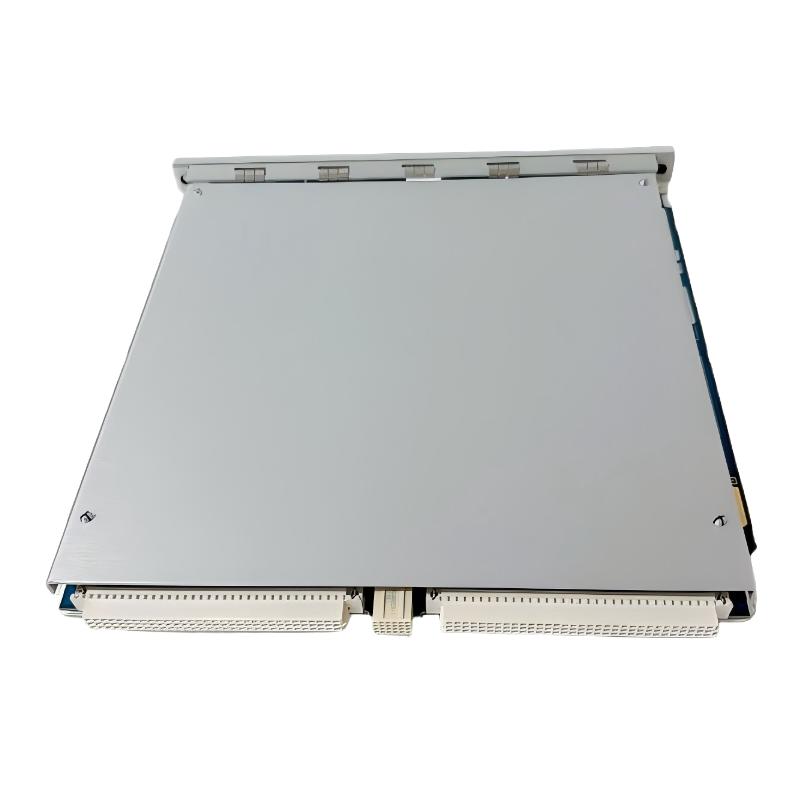

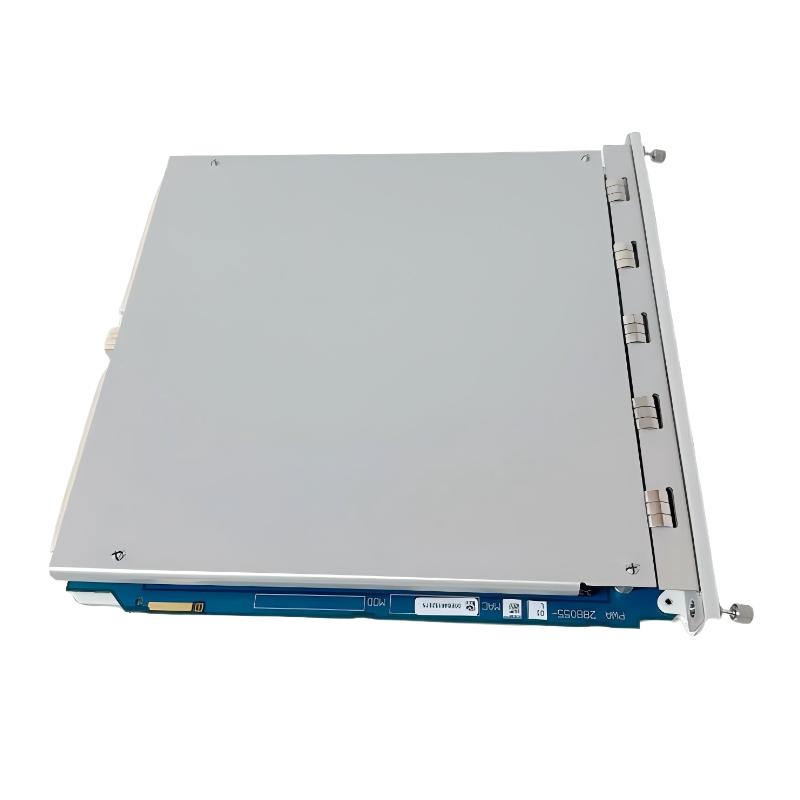

The 3500/22M-01-01-01 is a Transient Data Interface module designed for the Bently Nevada 3500 machinery monitoring system. It provides an interface between the 3500 rack and higher-level monitoring or diagnostic software, allowing operating data collected by compatible monitor modules to be transferred to a host system. In addition to steady-state monitoring information, the module can support transient and waveform data acquisition when the required system configuration and options are available. This makes it useful for monitoring rotating equipment where both continuous operating trends and detailed event information are required. Typical applications include turbines, compressors, pumps, fans and other critical rotating machinery where condition monitoring and post-event analysis are important.

2. Where should the 3500/22M-01-01-01 be installed in the 3500 rack?

The 3500/22M-01-01-01 is installed in Slot 1 of the 3500 rack, next to the power supply module. This slot is specifically intended for the rack interface and transient data interface function within the 3500 system architecture. During installation, the module should be inserted completely into the rack and secured correctly to ensure a reliable backplane connection. The installation position should not be changed without confirming the applicable 3500 system architecture and configuration requirements. After installation, technicians should verify the module status indicators, rack communication and Ethernet connection. The host monitoring software should also be checked to confirm that the 3500 rack and its connected monitor modules are communicating correctly.

3. What type of data can the 3500/22M-01-01-01 collect?

The 3500/22M-01-01-01 can acquire steady-state monitoring information from compatible 3500 Series M-Series monitors and can support transient and waveform data acquisition according to the installed system configuration. Steady-state data is useful for continuously tracking machinery operating conditions and identifying changes in vibration, position or other monitored parameters. Transient data provides more detailed information during events such as machinery startups, shutdowns, speed changes, alarms or abnormal operating conditions. Waveform information can be particularly valuable when engineers need to investigate the characteristics of a vibration event rather than simply reviewing a numerical trend. The actual data available depends on the monitor modules, configured channels and applicable system options.

4. What is the purpose of the Ethernet connection on the 3500/22M-01-01-01?

The Ethernet connection provides a communication path between the 3500 monitoring system and compatible host systems or monitoring software. Through this connection, measurement and diagnostic information collected by the 3500 system can be transferred for display, recording, trending and analysis. In a typical installation, the TDI acts as an important communication point between the rack and the plant monitoring or diagnostic environment. When commissioning the Ethernet connection, technicians should verify the physical network connection and ensure that the required communication settings are correctly configured. If multiple devices share the same industrial network, network addressing and infrastructure should also be reviewed to prevent communication conflicts.

5. What should be checked if the 3500/22M-01-01-01 cannot communicate with the monitoring software?

Begin troubleshooting by checking the module’s power and LED status to confirm that it has started correctly. Next, inspect the Ethernet cable, connectors and network equipment for loose connections or physical damage. The network configuration should then be checked to ensure that the communication parameters correspond with the monitoring software and plant network. If the physical Ethernet connection is working, verify whether the host system can identify the 3500 rack and communicate with the TDI. If the connection is established but monitoring values are not available, inspect the rack configuration, monitor module status and software configuration. For systems with multiple Ethernet devices, address conflicts should also be considered. If the module was recently replaced, compare the current configuration with the previous settings to identify differences that could prevent normal communication.

6. Why might transient data not be available even when steady-state data is working?

Steady-state data and transient data are handled differently within a 3500 monitoring system, so normal steady-state communication does not automatically confirm that all transient functions are configured correctly. First, verify that the installed monitor modules support the required transient data functions and that the appropriate system options have been configured. The relevant monitoring channels, acquisition settings and trigger conditions should also be reviewed. If transient data is configured to be captured only after a specific event, no transient record will be generated unless that trigger condition occurs. The host monitoring software should also be checked to confirm that it is configured to receive and display the required data. By comparing the monitor configuration, trigger settings and TDI communication status, engineers can determine whether the issue is caused by system configuration, the monitor module or the interface module.

7. What should be done when the 3500/22M-01-01-01 shows an abnormal LED status?

An abnormal LED indication should be treated as a diagnostic clue rather than simply resetting the module repeatedly. First, record the LED condition and check the available 3500 system diagnostic information. Confirm that the TDI is correctly installed in Slot 1 and that the rack power supply and backplane connections are operating normally. If the LEDs indicate normal module operation but communication is unavailable, attention should shift toward the Ethernet network and host configuration. If the abnormal indication is accompanied by missing monitoring data, the connected monitor modules and rack configuration should also be inspected. Persistent fault indications may require further hardware diagnosis or module replacement. Before replacing the module, record the existing configuration and diagnostic information so that the replacement can be commissioned with the correct system settings.

8. What maintenance is recommended for the Bently Nevada 3500/22M-01-01-01?

Routine maintenance should include inspection of the module installation, rack connection, communication network and monitoring data. Verify periodically that the module remains securely installed in Slot 1 and that its connectors and associated network connections are clean and properly secured. The LED status should be reviewed during routine inspections, and communication with the host monitoring software should be confirmed. For critical machinery monitoring applications, engineers should also review historical trends and diagnostic data to ensure that the system is continuously receiving the expected information. If transient or waveform acquisition is used, the related configuration and trigger conditions should be checked periodically to ensure that the system can capture important events when required. Before replacing or modifying the TDI, back up the existing system configuration and document the communication settings. After maintenance, verify rack communication, steady-state data acquisition and transient data transfer before returning the monitoring system to normal operation.
