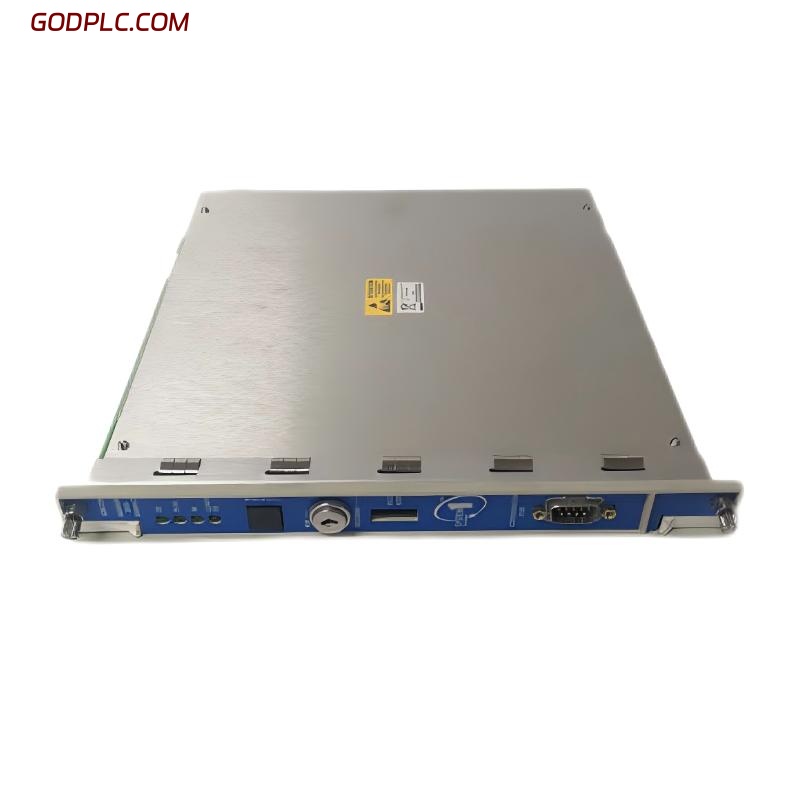

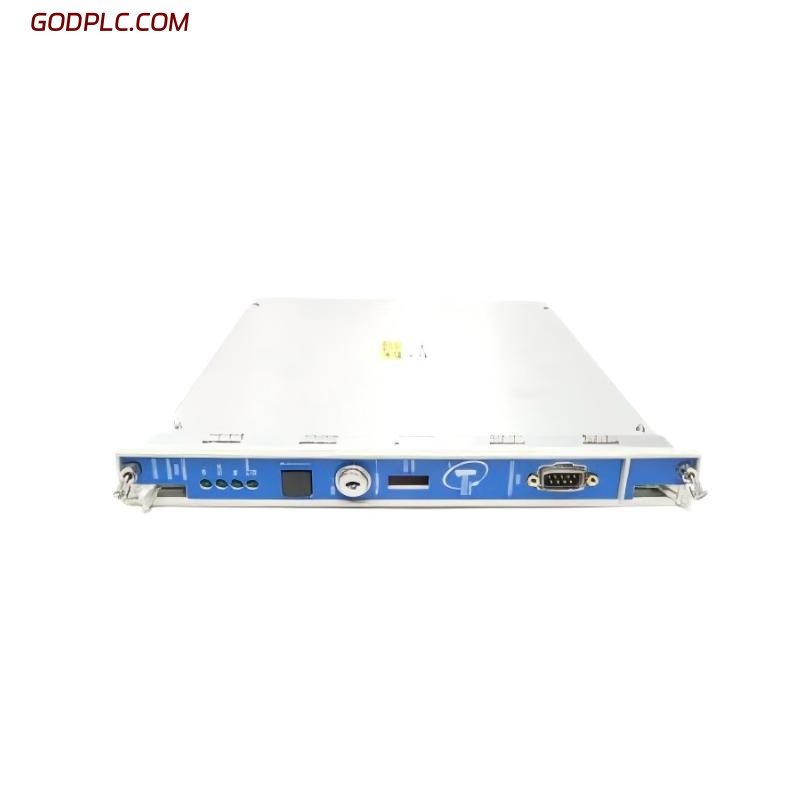

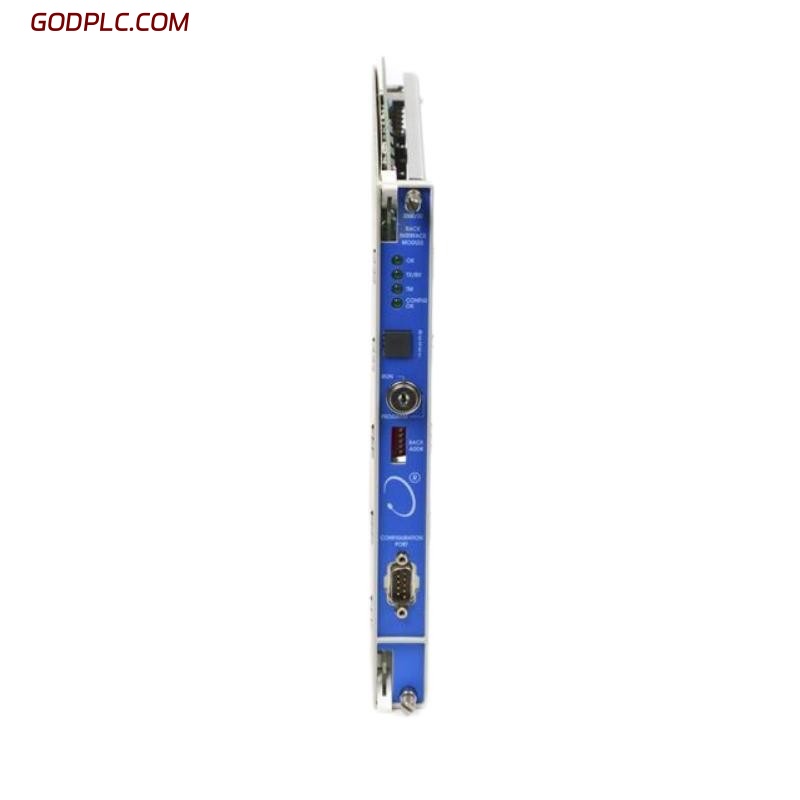

Bently Nevada 3500/22M 138607-01 Machinery Monitoring Module
Product Overview
The Bently Nevada 3500/22M 138607-01 is a machinery monitoring module designed for the 3500 Machinery Protection System. It provides continuous monitoring and protection of critical rotating machinery by processing vibration, speed, and position signals. The module is engineered for industrial environments, delivering high reliability and accurate data acquisition for predictive maintenance and operational safety. Its modular design ensures easy integration into existing 3500 racks and facilitates maintenance without system interruption.
_
Main Features
Advanced machinery monitoring capabilities for vibration, speed, and position
High-speed signal processing for accurate detection of machinery anomalies
Hot-swappable design allowing maintenance without system shutdown
Integration with Bently Nevada System 1 software for comprehensive analysis and trending
Self-diagnostic functions for early detection of system faults
Industrial-grade reliability suitable for harsh environments and continuous operation
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| Weight | 0.91 kg |
| _ |
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Model Number | 3500/22M 138607-01 |
| Product Type | Machinery Monitoring Module |
| Mounting | 3500 Rack Slot |
| Operating Temp. | 0°C to +60°C |
| Storage Temp. | -40°C to +85°C |
| _ |
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Channels | 8–16 (depending on configuration) |
| Signal Types | Proximity probes, velocity sensors, accelerometers |
| Signal Processing | Digital processing for vibration and position |
| Power Supply | Supplied via 3500 rack backplane |
| Module Revision | 138607-01 |
| _ |
Environmental Specifications
| Item | Specification |
|---|---|
| Humidity Range | 5–95% RH (non-condensing) |
| Vibration | 5–2000 Hz, 0.7 g |
| Shock Resistance | 30 g, 11 ms half-sine |
| Protection Class | IP20 (installed in rack) |
| _ |
Industry Applications
The Bently Nevada 3500/22M 138607-01 is widely used in:
Oil & Gas: Monitoring turbines, compressors, pumps, and critical rotating equipment in refineries and offshore platforms
Power Generation: Supervising steam turbines, gas turbines, and generators for early fault detection
Petrochemical and Refining: Protection and monitoring of critical rotating machinery
Metals and Mining: Condition monitoring of high-speed and heavy-duty industrial equipment
Pulp & Paper: Monitoring refiners, drives, and auxiliary rotating equipment for vibration and process reliability
Bently Nevada 3500/22M 138607-01 Machinery Monitoring Module is in stock. Please contact us for a quick quote and competitive pricing.
