1. What is the main function of the Bently Nevada 3500/25-01-00 Enhanced Key-Phasor Module?

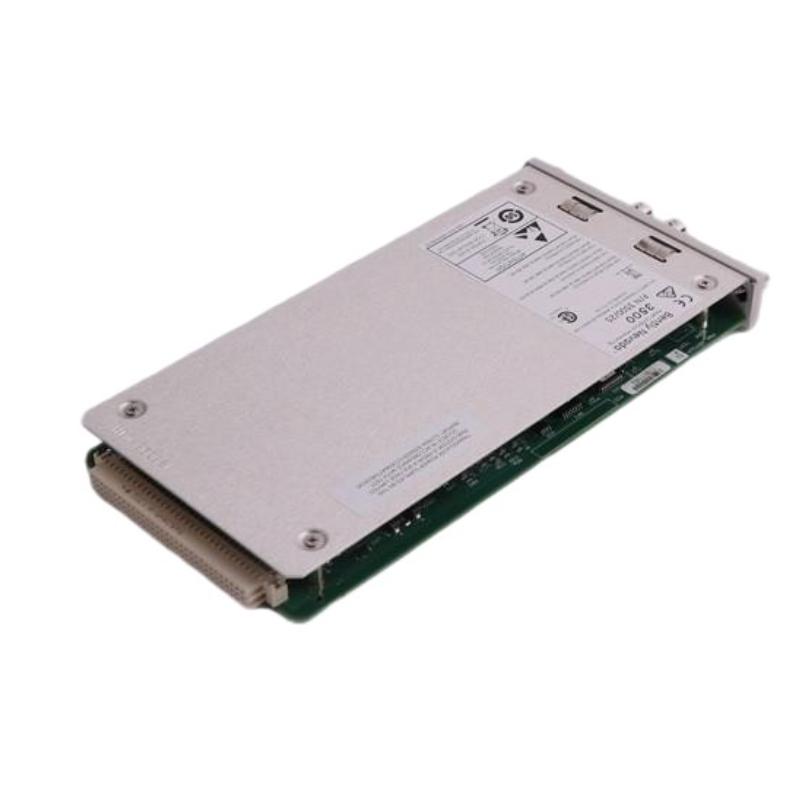

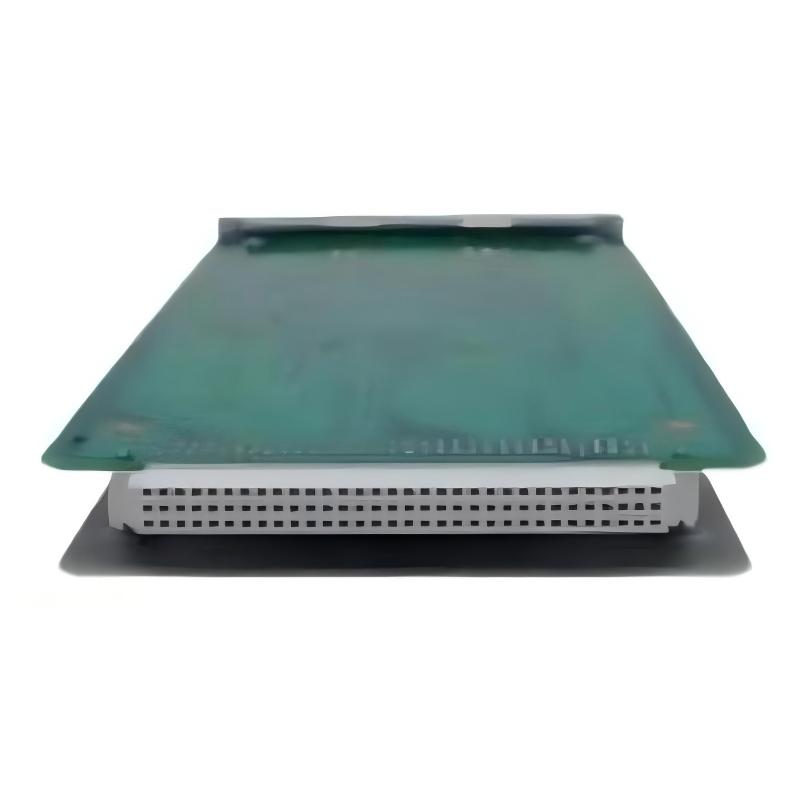

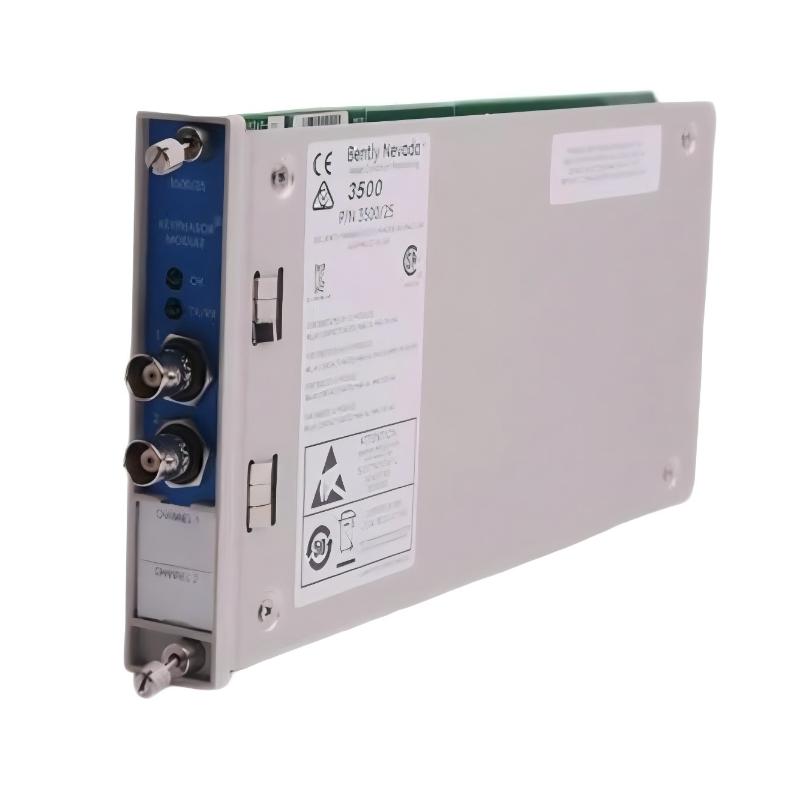

The 3500/25 Enhanced Key-Phasor Module is a two-channel module used in the Bently Nevada 3500 Machinery Protection System to provide precise rotational reference signals to the monitor modules. It receives signals from compatible proximity probes or magnetic pickups and converts these input signals into digital Keyphasor signals. The resulting reference information allows the 3500 system to determine shaft rotational speed and establish a timing reference for vibration and phase-related measurements. This function is particularly important for rotating machinery such as turbines, compressors, generators and pumps, where vibration data needs to be correlated with shaft rotation. The enhanced design also provides expanded signal-processing capabilities compared with earlier Keyphasor module designs.

2. How many Keyphasor channels does the 3500/25-01-00 provide?

The 3500/25-01-00 is configured as a half-height, two-channel Keyphasor module. Each channel can process a Keyphasor input from a compatible proximity probe or magnetic pickup. A standard 3500 system can use multiple Keyphasor modules when additional shaft reference signals are required. In a normal configuration, the system can accept up to four Keyphasor signals, while paired module configurations can provide support for up to eight signals. The actual configuration should be selected according to the number of rotating shafts, required reference points and the monitoring architecture of the machinery protection system. When configuring multiple modules, the rack positions and system settings should be checked carefully to ensure that all Keyphasor signals are correctly assigned.

3. What types of sensors can be connected to the 3500/25 Enhanced Key-Phasor Module?

The 3500/25 module is designed to receive Keyphasor signals from proximity probes or magnetic pickups. The sensor generates a signal when the designated Keyphasor mark or target on the rotating shaft passes the transducer. The module processes this signal and generates the digital timing information required by the 3500 monitoring system. Sensor selection should be based on the specific I/O configuration used with the module. Standard non-isolated configurations and isolated configurations have different application requirements, so the sensor type and associated I/O module should always be checked before installation. Incorrect sensor selection, wiring or probe installation can cause missing pulses, unstable speed readings or inaccurate phase information.

4. Why is a Keyphasor signal important for vibration monitoring?

A Keyphasor signal provides a precise rotational timing reference that allows vibration measurements to be related to the position of the rotating shaft. Without a reliable rotational reference, the monitoring system can still measure vibration amplitude, but it cannot establish the same level of phase information relative to shaft rotation. By using the Keyphasor pulse as a reference, the 3500 system can calculate shaft speed and support vector measurements such as 1X vibration amplitude and phase. This information is valuable when diagnosing common rotating machinery problems such as unbalance, misalignment and mechanical looseness. A stable Keyphasor signal is therefore an important part of applications where detailed vibration analysis and phase-based diagnostics are required.

5. What should be checked if the 3500/25-01-00 does not detect a Keyphasor signal?

Troubleshooting should begin with the complete signal path rather than immediately replacing the Keyphasor module. First check the connected proximity probe or magnetic pickup, including its physical installation, cable condition and terminal connections. Confirm that the sensor is correctly positioned relative to the Keyphasor target and that the generated signal is suitable for the selected I/O configuration. Next, check the 3500/25 module installation and review the system diagnostic information. If the sensor and wiring are known to be good, comparing the affected channel with a known-good channel can help identify whether the problem follows the field sensor or remains with the monitoring channel. Intermittent Keyphasor faults should also be investigated under different machine speeds because some signal problems only become apparent during acceleration, deceleration or specific operating conditions.

6. What happens if the Keyphasor signal becomes unstable during machine operation?

An unstable Keyphasor signal can cause fluctuations in the reported shaft speed and may produce inconsistent phase measurements or unreliable vibration vector information. Depending on the nature of the signal problem, the 3500 system may also generate diagnostic indications associated with the Keyphasor input. The cause can be related to the sensor, cable, target, installation gap, electrical interference or the I/O configuration rather than the 3500/25 module itself. For this reason, troubleshooting should consider the entire signal chain. Comparing the Keyphasor signal behavior with the actual machine speed can help determine whether the issue is continuous or occurs only at particular operating conditions. If the problem appears during startup or shutdown, additional attention should be given to sensor signal strength and mechanical movement around the probe installation.

7. Can the 3500/25-01-00 be used in a redundant or TMR monitoring configuration?

Yes. The 3500/25 architecture can be used in redundant arrangements where additional Keyphasor signals are required. In Triple Modular Redundant applications, the 3500 system can employ two Keyphasor modules operating in parallel so that primary and secondary Keyphasor signals are available to the other monitoring modules. This arrangement can improve the availability of rotational reference information in systems where machinery protection and monitoring reliability are critical. When configuring a redundant system, the number of required Keyphasor inputs, rack positions and module pairing must be considered carefully. The system configuration should also be reviewed after installation to ensure that the primary and secondary signals are assigned correctly and that the monitoring modules receive the intended Keyphasor references.

8. What maintenance is recommended for the Bently Nevada 3500/25-01-00?

Routine maintenance should focus on verifying the complete Keyphasor measurement chain and the operating condition of the 3500/25 module. Inspect the connected sensors, field cables and terminations for looseness, physical damage or other abnormalities. During normal operation, monitor the reported shaft speed and Keyphasor status to identify unexpected fluctuations. It is also useful to review diagnostic information from the 3500 system so that intermittent signal problems can be detected before they affect vibration analysis. If a Keyphasor channel becomes unreliable, check the sensor and field wiring before replacing the module, because many signal problems originate outside the monitoring rack. Firmware and system configuration should also be managed carefully when maintenance or upgrades are performed. After any module replacement or wiring modification, verify Keyphasor detection, shaft speed measurement and phase-related monitoring functions before returning the equipment to normal operation.
