1. What is the main function of the Bently Nevada 3500/25-01-01-00 Enhanced Key-Phasor Module?

The Bently Nevada 3500/25-01-01-00 Enhanced Key-Phasor Module provides rotational reference information for the 3500 Machinery Protection System. It receives Keyphasor signals from compatible proximity probes or magnetic pickups and processes these signals into a reliable timing reference for the monitoring system. The Keyphasor reference allows the system to determine shaft speed and establish the angular relationship between shaft rotation and vibration signals. This information is particularly important for phase measurements, vector analysis and detailed rotating machinery diagnostics. In applications such as turbines, compressors, generators and pumps, a stable Keyphasor signal helps the monitoring system distinguish changes associated with shaft rotation from other vibration events and provides a reliable reference for machinery condition analysis.

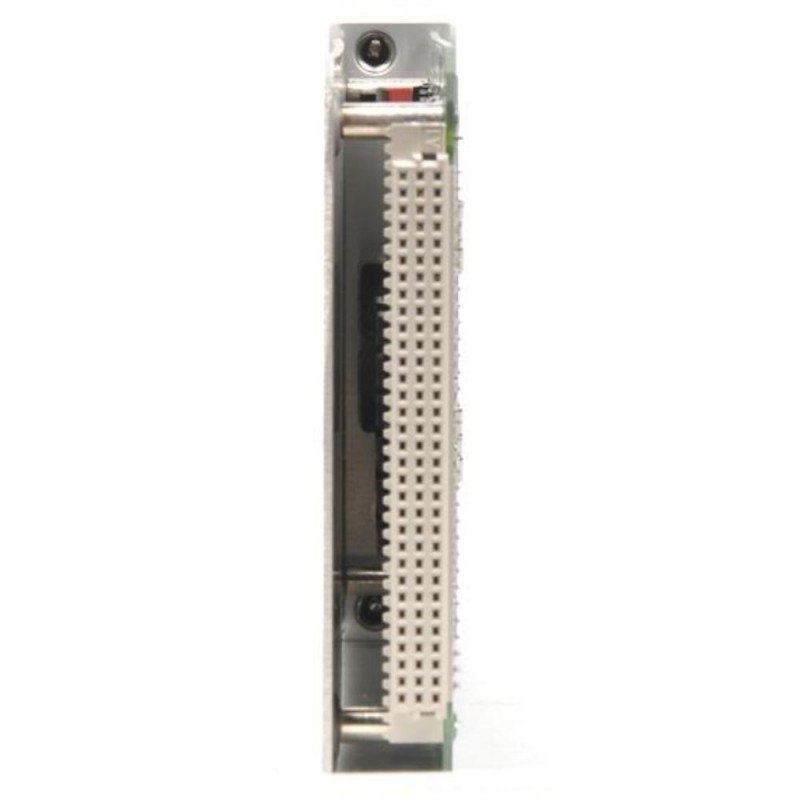

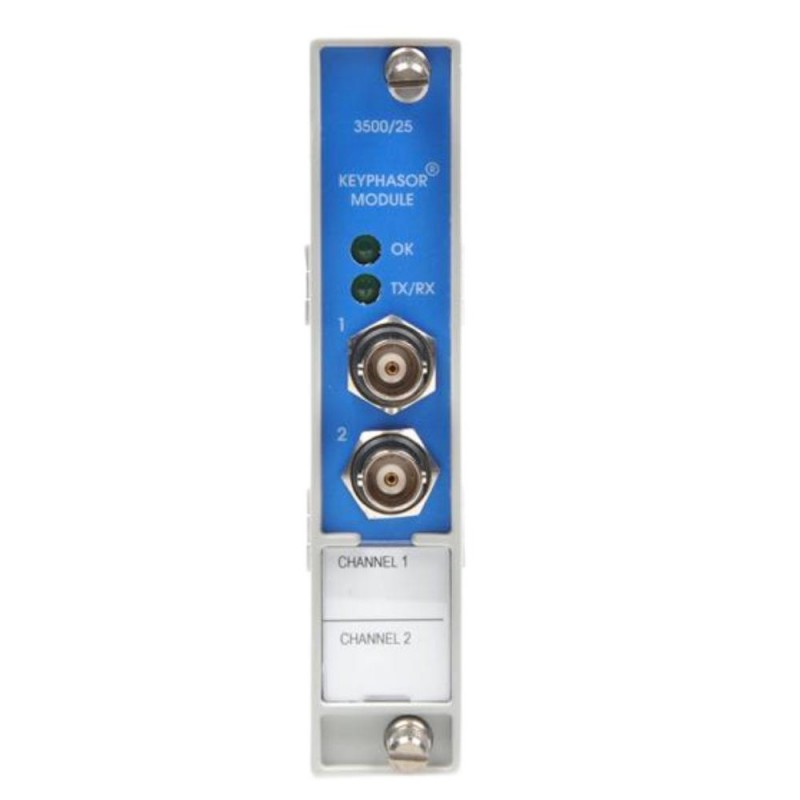

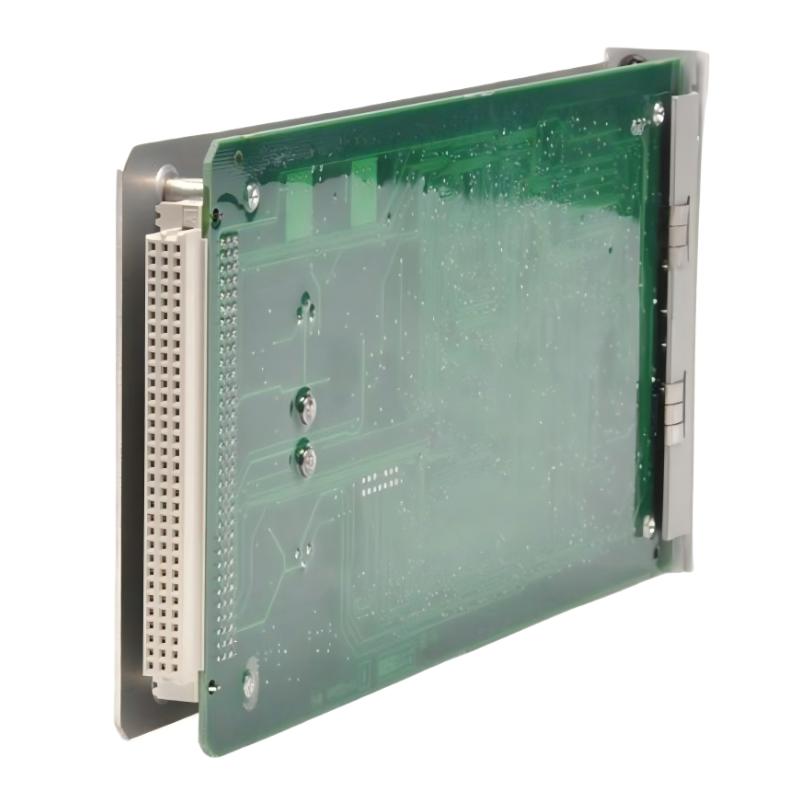

2. How many channels does the 3500/25-01-01-00 provide?

The 3500/25-01-01-00 is a half-height, two-channel Enhanced Key-Phasor Module. Each channel can receive and process a compatible Keyphasor input and provide the corresponding rotational reference information to the 3500 monitoring system. When more reference signals are required, additional Keyphasor modules can be incorporated into the overall 3500 system configuration. The number of Keyphasor signals required depends on the machinery arrangement, number of monitored shafts and the type of vibration measurements being performed. During system configuration, each Keyphasor channel should be assigned correctly so that the associated vibration monitor receives the intended rotational reference. Incorrect channel assignment can result in confusing phase information or incorrect interpretation of vibration measurements.

3. What sensors can be used with the 3500/25-01-01-00?

The module is intended to process Keyphasor signals generated by compatible proximity probes or magnetic pickups. The sensor detects a designated target or reference point on the rotating shaft and produces a periodic signal as the shaft rotates. The 3500/25 processes this signal and provides the digital timing reference required by the monitoring system. Before connecting a sensor, the specific I/O configuration should be checked to ensure that the sensor type and signal characteristics are compatible. Proper sensor installation is equally important. An incorrect probe position, unsuitable sensing gap, damaged cable or poor termination can cause missing Keyphasor pulses, unstable speed measurements or incorrect phase information. Sensor compatibility should therefore always be considered together with the selected Keyphasor I/O configuration.

4. Why is the Keyphasor reference important for rotating machinery monitoring?

A Keyphasor reference provides the monitoring system with a repeatable point in the rotational cycle of a shaft. This allows vibration data to be synchronized with shaft rotation rather than being evaluated only as a time-based amplitude signal. The 3500 system can use the Keyphasor reference to determine rotational speed and calculate phase-related parameters, including the relationship between vibration and shaft position. This is particularly useful when diagnosing problems such as rotor unbalance, shaft misalignment, mechanical looseness and other rotational abnormalities. Without a reliable Keyphasor signal, basic vibration monitoring may still be possible, but phase-based analysis and certain vector measurements can become unavailable or unreliable. For critical rotating machinery, maintaining a stable Keyphasor reference is therefore an important part of the monitoring system.

5. What should be checked when the 3500/25-01-01-00 cannot detect the Keyphasor signal?

Troubleshooting should begin with the field signal path. Check the connected proximity probe or magnetic pickup, its wiring and all associated terminations. Confirm that the sensor is correctly positioned relative to the Keyphasor target and that the signal generated during shaft rotation is adequate for the selected input configuration. Next, verify that the 3500/25 module is properly installed and that the monitoring system recognizes the module correctly. The 3500 system diagnostic information should also be reviewed for channel or signal-related indications. If the sensor and wiring have been verified, comparing the affected channel with a known-good channel can help determine whether the problem is associated with the field device or the monitoring channel. For intermittent faults, testing at different machine speeds can be useful because a weak or unstable Keyphasor signal may only become apparent during acceleration, deceleration or specific operating conditions.

6. What are the typical symptoms of an unstable Keyphasor signal?

An unstable Keyphasor signal can result in fluctuating shaft speed readings, inconsistent phase values and unreliable vibration vector information. In some situations, the monitoring system may also report a Keyphasor-related diagnostic condition. The problem can originate from several parts of the signal path, including the sensor, target, sensor gap, field cable, termination or I/O configuration. Electrical interference can also affect signal quality in certain industrial environments. If the problem occurs only at particular operating speeds, the sensor installation and signal strength should receive particular attention. A useful troubleshooting approach is to compare the Keyphasor behavior with the actual machine speed and other vibration channels. This can help determine whether the issue is a continuous signal problem, an intermittent field problem or a configuration-related condition.

7. Can the 3500/25-01-01-00 be used for phase and vector measurements?

Yes. A properly configured Keyphasor signal provides the rotational reference required for phase-related measurements and vector analysis within the 3500 monitoring system. The module supplies the timing reference that allows vibration information to be associated with a specific point in the shaft’s rotational cycle. This enables the system to determine parameters such as vibration phase relative to the Keyphasor reference. Phase information is especially useful when investigating rotating equipment conditions because changes in amplitude alone may not clearly identify the source of a problem. For example, changes in vibration phase can provide additional information when evaluating rotor unbalance or alignment-related conditions. The quality of these measurements depends heavily on having a stable and correctly configured Keyphasor signal.

8. What maintenance is recommended for the Bently Nevada 3500/25-01-01-00?

Maintenance should focus on the module as well as the complete Keyphasor signal chain. Inspect the connected sensors, field wiring and terminations for looseness, damage, corrosion or other conditions that could affect signal quality. During normal equipment operation, monitor the shaft speed and Keyphasor status for unexpected changes. Review available system diagnostics periodically so that intermittent signal problems can be identified before they affect machinery analysis. If a Keyphasor channel becomes unstable, the sensor and field wiring should be checked before replacing the module, because many Keyphasor problems originate from the field installation rather than the monitoring electronics. Any module replacement should be followed by verification of Keyphasor detection, shaft speed measurement and phase-related functions. Where firmware or system configuration changes are required, the existing configuration should be documented beforehand so that the monitoring system can be restored and tested correctly after maintenance.
