1. What is the main function of the Bently Nevada 3500/25-01-01-02?

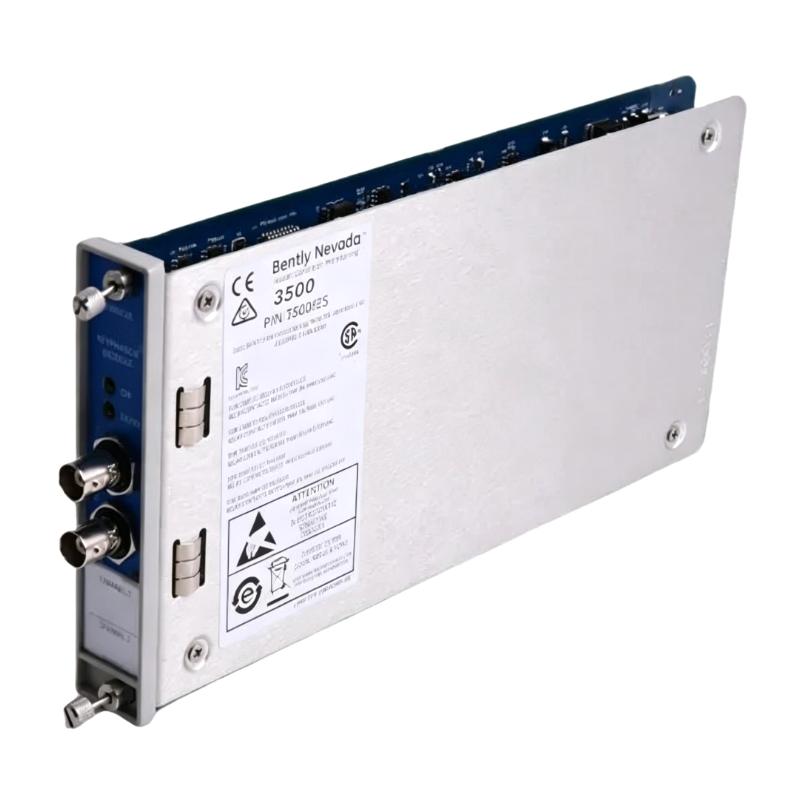

The Bently Nevada 3500/25-01-01-02 is an Enhanced Key-Phasor module configuration designed for the Bently Nevada 3500 Machinery Protection System. It is used to acquire and process Keyphasor reference signals from rotating machinery and provide a stable rotational reference to the monitoring system. The configuration consists of the 149369-01 Enhanced Key-Phasor Module and the 125800-01 Keyphasor I/O Module. The field sensor signal is conditioned and processed before being supplied to the appropriate 3500 monitoring functions. A reliable Keyphasor signal allows the system to determine shaft speed and establish the relationship between vibration signals and shaft rotational position. This makes the module particularly useful for turbines, compressors, generators, pumps and other critical rotating equipment requiring speed monitoring, phase analysis and machinery diagnostics.

2. What are the functions of the 149369-01 and 125800-01?

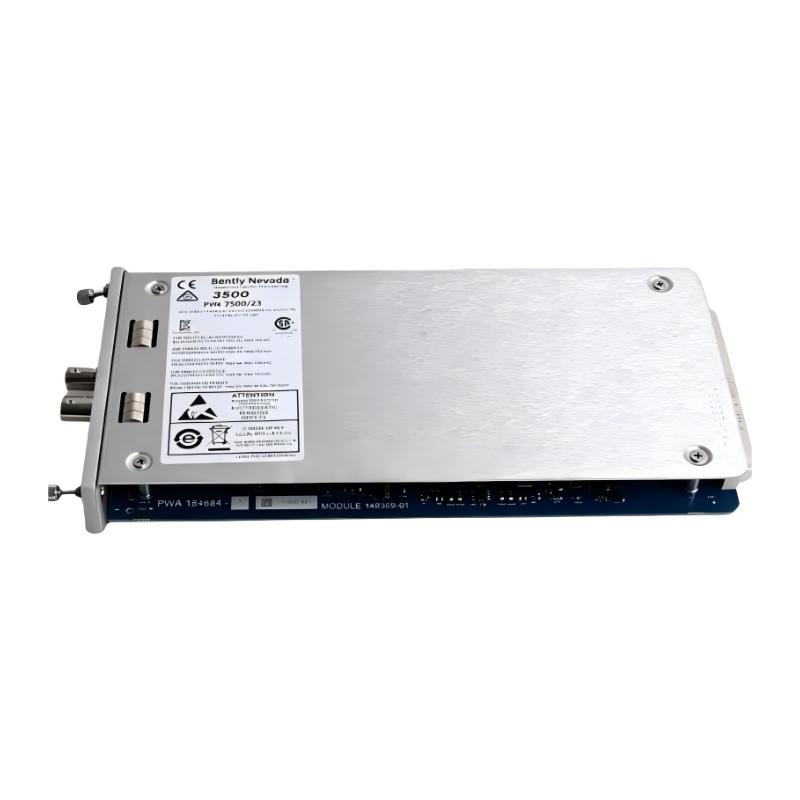

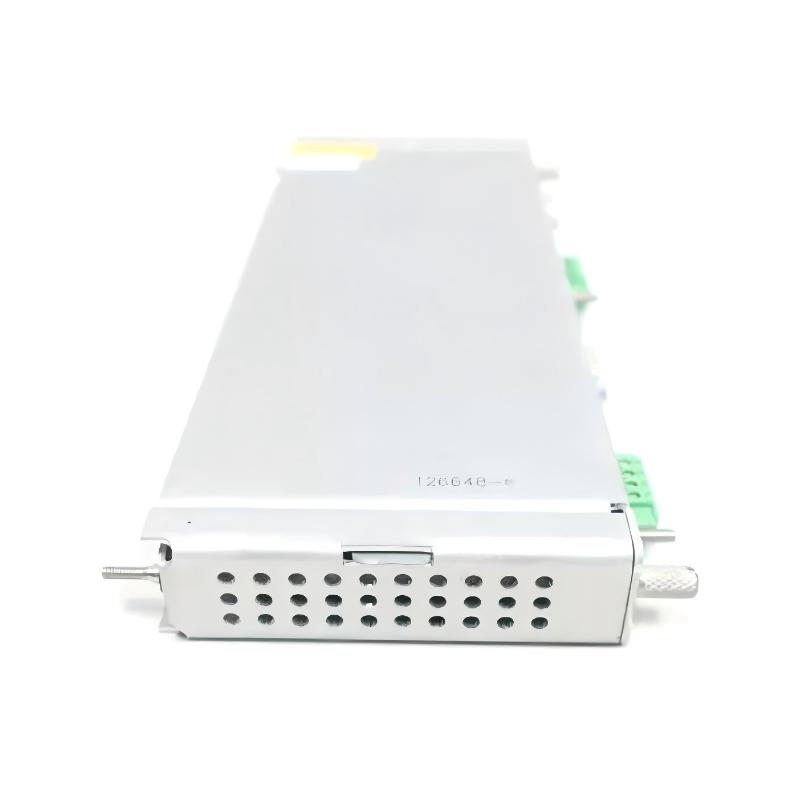

The 149369-01 is the Enhanced Key-Phasor Module responsible for processing Keyphasor signals and providing the rotational reference functions required by the 3500 system. The 125800-01 is the associated Keyphasor I/O Module with internal terminations. It provides the field interface for the sensor signal and connects the field signal path with the Keyphasor processing module. Together, these components form the complete Keyphasor signal processing configuration. In a typical installation, the sensor generates a rotational reference signal that enters through the 125800-01 I/O module, while the 149369-01 processes the signal and makes the resulting Keyphasor information available to the 3500 monitoring system. When replacing the assembly, both module numbers and the termination configuration should be checked against the existing system.

3. What types of sensors can be connected to the 3500/25-01-01-02?

The configuration is intended to process compatible Keyphasor signals from proximity probes or magnetic pickups. The sensor detects a designated reference target on the rotating shaft and generates a periodic signal as the target passes the sensing position. The 3500/25 module processes this signal and provides the required digital rotational reference to the monitoring system. Before installation, the sensor type, signal characteristics and I/O configuration should be verified for compatibility. Sensor installation is also critical because the sensing gap, sensor position, cable condition and termination quality can directly affect signal reliability. A weak sensor signal, incorrect installation or damaged field wiring may result in missing Keyphasor pulses, unstable speed readings or inaccurate phase information.

4. Why is the Keyphasor signal important for rotating machinery monitoring?

A Keyphasor signal provides a stable and repeatable rotational reference point for the shaft, allowing the 3500 monitoring system to relate vibration data to the shaft’s rotational cycle. Basic vibration monitoring can measure amplitude, but a reliable Keyphasor reference adds important speed and phase information. The 3500 system can use this reference to determine shaft speed and support measurements associated with vibration phase and vector analysis. This information is valuable when investigating rotor unbalance, shaft misalignment, mechanical looseness and other rotating equipment conditions. If the Keyphasor signal is unstable or missing, the reliability of speed and phase-related measurements can be reduced. Maintaining a clean and consistent rotational reference is therefore an important part of a reliable machinery monitoring system.

5. How should a missing Keyphasor signal be troubleshot on the 3500/25-01-01-02?

Troubleshooting should proceed systematically from the field sensor toward the monitoring system. First inspect the Keyphasor sensor and confirm that it is correctly positioned relative to the rotating target. Check the sensing gap, field cable, terminals and connections for damage, looseness or other abnormalities. Next, inspect the internal termination connections associated with the 125800-01 I/O module and verify the connection between the I/O module and the 149369-01 Enhanced Key-Phasor Module. The 3500 system diagnostic information should then be reviewed for abnormal conditions on the affected channel. If the sensor and field wiring are known to be good, comparison with a known-good channel can help determine whether the fault is in the field circuit or monitoring hardware. Intermittent faults should also be observed during startup, acceleration, normal operation and shutdown because certain sensor or wiring problems may only appear at specific shaft speeds.

6. What problems can be caused by an unstable Keyphasor signal?

An unstable Keyphasor signal can cause fluctuations in shaft speed readings and may also affect phase measurements and vibration vector analysis. When the monitoring system cannot consistently recognize the Keyphasor pulses, it may lose a reliable rotational timing reference, which can affect functions that depend on shaft position or phase. Possible causes include an incorrect sensor gap, deteriorated sensor performance, damaged field wiring, loose terminals, electrical interference or an unsuitable I/O configuration. For this reason, a Keyphasor problem should not automatically be attributed to the 149369-01 module. The Keyphasor status should be evaluated together with actual machine speed and related vibration channels. Comparing these signals can help determine whether the problem originates from the sensor, field wiring, I/O module or Keyphasor processing module.

7. Can the 3500/25-01-01-02 be used for vibration phase analysis?

Yes. One of the key functions of a Keyphasor module is to provide a stable rotational reference so that vibration signals can be correlated with the position of the rotating shaft. The 3500/25-01-01-02 uses the 149369-01 and 125800-01 combination to process the Keyphasor signal and provide the rotational reference required by related monitoring functions. This reference can be used for speed and phase-related measurements and provides additional information for rotating machinery diagnostics. Phase data can be evaluated together with vibration amplitude when investigating rotor unbalance, shaft misalignment and other abnormal operating conditions. Because phase analysis depends on a reliable Keyphasor reference, sensor signal quality is especially important. Missing pulses, excessive noise or an unstable signal can affect the accuracy and consistency of phase measurements even when the rest of the monitoring system is operating normally.

8. What maintenance is recommended for the Bently Nevada 3500/25-01-01-02?

Routine maintenance should cover the 149369-01 Enhanced Key-Phasor Module, the 125800-01 I/O module and the complete field Keyphasor signal path. Inspect the connected sensors, field cables, terminals and module installation for looseness, corrosion, physical damage or other conditions that could affect signal quality. During normal machine operation, monitor the Keyphasor status and shaft speed readings for unexpected fluctuations. If the Keyphasor signal becomes intermittent or disappears, inspect the sensor and field wiring before replacing the electronic modules, because many signal problems originate in the field installation. Before replacing either module, record the existing channel configuration and system settings. After maintenance, verify Keyphasor detection, shaft speed measurement, phase-related functions and associated vibration monitoring to ensure that the complete 3500 system has returned to stable operation.
