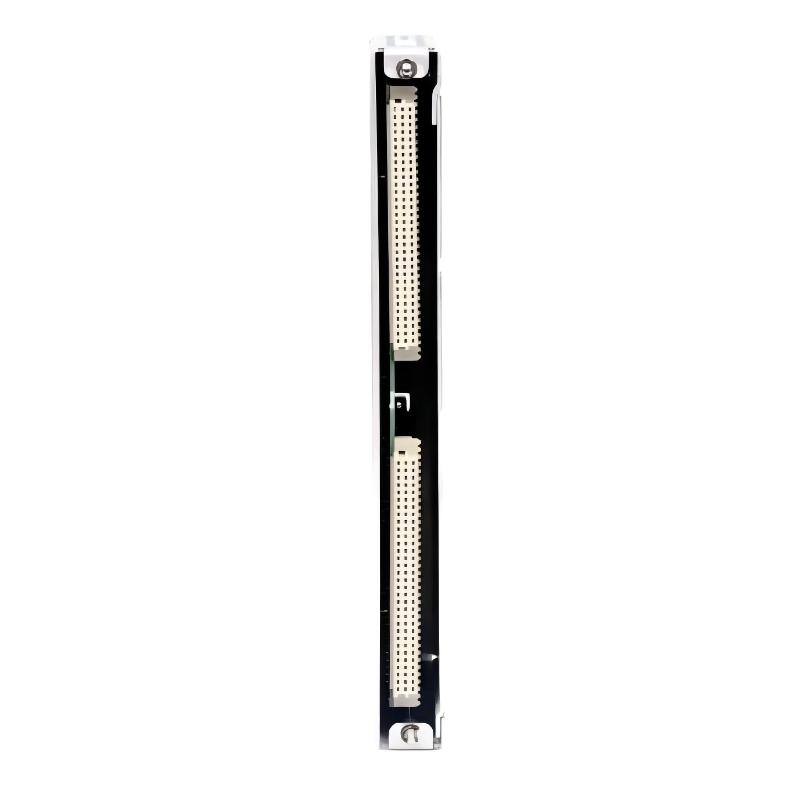

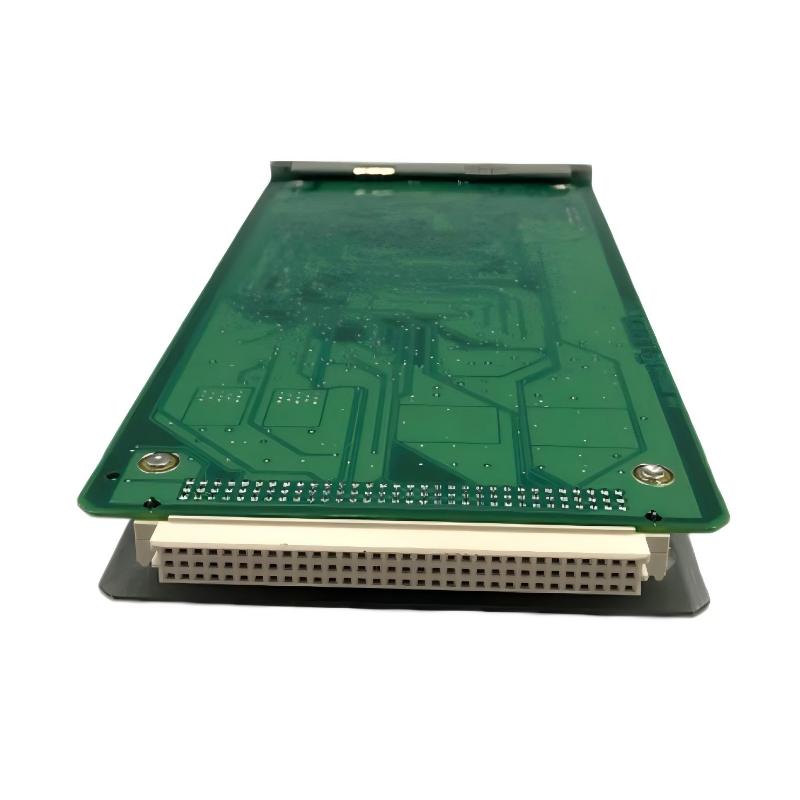

1. What is the main function of the Bently Nevada 3500/25-01-02-01 Enhanced Key-Phasor Module?

The Bently Nevada 3500/25-01-02-01 Enhanced Key-Phasor Module is designed to provide a reliable rotational reference for the 3500 Machinery Protection System. It receives Keyphasor signals from compatible sensors installed on rotating machinery and processes those signals for use by the monitoring system. The Keyphasor reference allows the system to determine shaft rotational speed and establish a relationship between vibration signals and the actual rotational position of the shaft. This information is particularly useful for phase measurements, vector analysis and rotating machinery diagnostics. In applications such as turbines, compressors, generators and pumps, a stable Keyphasor signal helps the protection system accurately interpret vibration behavior in relation to machine rotation.

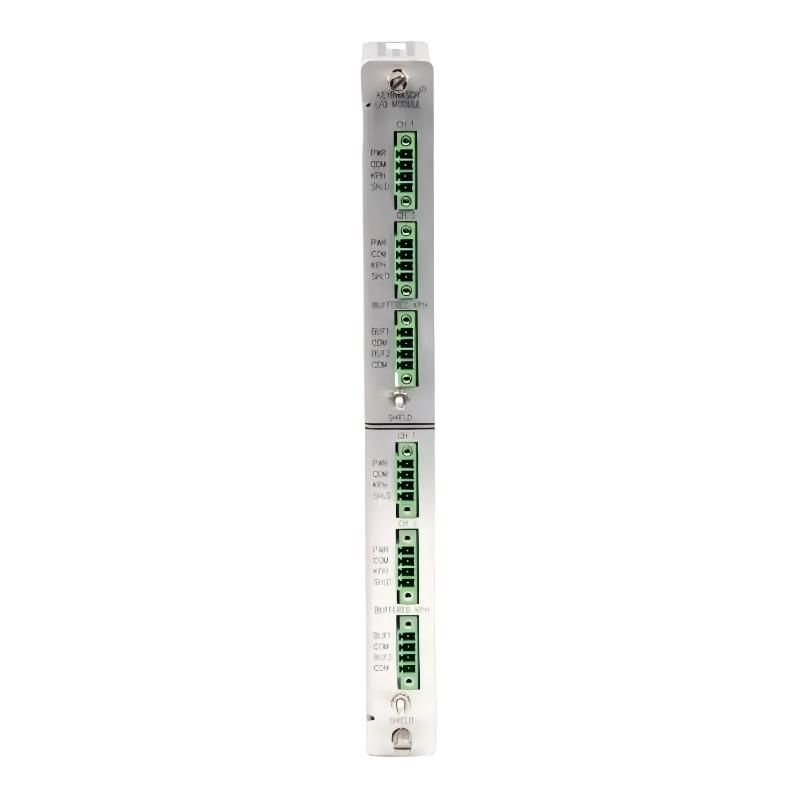

2. How many Keyphasor channels does the 3500/25-01-02-01 provide?

The 3500/25-01-02-01 is a two-channel Keyphasor module, providing two independent Keyphasor input channels. Each channel is designed to receive a compatible rotational reference signal and process the signal for use by the 3500 monitoring system. The two-channel arrangement allows the module to support monitoring configurations where more than one rotational reference is required. During system configuration, each Keyphasor channel should be assigned correctly to the corresponding shaft and related vibration monitoring channels. Proper channel assignment is important because the Keyphasor reference is used to establish speed and phase relationships. An incorrect association between the Keyphasor input and vibration channels can lead to inaccurate diagnostic interpretation even when the hardware itself is operating normally.

3. What type of sensor can be used to provide the Keyphasor signal?

The module is intended to process compatible Keyphasor signals generated by proximity probes or magnetic pickups. A Keyphasor sensor normally detects a designated reference target on the rotating shaft, producing a pulse when the target passes the sensing point. The module receives and processes these pulses to create the rotational reference required by the 3500 system. Before installation, the sensor type, signal characteristics and input configuration should be checked to ensure compatibility. Sensor installation is also critical. An incorrect sensing gap, poor alignment, damaged cable or loose connection can reduce signal quality and cause missing pulses or unstable readings. The sensor and field wiring should therefore be considered part of the complete Keyphasor measurement chain during commissioning and troubleshooting.

4. Why is the Keyphasor signal important in a machinery protection system?

The Keyphasor signal establishes a repeatable reference point for every shaft rotation, allowing the monitoring system to correlate vibration data with shaft rotational position. Without a reliable rotational reference, the system can still measure many vibration parameters, but certain speed- and phase-related functions cannot be performed with the same level of accuracy. With a stable Keyphasor signal, engineers can evaluate vibration phase relationships and determine how vibration changes relative to shaft rotation. This information is valuable for diagnosing conditions such as rotor unbalance, shaft misalignment and other rotating equipment problems. The quality of the Keyphasor signal therefore directly affects the reliability of speed, phase and vector-related measurements within the overall monitoring system.

5. How should a missing Keyphasor signal be troubleshot?

Troubleshooting should begin with the field signal path. First inspect the Keyphasor sensor and confirm that it is correctly installed and positioned relative to the rotating reference target. Check the sensing gap, field cable, terminals and connections for damage or looseness. The sensor output should be verified to ensure that a suitable pulse is generated when the target passes the sensing position. Next, check the installation and connections of the 3500/25 module within the rack and review available system diagnostic information. If the field sensor and wiring are confirmed to be normal, comparison with another known-good Keyphasor channel can help isolate the fault. Intermittent problems should be observed during startup, acceleration, normal operation and shutdown because some sensor or wiring faults may only become apparent at particular machine speeds.

6. What can cause an unstable Keyphasor signal?

An unstable Keyphasor signal can have several possible causes. Sensor installation problems, incorrect sensing gap, degraded sensor performance, damaged field cables, loose terminals and electrical interference are common areas to investigate. Mechanical conditions can also affect the signal if the reference target does not pass the sensor consistently. In some cases, an inappropriate signal configuration or a problem in the monitoring channel may contribute to the issue. Typical symptoms include fluctuating shaft speed readings, intermittent Keyphasor detection and inconsistent phase information. Troubleshooting should therefore consider the complete signal path rather than immediately replacing the module. Comparing the Keyphasor signal with actual machine speed and related vibration data can provide useful information for determining whether the problem originates in the field or within the monitoring system.

7. Can the 3500/25-01-02-01 be used for vibration phase analysis?

Yes. The Keyphasor function provides the rotational reference required for phase-related vibration measurements and vector analysis. By identifying a repeatable point on the shaft rotation, the monitoring system can determine the relationship between vibration signals and shaft position. This makes it possible to analyze vibration phase in addition to vibration amplitude. Phase information can be particularly useful when investigating rotating machinery conditions such as rotor unbalance, shaft misalignment and other mechanical abnormalities. However, accurate phase analysis requires a stable and correctly detected Keyphasor signal. If the reference signal contains excessive noise, missing pulses or unstable timing, the resulting phase information may become unreliable. The Keyphasor signal should therefore be verified before using phase data for detailed machinery diagnostics.

8. What maintenance should be performed on the Bently Nevada 3500/25-01-02-01?

Routine maintenance should include inspection of the Keyphasor sensors, field wiring, terminals and module installation. Check for loose connections, damaged cables, corrosion or other conditions that could affect the quality of the rotational reference signal. During normal equipment operation, the Keyphasor status and shaft speed should be monitored for unexpected changes. If the signal becomes intermittent or disappears, inspect the sensor and field wiring first before assuming that the electronic module has failed. System diagnostic information should also be reviewed to identify possible channel-related problems. Before replacing the module, record the existing system configuration and Keyphasor channel assignments. After maintenance or replacement, verify Keyphasor signal detection, shaft speed measurement, phase-related functions and associated vibration monitoring to confirm that the machinery protection system is operating correctly.
