1. What is the main function of the Bently Nevada 3500/25-01-04-00 Enhanced Key-Phasor Module?

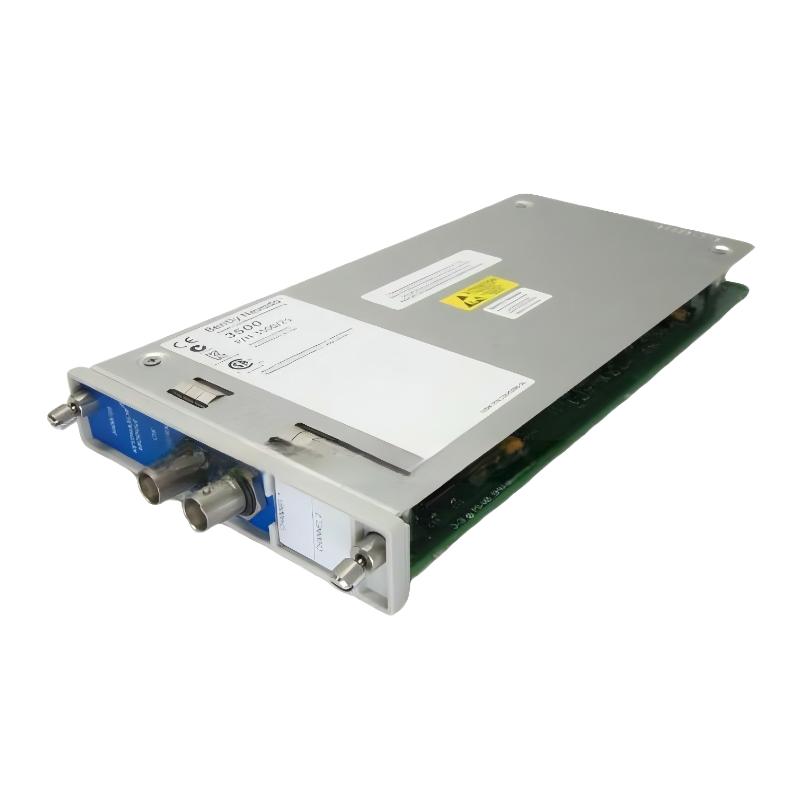

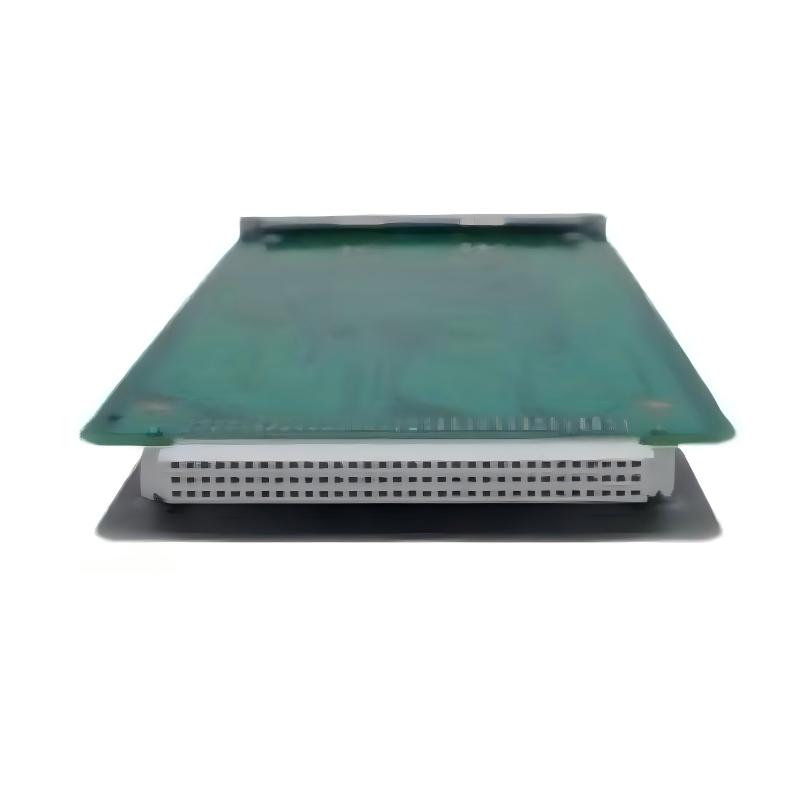

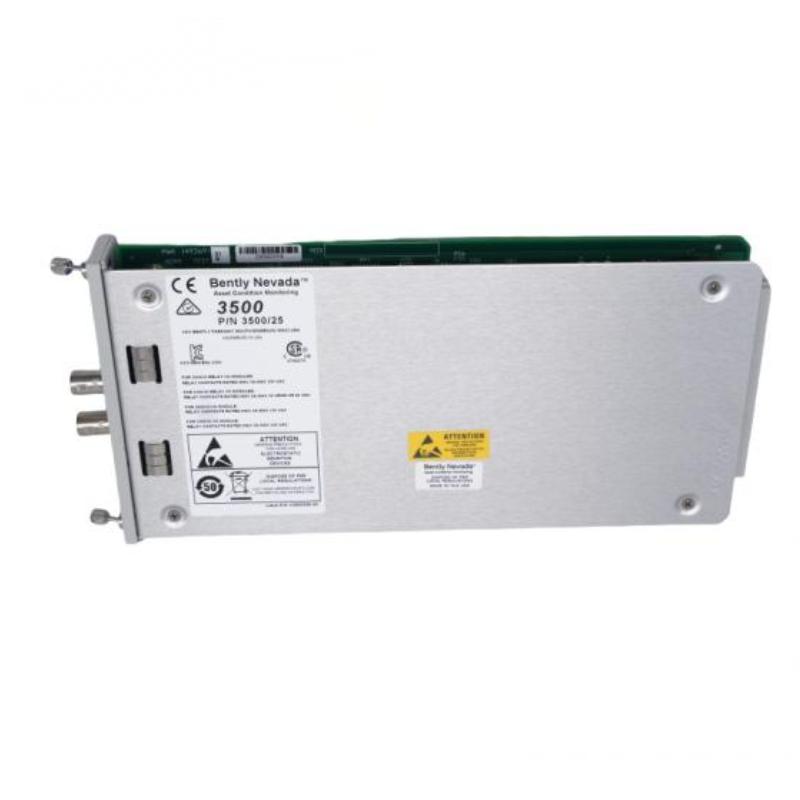

The 3500/25-01-04-00 Enhanced Key-Phasor Module is used to acquire and process Key-Phasor signals within a Bently Nevada 3500 machinery monitoring system. A Key-Phasor signal provides a precise rotational reference from the machine shaft, allowing the monitoring system to determine shaft speed and establish a reference position for phase-related measurements. The module processes the incoming pulse signals and makes the resulting rotational reference information available to the 3500 system. This information can then be used together with vibration and other machinery measurements for continuous condition monitoring, diagnostic analysis, and protection functions on rotating equipment.

2. What is the purpose of a Key-Phasor signal in machinery monitoring?
A Key-Phasor signal provides a repeatable reference associated with the rotation of a machine shaft. This reference is important because vibration amplitude alone does not always provide enough information to understand the behavior of rotating machinery. By knowing the exact rotational reference, the monitoring system can determine the relationship between shaft position, rotational speed, and vibration signals. This makes it possible to perform phase measurements and other synchronized analyses. In applications such as turbines, compressors, and generators, reliable Key-Phasor information can help engineers evaluate changes in rotor behavior and identify conditions that may not be apparent from vibration amplitude measurements alone.

3. Can the 3500/25-01-04-00 be used for rotational speed measurement?
Yes. The Key-Phasor signal is directly associated with shaft rotation and can therefore be used by the 3500 system as a reference for calculating rotational speed. As the designated reference target on the rotating shaft passes the Key-Phasor probe, the probe generates an electrical pulse. The system evaluates the timing between these pulses to determine the rotational speed of the shaft. For reliable speed measurement, the Key-Phasor signal must remain stable and clearly detectable. Incorrect probe installation, unsuitable probe clearance, weak signal amplitude, damaged cables, electrical interference, or a damaged reference target can all affect the accuracy and stability of the measured speed.

4. What can cause an unstable Key-Phasor signal?
An unstable Key-Phasor signal can be caused by problems with the probe, rotating target, field wiring, shielding, grounding, or module input. Incorrect probe clearance is one of the first conditions that should be checked because the distance between the probe and the rotating target directly affects the strength and quality of the signal. A damaged or contaminated target surface can also produce inconsistent pulses. In addition, loose terminals, damaged extension cables, poor shielding, electrical interference, or grounding problems may introduce signal disturbances. If the machine operates at different speeds, changes in signal quality should also be observed across the operating range. A complete inspection of the sensing and signal transmission path is normally more effective than replacing the monitoring module immediately.

5. How should the 3500/25-01-04-00 be installed in a 3500 system?
The module should be installed in the appropriate position within the Bently Nevada 3500 rack according to the system configuration. Before installation or removal, the applicable site safety procedures should be followed and the equipment should be placed in a safe condition. During installation, the module connector must be correctly aligned with the rack connector, and excessive force should not be used. Once installed, the module should be firmly seated in the rack. The Key-Phasor field wiring should then be checked to ensure that the correct signal is connected to the intended input channel. After system startup, the module status, signal condition, and related system diagnostics should be reviewed before using the Key-Phasor signal for speed, phase, or vibration-related monitoring.

6. What should be checked if the 3500/25 module cannot detect the Key-Phasor signal?
Troubleshooting should begin with the field sensing circuit and progress toward the monitoring system. First, inspect the Key-Phasor probe installation and verify that the probe clearance and mounting condition are suitable for the rotating target. Next, inspect the field cable and terminals for open circuits, short circuits, loose connections, damaged insulation, shielding problems, or grounding issues. The signal arriving at the module should then be checked using appropriate test equipment when necessary. The correct input channel should also be confirmed, particularly when several Key-Phasor signals are used in the same system. Finally, review the module status and diagnostic information provided by the 3500 system. This approach helps distinguish between a field sensor problem, wiring problem, and module-related problem.

7. How does the Key-Phasor module support vibration analysis?
The Key-Phasor module provides the rotational reference required for vibration measurements that depend on shaft position or phase. Vibration monitoring modules can measure shaft vibration, position, or other mechanical parameters, but certain advanced analyses require knowledge of where the rotor is in its rotation cycle. The Key-Phasor pulse provides this reference point so that vibration information can be related to shaft rotation. This is particularly useful for phase analysis and other speed-related diagnostic functions. If the Key-Phasor signal becomes unstable or disappears, vibration measurements may still be available from the corresponding monitoring channels, but analyses that require an accurate rotational reference may become unreliable or unavailable.

8. What should be checked if the Key-Phasor reading is correct at low speed but unstable at high speed?
If the Key-Phasor signal is stable at low speed but becomes intermittent or inconsistent as rotational speed increases, the probe installation and signal quality should be examined carefully. The probe clearance should be verified, and the mechanical condition of the rotating reference target should be checked for excessive runout, damage, or other irregularities. Cable routing should also be inspected because high-speed operation may make electrical interference more noticeable. The probe and signal circuit should be evaluated over the complete operating speed range rather than only at low speed. It is also important to review the 3500 system diagnostics and confirm that the signal remains within the expected electrical characteristics. If the field signal is confirmed to be healthy but the problem persists, the module input and system configuration should be investigated further.
