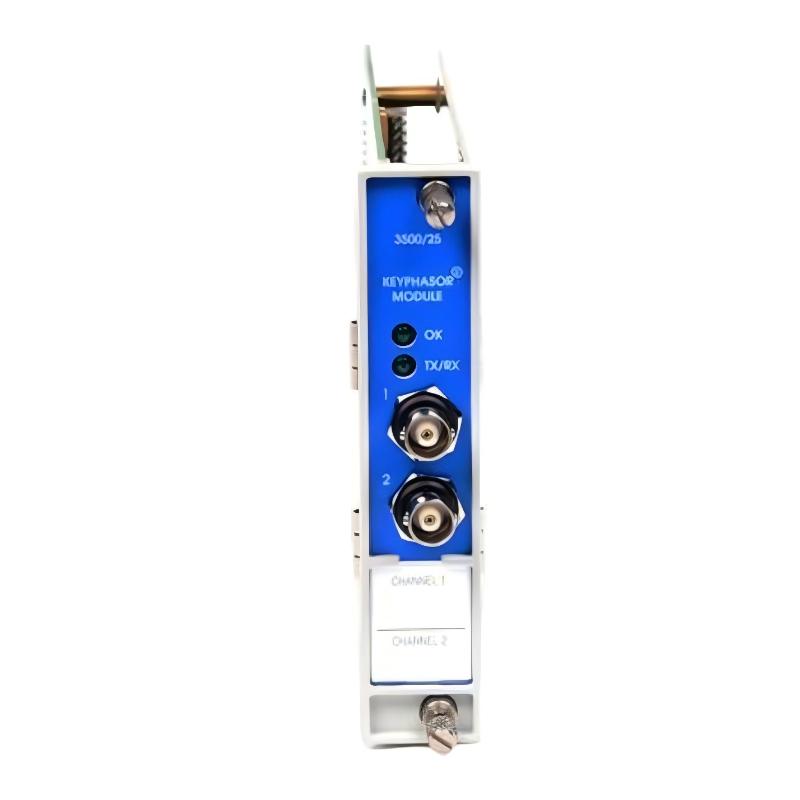

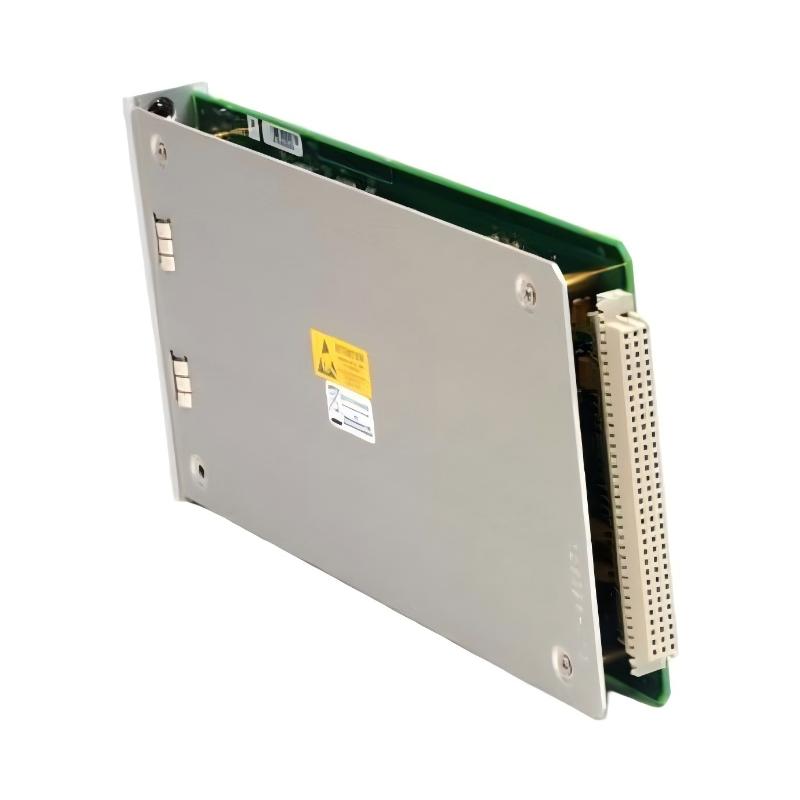

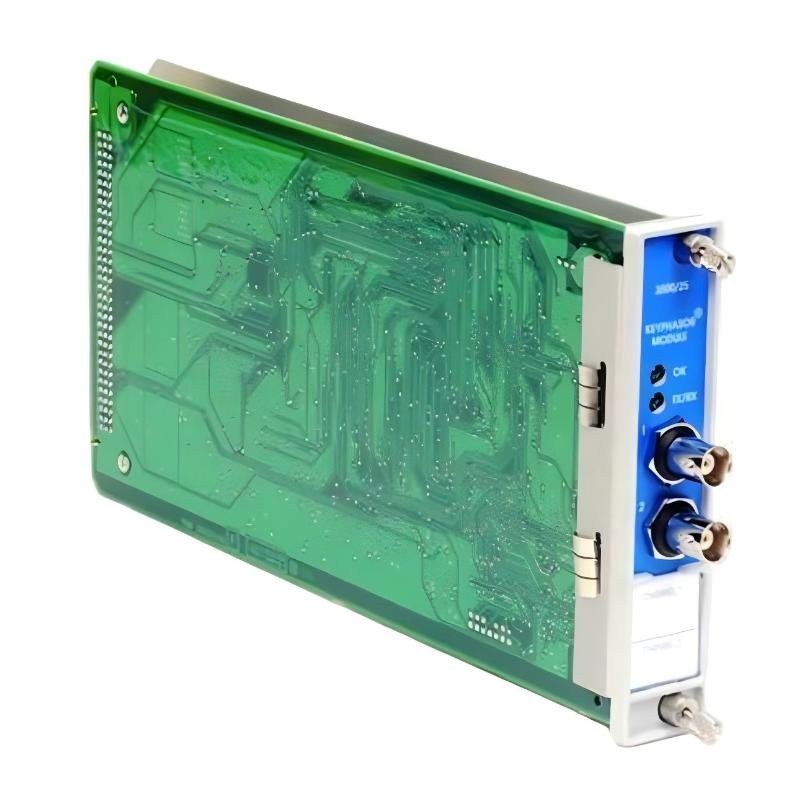

1. What is the main function of the Bently Nevada 3500/25-03-01-01 Enhanced Key-Phasor Module?
The 3500/25-03-01-01 Enhanced Key-Phasor Module is designed to acquire and process Key-Phasor signals within the Bently Nevada 3500 Machinery Monitoring System. It receives signals from suitable proximity probes or magnetic pickups and converts them into processed Key-Phasor information that can be used by other monitoring modules. The resulting signal provides a precise rotational reference for shaft speed measurement, phase-related analysis, and vibration monitoring. By establishing a reliable relationship between shaft rotation and other measured parameters, the module helps the 3500 system monitor the operating condition of critical rotating equipment such as turbines, compressors, generators, and pumps.

2. What type of transducers can be used with the 3500/25-03-01-01?
The module can be used with Key-Phasor signals generated by proximity probes or magnetic pickups, provided the selected transducer and I/O configuration are appropriate for the application. Proximity probes are commonly used where a suitable reference target is available on the rotating shaft, while magnetic pickups can be used with appropriate ferromagnetic targets and operating conditions. The sensor must be correctly installed and wired so that the module receives a stable pulse signal. When selecting a transducer, engineers should consider the shaft construction, reference target, operating speed, signal characteristics, cable installation, and electrical environment. Incorrect sensor selection or poor installation can lead to weak, intermittent, or missing Key-Phasor pulses.

3. How does the 3500/25-03-01-01 determine shaft speed?
The module determines shaft speed by detecting the timing of Key-Phasor pulses generated during shaft rotation. When the reference mark or target on the rotating shaft passes the Key-Phasor transducer, the transducer generates a pulse. The monitoring system analyzes the time interval between successive pulses and uses this information to determine the rotational speed. Accurate speed measurement depends on consistent pulse detection. Probe clearance, reference target condition, sensor output, cable integrity, electrical interference, and module configuration can all affect pulse detection. If the displayed speed becomes unstable or incorrect, these factors should be checked systematically rather than assuming that the Key-Phasor module itself is defective.

4. What is the purpose of the Key-Phasor reference in vibration monitoring?
The Key-Phasor reference establishes a known rotational position for each shaft revolution. A vibration signal indicates the dynamic movement of the machinery, but it does not by itself identify the exact position of the shaft when a particular vibration event occurs. The Key-Phasor signal provides this timing reference, allowing vibration data to be related to shaft rotation. This is particularly useful for phase analysis and speed-related vibration measurements. When combined with other 3500 monitoring modules, the Key-Phasor signal can help engineers evaluate changes in vibration amplitude and phase as operating conditions change. This information is valuable when investigating rotor imbalance, alignment problems, mechanical looseness, and other rotating machinery conditions.

5. What should be checked if the 3500/25-03-01-01 does not detect a Key-Phasor signal?
Start by checking the Key-Phasor transducer and its installation. For a proximity probe, verify the probe position, mounting condition, and clearance from the reference target. For a magnetic pickup, verify that the sensor is correctly positioned and that the rotating target can generate an adequate signal at the operating speed. Next, inspect the field wiring, terminals, shielding, and grounding for loose connections, broken conductors, short circuits, insulation damage, or excessive electrical noise. The actual signal at the module input should be checked with suitable test equipment when available. It is also important to confirm that the signal is connected to the correct channel and that the system configuration corresponds to the installed hardware. Finally, review the 3500 system diagnostics and module status to determine whether the problem is located in the field device, wiring, configuration, or module.

6. Why can a Key-Phasor signal become unstable when machinery speed increases?
A signal that is stable at low speed but becomes unreliable at higher speed may be related to mechanical movement, sensor installation, signal quality, or electrical interference. As rotational speed increases, shaft runout, eccentricity, mechanical vibration, or defects in the reference target can have a greater effect on the sensor signal. The sensor clearance should therefore be checked across the normal operating range rather than only during low-speed operation. Field cables should also be inspected for proper shielding, grounding, and routing away from strong sources of electrical interference. If a magnetic pickup is being used, its signal generation characteristics at the actual operating speed should also be considered. Monitoring the Key-Phasor waveform or pulse quality at different speeds can help identify whether the problem originates from the mechanical target, sensor, wiring, or signal processing.

7. How does the Enhanced Key-Phasor Module work together with other 3500 monitoring modules?
The Enhanced Key-Phasor Module provides the rotational timing reference, while other 3500 modules can acquire vibration, displacement, speed, and other machinery condition parameters. These measurements can be associated with the Key-Phasor reference to provide a more complete picture of machine behavior. For example, vibration information can be evaluated in relation to running speed and shaft phase. This is useful for identifying changes in rotor dynamics and for performing more detailed machinery diagnostics. The Key-Phasor module therefore acts as an important timing source within the monitoring system rather than functioning as an isolated measurement device. Correct configuration of the Key-Phasor association is important when other monitor channels depend on the rotational reference.

8. Can the 3500/25-03-01-01 be used in critical machinery protection applications?
Yes. The Enhanced Key-Phasor Module is intended for integration into Bently Nevada 3500 machinery monitoring architectures and can provide the rotational reference required by critical machinery monitoring functions. In applications involving turbines, compressors, generators, and other important rotating assets, reliable Key-Phasor information can support speed monitoring, phase-related measurements, and vibration analysis. For systems requiring higher availability or redundant monitoring, the overall 3500 architecture should be designed with appropriate sensor, I/O, module, power, and communication arrangements. The Key-Phasor module should be considered as part of the complete machinery protection system, with the sensor installation, signal wiring, module configuration, and monitoring logic all verified during commissioning.
