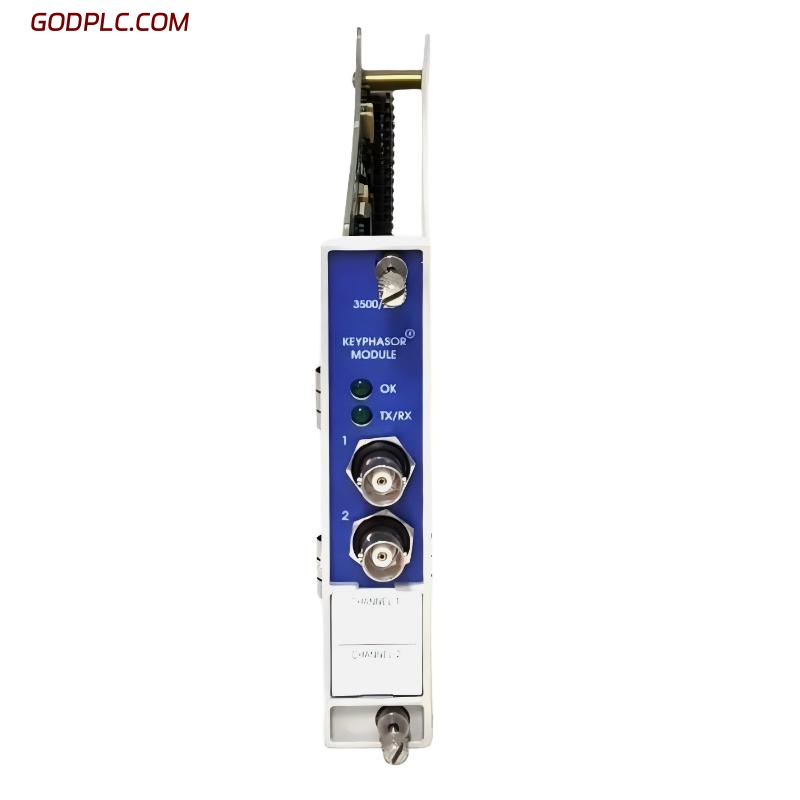

Bently Nevada 3500/25 128075-01 Enhanced Bond Phase Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/25 |
| Order Number | 128075-01 |
| Product Type | Enhanced Keyphasor Module |
| Manufacturer | Bently Nevada |
| Function | Provides phase reference (Keyphasor) signals for rotating machinery monitoring |
| System Compatibility | 3500 Machinery Protection System |
| Input Signal Type | Proximity probe (eddy current sensor) or magnetic pickup |
| Number of Channels | 2 independent channels |
| Input Frequency Range | 0.1 Hz to 20 kHz |
| Input Voltage Range | −24 V to +24 V |
| Trigger Configuration | User-configurable threshold levels |
| Signal Processing | Adaptive filtering and noise rejection |
| Output | Buffered Keyphasor outputs for monitoring and analysis |
| Communication | Backplane interface within 3500 rack |
| Indicators | Front panel LED status indicators |
| Power Consumption | Approximately 5.8 W |
| Operating Temperature Range | −30 °C to +65 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Installation | Installed in 3500 system rack |
| Dimensions | 119.9 × 24.4 × 256.5 mm |
| Weight | 0.34 kg |
| Origin | USA |
FAQ
1. What role does the 3500/25 module play in a monitoring system?
It generates precise phase reference signals that allow the system to correlate vibration data with shaft position for accurate diagnostics.
2. How does it improve measurement accuracy?
By providing a stable and noise-resistant phase signal, it ensures consistent timing reference for vibration and speed measurements.
3. Is it suitable for low-speed machinery?
Yes, the module supports very low frequency inputs, making it effective for slow-rotating equipment.
4. What configuration options are available for signal detection?
Users can configure trigger levels and signal conditioning parameters via the 3500 configuration software.
5. Can it operate in harsh industrial environments?
Yes, it is designed to withstand wide temperature ranges and high humidity typical of industrial settings.
6. What types of faults can it help detect?
It supports detection of phase-related issues such as shaft misalignment, imbalance, and timing irregularities.
7. How does it integrate with other modules in the 3500 system?
It communicates through the rack backplane, sharing phase data with monitoring and protection modules.
8. What ensures reliable signal detection in noisy conditions?
The module uses advanced filtering and adaptive threshold techniques to distinguish valid signals from electrical noise.
Bently Nevada 3500/25 128075-01 Enhanced Bond Phase Module is in stock. Please contact us for a quick quote and competitive pricing.
