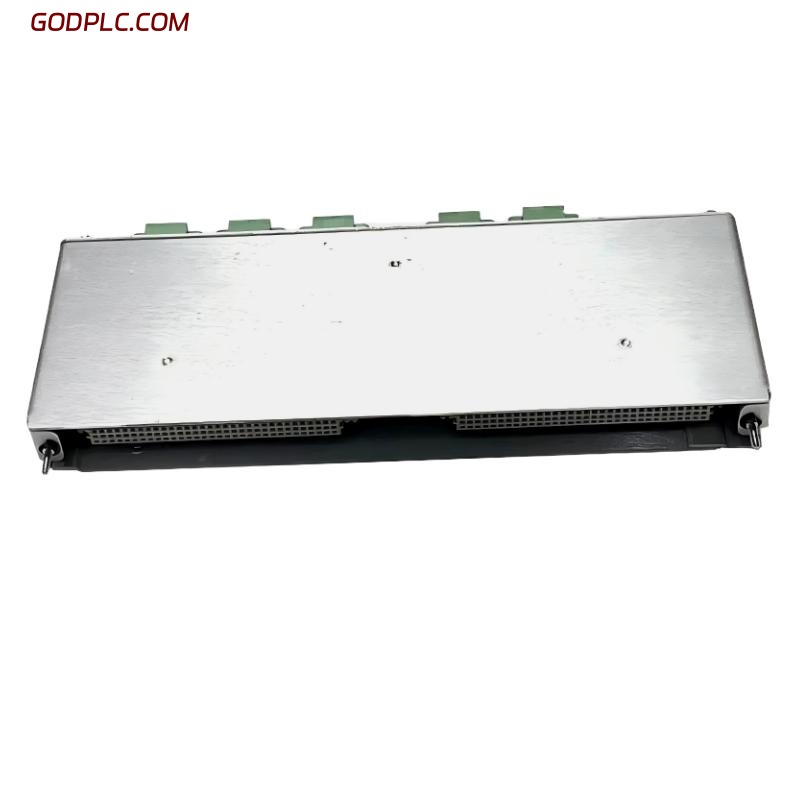

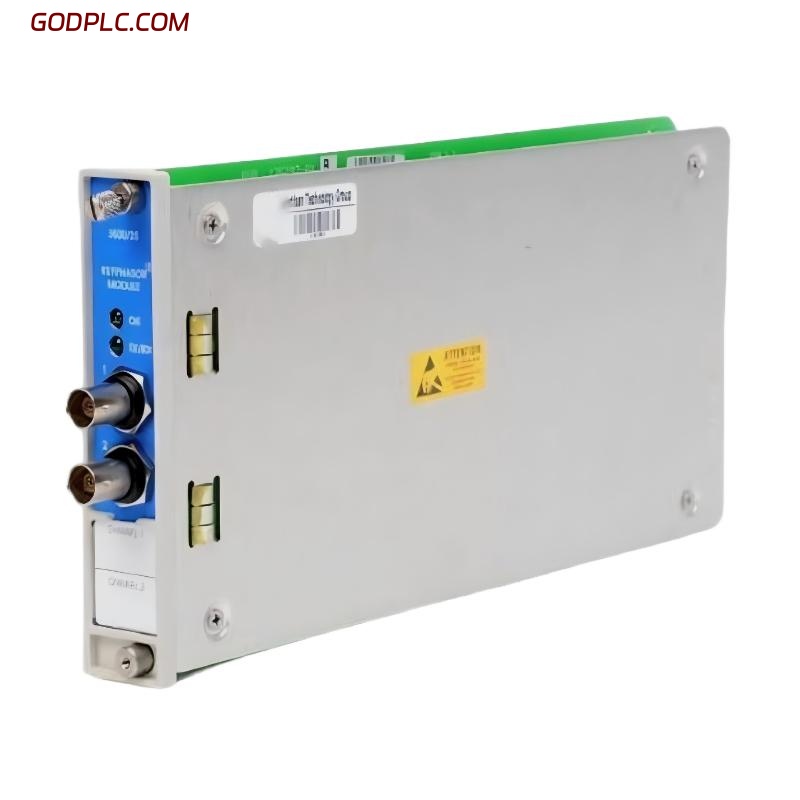

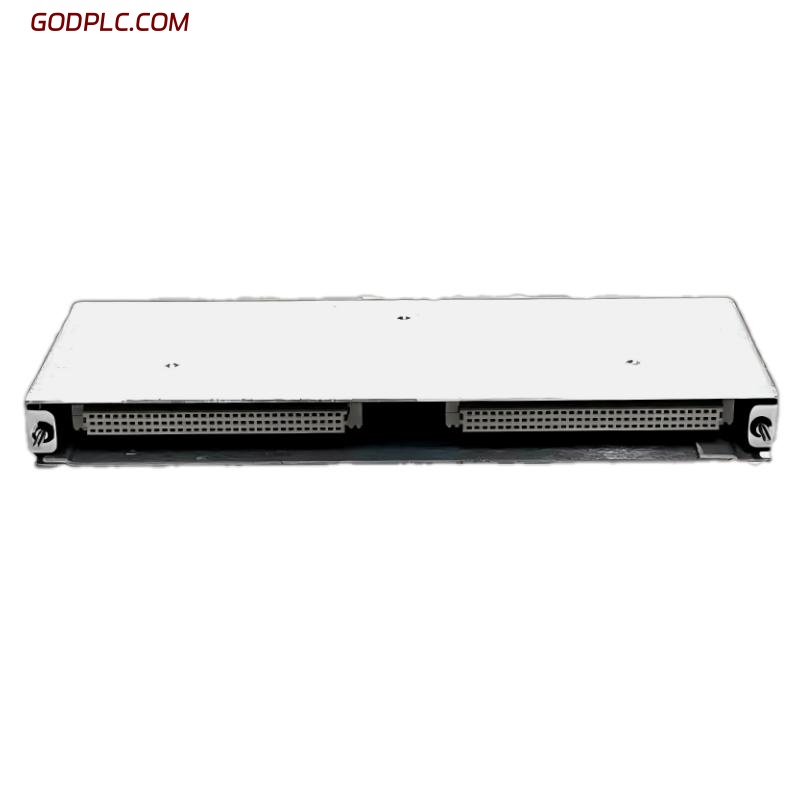

Bently Nevada 3500/25 149369-01+125800-02 Enhanced Keying Module + I/O Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/25 |
| Order Number | 149369-01 + 125800-02 |
| Product Type | Enhanced Keying Module + I/O Module |
| Manufacturer | Bently Nevada |
| Function | Provides enhanced Keyphasor signal processing with input/output interface for rotating machinery monitoring |
| System Compatibility | 3500 Machinery Protection System |
| Input Signal Type | Proximity probe (eddy current) or magnetic pickup |
| Output Signal Type | Buffered Keyphasor signals to monitoring and control modules |
| Number of Channels | 2 independent Keyphasor channels |
| Signal Conditioning | Advanced filtering and adaptive noise rejection |
| Trigger Configuration | User-configurable thresholds |
| Communication | Backplane interface with 3500 system |
| Indicators | Front panel LED status indicators |
| Power Consumption | Approximately 5.8 W |
| Operating Temperature Range | −30 °C to +65 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Installation | Installed in 3500 system rack |
| Dimensions | 119.9 × 24.4 × 256.5 mm |
| Weight | 0.34 kg |
| Origin | USA |
FAQ
1. What is the primary function of this module combination?
It provides enhanced Keyphasor signal processing with I/O connectivity for integration with the 3500 monitoring system.
2. How does it differ from the standard 3500/25 Keyphasor module?
It combines enhanced signal processing with I/O capabilities, offering improved noise immunity and simplified field wiring.
3. How many Keyphasor channels does it support?
It supports 2 independent channels for multiple phase reference monitoring.
4. What types of sensors are compatible?
It supports proximity probes (eddy current) and magnetic pickups.
5. Can it be used in variable-speed machinery?
Yes, it accurately tracks Keyphasor signals across low and variable-speed ranges.
6. How are configuration and settings applied?
All thresholds and channel parameters are configured via the 3500 system software interface.
7. How is signal reliability ensured in noisy environments?
Advanced filtering and adaptive noise rejection maintain accurate phase reference signals.
8. Can the module output signals be shared with other systems?
Yes, buffered outputs allow integration with additional monitoring or control modules.
Bently Nevada 3500/25 149369-01+125800-02 Enhanced Keying Module + I/O Module is in stock. Please contact us for a quick quote and competitive pricing.
