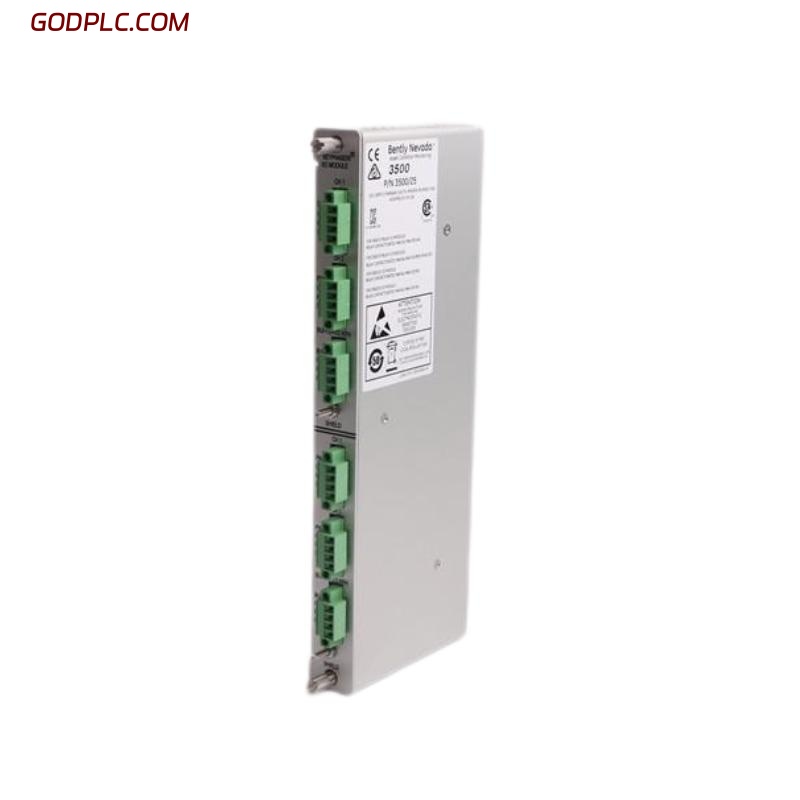

Bently Nevada 3500/25 149369-01+125800-02 Transient Data Interface (TDI) Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Product Overview
The Bently Nevada 3500/25 149369-01 + 125800-02 Transient Data Interface (TDI) Module is a critical component of the 3500 Machinery Protection System. It integrates the functions of the rack’s communication processor and monitoring interface into a single module. Serving as the central gateway, it enables direct communication between the 3500 rack and external condition monitoring software such as System 1. The module supports the acquisition of both static and dynamic data, ensuring continuous machinery protection and advanced diagnostics for rotating equipment.
_
Main Features
-
Integration of communication and monitoring processor functions within a single module
-
Supports static and dynamic data collection for comprehensive machinery diagnostics
-
Hot-swappable design allowing replacement without system shutdown
-
System 1 compatibility for advanced condition monitoring and asset management
-
Redundant operation support to maintain continuous monitoring and protection
-
Front-panel LED indicators for clear status visualization and troubleshooting
-
Designed for installation in the leftmost slot of the 3500 rack for streamlined configuration
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 119.9 × 24.4 × 256.5 mm |
| Weight | 0.34 kg |
_
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (GE Measurement & Control) |
| Model Number | 3500/25 149369-01 + 125800-02 |
| Product Type | Transient Data Interface (TDI) Module |
| Rack Type | 3500 Series Machinery Protection System |
| Mounting | Leftmost rack slot |
| Operation Mode | Primary or Redundant |
_
Electrical Characteristics
| Item | Specification |
|---|---|
| Input Power | Supplied via rack power supply |
| Communication | Ethernet for static and dynamic data |
| Supported SW | System 1 machinery management software |
| Redundancy | Dual TDI configuration supported |
| Hot-Swap | Yes |
_
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temp. | -30°C to +65°C |
| Storage Temp. | -40°C to +85°C |
| Humidity Range | 95% non-condensing |
| Vibration | 5–500 Hz, 0.3 mm p-p or 4.9 m/s² |
| Shock Resistance | 30 G, 11 ms half-sine |
| Protection Class | IP20 |
_
Industry Applications
The Bently Nevada 3500/25 149369-01 + 125800-02 TDI Module is widely applied in industries where continuous machinery monitoring and protection are critical, including:
-
Oil & Gas: Condition monitoring of compressors, pumps, and turbines in refineries and pipeline systems
-
Power Generation: Continuous protection of steam turbines, gas turbines, and generators
-
Petrochemical and Chemical Plants: Machinery protection in demanding process environments
-
Metals & Mining: Monitoring and safeguarding of heavy rotating equipment such as mills and crushers
-
Marine and Offshore: Condition monitoring of propulsion and auxiliary machinery
-
Water & Wastewater: Pump, blower, and motor protection in treatment facilities
Bently Nevada 3500/25 149369-01+125800-02 Transient Data Interface (TDI) Module is in stock. Please contact us for a quick quote and competitive pricing.
