Product Overview

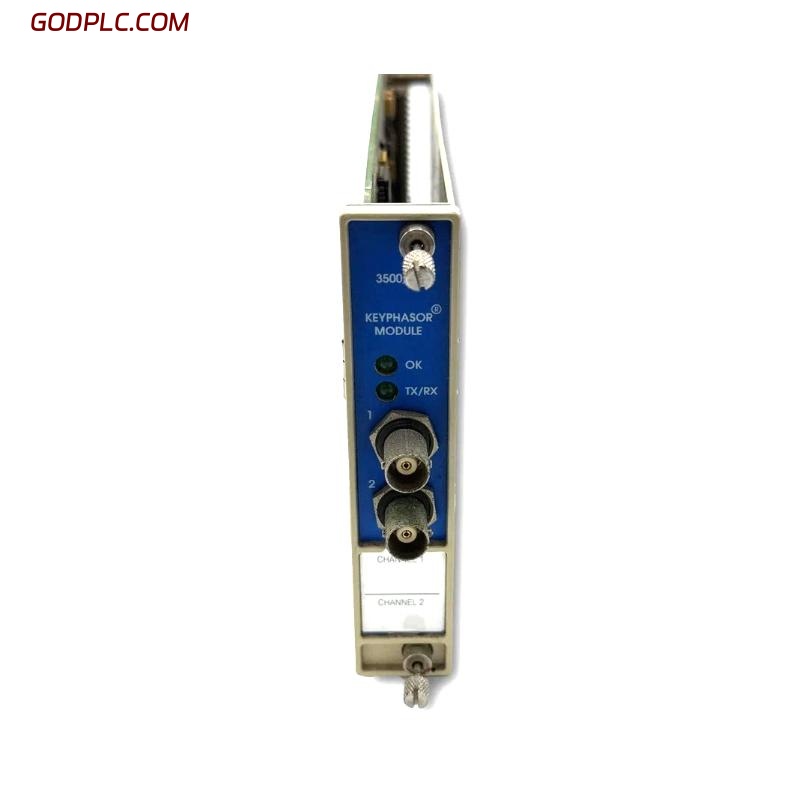

The Bently Nevada 3500/25M Keyphasor Module (126398-01) is a two-channel half-height module designed for use within the Bently Nevada 3500 Machinery Protection System. It processes signals from proximity probes or magnetic pickups to generate precise digital Keyphasor pulses. These pulses are used as timing references for shaft speed, phase, and vibration analysis in critical rotating machinery. The 3500/25M offers dependable performance, backward compatibility with previous models, and easy integration with external termination systems, making it suitable for demanding industrial applications.
_
Main Features
Two-channel Keyphasor input module for shaft speed and phase detection
Compatible with proximity probes and magnetic pickups
Provides once-per-turn or multiple-event-per-turn output pulses
Half-height module design, fitting standard 3500 racks
Can be paired to support up to eight Keyphasor signals
Backward-compatible with earlier Keyphasor modules
Robust digital signal processing for stable and accurate pulse generation
External termination style for simplified wiring and maintenance
_
Technical Specifications
Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 119.9 × 24.4 × 256.5 mm |
| Weight | 0.34 kg |
_
General Information
| Item | Specification |
|---|---|
| Manufacturer | Bently Nevada (Baker Hughes) |
| Model Number | 3500/25M Keyphasor Module (126398-01) |
| Product Type | Keyphasor I/O Module |
| Rack Compatibility | Half-height slot in 3500 rack |
| Termination Style | External terminal block connections |
| Backward Compatibility | Direct replacement for earlier modules |
_
Electrical Characteristics
| Item | Specification |
|---|---|
| Channels | Two independent input channels |
| Input Signal Types | Proximity probe or magnetic pickup |
| Input Voltage Range | –0.8 V to –21 V (depending on sensor type) |
| Output Signals | Once-per-turn or multiple-event-per-turn pulses |
| Paired Operation | Supports up to 8 Keyphasor inputs when paired |
| Redundancy | TMR supported with parallel module configuration |
_
Environmental Specifications
| Item | Specification |
|---|---|
| Operating Temperature | –30 °C to +65 °C |
| Storage Temperature | –40 °C to +85 °C |
| Humidity | 5% to 95% RH, non-condensing |
| Certifications | CE, CSA, ATEX, IECEx (Zone 2 rated) |
_
Industry Applications
The Bently Nevada 3500/25M 126398-01 Keyphasor Module is widely applied in machinery monitoring systems across industries:
Oil & Gas — Accurate shaft reference signals for turbines, compressors, and pumps
Power Generation — Shaft speed and phase monitoring for steam and gas turbines
Chemical and Petrochemical — Condition monitoring of rotating machinery in critical processes
Industrial Manufacturing — High-speed equipment monitoring in production lines
Bently Nevada 3500/25M 126398-01 Keyphasor Module is in stock. Please contact us for a quick quote and competitive pricing.
