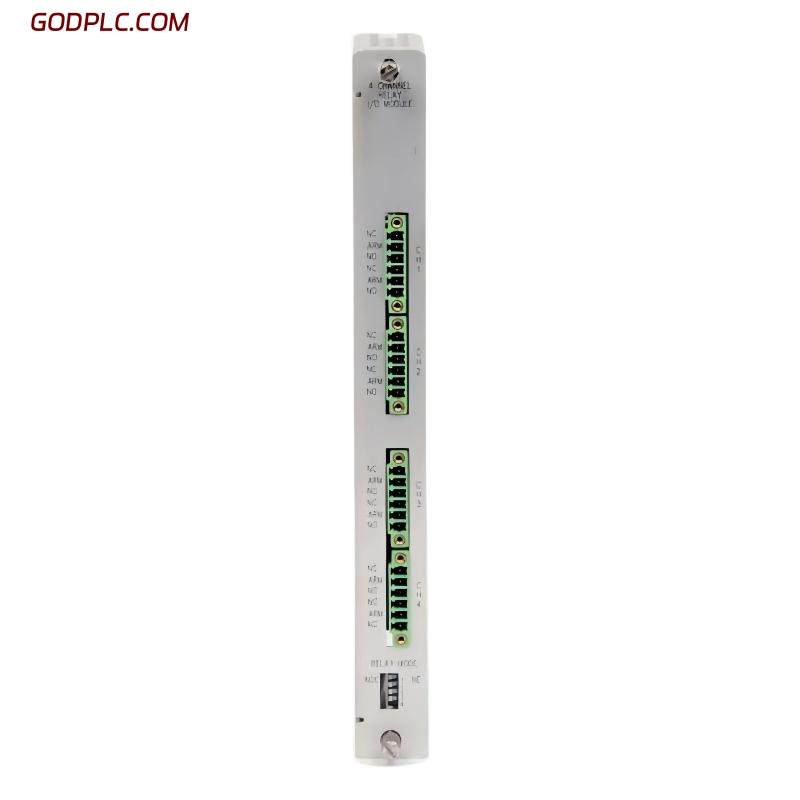

Bently Nevada 3500/32 149986-02+125720-01 4-Channel Relay Control Module + Output Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/32 |
| Order Number | 149986-02 + 125720-01 |
| Product Type | 4-Channel Relay Control Module + Output Module |
| Manufacturer | Bently Nevada |
| Function | Provides four independent relay outputs for alarms, trips, or control functions, combining control and output capability for redundancy and enhanced monitoring |
| System Compatibility | 3500 Machinery Protection System |
| Number of Channels | 4 independent relay channels |
| Relay Type | SPDT (Single Pole Double Throw) electromechanical relays |
| Contact Rating | 5 A at 250 VAC / 30 VDC |
| Response Time | ≤10 ms typical |
| Trigger Source | Configurable from system monitoring channels |
| Indicators | Front panel LED indicators for relay status |
| Communication | Backplane interface with system rack |
| Power Consumption | Approximately 6 W |
| Operating Temperature Range | −30 °C to +65 °C |
| Storage Temperature Range | −40 °C to +85 °C |
| Humidity | Up to 95% non-condensing |
| Installation | Installed in system rack |
| Dimensions | 241 × 24.4 × 242 mm |
| Weight | 0.7 kg |
| Origin | USA |
FAQ
1. What is the main function of this relay control and output module?
It provides four independent relay outputs for alarms, trips, or control functions, integrating both control and output capabilities to enhance monitoring reliability and system redundancy.
2. Can each relay channel be configured independently?
Yes, each of the four channels can be configured separately to respond to specific monitoring or protection conditions.
3. What type of relays are used in this module?
The module uses SPDT (Single Pole Double Throw) electromechanical relays suitable for AC and DC loads.
4. What is the maximum load each relay can handle?
Each relay can handle up to 5 A at 250 VAC or 30 VDC.
5. How are the relays triggered?
Relays are triggered by configurable alarm or trip conditions from the system monitoring channels.
6. How is the status of each relay indicated?
Front panel LED indicators display whether each relay is active or inactive for clear visual feedback.
7. Can this module interface with other control or monitoring systems?
Yes, the relay outputs can be connected to external control or monitoring systems to support alarms, trips, or automated operations.
8. Is the module suitable for industrial environments?
Yes, it is designed for reliable continuous operation in industrial applications, with durable electromechanical relays and robust construction to handle a wide range of environmental conditions.
Bently Nevada 3500/32 149986-02+125720-01 4-Channel Relay Control Module + Output Module is in stock. Please contact us for a quick quote and competitive pricing.
