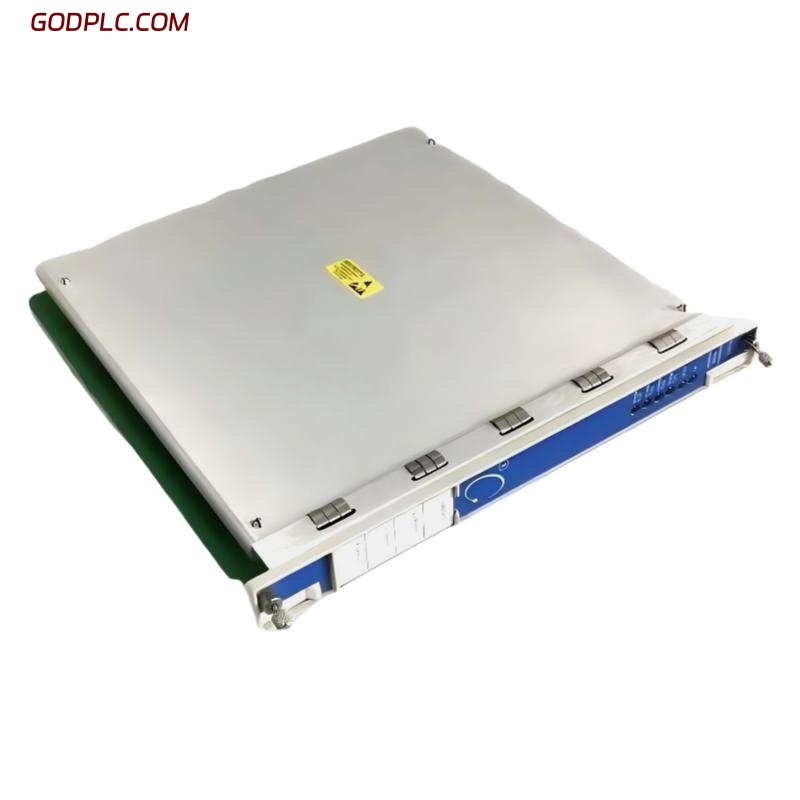

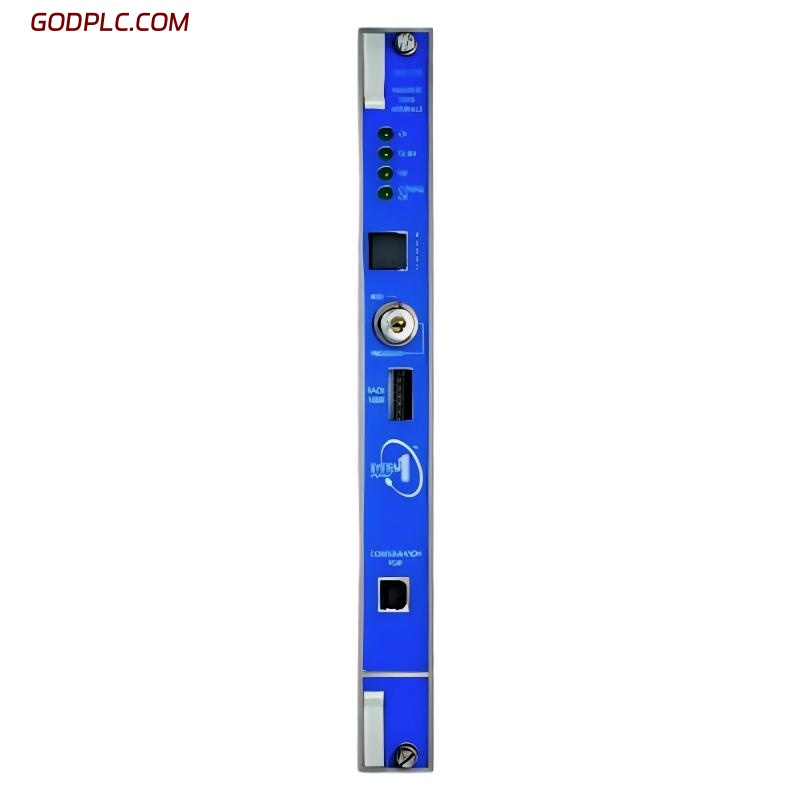

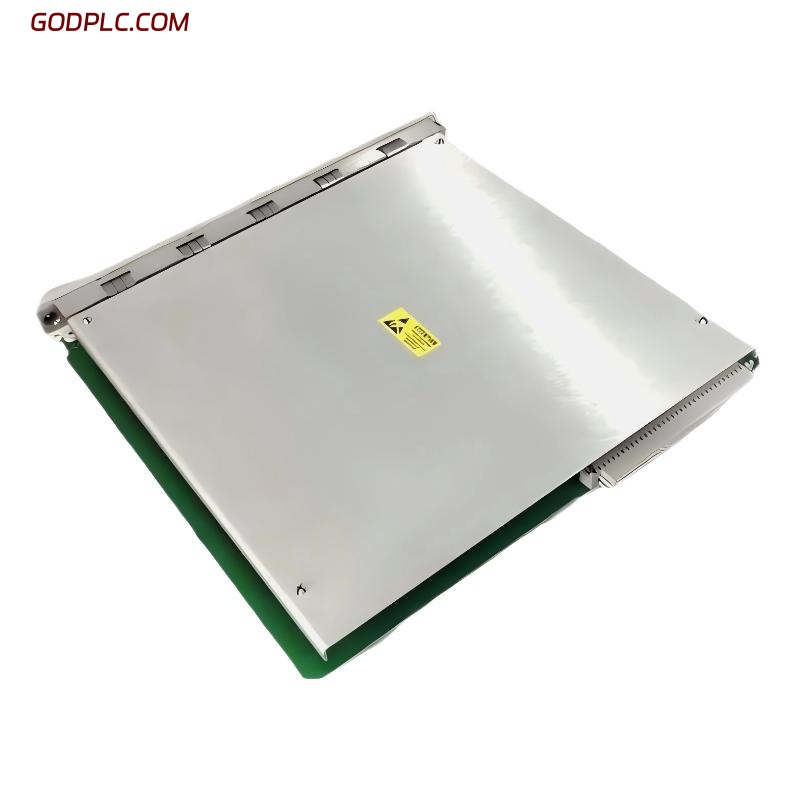

Bently Nevada 3500/32M 184704-01 4-Channel Relay Module
| Company Information | ||||||||
| [email protected] | ||||||||
| Mobile | +8615305023276 | |||||||
| +8615305023276 | ||||||||
| 15305023276 | ||||||||
| Add to | Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China | |||||||
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 3500/32M |
| Ordering Number | 184704-01 |
| Type | 4-Channel Relay Module |
| Function | Provides relay outputs for machinery protection and control systems |
| Channels | 4 |
| Relay Contact Type | Form C (SPDT) |
| Maximum Switching Voltage | 250 VAC / 30 VDC |
| Maximum Switching Current | 5 A |
| Response Time | ≤ 10 ms |
| Isolation | Optical isolation between channels |
| Operating Temperature | -40 °C to 85 °C |
| Storage Temperature | -55 °C to 85 °C |
| Humidity | 0–95% RH, non-condensing |
| Compliance / Standards | IEC 60255, IEEE, ISO industrial standards |
| Power Supply | 24 VDC nominal |
| Diagnostics | LED status indication and self-test |
| Mounting | Rack-based installation (3500 system) |
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
FAQ
- What is the main purpose of this relay module?
It is used to provide relay output signals for alarm, trip, and control functions within machinery protection systems. - How many relay outputs are available on this module?
The module provides four independent relay channels. - What type of relay configuration is used?
It uses Form C (SPDT) relay contacts for flexible switching applications. - Can the module switch both AC and DC signals?
Yes, it supports switching for both AC and DC loads within specified limits. - How is electrical isolation achieved?
Each channel is optically isolated to prevent interference and ensure signal integrity. - Does the module include diagnostic capabilities?
Yes, it features built-in self-test functions along with LED indicators for status monitoring. - How is the module installed in a system?
It is designed to be installed in a 3500 series rack and interfaces through the system backplane. - Is this module suitable for critical industrial environments?
Yes, it is designed for high-reliability applications and can operate continuously in demanding industrial conditions.
Bently Nevada 3500/32M 184704-01 4-Channel Relay Module is in stock. Please contact us for a quick quote and competitive pricing.
