1. What is the main function of the Bently Nevada 3500/33-03-00?

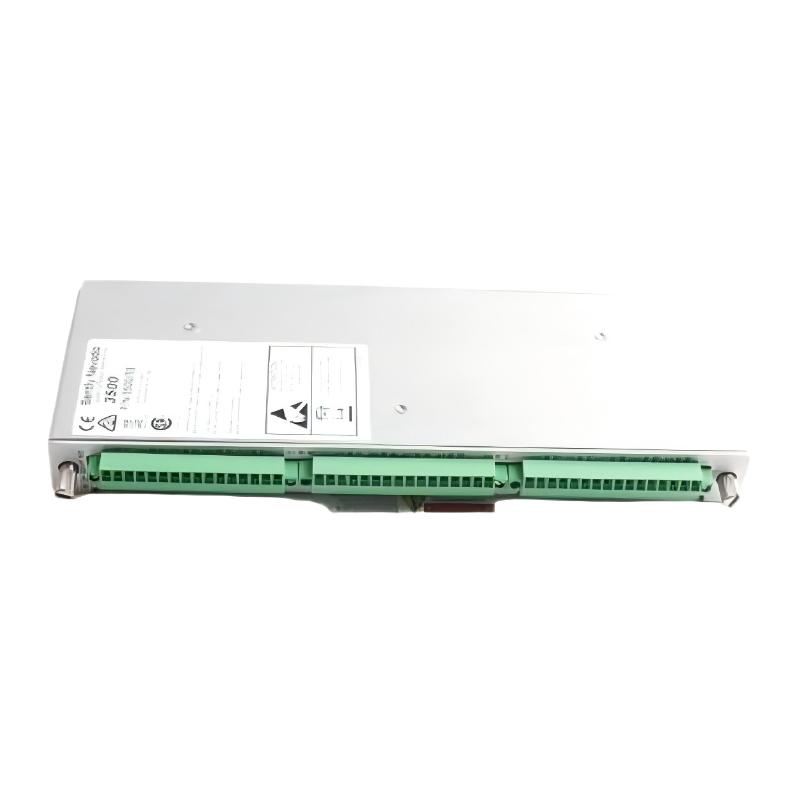

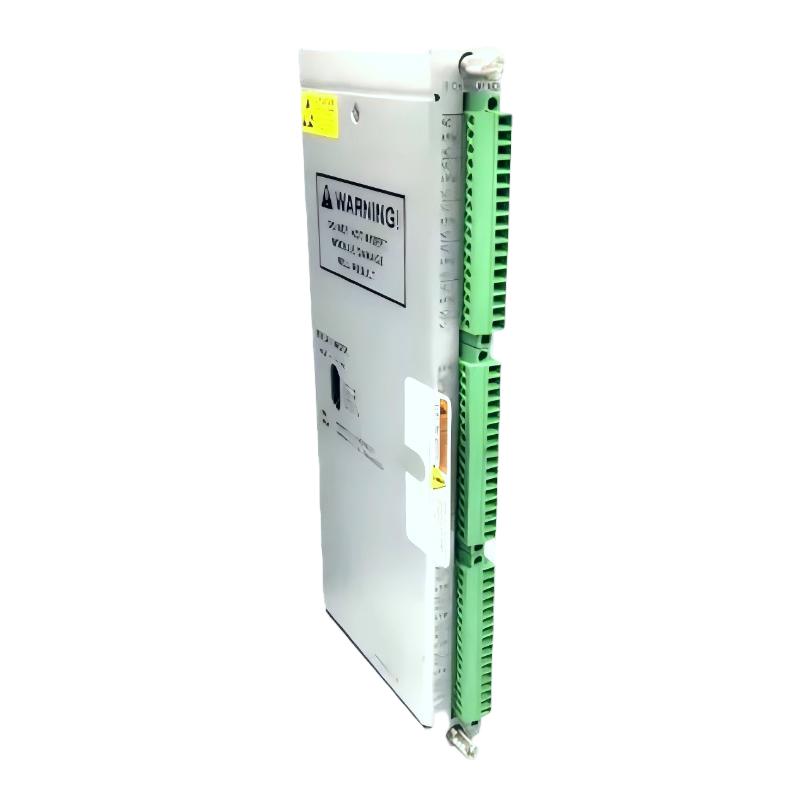

The Bently Nevada 3500/33-03-00 is a 16-channel relay module used in the 3500 Machinery Protection System. It converts alarm and machine-status information generated by monitoring modules in the rack into physical relay outputs for external equipment. These outputs can be used for alarm indication, equipment interlocking, control signals, or machinery shutdown circuits. The module provides 16 independently configurable relay channels, allowing different monitoring conditions to be assigned to different outputs. Each relay includes configurable Alarm Drive Logic, making the module suitable for machinery protection applications where multiple discrete alarm and control signals must be transferred to an external control or protection system.

2. How many relay outputs does the 3500/33-03-00 provide?
The 3500/33-03-00 provides 16 independent SPDT relay outputs. The channels can be assigned to different alarm conditions, machine statuses, or measured variables from the monitoring modules installed in the 3500 rack. The outputs can be used individually or configured with voting logic to meet specific machinery protection requirements. Four groups of four relay channels can be selected for Normally De-energized or Normally Energized operation. This arrangement provides flexibility when connecting the 3500 system to external alarm panels, PLC systems, DCS systems, shutdown circuits, and other equipment that requires discrete relay signals.

3. Can the 16 relay channels be programmed independently?
Yes. Each relay output can be independently programmed using the 3500 Rack Configuration Software. The Alarm Drive Logic for each channel can use Alert and Danger statuses, Not-OK conditions, individual measured variables, or combinations of monitor channels within the rack. AND and OR logic can be used to create the required voting conditions. For example, one relay can respond directly to a specific Danger alarm, while another can be configured to operate only when several selected conditions are simultaneously present. This independent configuration capability allows the 3500/33-03-00 to support different alarm, interlock, and shutdown functions without requiring identical logic across all 16 outputs.

4. What is the difference between Normally Energized and Normally De-energized operation?

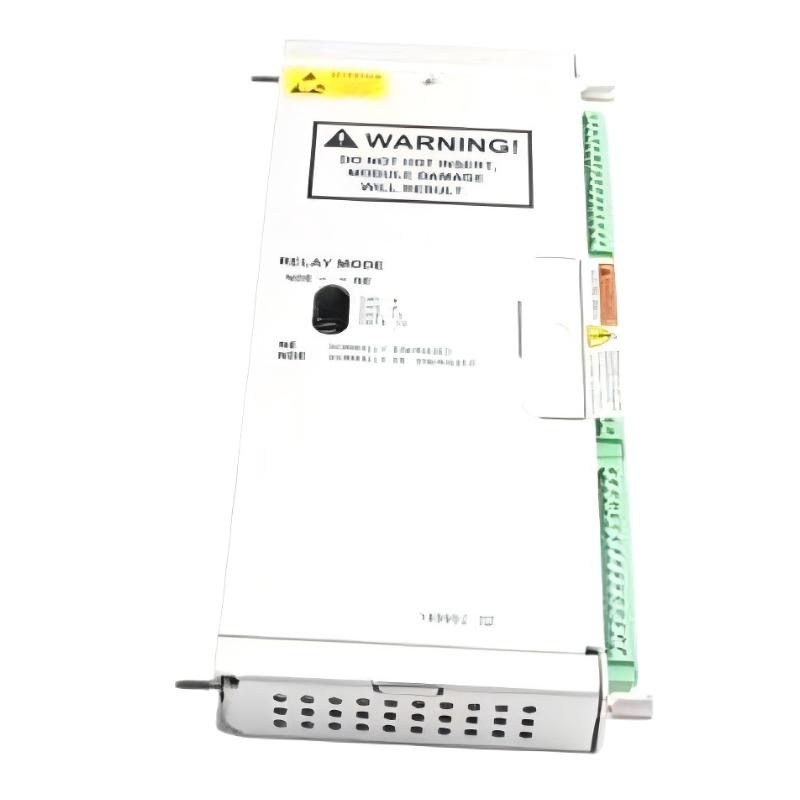

The relay channels are arranged into four groups of four, and each group can be selected for Normally Energized (NE) or Normally De-energized (ND) operation. In Normally Energized operation, the relay remains energized during normal operation and changes state when the programmed alarm or protection condition occurs. This can be useful in circuits where loss of relay energy is intended to represent an abnormal or fault condition. In Normally De-energized operation, the relay remains de-energized under normal conditions and energizes when the programmed condition becomes active. The appropriate mode should be selected according to the external control circuit, shutdown philosophy, fail-safe requirements, and the behavior expected by the connected equipment. The selected relay mode should be verified during commissioning.

5. What should be checked if a relay output does not operate correctly?
Troubleshooting should begin with the front-panel indicators. The OK LED should be checked to confirm that the module is functioning correctly, while the TX/RX LED can indicate communication activity between the relay module and other modules in the 3500 rack. The CH Alarm LED should also be reviewed to determine whether the corresponding relay channel is being driven by an alarm condition. Next, use the 3500 Rack Configuration Software to verify the selected alarm source, Alert or Danger status, Not-OK condition, measured variable, AND/OR logic, and relay operating mode. The external relay wiring should then be inspected for loose terminals, incorrect connections, damaged cables, or faults in the connected control circuit. It is also important to verify that the machine condition has actually reached the configured alarm state. If the configuration and external wiring are correct but the relay still does not respond, the individual relay channel and associated rack hardware should be tested to determine whether the fault is internal to the module.

6. Can the 3500/33-03-00 be used for machinery shutdown and interlocking?
Yes. The relay outputs can be integrated into external machinery shutdown, alarm, and interlocking circuits when required by the protection-system design. A relay can be configured to respond to a specific Alert, Danger, Not-OK, or measured-variable condition, while AND or OR logic can be used when several monitoring conditions must be considered together. This allows the module to provide discrete protection signals to external control or shutdown equipment. When a relay output is connected to a critical shutdown circuit, the relay operating mode and external circuit should be designed together so that the required fail-safe behavior is maintained. During commissioning, the complete signal path should be tested from the original monitoring condition through relay operation and finally to the external shutdown or interlocking equipment.

7. How does the 3500/33-03-00 work with other 3500 monitoring modules?
The 3500/33-03-00 works as part of the 3500 Machinery Protection System and uses alarm and status information generated by other monitoring modules in the rack. The monitoring modules acquire signals from machinery sensors and process conditions such as vibration, position, speed, or other machine parameters. When a configured alarm or status condition occurs, the relay module uses that information according to its programmed Alarm Drive Logic and controls the appropriate output. Signals from one monitor channel or combinations of several monitor channels can be used. This makes it possible to create centralized relay logic for complex machinery protection applications, such as activating one output when any of several alarms occurs or requiring multiple conditions before another relay changes state.

8. How should the 3500/33-03-00 be installed and commissioned?
The 3500/33-03-00 is a full-height module installed in a compatible 3500 rack, with the main module occupying one full-height front slot and the associated I/O module occupying one full-height rear slot. Before commissioning, the relay assignments should be checked against the machinery protection design, including alarm sources, voting logic, and the required NE or ND operating mode. The 3500 Rack Configuration Software should then be used to verify and configure the relay functions. During testing, each relay output should be individually checked by applying or simulating its associated alarm condition and confirming that the physical relay and connected external circuit respond correctly. Outputs used for shutdown or critical interlocking should receive a complete functional test, including verification of the external equipment response. The final configuration should be documented so that maintenance personnel can identify the purpose and logic of each relay channel during future troubleshooting.
