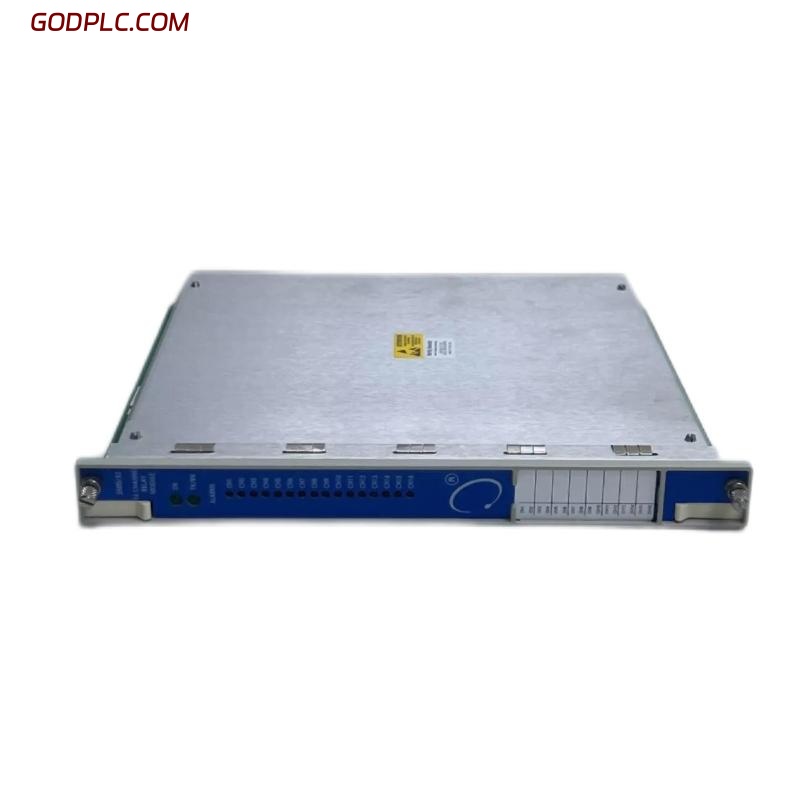

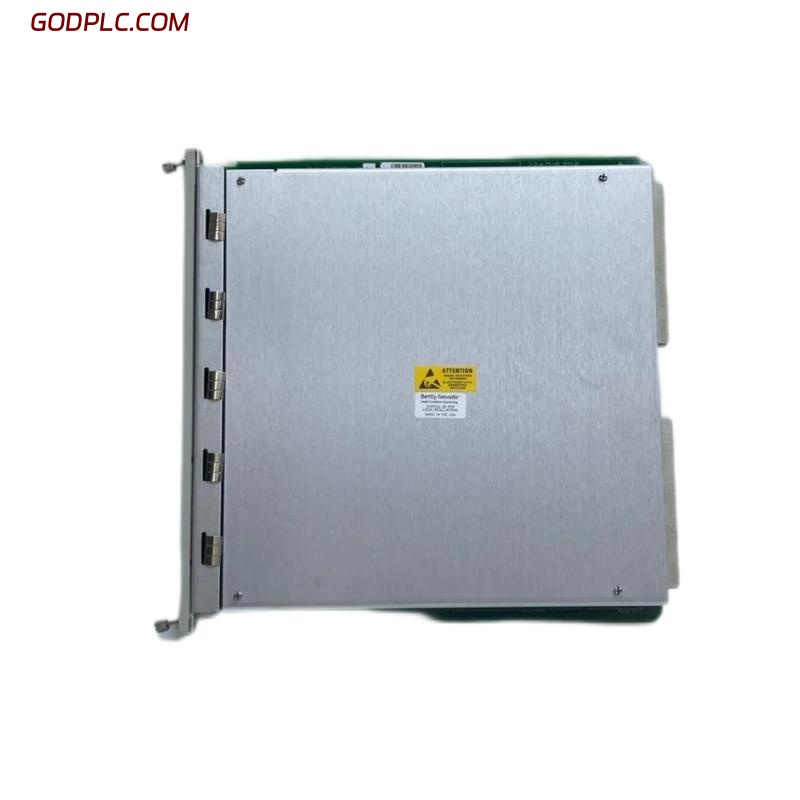

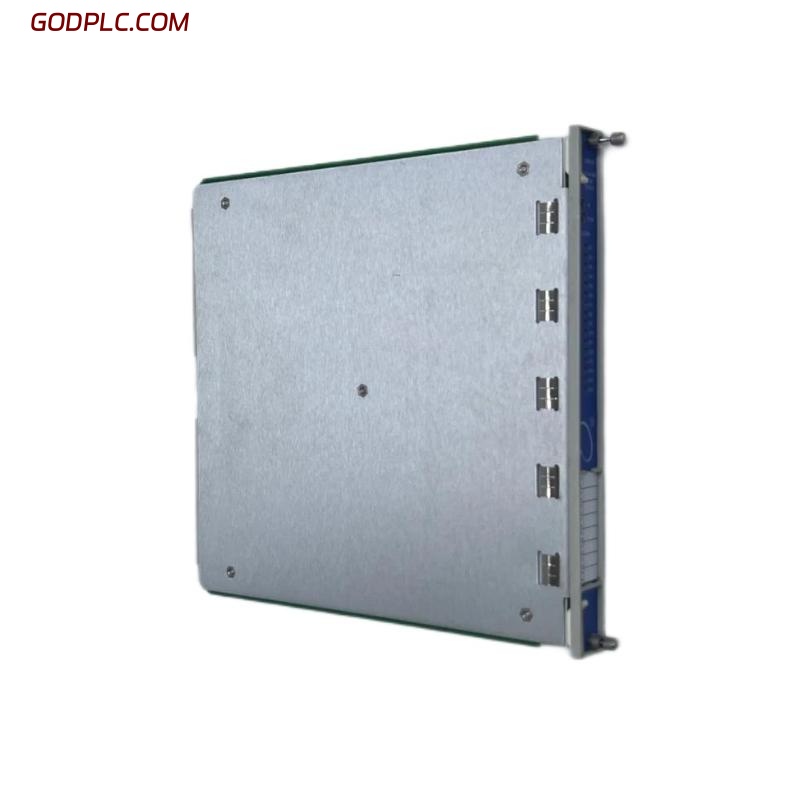

Bently Nevada 3500/33 149986-01D 16-Channel Relay Module
Product Overview
The Bently Nevada 3500/33 149986-01D is a full-height, 16-channel relay output module designed for use with the Bently Nevada 3500 Series machinery protection system. This module provides programmable relay outputs for alarm signaling, trip activation, and other control functions based on user-defined logic. With support for Alarm Drive Logic (ADL) and voting logic, it plays a critical role in safeguarding high-value rotating equipment across a wide range of industrial applications.
Key Features
-
16 Independent Relay Outputs – Each channel can be individually configured to trigger based on specific alarm conditions
-
Alarm Drive Logic (ADL) – Supports AND/OR logic for combining multiple monitoring signals into a unified output action
-
Voting Logic Capability – Enhances system integrity and minimizes nuisance trips through configurable voting logic
-
SPDT Relay Design – Single Pole Double Throw relays provide flexible control schemes
-
Selectable Relay Operation Mode – Relay channels (in groups of four) can be set to Normally Energized or Normally De-energized
-
Hot-Swappable Module – Can be replaced without powering down the entire system, reducing maintenance time and risk
Technical Specifications
3.1 Dimensions and Weight
| Item | Specification |
|---|---|
| Dimensions | 241 x 24.4 x 242 mm |
| Weight | 0.7 kg |
3.2 Electrical Characteristics
| Item | Specification |
|---|---|
| Channel Count | 16 relay outputs |
| Relay Type | SPDT (Single Pole Double Throw) |
| Contact Rating | 2 A @ 30 VDC / 0.5 A @ 125 VAC |
| Power Consumption | 5.8 W typical |
| Control Logic | Alarm Drive Logic and Voting Logic support |
3.3 Environmental Characteristics
| Item | Specification |
|---|---|
| Operating Temp | -30°C to +65°C |
| Storage Temp | -40°C to +85°C |
| Humidity | 5%–95% RH (non-condensing) |
| Vibration | IEC 60068-2 compliant |
3.4 System Compatibility
| Item | Specification |
|---|---|
| Platform | Bently Nevada 3500 Series Machinery Protection System |
| Installation | Installed to the right of the TDI module in the 3500 rack |
| Module Type | Full-height relay output module |
Industry Applications
-
Oil & Gas – Controls shutdown and alarm logic for compressors, turbines, and other rotating equipment
-
Power Generation – Provides relay control for generator protection and auxiliary systems
-
Chemical and Petrochemical – Supports control outputs for pumps and rotating assets in processing plants
-
Manufacturing – Enables precise alarm signaling to reduce downtime and enhance equipment safety
The Bently Nevada 3500/33 149986-01D Relay Module delivers robust and configurable relay outputs essential for protecting high-value machinery. Its flexible logic support, hot-swappable design, and reliable operation make it a critical component in modern industrial monitoring systems.
Bently Nevada 3500/33 149986-01D 16-Channel Relay Module is in stock. Please contact us for a quick quote and competitive pricing.
